RC-09P1N8A0000 - Contact insert

RC-09P1N8A0000 - Contact insert

1595375

Contact insert, M23, number of positions: 8+1, contact connection type: Pin, Crimp connection, series: NC, RC, RM, TU, UC

Product details

Expand all Collapse all

Technical data

Notes

Order information:	Order crimp contacts 8 x Ø 1 mm, 1 x Ø 2 mm separately

Product properties

Product type	Contact insert
Series	NC
		RC
		RM
		TU
		UC
Application	Signal
Number of positions	9

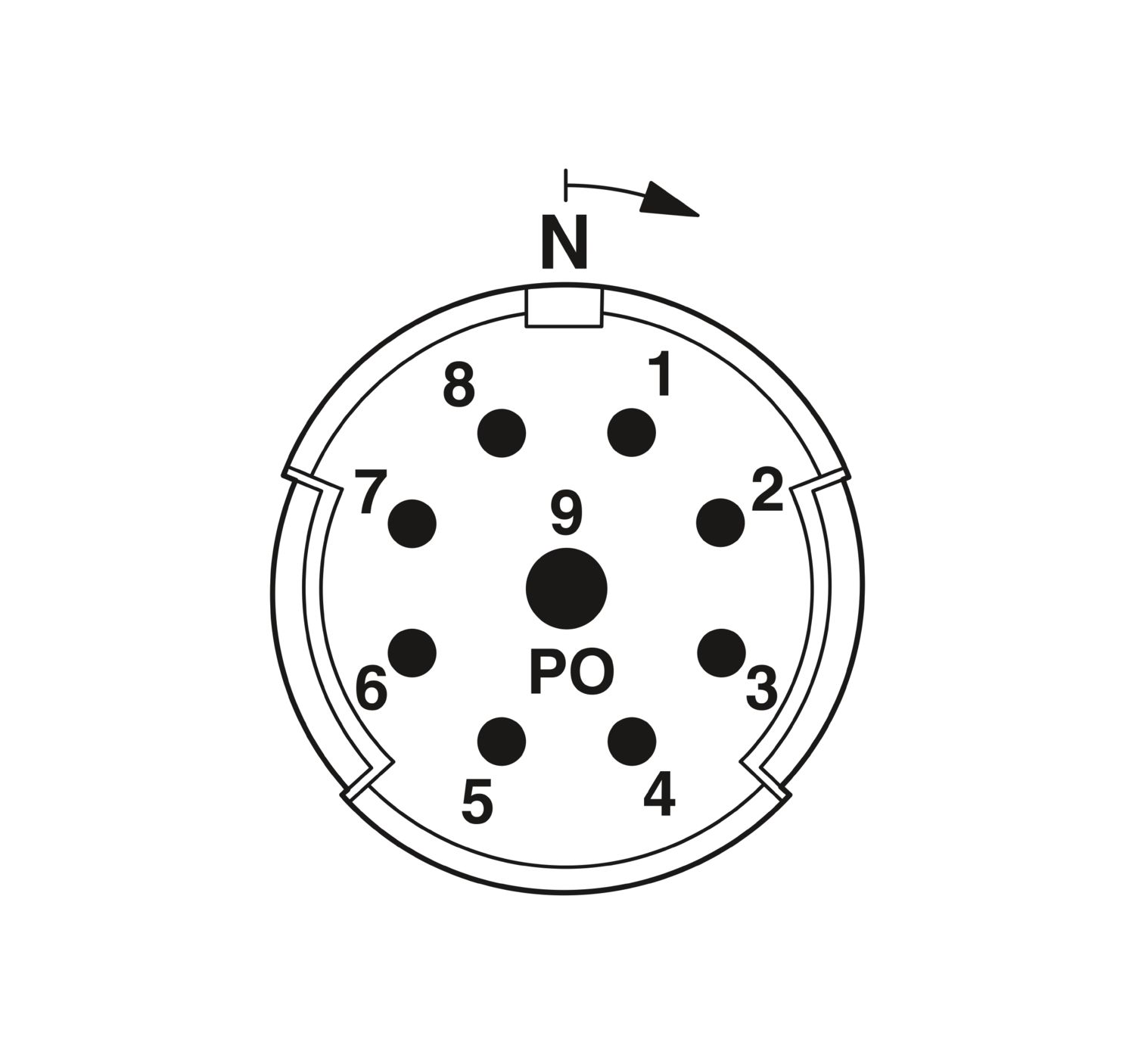

Connection profile	8+1
Coding	N
Thread type	M23

Electrical properties

Contact
Contact diameter	2 mm
Nominal voltage U_N	48 V AC
Nominal voltage U_N		74 V DC
Overvoltage category	III
Degree of pollution	3
Rated surge voltage	1.5 kV
Contact
Contact diameter	1 mm
Nominal voltage U_N	48 V AC
Nominal voltage U_N		74 V DC

Connection data

Connection method	Crimp connection

Material specifications

Insulation body material	PA66

Connector

Direction of rotation	Standard

Environmental and real-life conditions

Ambient conditions
Ambient temperature (storage/transport)	15 °C ... 25 °C
Permissible humidity (storage/transport)	50 % ... 65 %

Commercial data

Item number	1595375
Packing unit	50 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	141
Product key	ABRAFT
GTIN	4046356206297
Weight per piece (including packing)	2,03 g
Weight per piece (excluding packing)	1,785 g
Customs tariff number	85366990
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0

27440223

ETIM

ETIM 9.0

EC003557

UNSPSC

UNSPSC 21.0

39121400

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Compatible products

Expand all Collapse all

Accessories

RC-11P2000 - Crimp contact 1596770
RC-12P2000 - Crimp contact 1597862
RC-1KP2000 - Crimp contact 1602996
RC-22P2000 - Crimp contact 1603321
RC-22P2300 - Crimp contact 1603324
RC-22P2400 - Crimp contact 1603325
RC-21P2000 - Crimp contact 1603310
RC-21P2300 - Crimp contact 1603313
RC-21P2400 - Crimp contact 1611637
RC-5SP2000 - Crimp contact 1603529
RC-59P2000 - Crimp contact 1603498
RC-5CP2000 - Crimp contact 1603513
RC-5AP2000 - Crimp contact 1603505
