Compressed air meter with display and totalizer function, M12 fast connection technology, IO-Link, R1/2 process connection
The compressed air meter records the volumetric flow in accordance with ISO 2533. This eliminates the need for corrections in the event of fluctuations in temperature or pressure. The high measuring dynamics of the system enable the reliable detection of very small quantities such as leaks. When integrated in a defined measuring path, this system ensures a high degree of accuracy and reproducibility.
| Product type | Sensor |
| Supply: Module electronics | |
| Connection method | M12 connector |
| Number of positions | 4 |
| Supply voltage range | 19 V DC ... 30 V DC |
| Current consumption | < 100 mA |
| IO-Link | |
| Connection method | M12 connector |
| Analog: | |
| Protective circuit | Short-circuit protection, polarity reversal protection |
| Current output signal | 4 mA ... 20 mA |
| Load/output load current output | ≤ 500 Ω |
| Digital: | |
| Pulse value | 0.0010 m³ ... 1000000 m³ |
| Pulse length | min. 0.04 s |
| Delay time | 0.5 s (Operational readiness) |
| Connection method | M12 connector |
| Designation connection point | Copper cable |
| Number of positions | 4 |

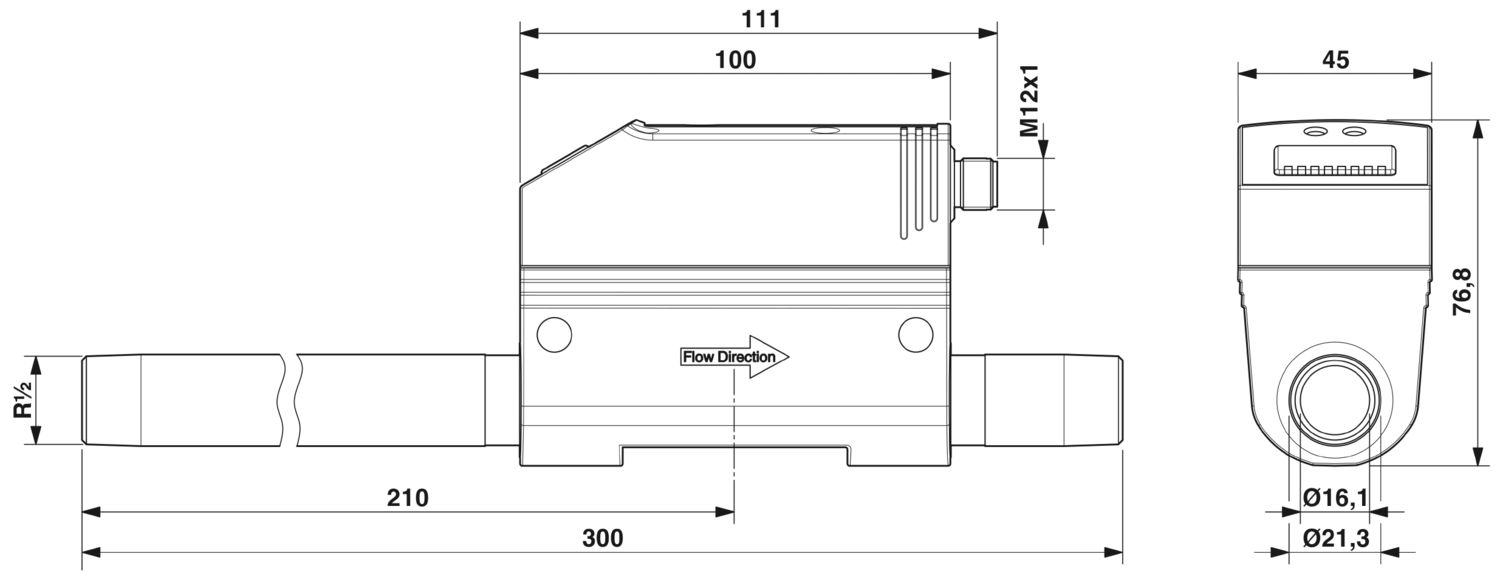

| Dimensional drawing |
|
| Width | 45 mm |
| Height | 300 mm |
| Depth | 76.8 mm |
| Color | jet black RAL 9005 |
| Ambient conditions | |
| Ambient temperature (operation) | 0 °C ... 60 °C |
| 0 °C ... 60 °C (Medium temperature) | |
| Ambient temperature (storage/transport) | -20 °C ... 85 °C |
| Permissible humidity (operation) | 0 % ... 90 % |
| Protection class | III |
