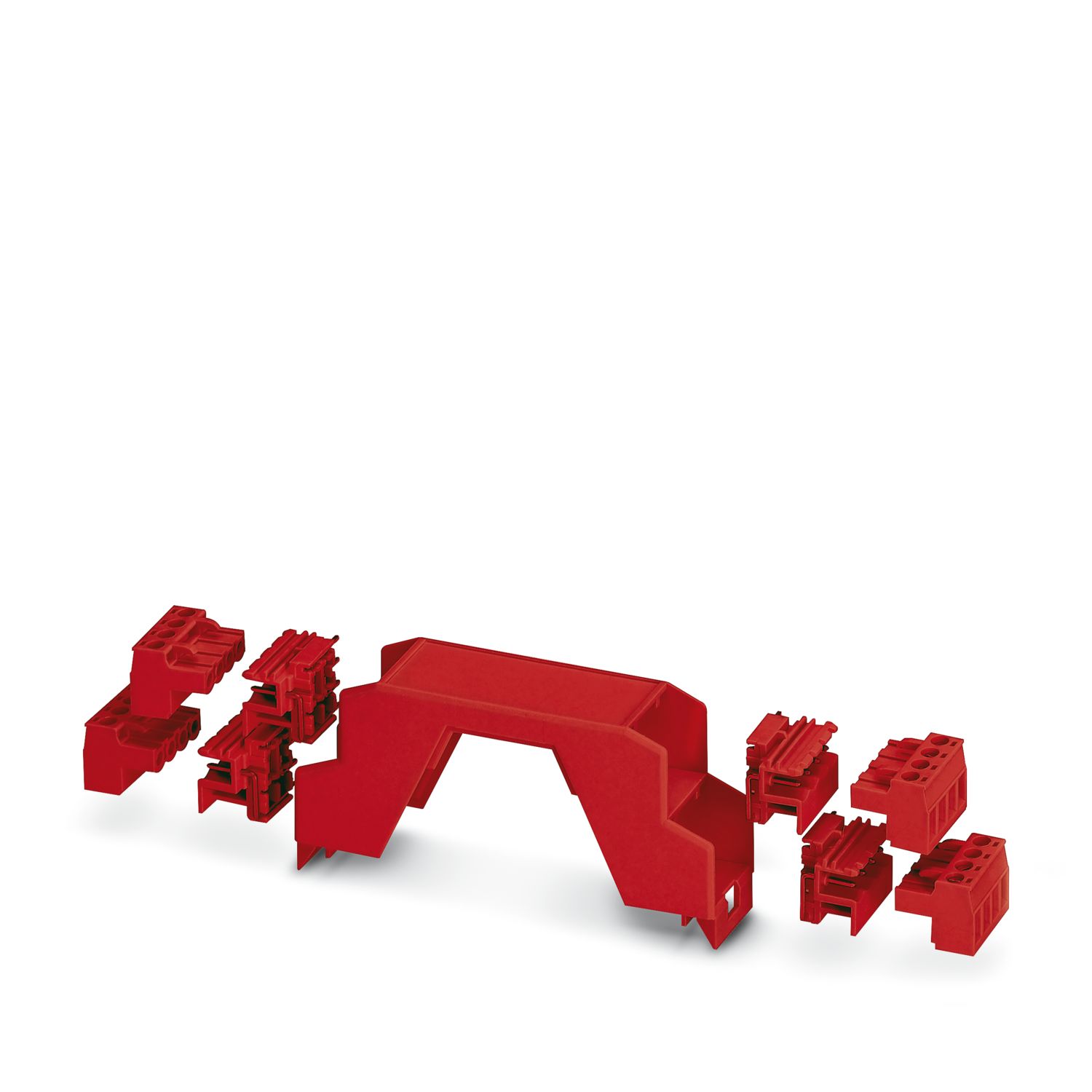

ME 22,5 OT-MSTBO SET RD - Upper housing part - 2200717

Assembly note	Please observe the application note in the download area.
Recommendation	Material of contact pads for bus connector, galvanic gold (hard gold)

Product type	Upper housing part
Housing type	DIN rail housing
Product family	ME OT MSTBO
Number of positions	16
Max. number of positions	20 (pitch: 3.5 mm)
	16 (pitch: 5 mm)
	12 (pitch: 7.25 mm)

Width	22.6 mm
Height	99 mm
Depth	45.85 mm
Depth from base support surface	38.5 mm
PCB design
PCB thickness	1.4 mm ... 1.8 mm

Color	red (RAL 3001)
Flammability rating according to UL 94	V0
Housing material	PA

Vibration test
Specification	IEC 60695-2-11:2014-02
Frequency	10 - 150 - 10 Hz
Sweep speed	1 octave/min
Amplitude	0.15 mm (10 Hz ... 58.1 Hz)
Acceleration	2g (58.1 Hz ... 150 Hz)
Test duration per axis	2.5 h
Test directions	X-, Y- and Z-axis
Glow-wire test
Specification	IEC 60695-2-11:2014-02
Temperature	850 °C
Time of exposure	30 s
Thermal stability / ball thrust test
Specification	IEC 60695-2-11:2014-02
Temperature	125 °C
Test duration	1 h
Force	20 N
Mechanical strength / tumbling barrel
Specification	IEC 60695-2-11:2014-02
Height of fall	50 cm
Frequency	10
Shocks
Specification	IEC 60695-2-11:2014-02
Pulse shape	Half-sine
Acceleration	15g
Shock duration	11 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Degree of protection (IP code)
Specification	IEC 60695-2-11:2014-02
Ambient conditions
Max. IP code to attain	IP20
Ambient temperature (operation)	-40 °C ... 105 °C (depending on power dissipation)
Ambient temperature (storage/transport)	-40 °C ... 55 °C
Ambient temperature (assembly)	-5 °C ... 100 °C
Relative humidity (storage/transport)	80 %

Number of PCB holders	1
Type of PCB mount	Latching
Thickness of the PCB	1.4 mm ... 1.8 mm

Type of packaging	packed in cardboard
Outer packaging type	Carton

Item number	2200717
Packing unit	10 pc
Minimum order quantity	250 pc
Note	Made to order (non-returnable)
Product key	ACHAAD
GTIN	4046356659949
Weight per piece (including packing)	53,88 g
Weight per piece (excluding packing)	53,88 g
Country of origin	DE
