  3. Mounting base housing - ME 45 UT/FE BUS/ 5 KMGY

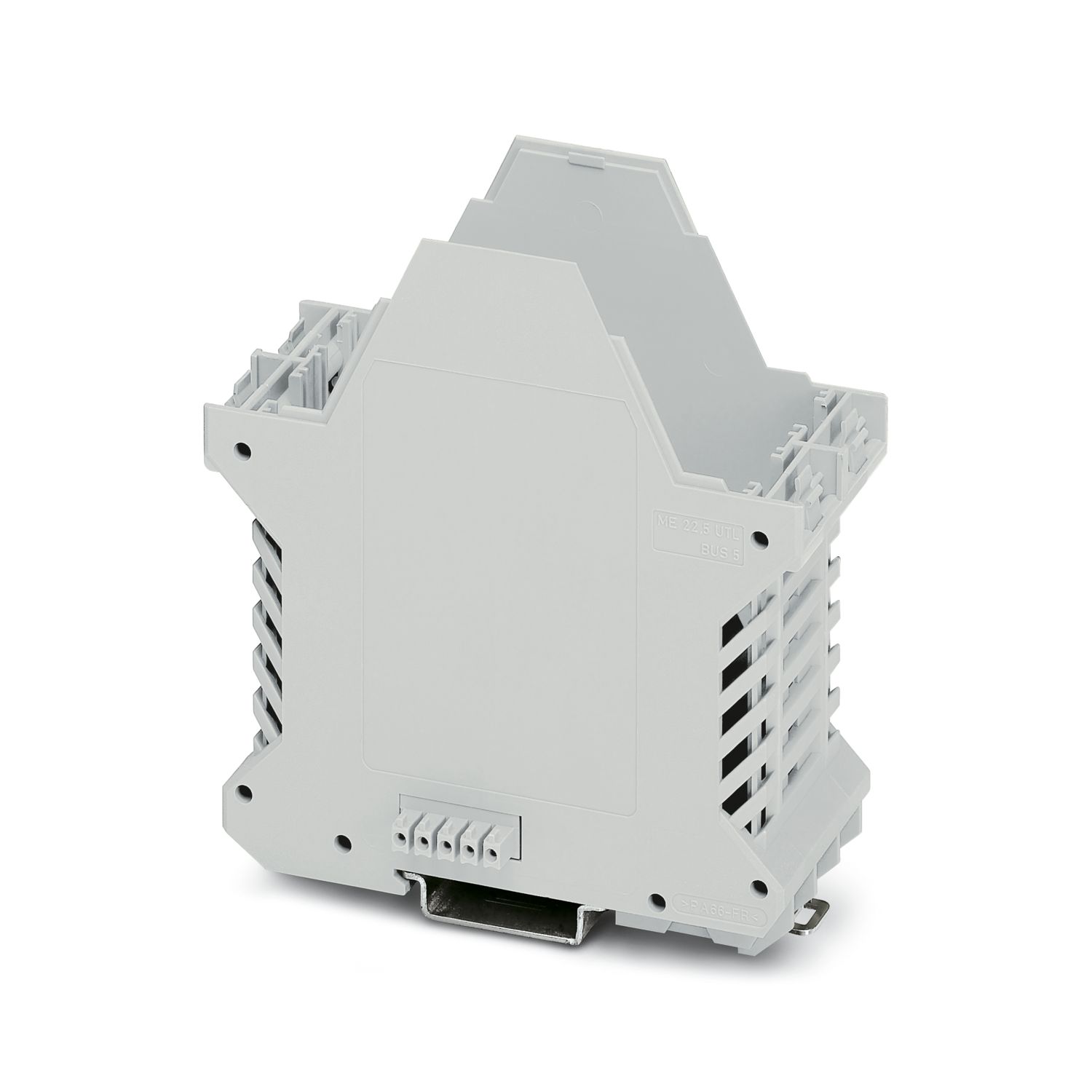

Mounting base housing - ME 45 UT/FE BUS/ 5 KMGY
2202690

DIN rail housing, Lower housing part with metal foot catch, tall design, with vents, width: 45.2 mm, height: 99 mm, depth: 107.3 mm, color: light gray (7035), cross connection: integrated bus connector, number of positions cross connector: 5

This product needs further products for operation. Mandatory Accessories

Product Details

Assembly instruction: Refer to the data sheet for the range in the download area.
Recommendation Material of contact pads for bus connector, galvanic gold (hard gold)
Product type Lower part of the housing
Number of positions 32
8
Type Lower housing part with metal foot catch, tall design
Housing type DIN rail housing
Ventilation openings present yes
Width 45.2 mm
Height 99 mm
Depth 107.3 mm
Depth from top edge of DIN rail 99.8 mm
Depth from top edge of DIN rail to support point on upper part 68.5 mm
Color light gray (7035)
Flammability rating according to UL 94 V0
Housing material Polyamide
Power dissipation single housing for 20 °C
Ambient temperature 20 °C
Reduction factor 1
Mounting position vertical
Power dissipation 8.2 W
Power dissipation single housing for 30 °C
Ambient temperature 30 °C
Reduction factor 0.91
Mounting position vertical
Power dissipation 7.5 W
Power dissipation single housing for 40 °C
Ambient temperature 40 °C
Reduction factor 0.81
Mounting position vertical
Power dissipation 6.6 W
Power dissipation single housing for 50 °C
Ambient temperature 50 °C
Reduction factor 0.7
Mounting position vertical
Power dissipation 5.7 W
Power dissipation single housing for 60 °C
Ambient temperature 60 °C
Reduction factor 0.57
Mounting position vertical
Power dissipation 4.7 W
Power dissipation single housing for 70 °C
Ambient temperature 70 °C
Reduction factor 0.49
Mounting position vertical
Power dissipation 4 W
Vibration test
Specification IEC 60068-2-6:2007-12
Frequency 10 - 150 - 10 Hz
Sweep speed 1 octave/min
Amplitude 0.15 mm (10 - 58.1 Hz)
Acceleration 2g (58.1 - 150 Hz)
Test duration per axis 2.5 h
Test directions X-, Y- and Z-axis
Glow-wire test
Specification DIN EN 60695-2-11 (VDE 0471-2-11):2014-11
Temperature 850 °C
Time of exposure 30 s
Thermal stability / ball thrust test
Specification IEC 60695-10-2:2014-02
Temperature 125 °C
Test duration 1 h
Force 20 N
Mechanical strength / tumbling barrel
Specification IEC 60998-1:2002-12
Height of fall 50 cm
Frequency 10
Shocks
Specification IEC 60068-2-27:2008-02
Pulse shape Half-sine
Acceleration 15g
Shock duration 11 ms
Number of shocks per direction 3
Test directions X-, Y- and Z-axis (pos. and neg.)
Degree of protection (IP code)
Specification IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08
Ambient conditions
Max. IP code to attain IP20
Ambient temperature (operation) -40 °C ... 105 °C (depending on power dissipation)
Number of PCB holders 2
Type of PCB mount Latching
Mounting type DIN rail mounting
Mounting position Vertical (horizontal DIN rail)
Type of packaging packed in cardboard
Outer packaging type Carton
Item number 2202690
Packing unit 10 pc
Minimum order quantity 10 pc
Note Made to Order (non-returnable)
Product Key ACHAAB
GTIN 4055626170220
Weight per Piece (including packing) 120,3 g
Weight per Piece (excluding packing) 120,3 g
Customs tariff number 85472000
Country of origin DE

ECLASS

ECLASS-9.0 27182702
China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Compatible Products

  1. Upper part of housing ME 45 OT-FKDSO KMGY - 2200327

  2. Upper part of housing ME 45 OT-MSTBO KMGY - 2854429

  3. Upper part of housing ME 45 OT-MKDSO KMGY - 2853255

  4. Upper part of housing ME 22,5 OT-MSTBO KMGY - 2907761

  5. Upper part of housing ME 22,5 OT-FKDSO KMGY - 2200323

  6. Upper part of housing ME 22,5 OT-MKDSO KMGY - 2908469

  7. Upper part of housing ME 22,5 OTU-MKDSO KMGY - 2278953

  8. Upper part of housing ME 22,5 OT-1MSTBO KMGY - 2914877

  9. Upper part of housing ME 22,5 OT-3MSTBO KMGY - 2914880

  10. Upper part of housing ME 22,5 OTP-MSTBO PS KMGY - 2279282

  1. PCB stop ME LPZS - 2906911

  2. PCB connector MCVR 1,5/ 5-ST-3,81 GY7035 AU - 1719684

  3. PCB connector MC 1,5/ 5-ST-3,81 GY7035 AU - 1719697

  4. Printed-circuit board connector IMC 1,5/ 5-ST-3,81 GY7035 AU - 1719707

  5. Cover ME B-KA KMGY - 2706302

  6. Cover ME B-SA/NS 35 KMGY - 2706700

  7. Spacer ME DH 27 NS 35 KMGY - 2706289

  8. Spacer ME DH 36 NS 35 KMGY - 2706292

  9. End clamp E/ME TBUS NS35 GY - 2713780

Your advantages

Item is from the ME product range
Tool-free mounting
Available in overall widths from 12.5 mm to 90 mm, modular extension is possible
Inflammability class V0 according to UL 94
Variety of connection technologies
Can be mounted on the DIN rail
Optional bus connector that is either integrated or mounted on the DIN rail
