HC-B-G-M25-ER-AL
-
Cable gland
1411443
EVO metal cable gland with bayonet locking, B series, size M25, cable diameter: 11 - 16 mm
Product details
| Product type | Cable screw gland |
| Application | for greater strain relief |
| No. of conductors | 1 |
| Type of the screw connection | M25 |
| Shielded | no |

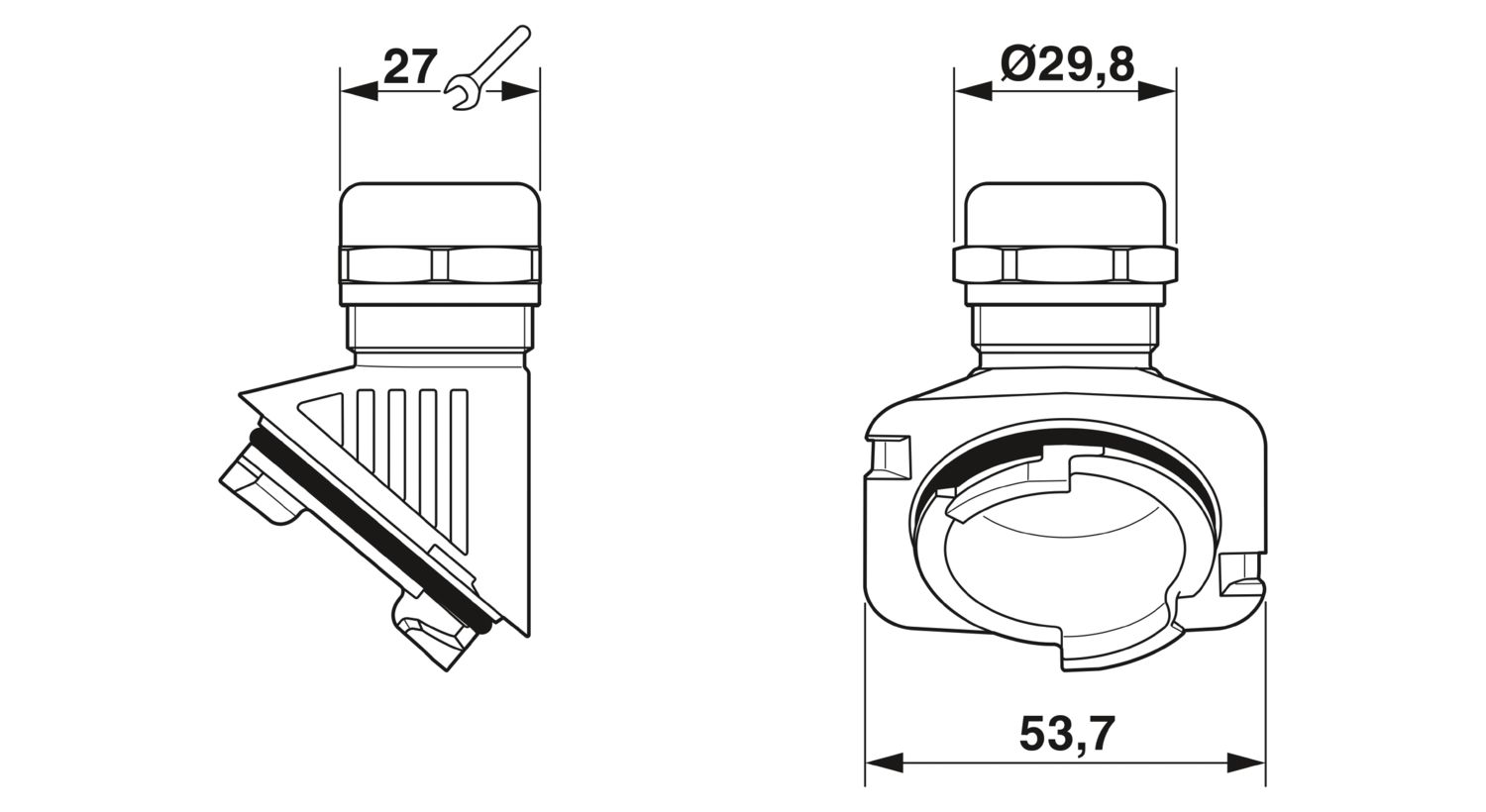

| Dimensional drawing |
|
| Wrench size, union nut | 27 mm |
| Color | aluminum color |
| Material Pressure screw | Brass, nickel-plated |
| Seal material O-ring | NBR |
| Seal material Cable seal | NBR |
| Housing material | Die-cast aluminum, corrosion resistant |
| Material for screw connection | Aluminum |
| External cable diameter Cable 1 | 11 mm ... 16 mm |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Ambient temperature (operation) | -40 °C ... 125 °C (static) |
