CAPAROC is your customizable electronic circuit breaker system for overcurrent protection in 12 V to 24 V applications. The standard versions offer up to 10A per channel, and the versions up to 4A are approved in accordance with NEC Class 2.
All the breaker modules offered are UL 508 Listed and UL 2367 Recognized. They are available in 1-, 2-, and 4-channel options. The standard versions offer up to 10A per channel, and the versions up to 4 amps are approved in accordance with NEC Class 2. With versatile combination options, easy design-in, and simple operation, you can create a tailored system specifically for your device protection needs.
- Simple to advanced communication with PROFINET power module
- Current rail provides uninterruptible power during installation and maintenance
- Fixed or adjustable nominal current on individual channels
- Multi-colored LEDs for transparent operating status indication on each channel
- Manual or remote reset via the reset input
- Up to 45A in one system
- Cascaded startup of several loads with high inrush current
Intuitive circuit breaker system
Power feed-in modules Power feed-in modules
The brain of the system is the power module which can be interfaced via various communication protocols. The standard power module monitors trip status and provides remote reset for tripped circuits. The PROFINET power modules interface with devices at the cabinet and enable remote access to the device data. Remote capabilities make this system easy to monitor and easy perform maintenance from anywhere.
1- and 4-channel circuit breaker modules

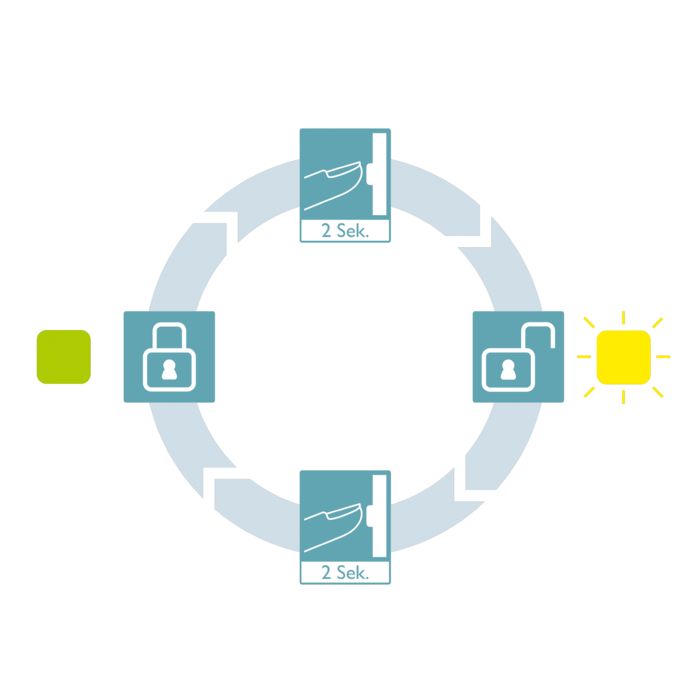

1-channel modules are available with fixed and adjustable nominal currents, and 4-channel modules are available with adjustable nominal currents. The nominal current of individual channels can be adjusted remotely using the online interface or manually via the LED push-button operation.
2-channel circuit breaker modules
The 2-channel modules allow you to easily read off the set nominal current directly on the device at any time. These modules can be individually adjusted from2 to 10A or 1 to 4A on the NEC Class 2 versions. Both are equipped with active current limitation to ensure a more efficient utilization of the upstream power supply. The active current limitation restricts short circuit and overload currents to a value that is 1.5 to 2 times the nominal current. This protects the power supply against excessively high currents and prevents output voltage dips.
0 V distribution modules
The 0 V distribution modules are an ideal addition alongside every circuit breaker module. They allow the 0 V potential to be fed back directly via the CAPAROC system. The return conductor from every protected circuit can be conveniently connected in the system. Separate terminal blocks for 0 V distribution are no longer necessary. Blue color-coded pushers make it easy to differentiate between the 0 V and 24 V potentials.
The current rail ensures the safe and uninterrupted supply of power to the modules. Perform maintenance work at any time without interrupting operation. Unplugging individual modules only removes power to those modules. The rest of the system continues to operate and does not shut down. The CAPAROC system can be extended at any time to meet the needs of your application.
Configurator Configure your customized circuit breaker system according to your demands.
The online configurator helps you design an overcurrent protection system that precisely meets your needs. Each project contains a 3D model, detailed bill of materials, data sheet, and a unique solution ID, making it possible to re-enter the project to make changes or additions.
The circuit breaker modules in the CAPAROC system are intuitive and easy to configure. The nominal current of each individual channel can be manually or remotely programmed or reset. The tri-colored LEDs indicate the operating state of each channel. The remote diagnostics and ability to remote reset increases safety and helps reduce downtime with easy maintenance from anywhere.
Create customized protection from the versatile options of the CAPAROC modular system with data-driven power modules to help you design an intelligent system. Select various circuit breaker modules based on features including cascaded channel start-up, intelligent tripping, active current limitation, and intelligent load shedding.
Each CAPAROC system can be easily upgraded with the PROFINET power module, so you can conveniently program, monitor, and view your system’s data from the power supply to the load. CAPAROC is also compatible with PLCnext Technology when using the PROFINET power module. The web interface provides a complete overview of system status and data to make changes easily.
Current rails are the elementary blocks of the CAPAROC system. They ensure the uninterruptible supply of power to all the modules in the system. Modules can be added or removed easily without downtime. The distribution modules are the perfect addition alongside every circuit breaker module for the 0 V load return. You can also easily distribute power and eliminate the need for 24 V fuses and additional terminal blocks.
More than just circuit protection
A new customizable circuit breaker system offers advantages from design through operation.
