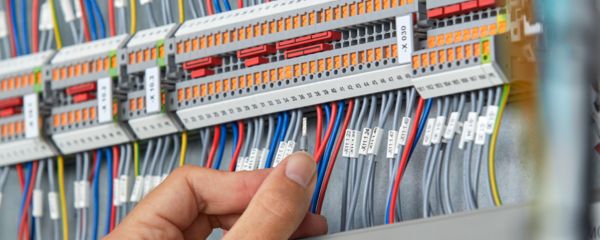

The PTV terminal block range combines the advantages of tool-free Push-in connection with lateral screw terminal block conductor routing. This enables PTV terminal blocks to offer you direct, fast connection technology and clearly arranged wiring without bend radii in just one terminal block.
Your advantages
- More easily identifiable connection and conductor marking thanks to lateral conductor routing
- Clearly arranged wiring without bending radii
- Time-saving conductor connection with tool-free Push-in direct connection technology
- The conductor can be easily released without special tools
- The connection principle and conductor routing are self-explanatory
- Use of CLIPLINE complete accessories
Lateral Push-in technology
Push-in technology
With PTV terminal blocks, you can connect rigid conductors or those fitted with ferrules directly and without using any tools. The spring profile enables you to connect rigid conductors from 0.5 mm² easily and without tools. The contact spring is opened automatically when the conductor is pushed in, thus ensuring the required pressure force. Flexible conductors with a cross section of 0.14 mm² and above without ferrules can be connected with the help of the push button. Regardless of which listed conductor size you use, the contact spring ensures maximum contact and conductor pull-out forces with a vibration-resistant, gas-tight connection. Moreover, the high-quality, hard-faced copper alloy ensures the lowest contact resistances and maximum current transfer.
Feed-through terminal blocks
Feed-through terminal blocks, multi-conductor terminal blocks, and double-level terminal blocks
Feed-through terminal blocks, multi-conductor terminal blocks, and double-level terminal blocks feature a compact design. The terminal blocks can be bridged flexibly and marked quickly and easily. This makes these terminal blocks true all-rounders of connection technology.
Fuse terminal blocks
Fuse terminal blocks
PTV fuse terminal blocks enable type G 5 x 20 fuses to be integrated into your system, saving space and ensuring clarity. The pivoting lever enables you to replace the fuses quickly and conveniently. With the optical indicators, faulty fuses are quickly identified, regardless of the current direction. Thanks to the lateral conductor connection, you can fully open the levers of the fuse terminal blocks without problems, even when conductors are connected.
Disconnect and knife disconnect terminal blocks
Disconnect and knife disconnect terminal blocks
Where space is restricted, PTV disconnect terminal blocks with lateral conductor connection enable the clear separation of signal currents. The product portfolio of these terminal blocks consists of versions with function shaft and versions without function shaft.
The circuits of knife disconnect terminal blocks can be opened easily with a standard screwdriver. The disconnect lever latches into the end position, ensuring that the switching states of the knife disconnect terminal blocks are permanently secured and always clearly detected. PTV disconnect terminal blocks, on the other hand, feature a disconnect zone in which various function plugs can be installed without tools. To ensure an ideal testing option despite assembled function shaft, the terminal blocks feature double-sided test points. These test points guarantee an easy and safe testing option. The flat contact on the current bar ensures reliable test results.
Disconnect terminal block with function plug
Multifunctional disconnect zone
PTV disconnect terminal blocks have a standardized disconnect zone. The disconnect zone accommodates various connectors such as fuse plugs, component connectors, feed-through connectors, and isolating plugs. This versatility enables you to customize your switching devices.
Use the function plugs. Turn a disconnect terminal block into a component terminal block, fuse terminal block, or feed-through terminal block quickly and easily.
