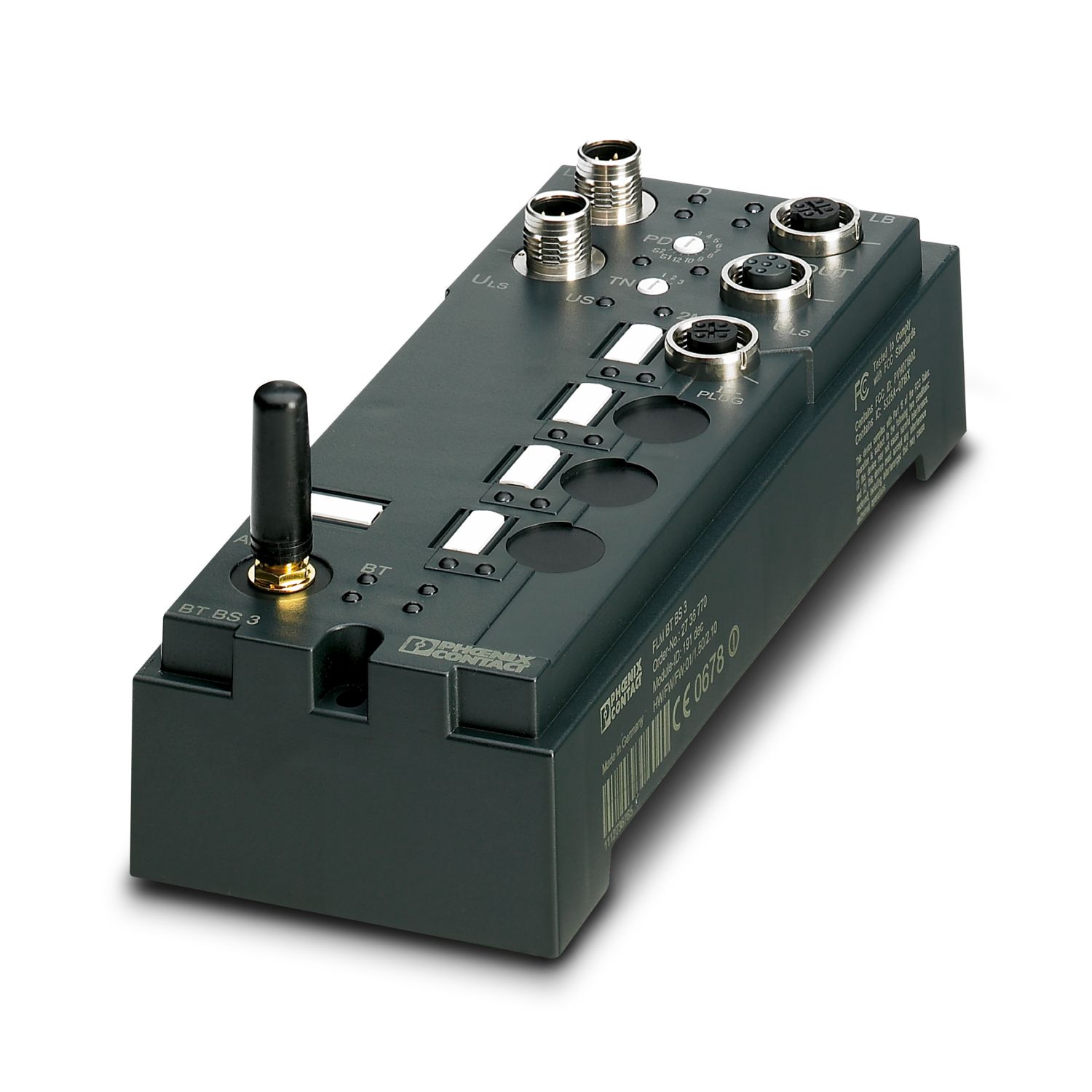

FLM BT BS 3
-
Wireless module
2736770
Wireless IO base station for up to three Wireless IO devices, Bluetooth V1.2, 2.4 GHz frequency band; 1 wireless interface; WLAN-BlackChannelList; LEM; Fieldline Modular M12 local bus connection
Product details
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Wireless module |
| Product family | Fieldline |
| Type | modular |
| MTBF | 554 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| 185 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
| Module | |
| ID code (dec.) | 191 |
| ID code (hex) | BF |
| Length code (hex) | 0C |
| Process data channel | 24 Byte |
| Input address area | max. 24 Byte |
| Output address area | max. 24 Byte |
| Register length | 24 Byte |
| Required parameter data | 24 Byte |
| Maximum power dissipation for nominal condition | 2.4 W |
| Supply: Module electronics | |
| Connection method | M12 circular connector |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including ripple) |
| Supply current | < 100 mA |
| Fieldline Modular local bus | |
| Connection method | M12 connector, B-coded |
| Transmission speed | 500 kBaud / 2 MBaud (data rate can be changed via pin 5 (voltage supply ULS)) |
| Transmission physics | Copper |
| Address area assignment | 3 ... 12 words, variable, depending on type and number of wireless modules connected |
| Antenna | |
| Number | 1 |
| Connection method | SMA (male) |
| Functions | |
| Wireless licenses | Europe, additional countries in the e-shop |
| Country support | Australia (Special rule: Please contact the Product Manager) |
| Canada | |
| Russia (Special rule: Please contact the Product Manager) | |
| Switzerland | |
| Singapore | |
| Turkey | |
| USA | |
| Wireless | |
| Designation | Bluetooth |
| Antenna connection method | SMA (female) |
| Frequency range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Wireless standard | Bluetooth 1.2 |
| Transmission power | 8 dBm (can be set between 0 dBm and 14 dBm, in 4 dB increments) |
| Receiver sensitivity | -88.00 dBm |
| Wireless modules that can be connected | up to 3 (2736767 FLM BT DIO 8/8 M12, 2693208 FLM BT DI 16 M12, 2884282 ILB BT ADIO 2/2/16/16) |
| Dimensional drawing |
|
| Width | 70.5 mm |
| Height | 178.5 mm |
| Depth | 50 mm |
| Drill hole spacing | 168 mm |
| Color (Housing) | anthracite grey (RAL 7016) |
| Technical data | |
| Drill hole spacing | 168 mm |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) |
| Permissible humidity (operation) | 95 % |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | Panel mounting, optionally on mounting panel |
| Panel mounting | |
| Assembly note | OMNI antenna is included |
Your advantages
WLAN coexistence functions AFH, LEM, black channel listing

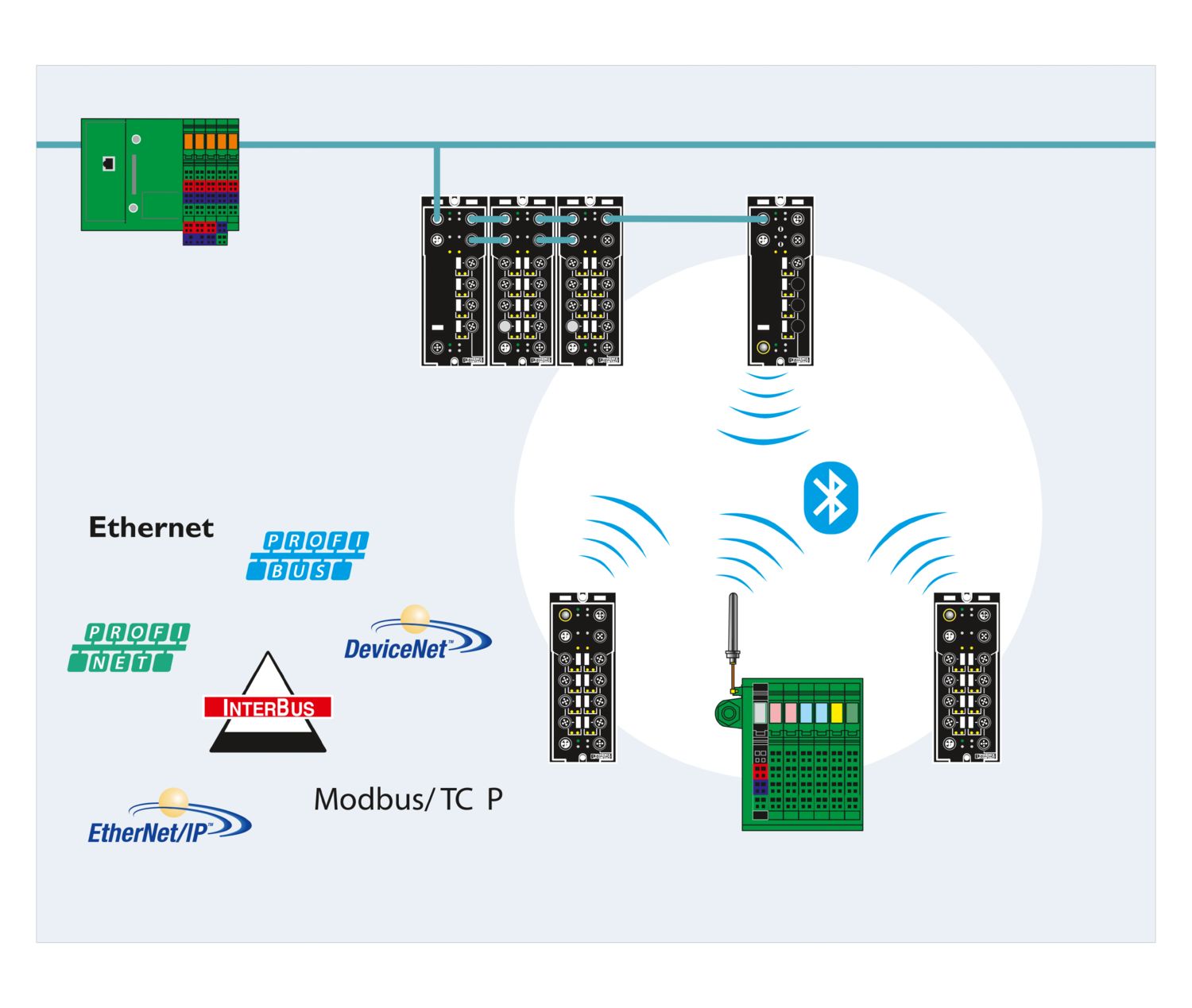

Parallel operation of numerous Bluetooth systems
Quick and easy startup
Extremely rugged and reliable
