FL TIMESERVER NTP
-
Wireless module
1107132
GNSS receiver and NTP (Network Time Protocol) for Ethernet networks, receives time, date, and location via GPS, GLONASS, or Galileo, web-based management, supply via PoE (af) or 24 V DC, integrated antenna, IP68 housing
Free download available.
Downloads
Product details
| Note on application | |
| Note on application | Only for industrial use |
| Product type | Wireless element |
| Operating mode | NTP server (NTPv4) stratum 1 |
| MTBF | 60 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) |
| 168 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| 316 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| Maximum power dissipation for nominal condition | 2.5 W |
| General | |
| Response time | ≤ 2 ms (NTP, dependent on Ethernet network and available network capacity) |
| 1 s (Polling rate of NMEA position data via TCP) | |
| Switch-on time | ≤ 100 s (Time until sat fix (cold restart, incl. device start)) |
| ~ 40 s (Device start) | |
| Real-time clock | |
| Accuracy realtime clock | <15 seconds/month in offline mode (no GNSS reception or Internet connection, no temperature fluctuations) |
| <60 seconds/month in offline mode (no GNSS reception or Internet connection, with temperature fluctuations) | |
| Supply: Module electronics | |
| Connection technology | COMBICON |
| Connection method | Push-in spring connection |
| Note on the connection method | Recommended conductor cross section: 0.75 mm² |
| Recommended ferrule: connection length 10 mm | |
| Recommended crimping pliers: trapezoidal or square | |
| Designation | 1966101 FMC 1,5/ 3-STF-3,5 |
| Number of positions | 2 |
| Cross section range AWG | 24 ... 16 (Use copper wires rated 75° C (UL)) |
| Supply voltage | 24 V DC (SELV) |
| Supply voltage range | 10 V DC ... 30 V DC (SELV) |
| Power over Ethernet (PoE IEEE 802.3af or higher) | |
| Current consumption | ≤ 104 mA (24 V) |
| max. 175 mA (UL, 10 V) | |
| max. 60 mA (PoE) | |
| Power consumption | ≤ 2.5 W |
| 1966101 FMC 1,5/ 3-STF-3,5 | |
| Connection method | Push-in spring connection |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | ... 16 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 0.75 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| Stripping length | 10 mm |
| Functions | |
| Configuration | Web-based management |
| Ethernet (RJ45) | |
| Number of interfaces | 1 |
| Connection method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission speed | 10/100 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
| No. of channels | 1 (RJ45 port) |
| Protocols supported | SNTP |
| NTP (v1, v2, v3, v4, without authentication) | |
| NMEA 0183 (via TCP) | |
| HTTP | |
| HTTPS | |
| SNMP | |
| SSH | |
| DHCP | |
| VLAN | |
| Telnet | |
| Wireless | |
| Designation | GNSS (GPS / Galileo / GLONASS) |
| Antenna connection method | (Internal) |
| Frequency | 1575.42 MHz (GPS, L1C/A) |
| 1602 MHz +k * 562,5 kHz (GLONASS, L1OF) | |
| 1575.42 MHz (Galileo, E1-B/C) | |
| Accuracy class | CEP50= 5 m (Outdoor assembly) |

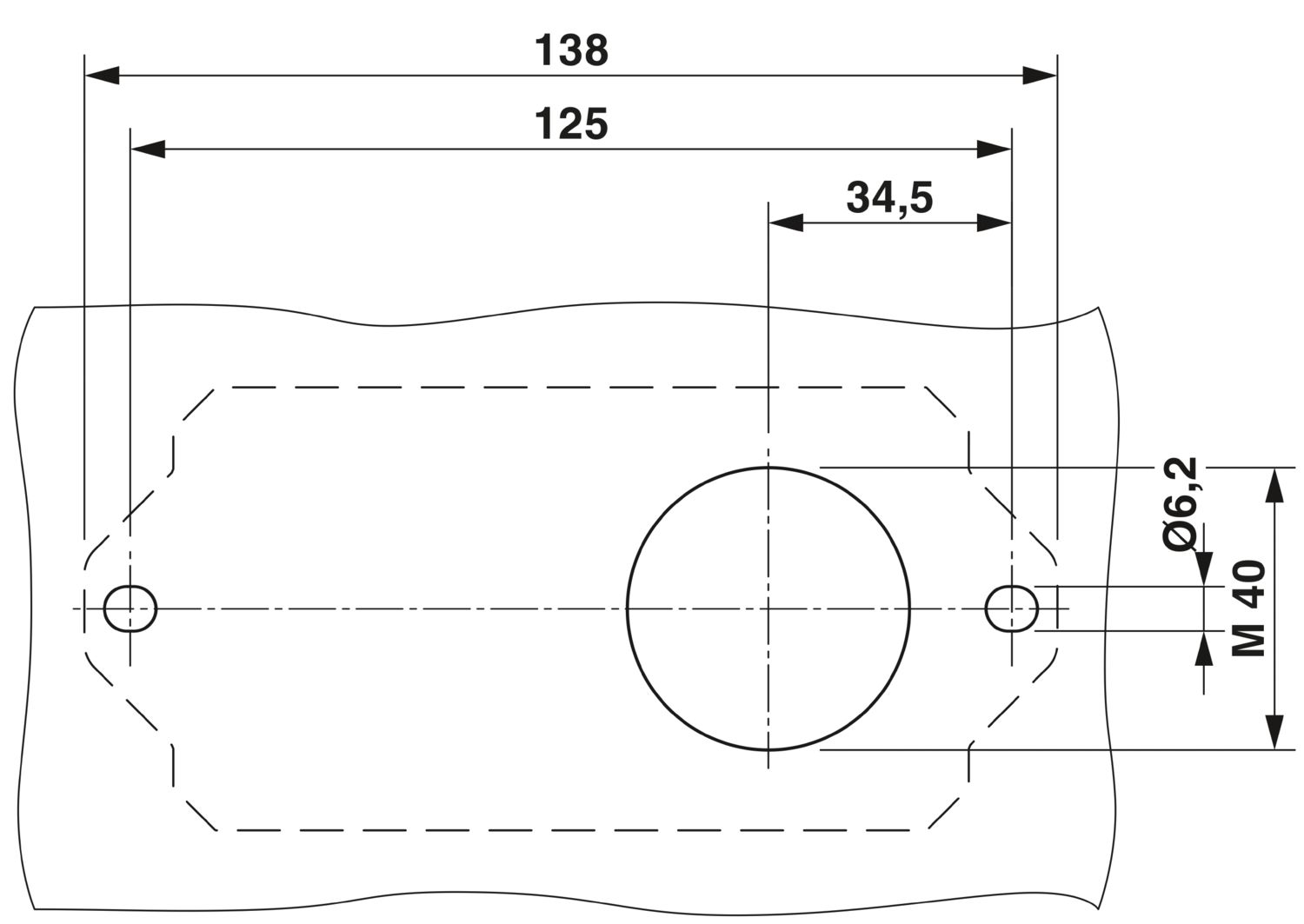

| Dimensional drawing |
|

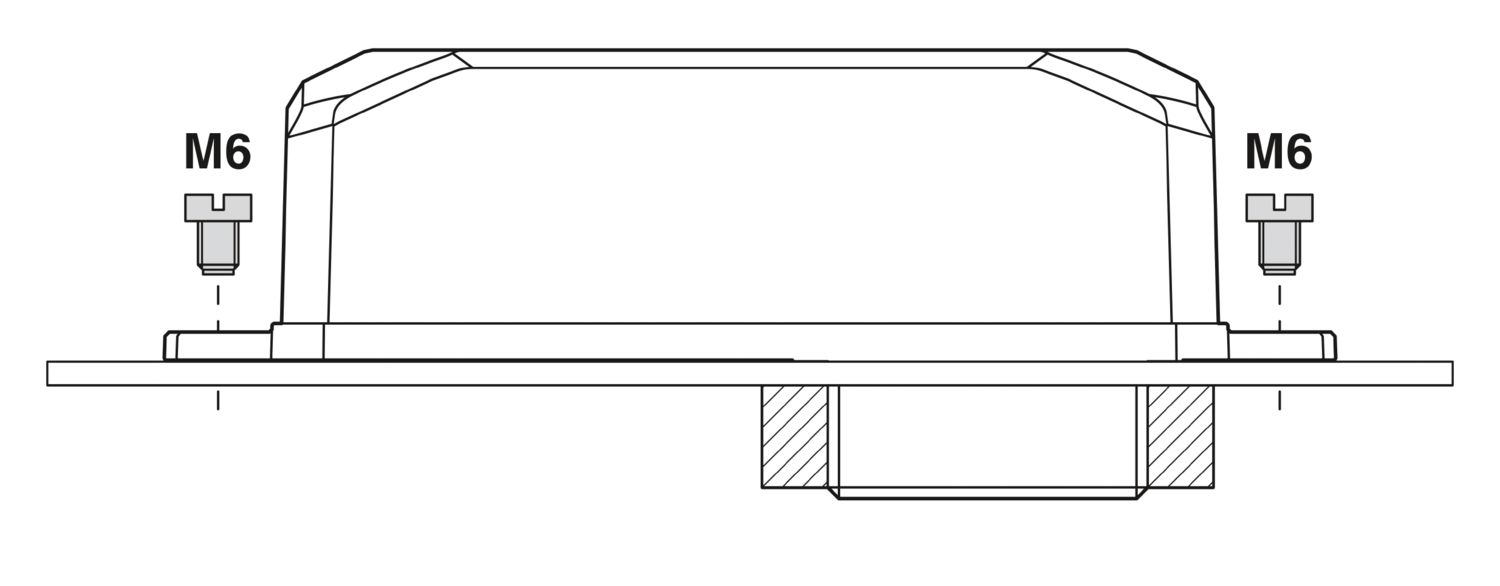

| Width | 62.8 mm |
| Height | 36.5 mm |
| Depth | 113.2 mm |
| Note on dimensions | Outside dimensions |
| Color (Housing) | black (RAL 9005) |
| Material (Housing) | Polycarbonate |
| Material (Base plate) | Die-cast zinc, nickel-plated |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Degree of protection | IP68 (Manufacturers declaration, not evaluated by UL) |
| UL/CSA: Enclosure Type Rating 1 (indoor use) | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| CE | |
| Certificate | CE-compliant |
| UL, USA/Canada | |
| Identification | UL 61010 Listed |
| Mounting type | Outdoors in the open |
| Assembly note | Outside of control cabinets or other metal housings |
Your advantages
High availability thanks to a range of different satellite systems
Automatic switching between GPS, Galileo, and GLONASS
Robust IP68 housing with integrated antenna for easy installation outside the control cabinet
Fast, inexpensive connection with just one Power over Ethernet cable

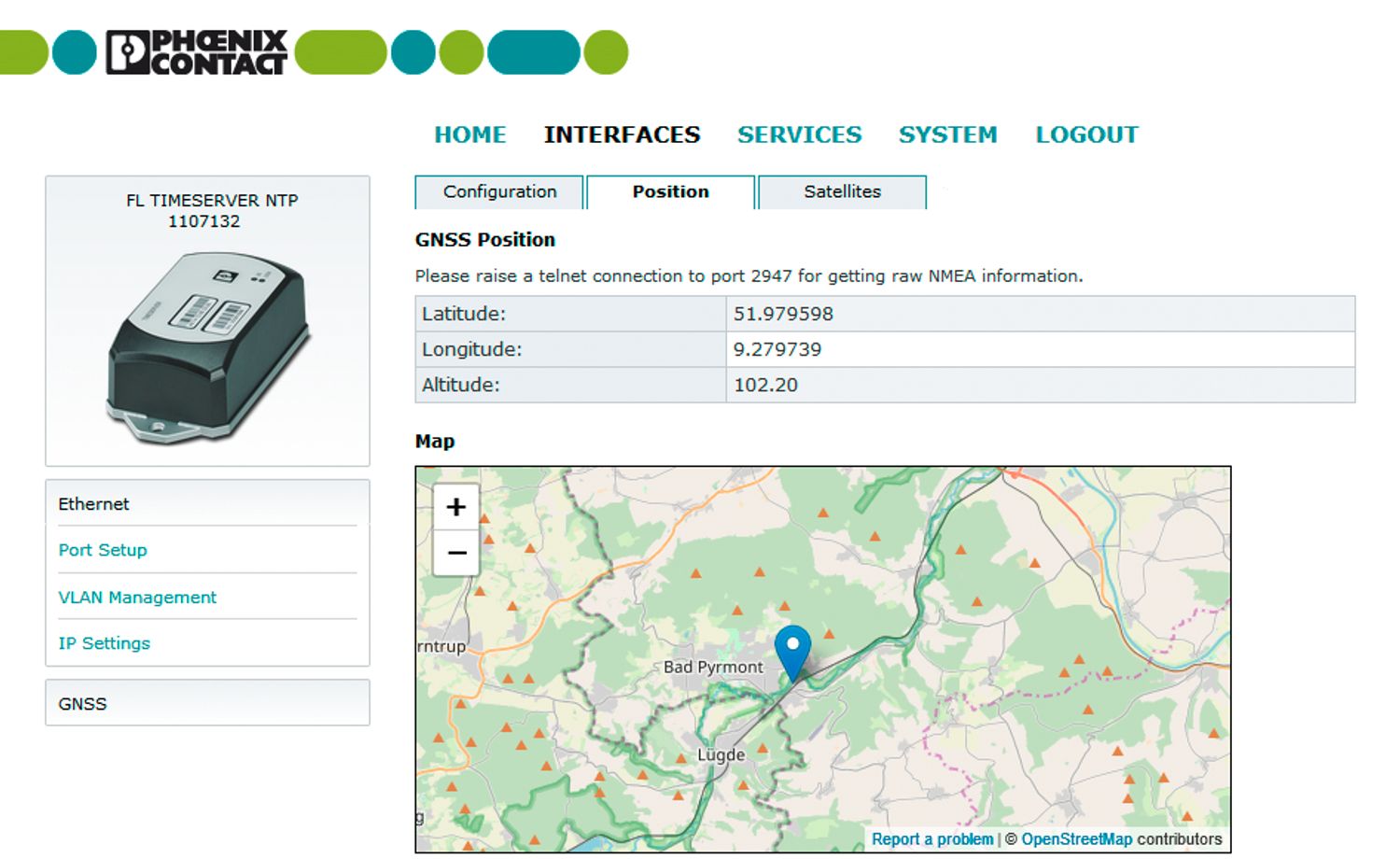

Precise position determination via web-based management, SNMP, NMEA, or JSON streaming
Extended temperature range of -40 °C … +70 °C
Frequently asked questions
What time does the device provide?
Coordinated universal time (UTC) is provided via the NTP protocol. You must set the time zone, summer and winter time locally on the end devices (NTP clients).
How do I reset the device to the default settings?
Switch on the device. Wait until the device is in operation. You will know this by the fact that the US LED is lit continuously and the LOCK LED is flashing or is lit continuously.
Press and hold the Reset button (2) for precisely 10 seconds.
T...
View more
Switch on the device. Wait until the device is in operation. You will know this by the fact that the US LED is lit continuously and the LOCK LED is flashing or is lit continuously.
Press and hold the Reset button (2) for precisely 10 seconds.
The device then restarts with the default settings. The IP address is 192.168.0.254.
