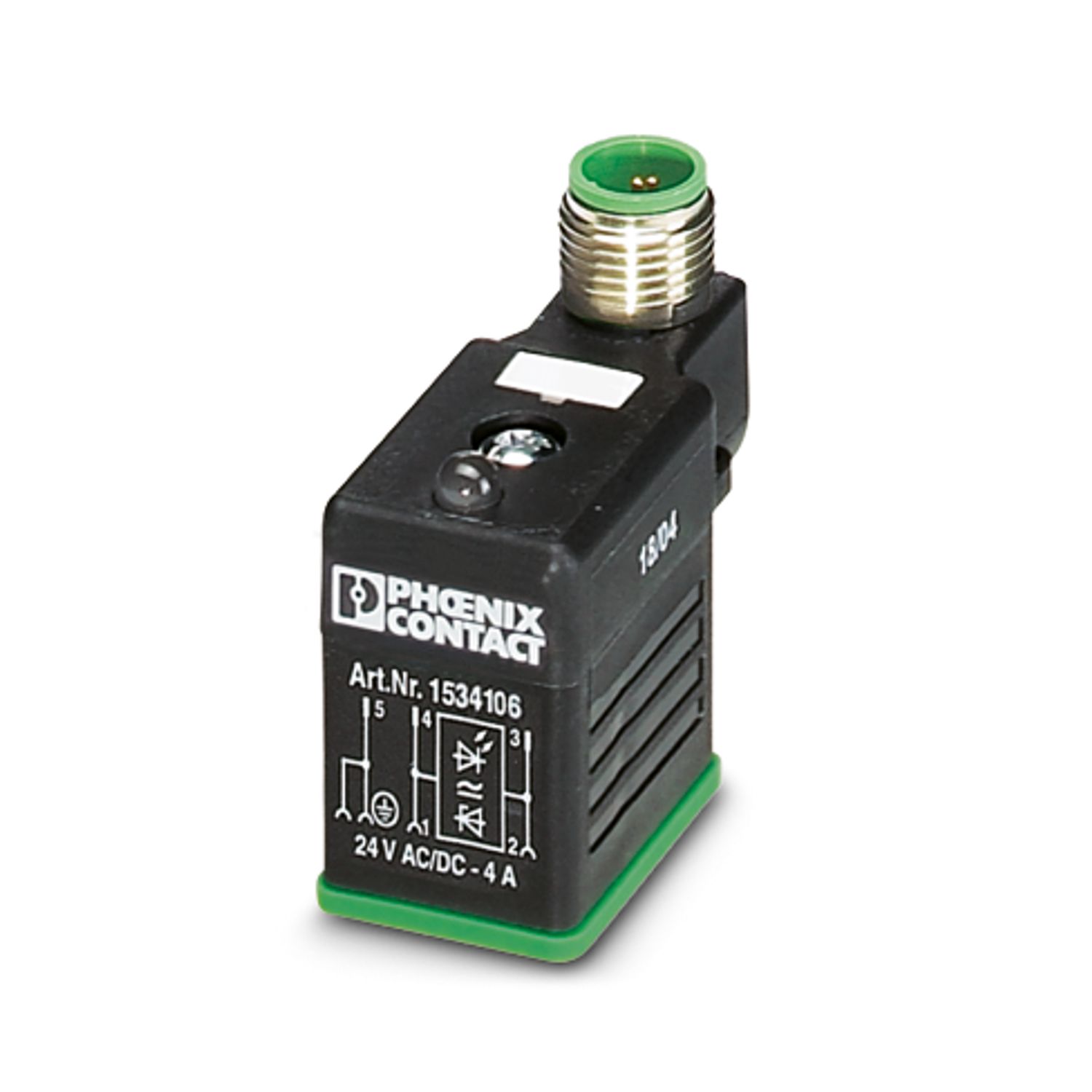

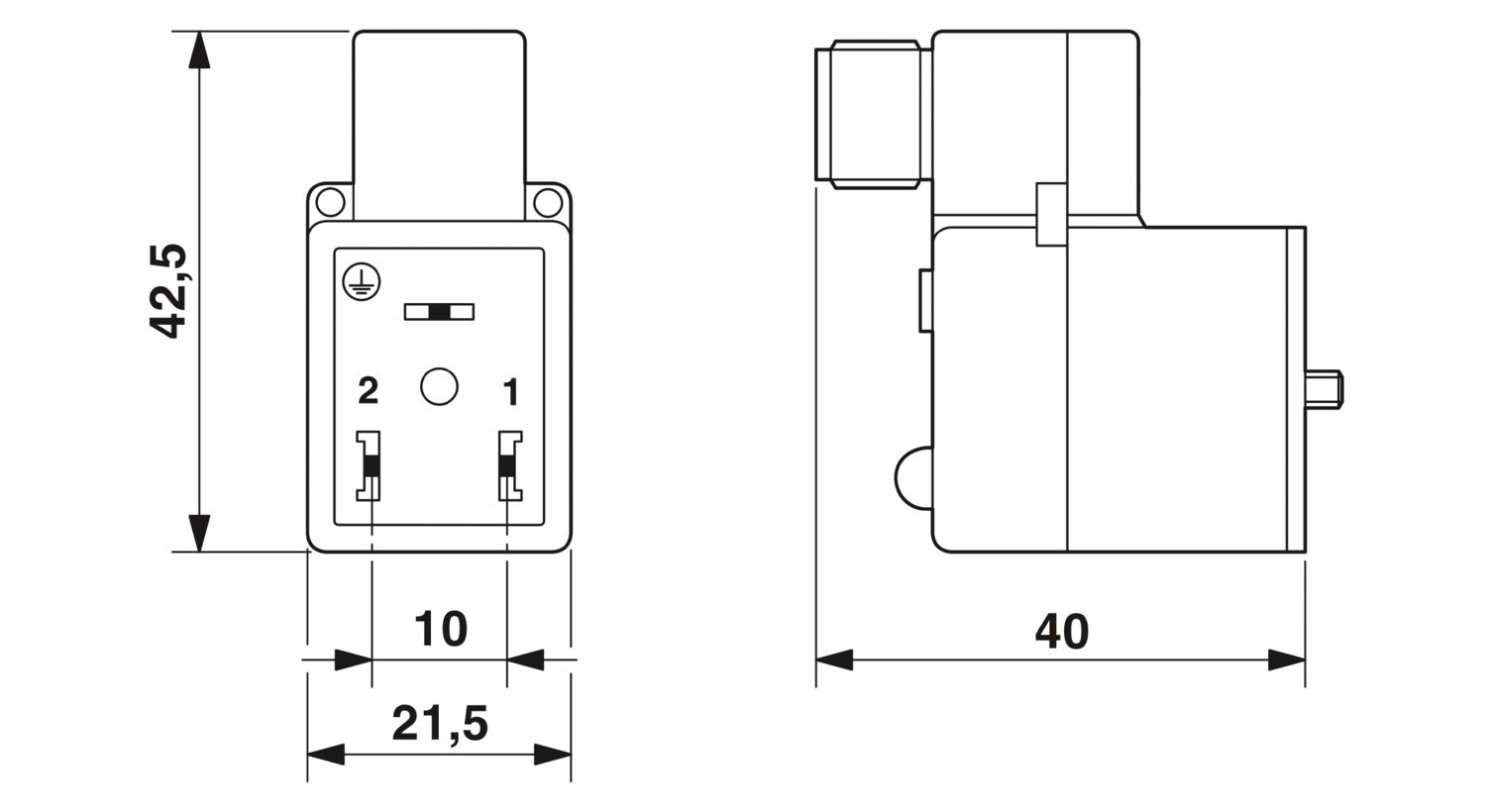

Valve connector type B, 11 mm contact spacing, vertical connector M12
Product details
Product type
Valve connector adapter
Number of positions
3
No. of cable outlets
1
Coding
A
Insulation characteristics
Overvoltage category
II
Degree of pollution
3
Connection method
M12 connector
Tightening torque
0.4 Nm (M12 connector)
0.6 Nm (Valve connector)
Insulation resistance
≥ 100 MΩ
Nominal voltage UN
24 V AC
24 V DC
Nominal current IN
4 A
Mechanical data
Insertion/withdrawal cycles
≥ 100
Flammability rating according to UL 94
V0
Seal material
TPU
Material housing valve plug
PBT
Contact material
CuSn
Contact surface material
Ni/Au
Contact carrier material
TPU GF
Contact material
CuSn
Valve plug contact insert material
PBT
Contact surface material
Ag
Material for screw connection
Zinc die-cast, nickel-plated
Status display
LED (yellow)
Status display present
yes
Connection 1
Type
Plug straight M12
Number of positions
3
Coding type
A
Connection 2
Type
Valve connector B (10 mm)
Number of positions
3
Material
CuSn (Contact)
Ag (Contact surface)
PBT (Contact carrier)
PBT (Housing)
Protective circuit
Z diode
Ambient conditions
Degree of protection
IP65
IP67
Ambient temperature (operation) (male connector/female connector)
-25 °C ... 85 °C (Valve connector)
M12
Standard designation
M12 connector
Standards/specifications
IEC 61076-2-101
Valve connector
Standard designation
Valve connector
Standards/specifications
EN 175301-803
Item number
1534106
Packing unit
1 pc
Note
Made to order (non-returnable)
Sales key
NULL
Product key
AF1GDA
Catalog page
Page 173 (PC-2011)
GTIN
4046356026468
Weight per piece (including packing)
35.81 g
Weight per piece (excluding packing)
32.7 g
Customs tariff number
85444290
Country of origin
CZ
ECLASS
ECLASS-13.0
27440105
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
