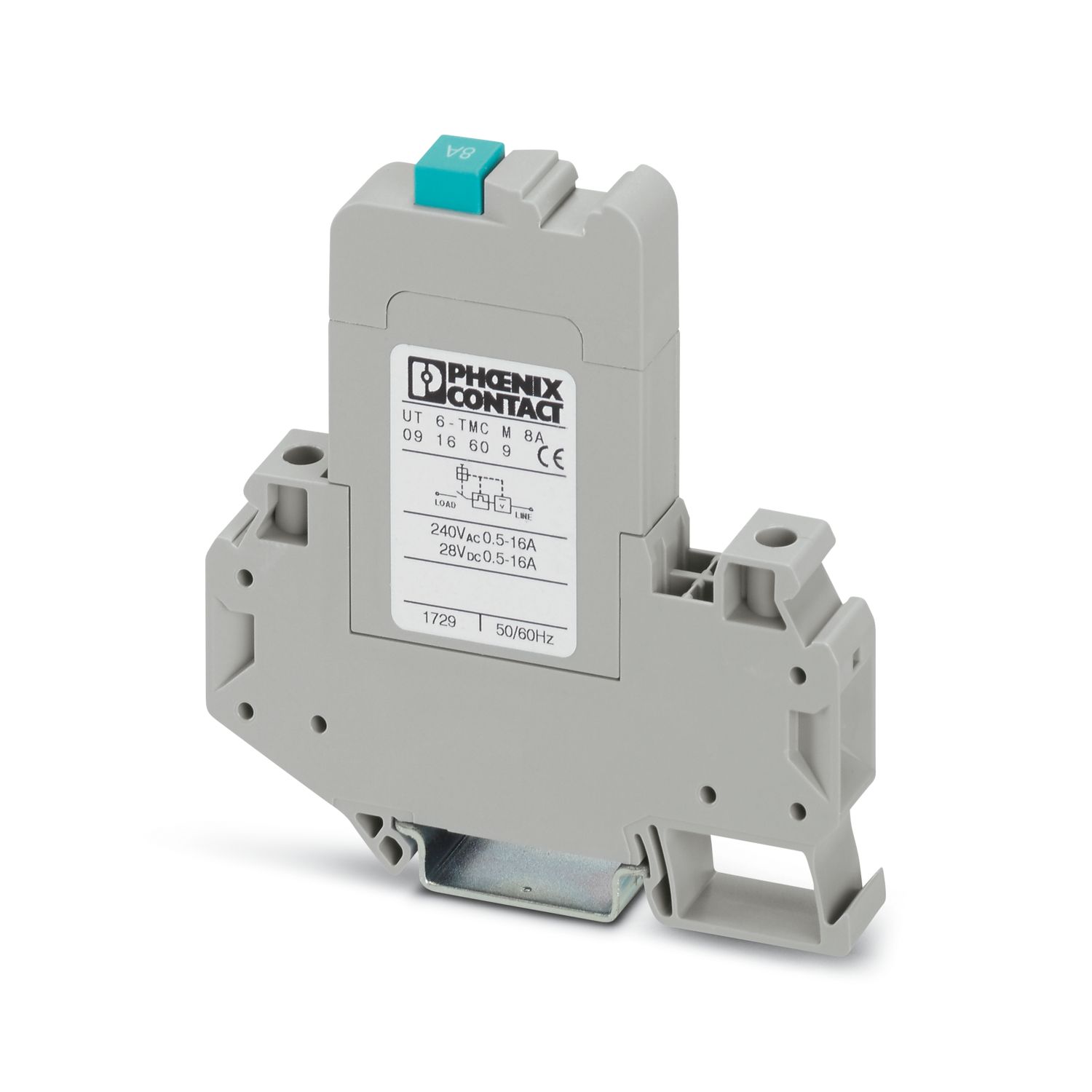

UT 6-TMC M 8A - Thermal-magnetic device circuit breaker

0916609

Thermal-magnetic circuit breaker, 1-pos., for DIN rail mounting

Product details

Product type	Thermomagnetic device circuit breakers
Product family	UT 6-TMC
Type	DIN rail module, one-piece
Number of positions	1
Number of connections	2
Number of rows	1
No. of channels	1
Potentials	1
Insulation characteristics
Overvoltage category	II
Degree of pollution	2

Fuse type	Automatic device
Maximum power dissipation for nominal condition	≤ 1.43 VA
General
Operating voltage	50 V AC ... 264 V AC (48 - 62 Hz)
	5 V DC ... 30.8 V DC
Rated voltage	240 V AC (50/60 Hz)
	28 V DC
	240 V AC (50/60 Hz)
	28 V DC
Rated insulation voltage U_i	440 V AC
Rated current I_N	8 A
Rated surge voltage	2.8 kV
Insulation resistance R_iso	> 100 MΩ (main contact)
Type of actuation	S type
Tripping method	TM (thermal-magnetic)
Tripping level	Trip-free mechanism (positive)
Device resistance	22.2 mΩ
Required backup fuse	25 A
Rated short-circuit switching capacity I_cn	200 A (240 V AC)
	400 A (28 V DC)
Dielectric strength	2000 V
Switching cycles, max.	6000 (at 1 x I_n)
	50 (at 1.5 x I_n)
	40 (at 6 x I_n)
Fuse	M1 (normal blow)
Power dissipation	≤ 1.43 VA
Temperature derating	5.6 A DC (at -30 °C)
	5.84 A DC (at -20 °C)
	6.24 A DC (at -10 °C)
	6.72 A DC (at 0 °C)
	7.2 A DC (at 10 °C)
	8 A DC (at 23 °C)
	8.24 A DC (at 30 °C)
	8.48 A DC (at 40 °C)
	9.04 A DC (at 50 °C)
	9.68 A DC (at 60 °C)
Contact switching type	none
Indicator/remote signaling
Connection name	Auxiliary contact

Nominal cross section	6.00 mm²
Rated cross section AWG	8
Connection method	Screw connection
Level 1 above 1 below 1
Screw thread	M4
Tightening torque	1.5 ... 1.8 Nm
Stripping length	12 mm
Conductor cross section rigid	0.2 mm² ... 10 mm²
Cross section AWG	24 ... 8 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 10 mm²
Conductor cross section, flexible [AWG]	24 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 6 mm²
2 conductors with same cross section, solid	0.2 mm² ... 2.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 2.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 4 mm²
Nominal current	8 A
Nominal voltage	240 V AC
	28 V DC
Nominal cross section	6 mm²
Main contact
Connection method	Screw connection
Screw thread	M4
Tightening torque	1.5 Nm ... 1.8 Nm
Stripping length	12 mm
Conductor cross section flexible	0.2 mm² ... 10 mm²
Conductor cross section rigid	0.2 mm² ... 10 mm²
Conductor cross section AWG	24 ... 8
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 4 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve	0.25 mm² ... 6 mm²
Conductor cross section flexible, with ferrule without plastic sleeve	0.25 mm² ... 6 mm²

Width	12.3 mm
Height	85.5 mm
Depth	89.5 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V-0
Insulating material	PA66

Mechanical data
Open side panel	No

Ambient conditions
Degree of protection	IP40 (Actuation area)
	IP20 (Connection area)
Ambient temperature (operation)	-30 °C ... 60 °C
Altitude	2000 m (acc. to EN 60934)

Standards/specifications	EN 60934
Standards/specifications	UL 1077
Standards/specifications	CSA 22.2
Note	No. 235
Standards/specifications	EAC

Mounting type	DIN rail: 35 mm

Commercial data

Item number	0916609
Packing unit	6 pc
Minimum order quantity	6 pc
Sales key	CL16
Product key	CLA122
Catalog page	Page 394 (C-4-2019)
GTIN	4046356449052
Weight per piece (including packing)	63.16 g
Weight per piece (excluding packing)	63 g
Customs tariff number	85362010
Country of origin	CZ

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

Your advantages

Simple feed-in due to bridging capability using CLIPLINE complete accessories

High system availability, thanks to easy resetting

Quick and easy identification with large-area marking options

The right device for every application, thanks to a nominal current range of 0.5 to 16 A

Space savings of 30 % compared to miniature circuit breakers owing to the compact width of 12.3 mm

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	3e7861c1-3a68-4d20-87ca-6a760e3725c9
