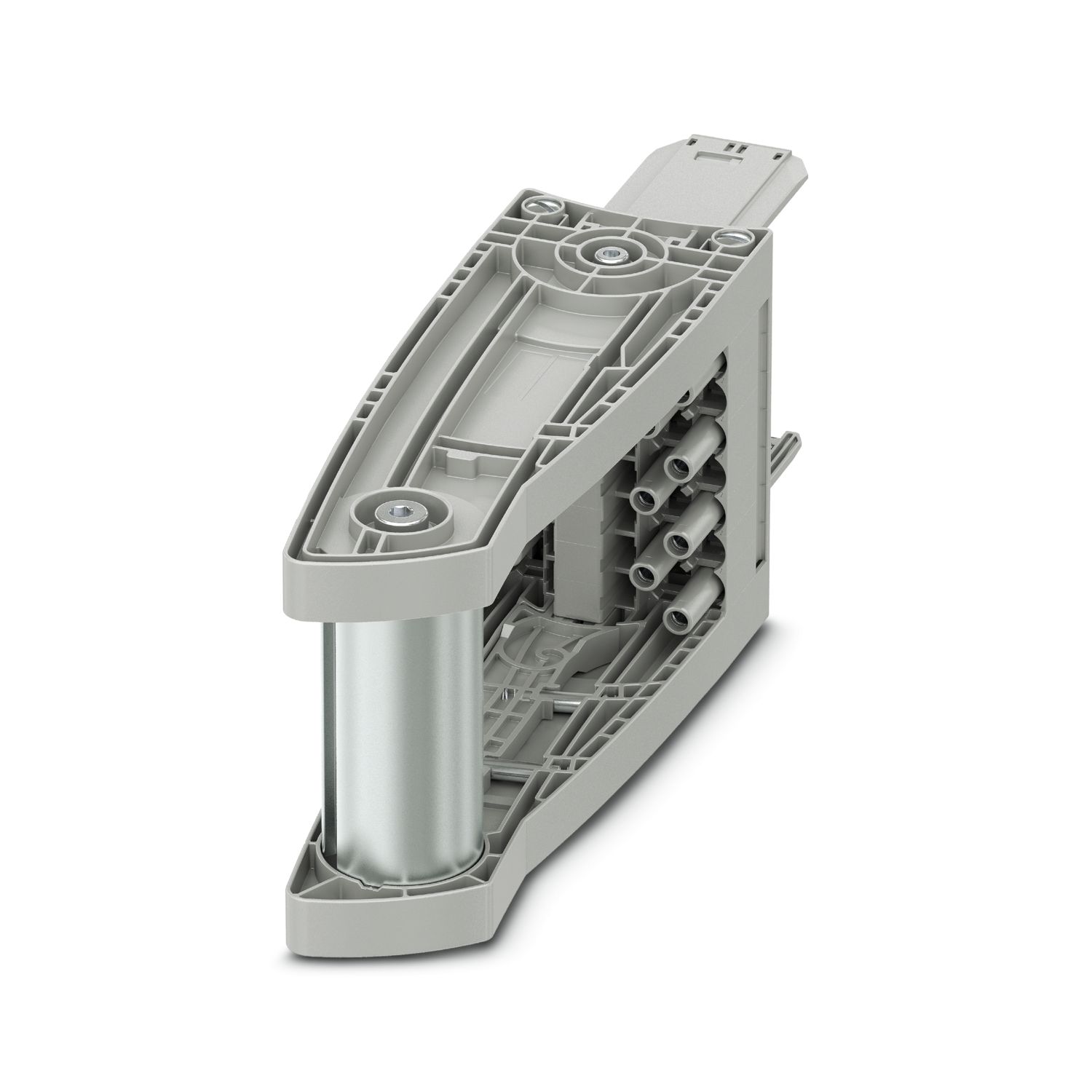

Test plug, nom. voltage: 400 V, nominal current: 20 A, Rated cross section: 2.5 mm2, color: gray
Product details
Product type
Test plug terminal block
Maximum power dissipation for nominal condition
1.02 W
Nominal cross section
4 mm²
Test socket torque
0.5
Conductor cross section flexible
0.5 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]
24 ... 10 (converted acc. to IEC)
Nominal current
20 A
Maximum load current
20 A
Nominal voltage
400 V
Nominal cross section
2.5 mm²
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0
Insulating material
PC
Ambient conditions
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (storage/transport)
30 % ... 70 %
Item number
1029262
Packing unit
1 pc
Minimum order quantity
1 pc
Sales key
BE06
Product key
BE6114
Catalog page
Page 651 (C-1-2019)
GTIN
4055626531182
Weight per piece (including packing)
420.7 g
Weight per piece (excluding packing)
420.1 g
Customs tariff number
85366990
Country of origin
PL
ECLASS
ECLASS-13.0
27440313
ETIM
ETIM 8.0
EC002255
UNSPSC
UNSPSC 21.0
20122000
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)
Lead(CAS: 7439-92-1)
SCIP
7718e4a7-f645-4c5e-9b8a-4a8a89fff66a
