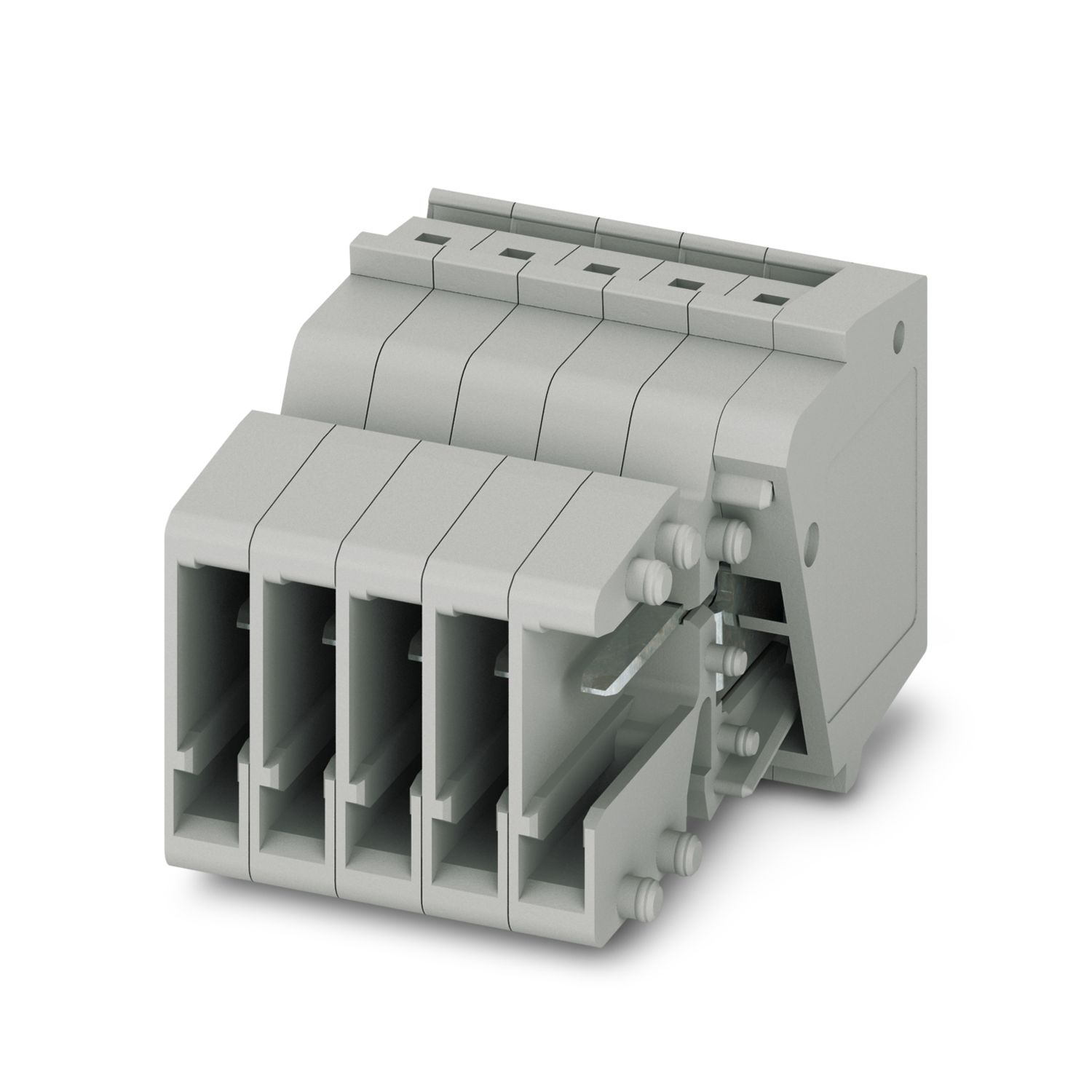

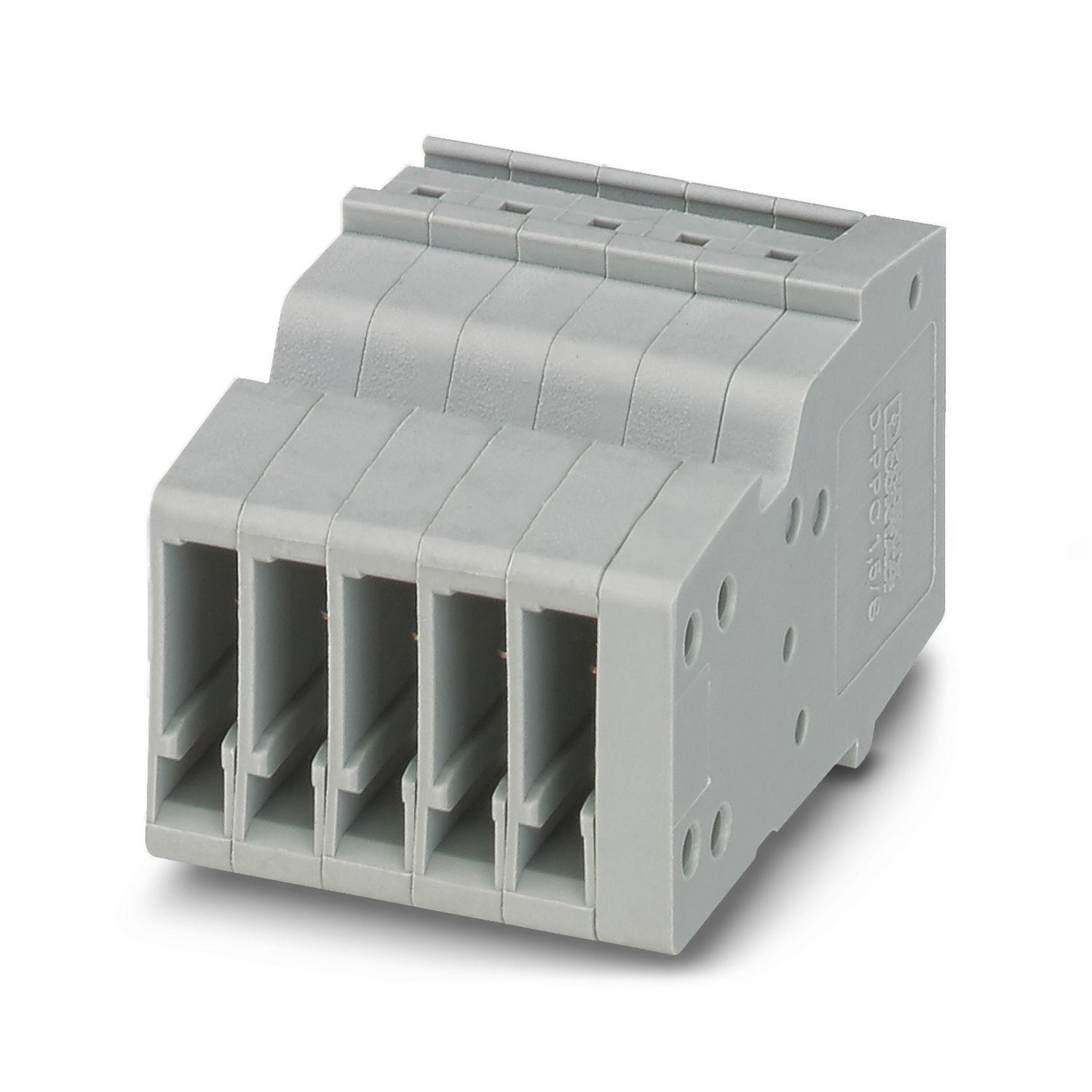

PPC 1,5/S/ 5 - COMBI coupling

3213412

COMBI coupling, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 1, number of positions: 5, connection method: Push-in connection, Rated cross section: 1.5 mm², 1 level, cross section: 0.14 mm² - 1.5 mm², color: gray

Product details

Product type	Terminal coupling
Area of application	Railway industry
	Machine building
	Plant engineering
Number of positions	5
Pitch	3.5 mm
Number of connections	1
Number of rows	1
Type	other
Potentials	5
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	0.56 W

Nominal cross section	1.5 mm²
1 level
Stripping length	8 mm ... 10 mm
Internal cylindrical gage	A1 / B1
Connection in acc. with standard	IEC 61984
Conductor cross section rigid	0.14 mm² ... 1.5 mm²
Cross section AWG	26 ... 16 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]	26 ... 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 1 mm²
Nominal current	17.5 A
Maximum load current	17.5 A (with 1.5 mm² conductor cross section)
Nominal voltage	500 V
Nominal cross section	1.5 mm²
1 level Connection cross sections directly pluggable
Conductor cross section rigid	0.25 mm² ... 1.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.34 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.34 mm² ... 1 mm²

Width	17.5 mm
End cover width	2.2 mm
Height	27 mm
Depth	17.8 mm
Pitch	3.5 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Test voltage setpoint	7.3 kV
Result	Test passed
Short-time withstand current 1.5 mm²	0.18 kA
Result	Test passed

Mechanical data
Open side panel	Yes

Needle-flame test
Time of exposure	30 s
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 61984

Commercial data

Item number	3213412
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	BE22
Product key	BE2245
Catalog page	Page 282 (C-1-2019)
GTIN	4046356564632
Weight per piece (including packing)	8.142 g
Weight per piece (excluding packing)	7.3 g
Customs tariff number	85366990
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	300 V	15 A	26 - 14
Use group C
	300 V	15 A	26 - 14
Use group D
	600 V	5 A	26 - 14

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	300 V	15 A	26 - 14
Use group C
	300 V	15 A	26 - 14
Use group D
	600 V	5 A	26 - 14

Environmental product compliance

Compatible products

Accessories

Your advantages

The Push-in technology COMBI couplings for self-assembly provide solutions that users can implement themselves

For secure and space-saving accommodation of plug-in contacts in cable ducts and distributor shafts

Tested for railway applications

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PPC 1,5/S/ 5 - COMBI coupling

3213412

Product details

ECLASS

ETIM

UNSPSC

CSA

cULus Recognized

LR

NK

BV

DNV

EAC

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PPC 1,5/S/ 5 - COMBI coupling 3213412

Product details

ECLASS

ETIM

UNSPSC

Compatible products

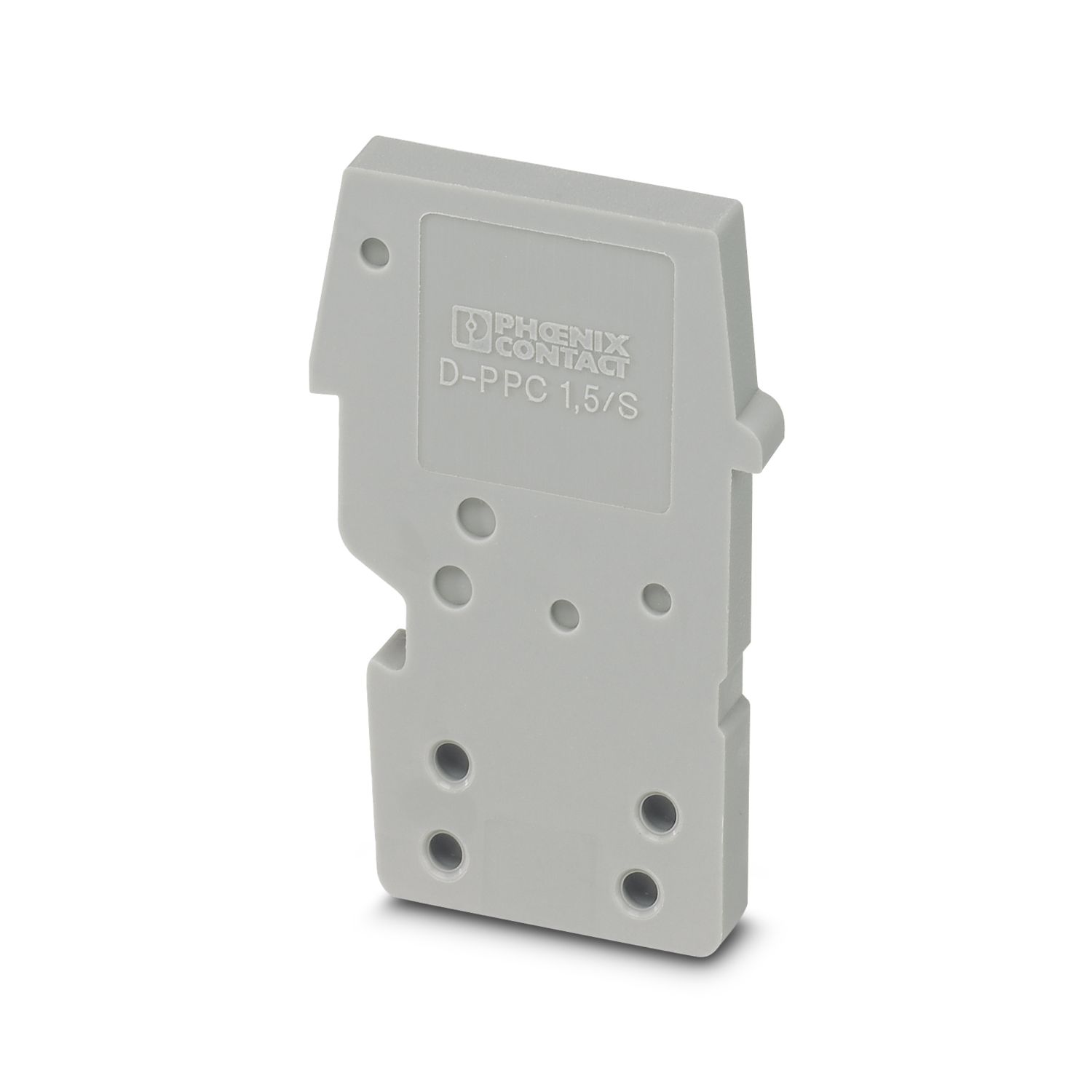

D-PPC 1,5/S - End cover 3213690

PC - Coding star 3040588

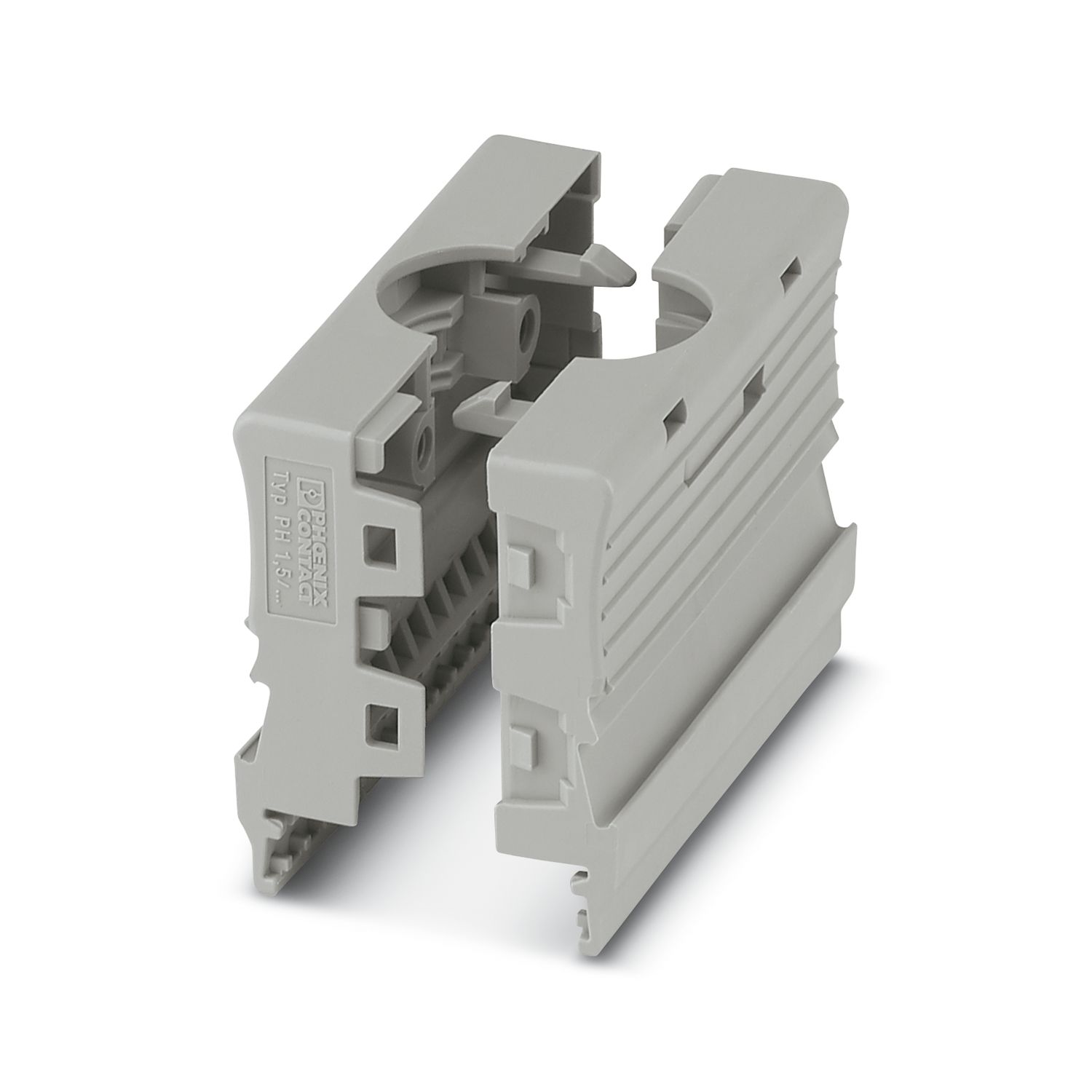

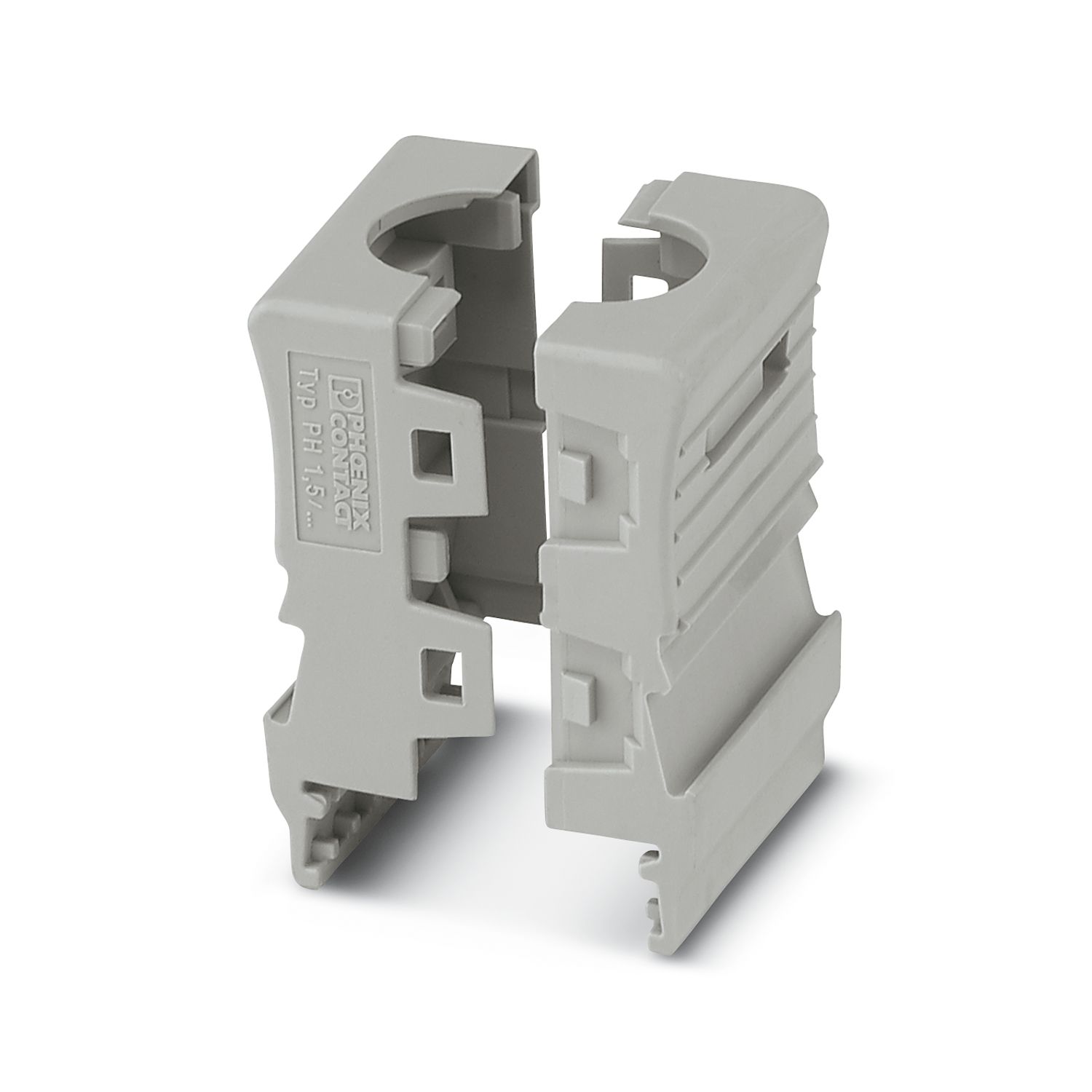

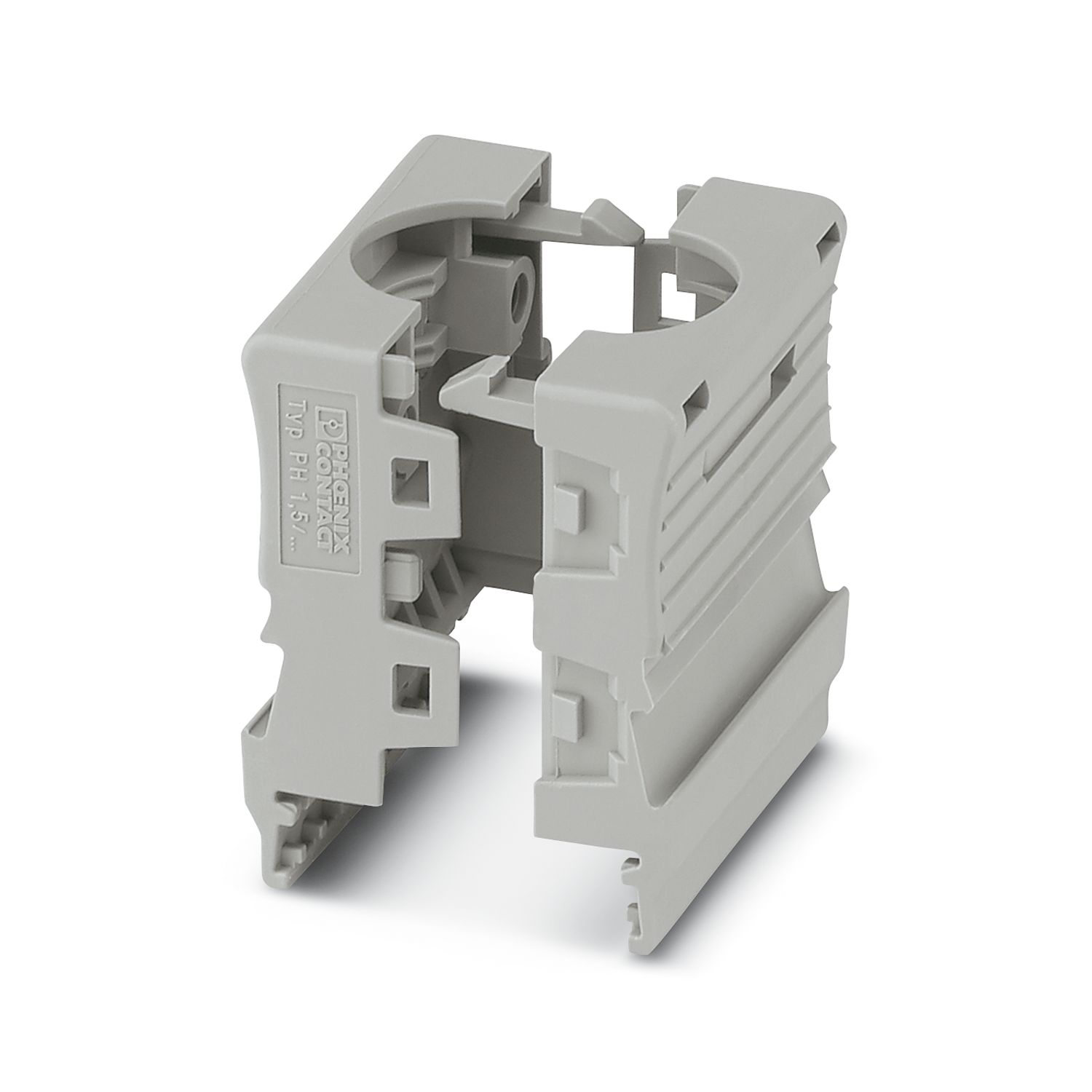

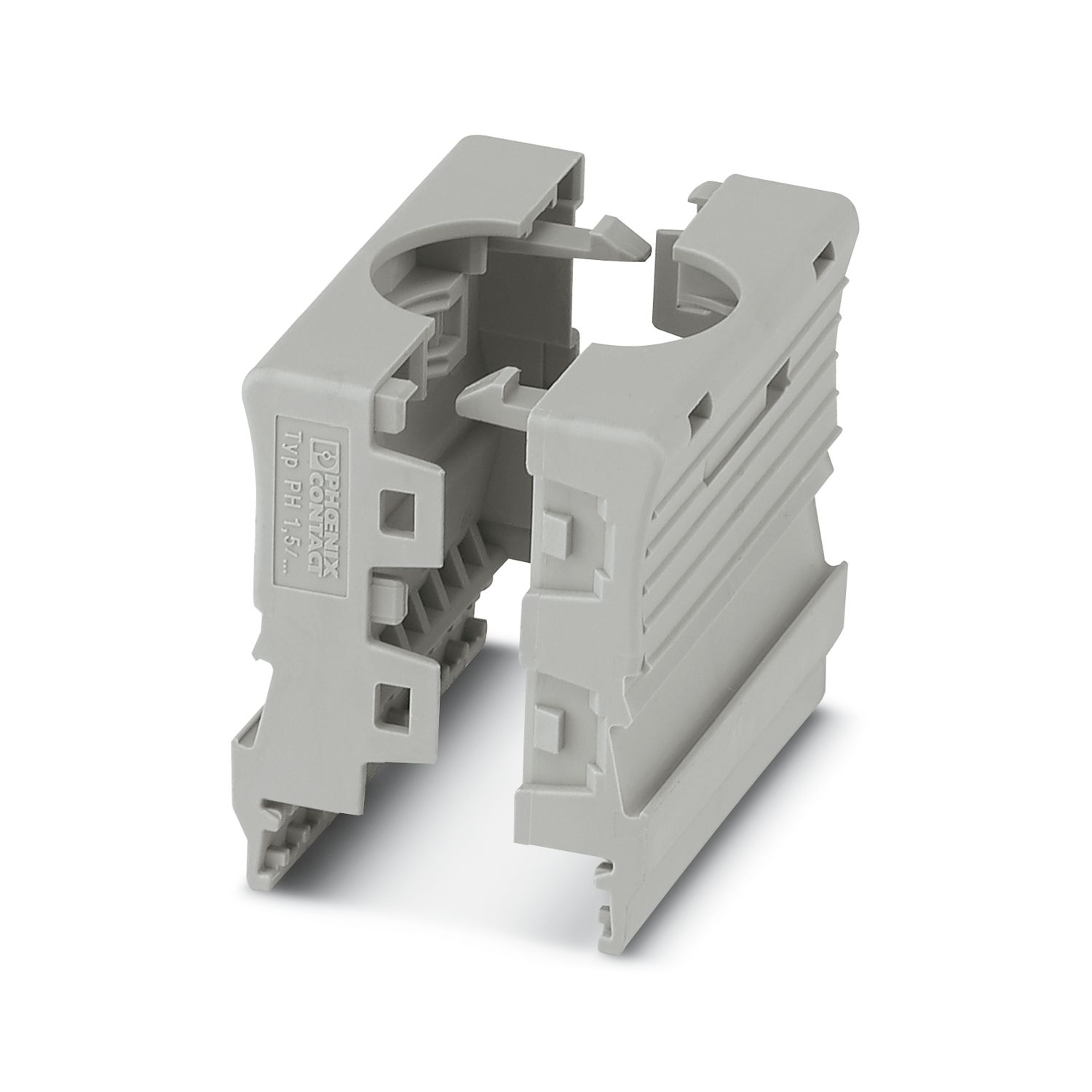

PH 1,5/S/3 - Cable housing 3212756

PH 1,5/S/4 - Cable housing 3212769

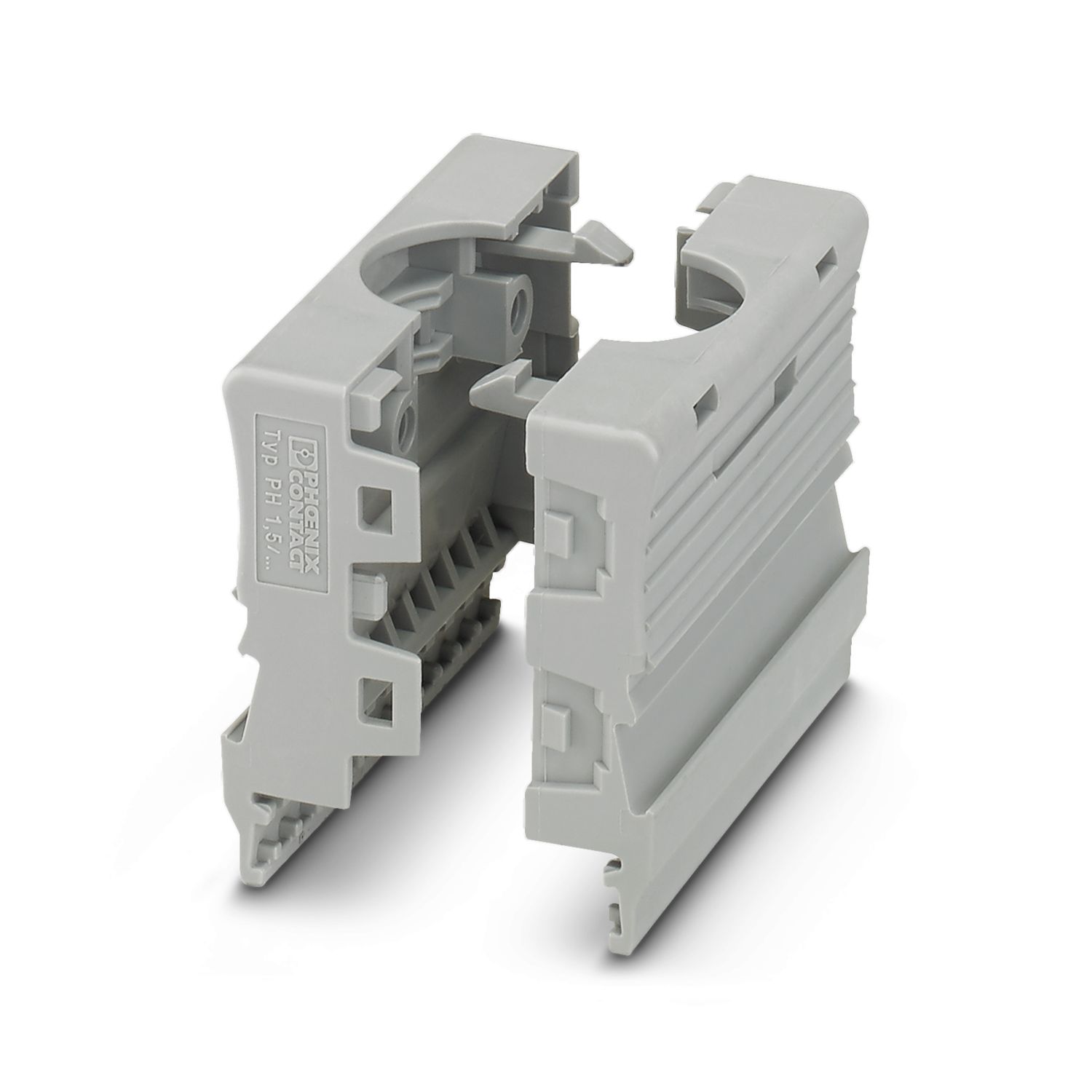

PH 1,5/S/5 - Cable housing 3212772

PH 1,5/S/6 - Cable housing 3212785

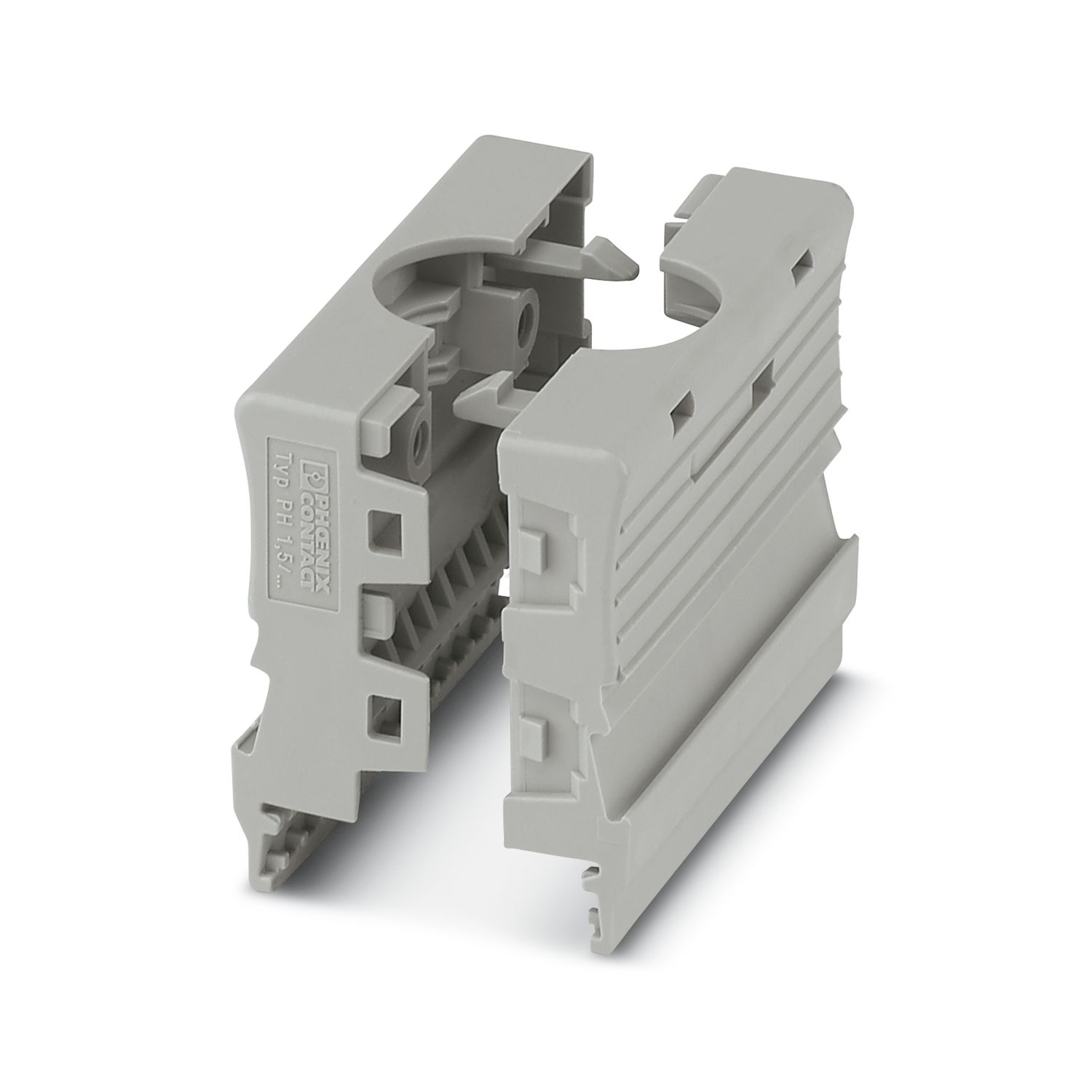

PH 1,5/S/7 - Cable housing 3212798

PH 1,5/S/8 - Cable housing 3212808

PH 1,5/S/9 - Cable housing 3212811

PH 1,5/S/10 - Cable housing 3212824

PH 1,5/S/11 - Cable housing 3212837

PH 1,5/S/12 - Cable housing 3212840

PH 1,5/S/13 - Cable housing 3212853

PH 1,5/S/14 - Cable housing 3212866

AI-S 1 - 8 TQ - Ferrule 1200293

ZBF 3,5:UNBEDRUCKT - Zack Marker strip, flat 0829392

ZBF 3,5 CUS - Zack Marker strip, flat 0829394

ZBF 3,5,LGS:FORTL.ZAHLEN - Zack Marker strip, flat 0801406

ZBF 3,5,QR:FORTL.ZAHLEN - Zack Marker strip, flat 0801407

UCT-TMF 3,5 - Marker for terminal blocks 0829486

UCT-TMF 3,5 CUS - Marker for terminal blocks 0829644

MPS-MT - Test plug 0201744

MPS-IH WH - Insulating sleeve 0201663

MPS-IH RD - Insulating sleeve 0201676

MPS-IH BU - Insulating sleeve 0201689

MPS-IH YE - Insulating sleeve 0201692

MPS-IH GN - Insulating sleeve 0201702

MPS-IH GY - Insulating sleeve 0201728

MPS-IH BK - Insulating sleeve 0201731

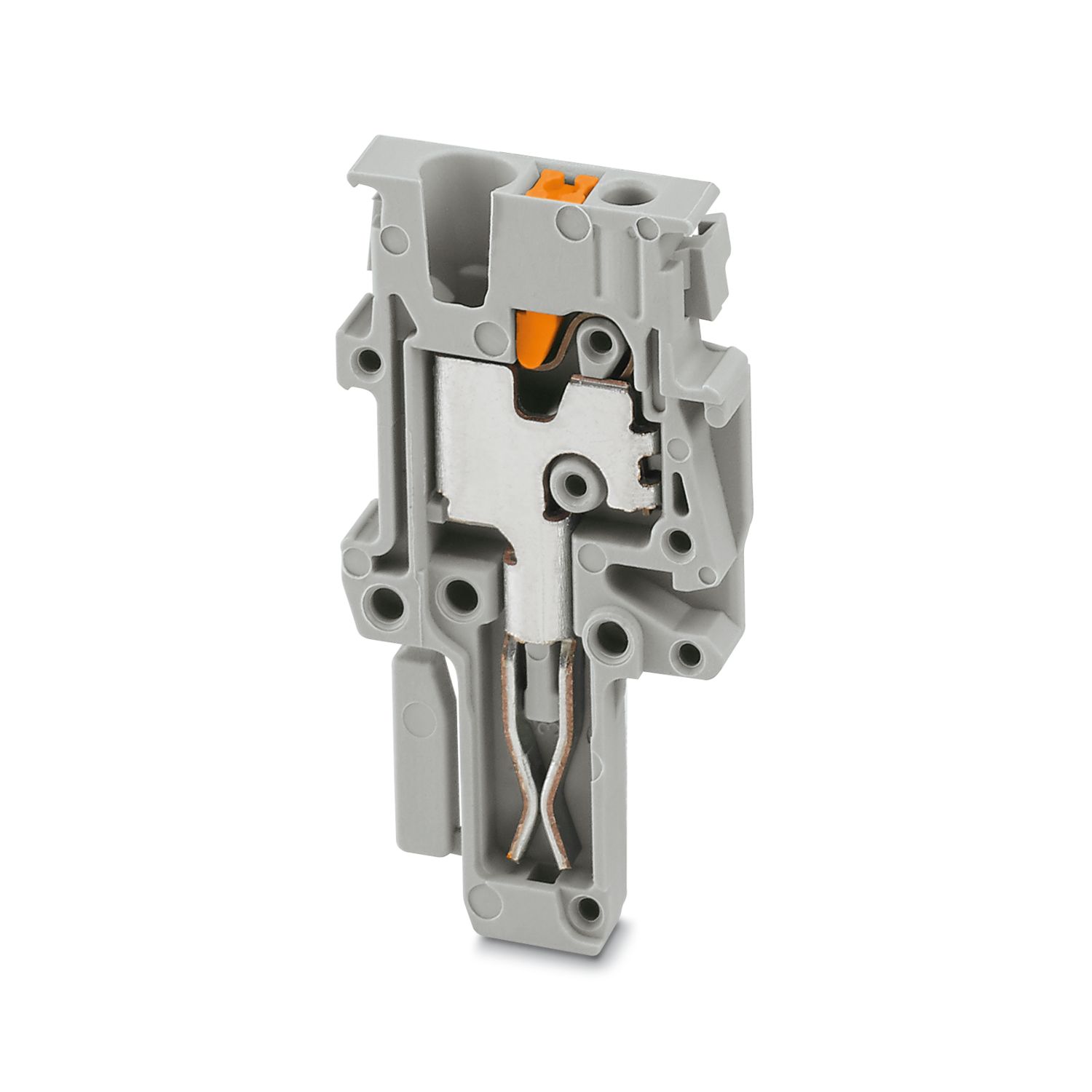

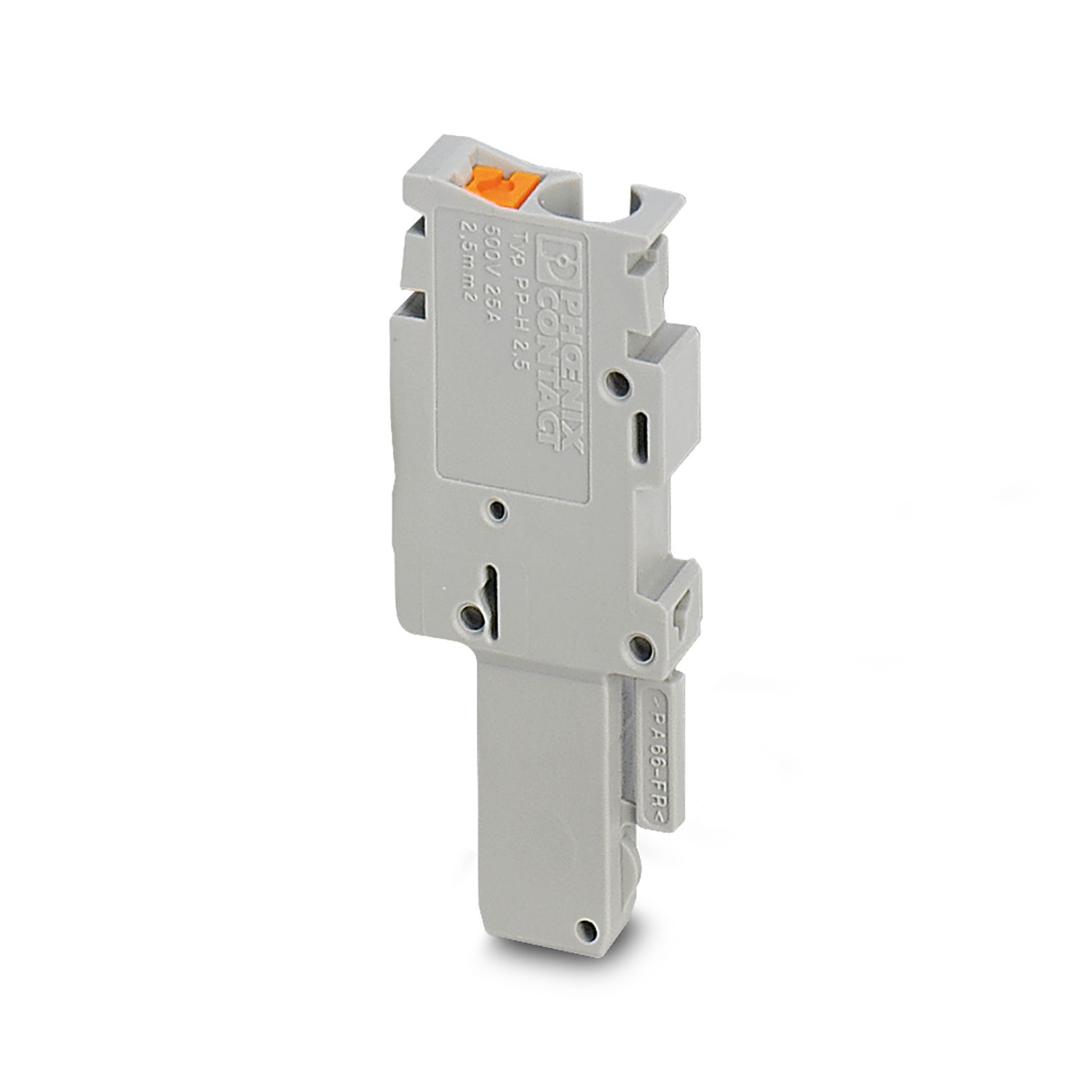

PP-H 1,5/S/1 - Plug 3212484

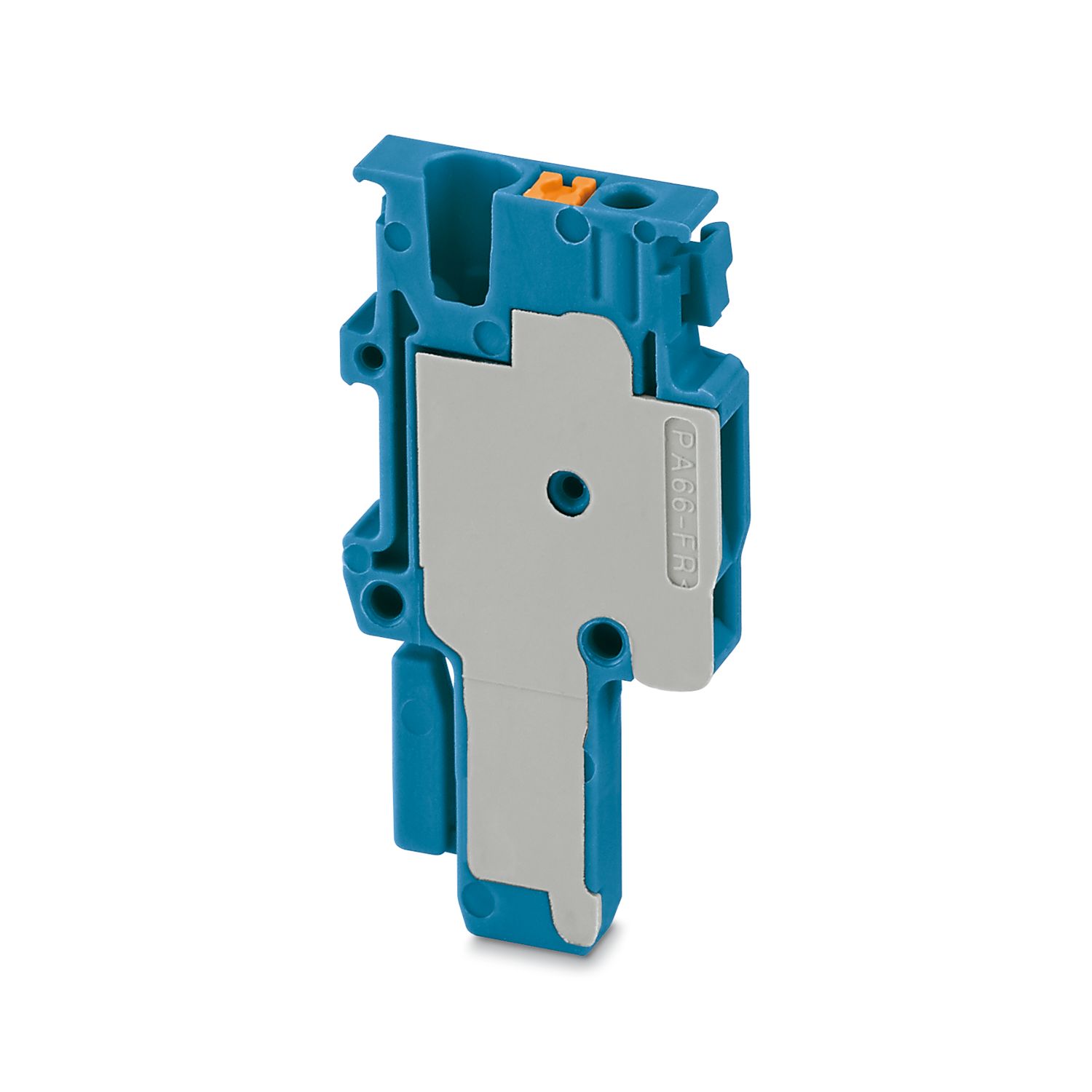

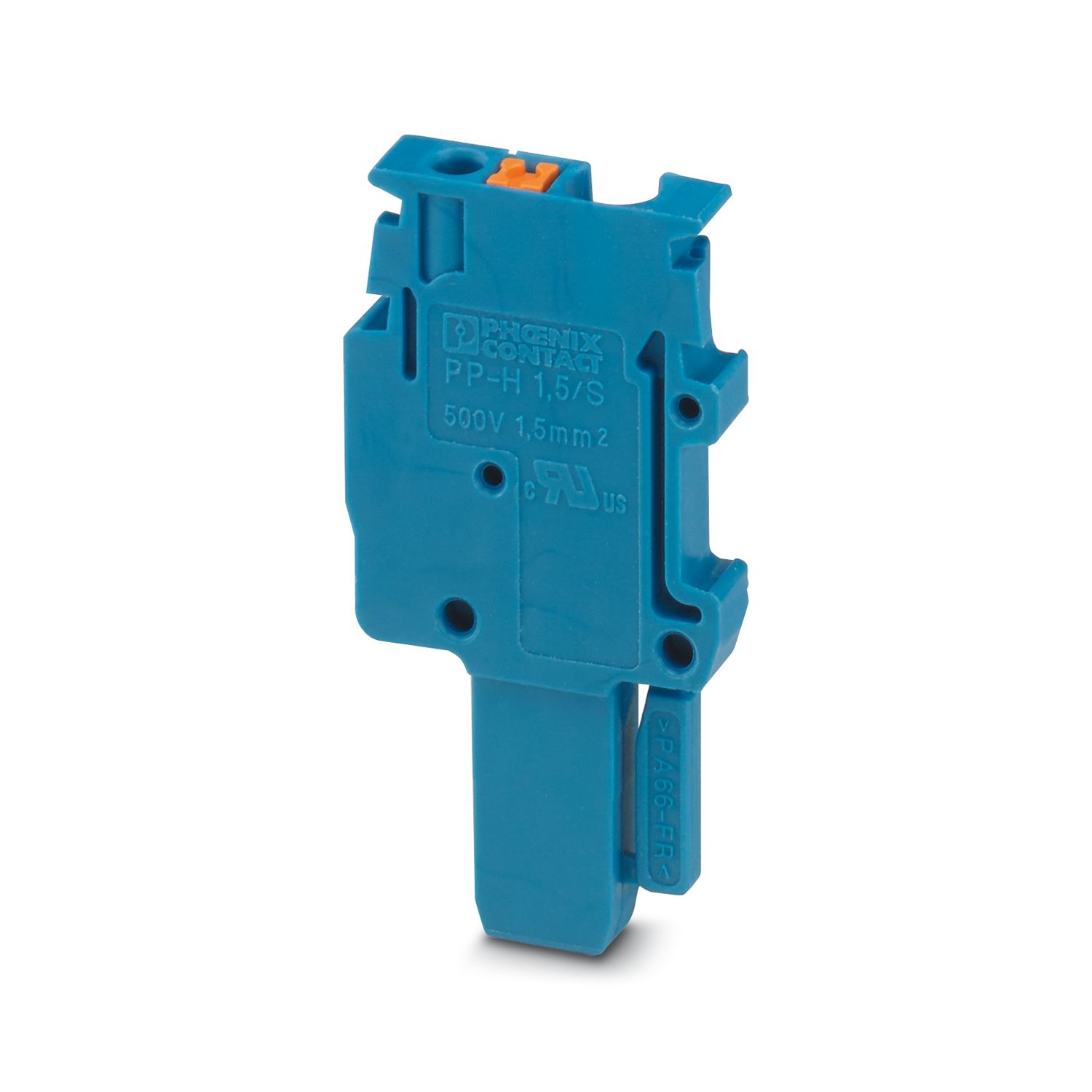

PP-H 1,5/S/1 BU - Plug 3212497

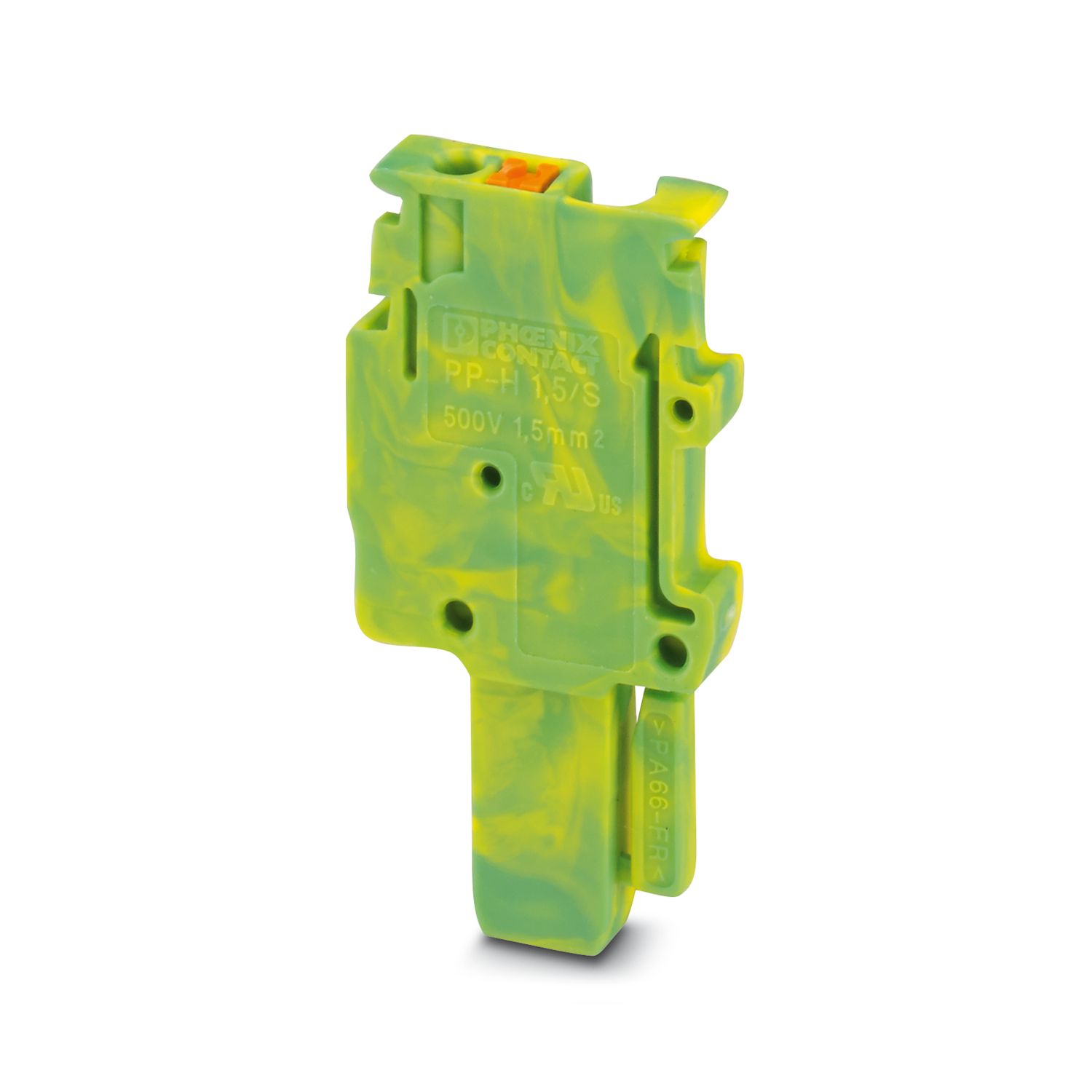

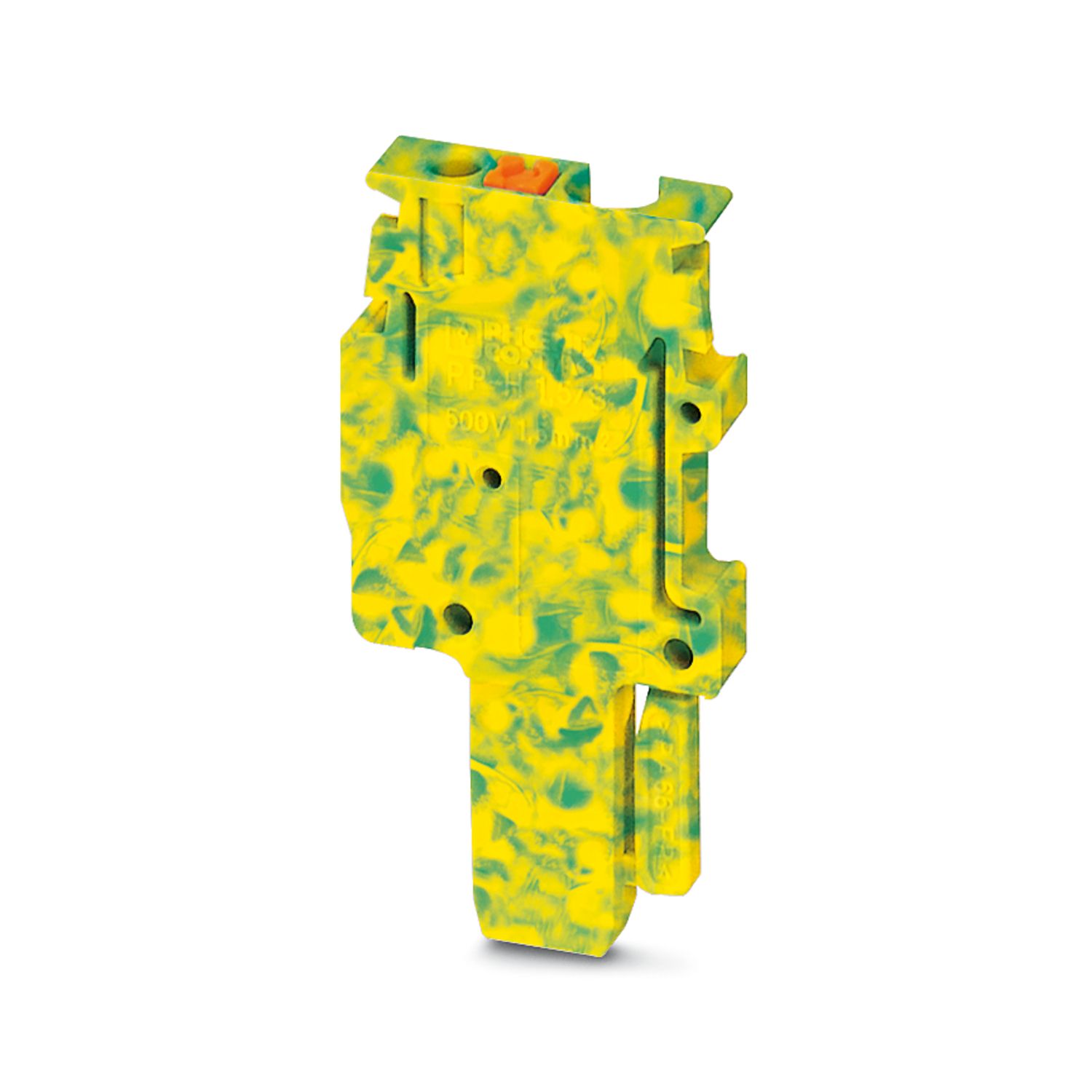

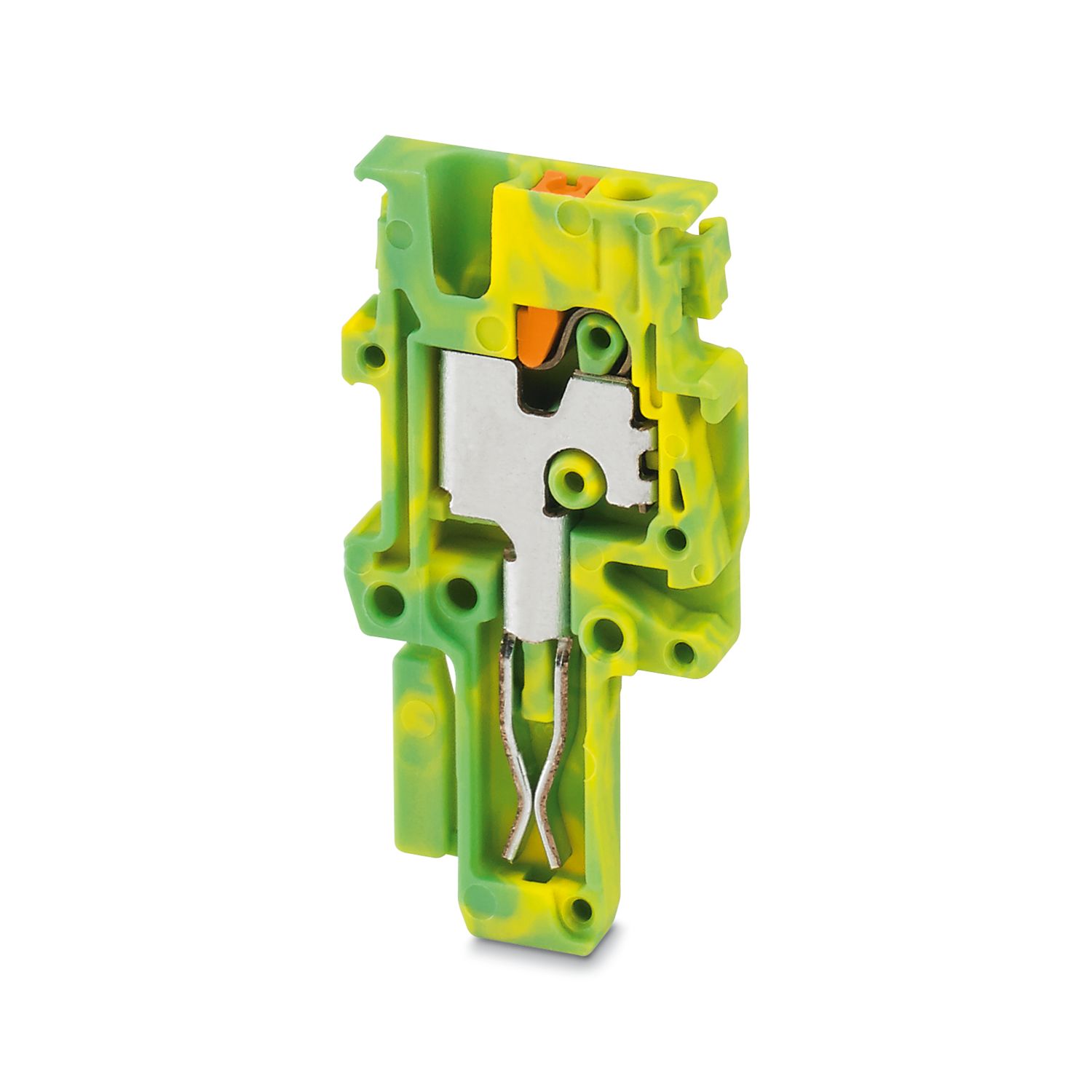

PP-H 1,5/S/1 GNYE - Plug 3212507

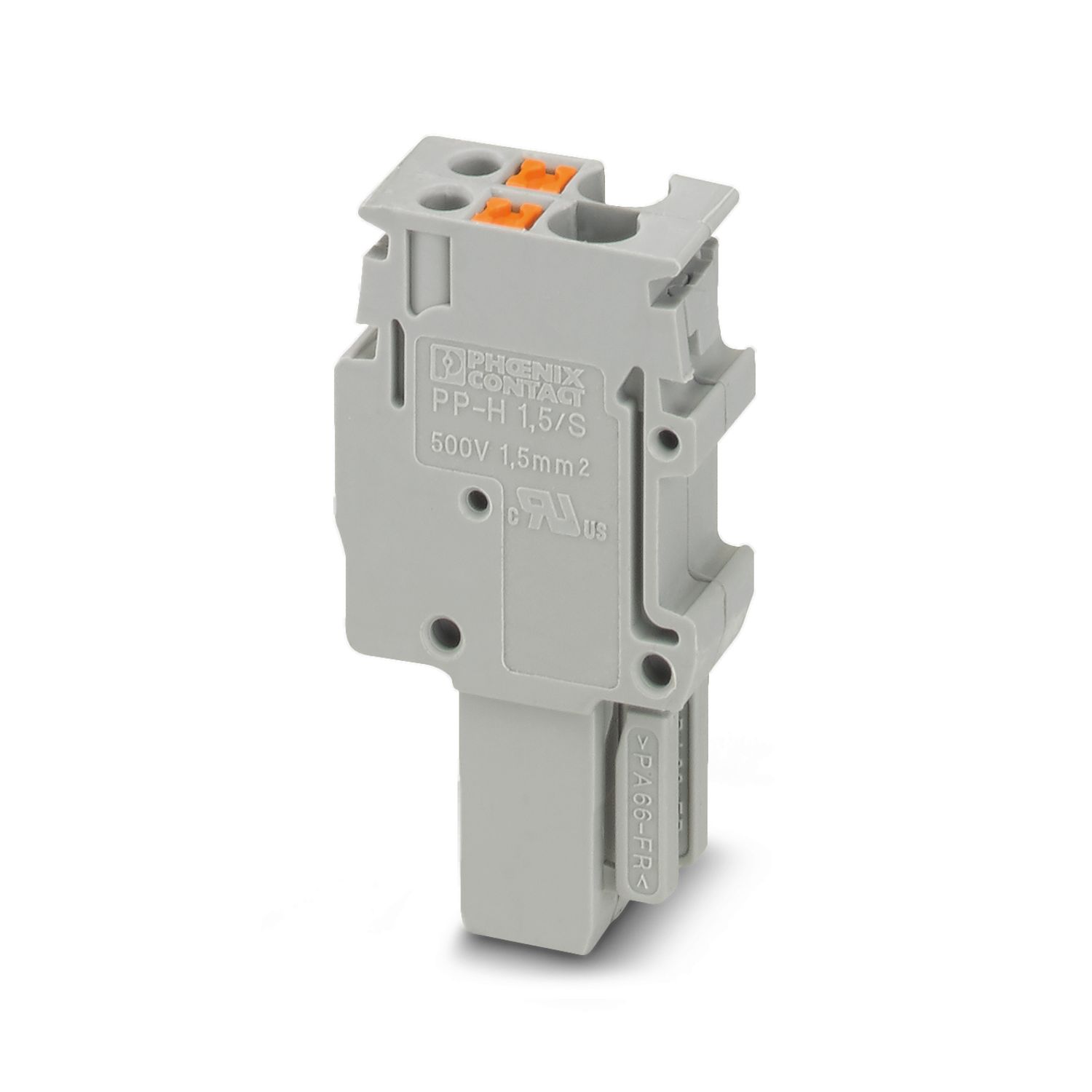

PP-H 1,5/S/2 - Plug 3212510

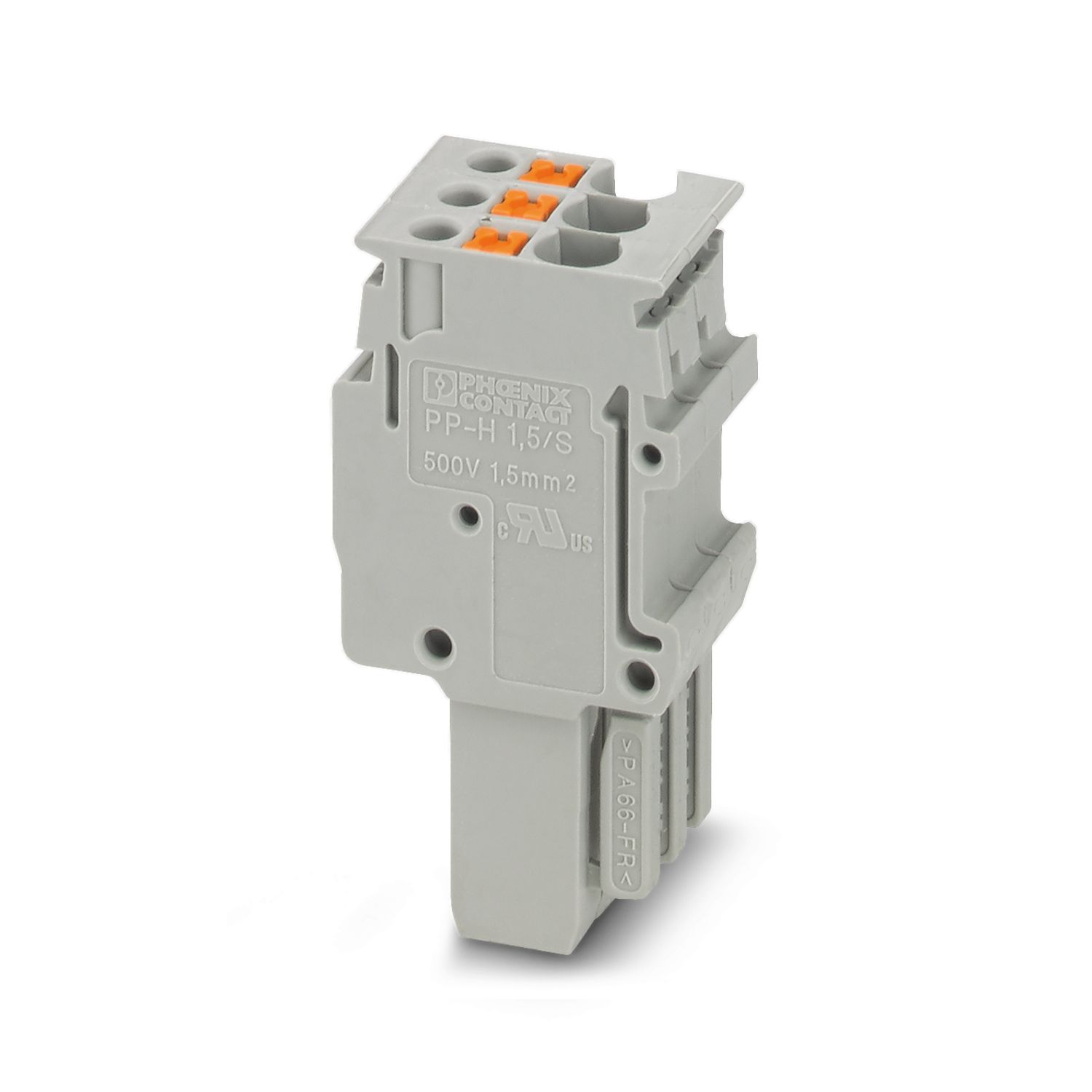

PP-H 1,5/S/3 - Plug 3212523

PP-H 1,5/S/4 - Plug 3212536

PP-H 1,5/S/5 - Plug 3212549

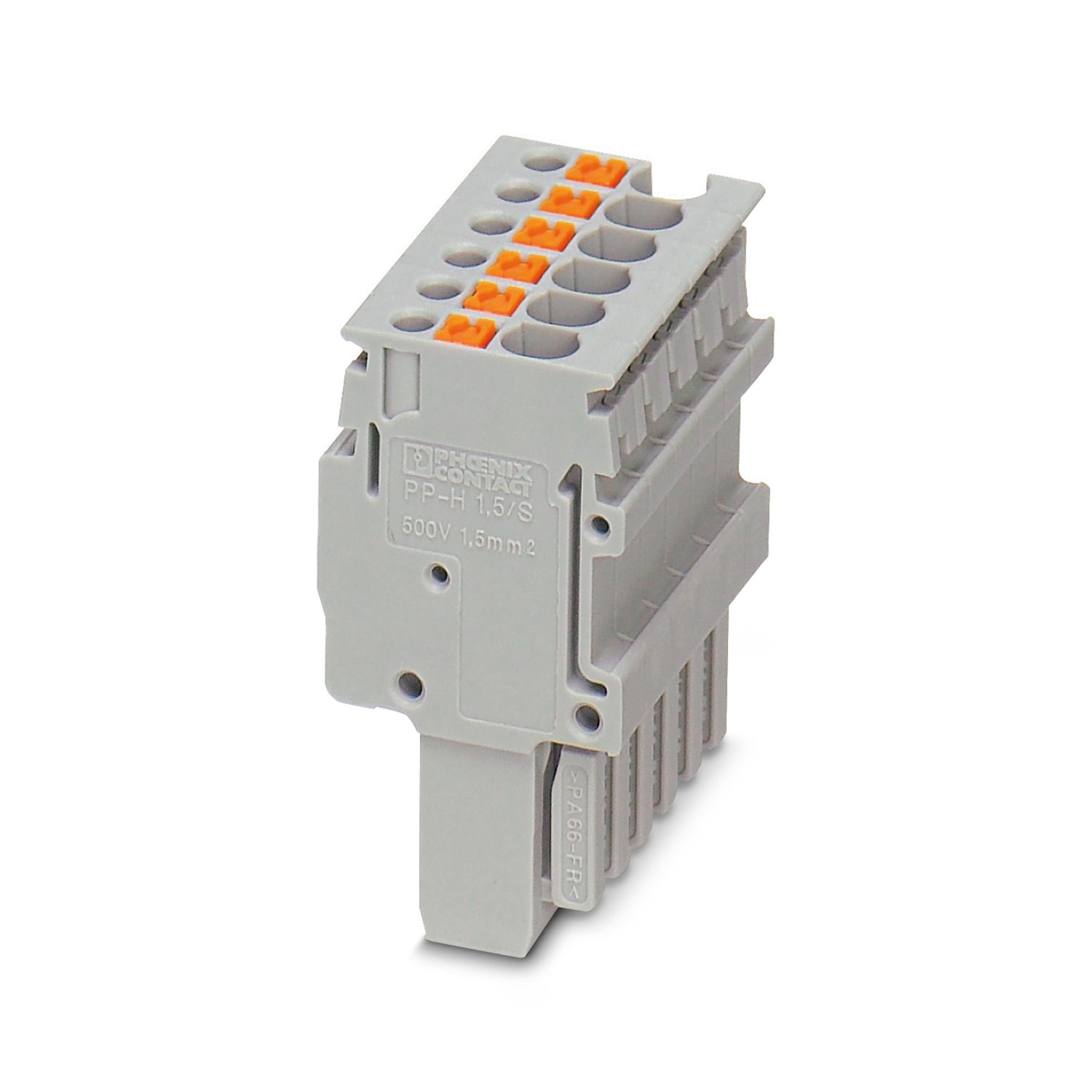

PP-H 1,5/S/6 - Plug 3212552

PP-H 1,5/S/7 - Plug 3212565

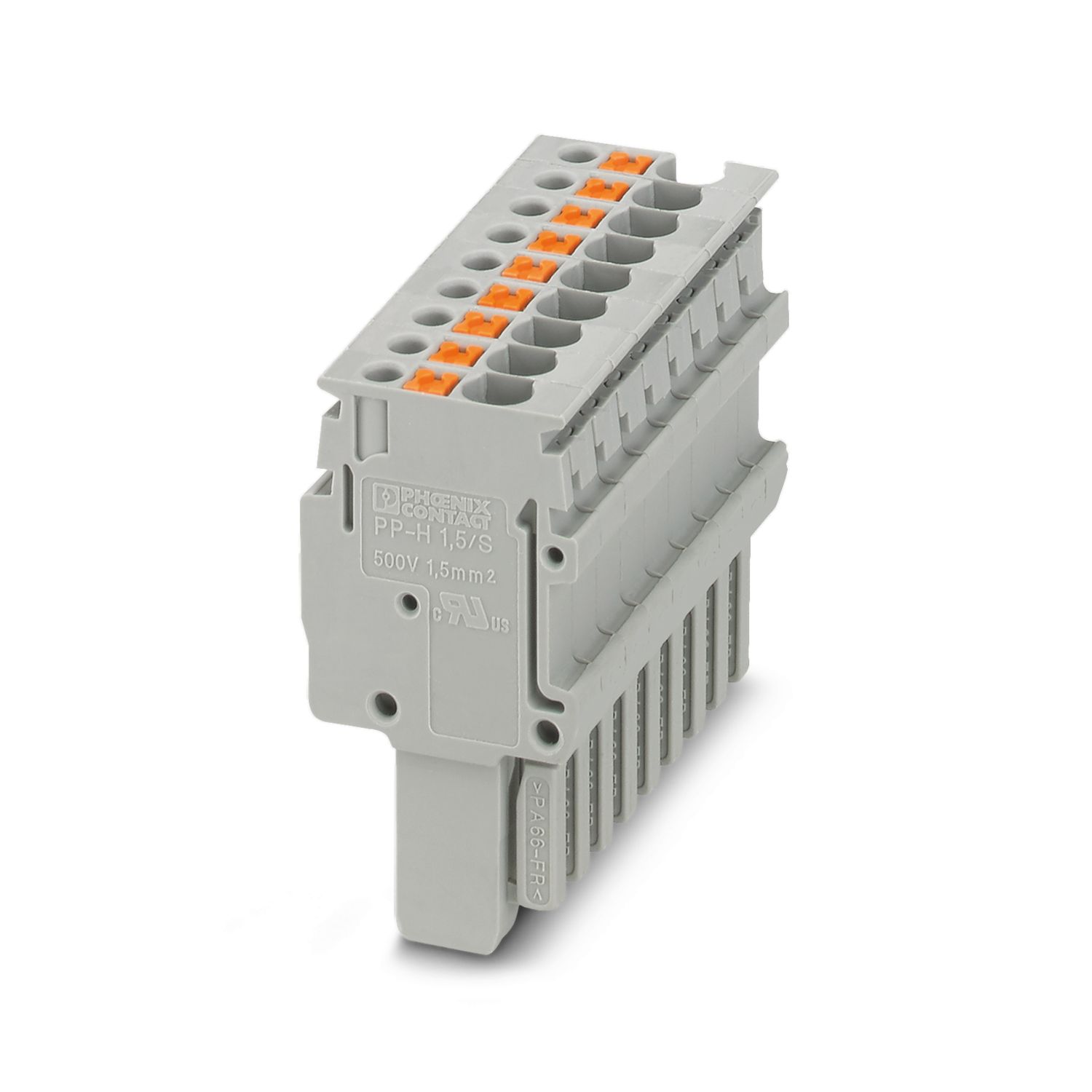

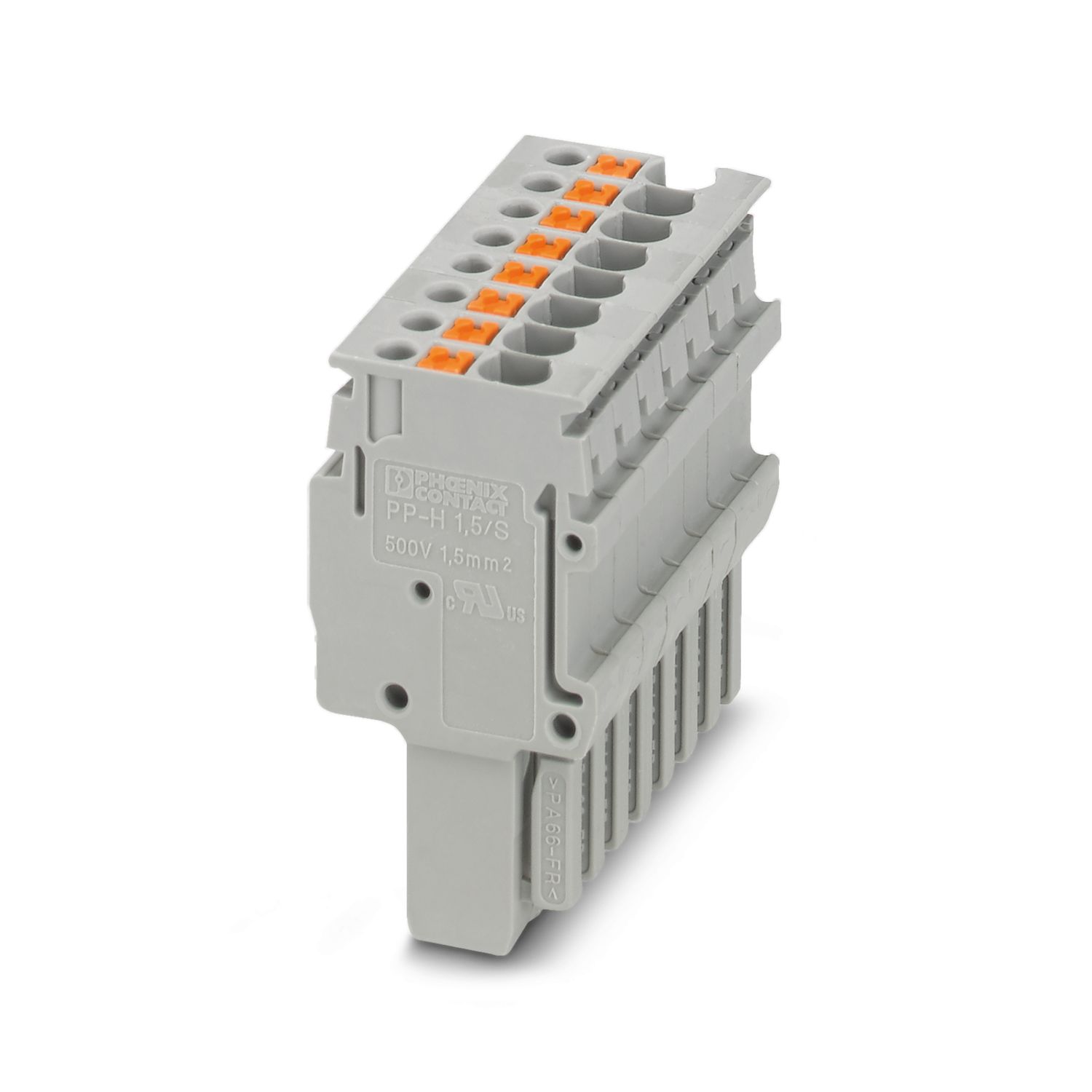

PP-H 1,5/S/8 - Plug 3212578

PP-H 1,5/S/9 - Plug 3212581

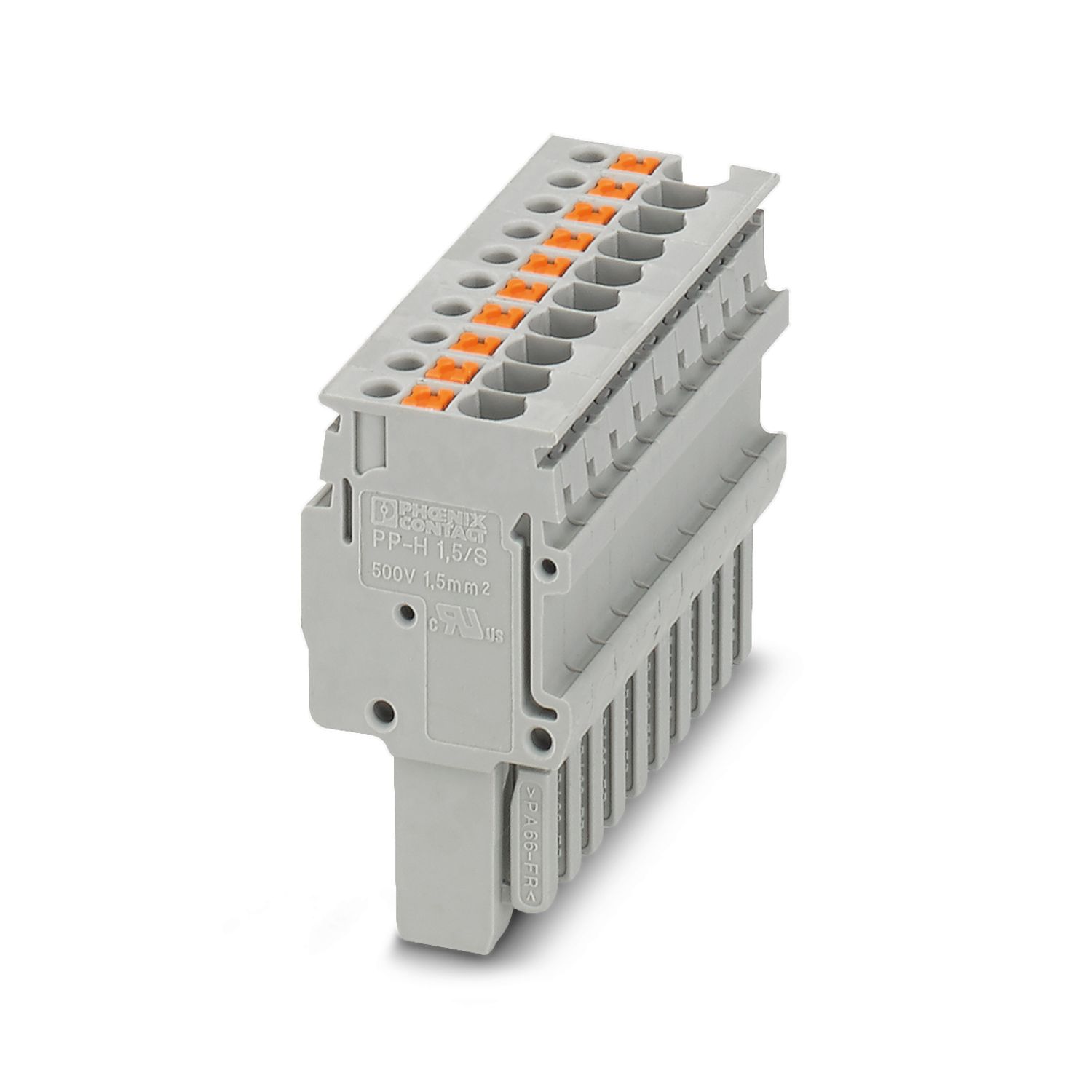

PP-H 1,5/S/10 - Plug 3212594

PP-H 1,5/S/11 - Plug 3212604

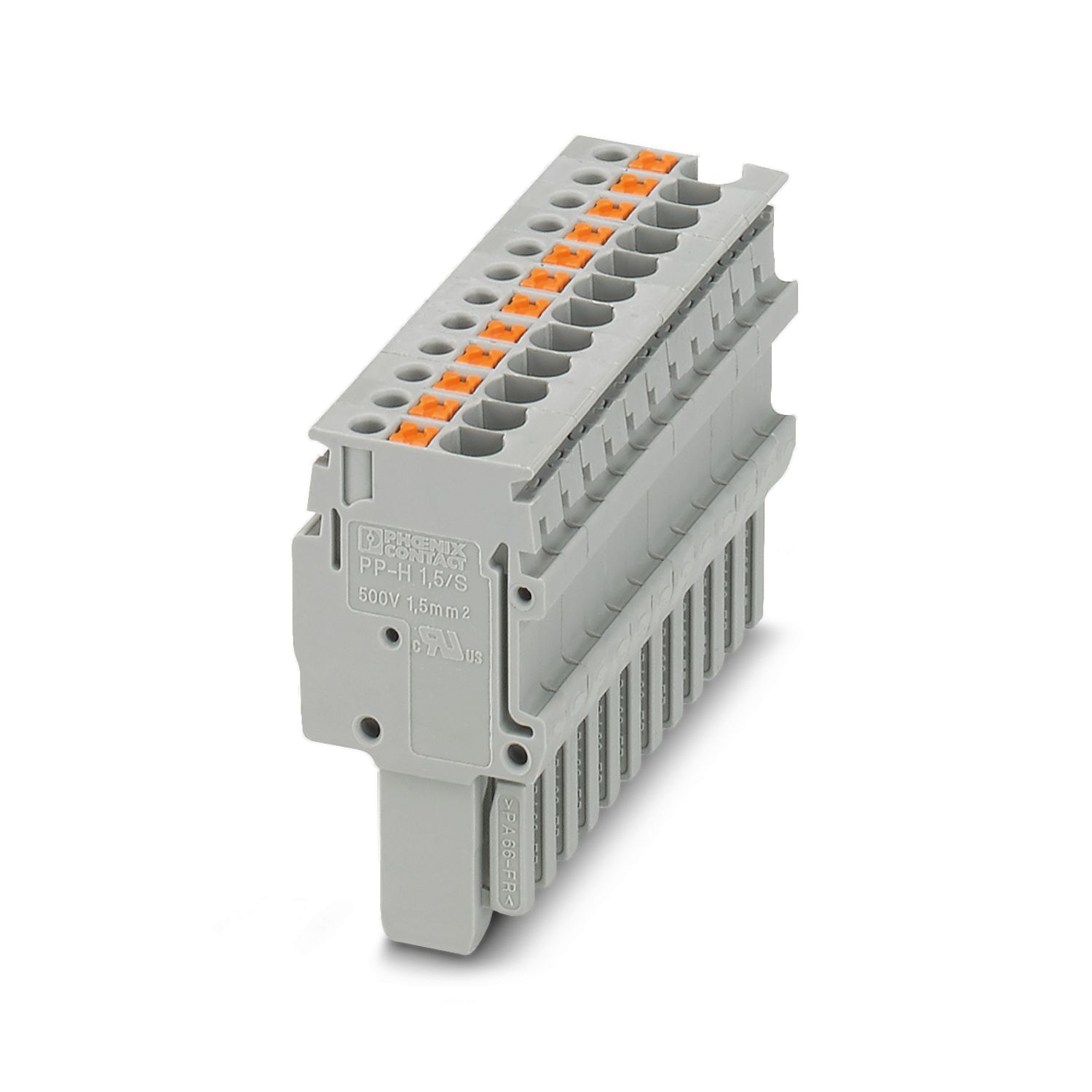

PP-H 1,5/S/12 - Plug 3212617

PP-H 1,5/S/13 - Plug 3212620

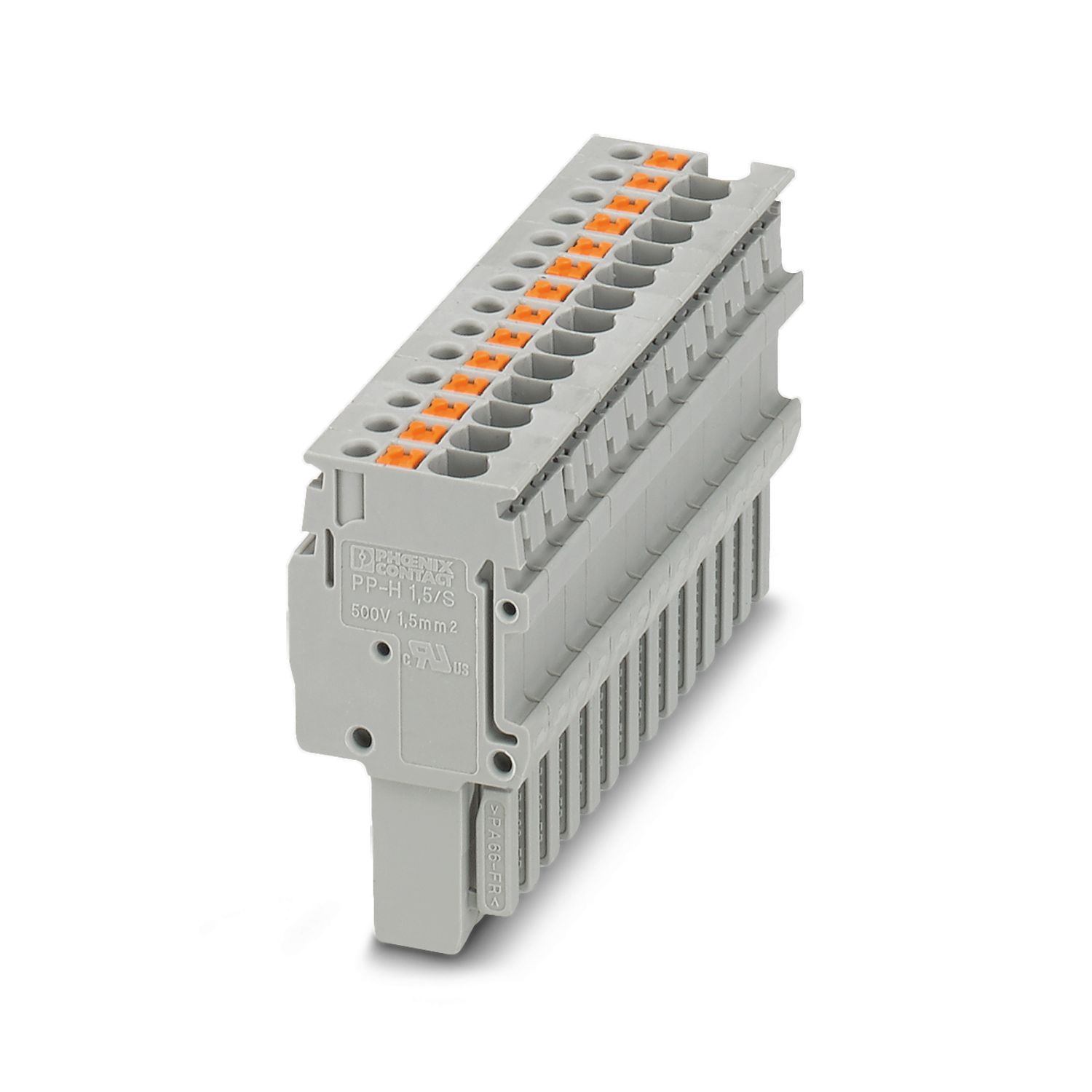

PP-H 1,5/S/14 - Plug 3212633
