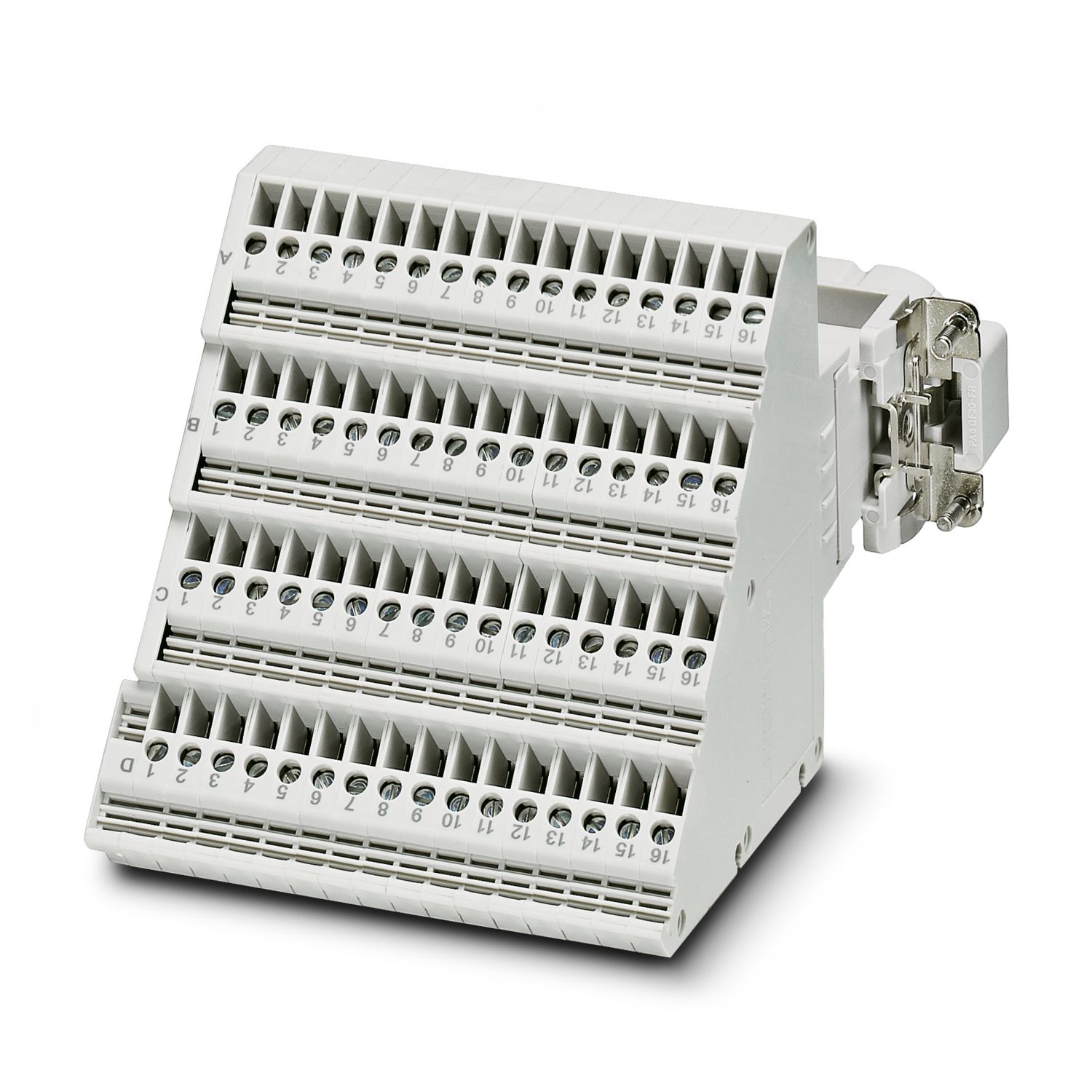

HEAVYCON terminal adapter male insert, D64 series, 64-pos., left protective conductor connection for the right side of the control cabinet, screw connection
| General | For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B24 type |
| General | Connectors may be operated only when there is no load/voltage. |
| Product type | Terminal adapter |
| Product family | HC-D |
| Series | HC-D |
| Type | B24 |
| Number of positions | 64 |
| Connection profile | 64+PE |
| Type | for the right side of the control cabinet |
| Screwdriver blade | 0.5 x 3.5 mm |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 250 V |
| Rated surge voltage | 4 kV |

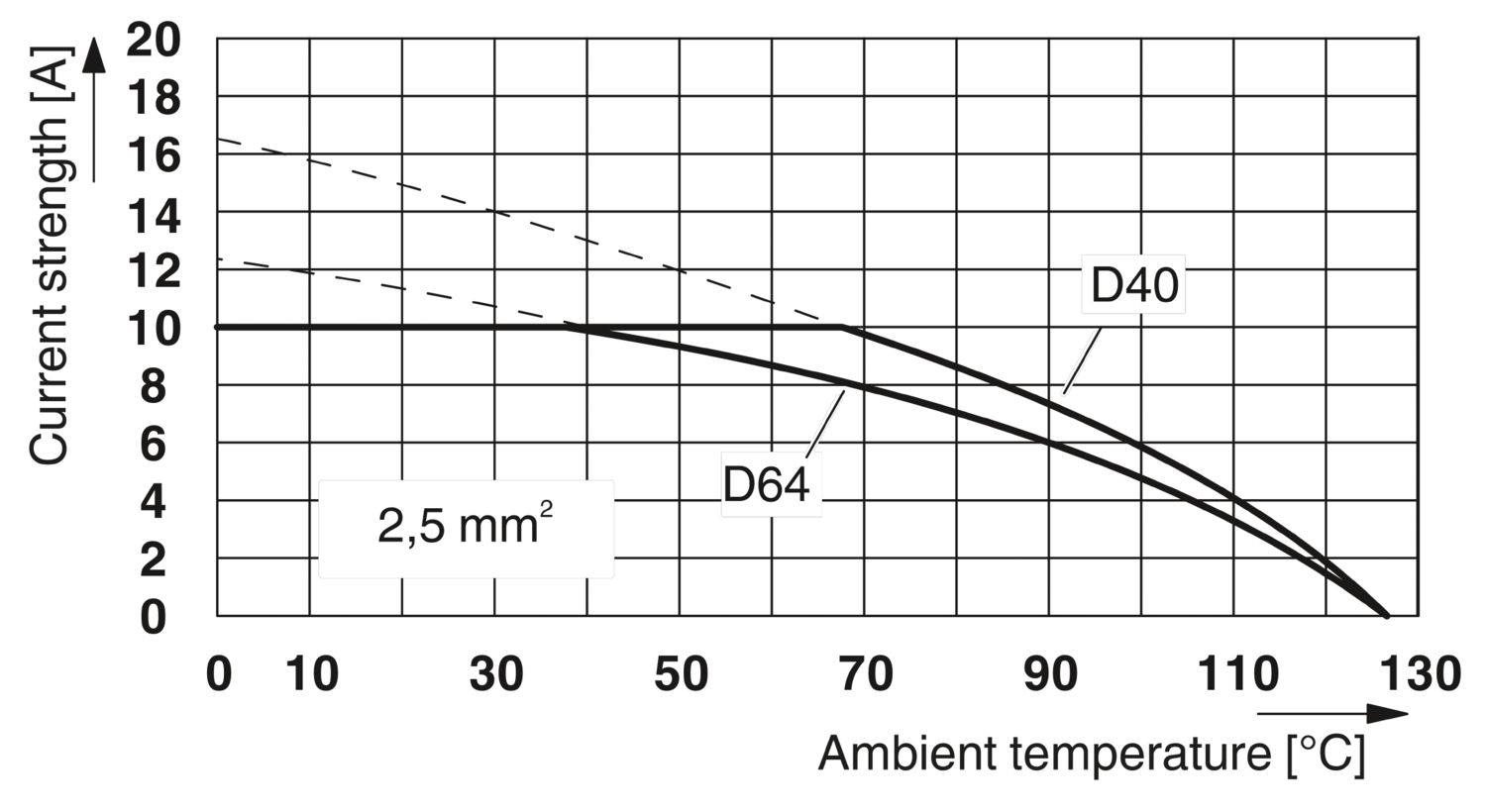

| Rated current | 10 A |
| SCCR | 5 kA (UL 2237) |
| Connection technology | |
| Connection technology | Screw connection |
| Connection in acc. with standard | IEC / EN |
| Conductor connection | |
| Conductor cross section | 0.2 mm² ... 2.5 mm² |
| Connection cross section AWG | 22 ... 12 |
| Tightening torque | 0.5 Nm ... 0.8 Nm |
| Stripping length of the individual wire | 10 mm |

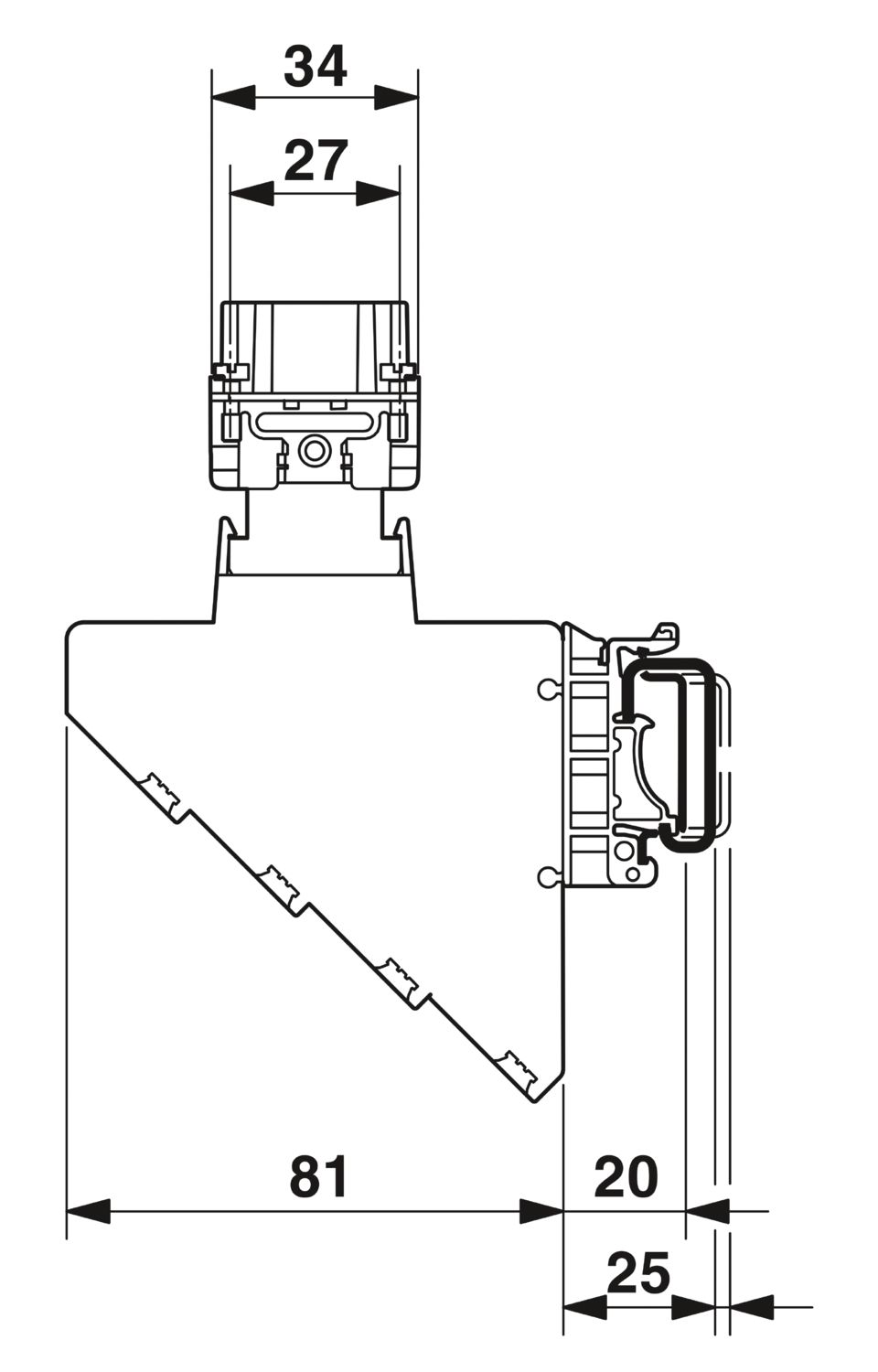

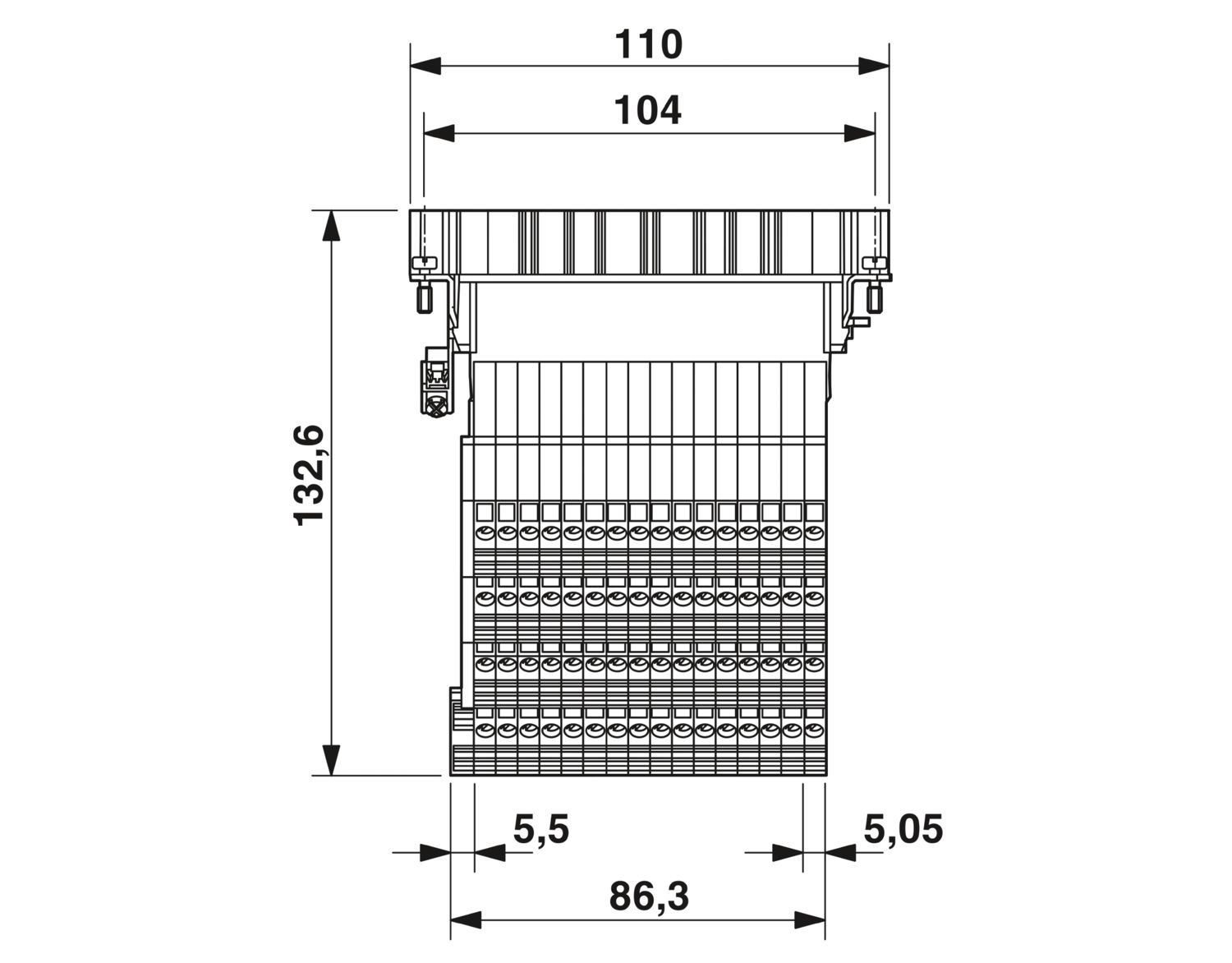

| Dimensional drawing |
|
| Width | 34 mm |
| Height | 132.6 mm |
| Length | 110 mm |
| Drill hole distance, horizontal | 104 mm |
| Drill hole distance, vertical | 27 mm |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Standards/regulations | PA |
| Stripping length of the individual wire | 10 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Constructional and testing regulations | DIN EN 61984 |
| DIN EN 60664 | |
| IEC 60352 | |
| Tests | DIN EN 61984 |
| DIN EN 60664 | |
| IEC 60352 | |
| Testing | |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Not for HC-EVO panel mounting bases | |
| Not for HC-EVO panel mounting bases | |
| Not for HC-B 24-AMQ-EMV housings |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 600 V | 7 A | - 14 |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 600 V | 7 A | - 14 |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 600 V | 7 A |
