LIT 4-24
-
Surge protection device
2804678

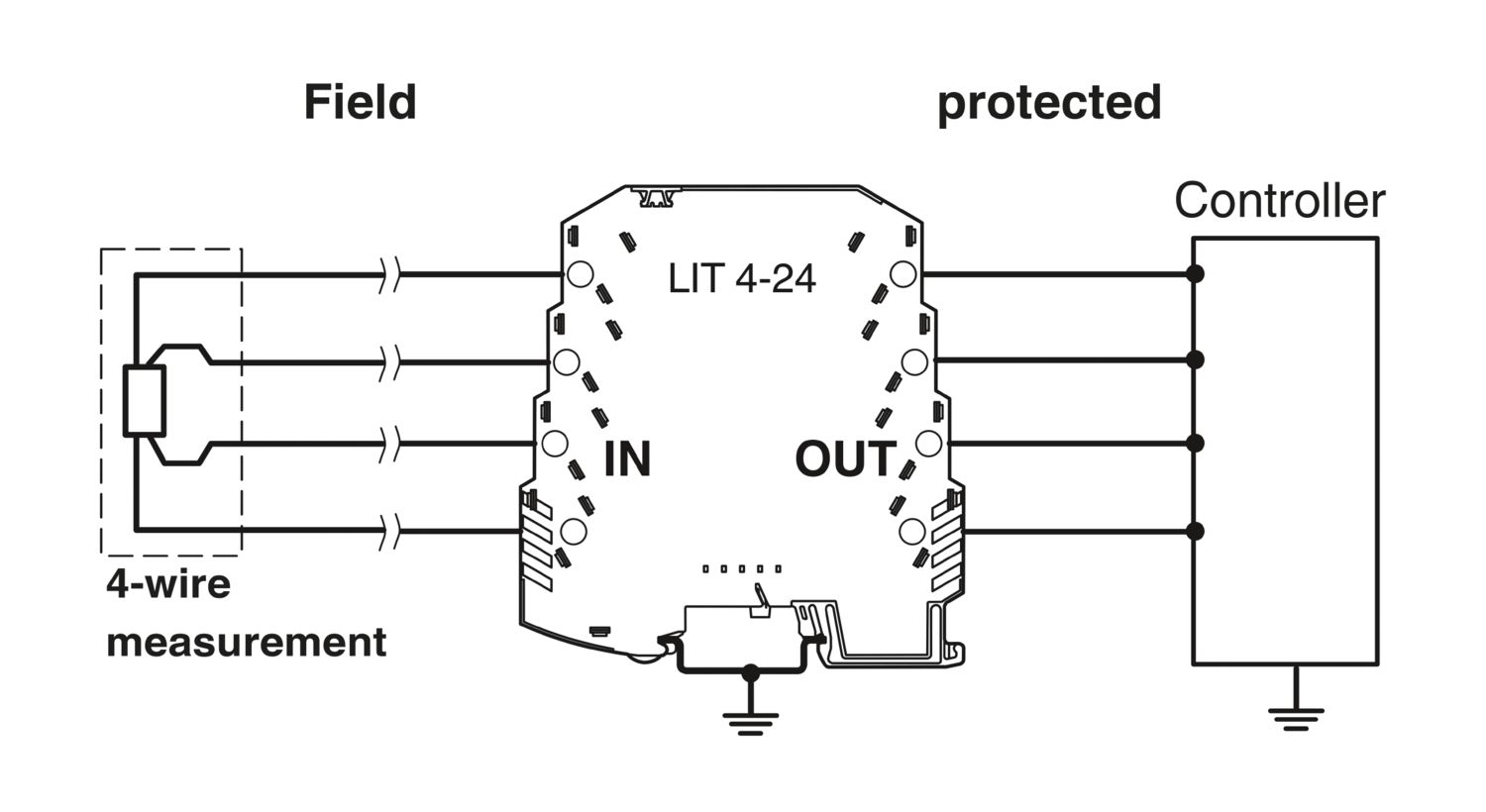

Surge protection in one-piece 6.2 mm wide DIN rail module for four floating signal wires.
Product details
| Product type | Surge protection for MCR technology |
| Product family | LINETRAB |
| IEC test classification | C1 |
| C2 | |
| C3 | |
| D1 | |
| Type | DIN rail module, one-piece |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 2 |
| Nominal voltage UN | 24 V DC |
| Connection method | Screw connection |
| Screw thread | M3 |
| Tightening torque | 0.8 Nm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Maximum inner capacitance Ci | typ. 2.5 nF |
| Max. internal inductance Li | < 1 µH |

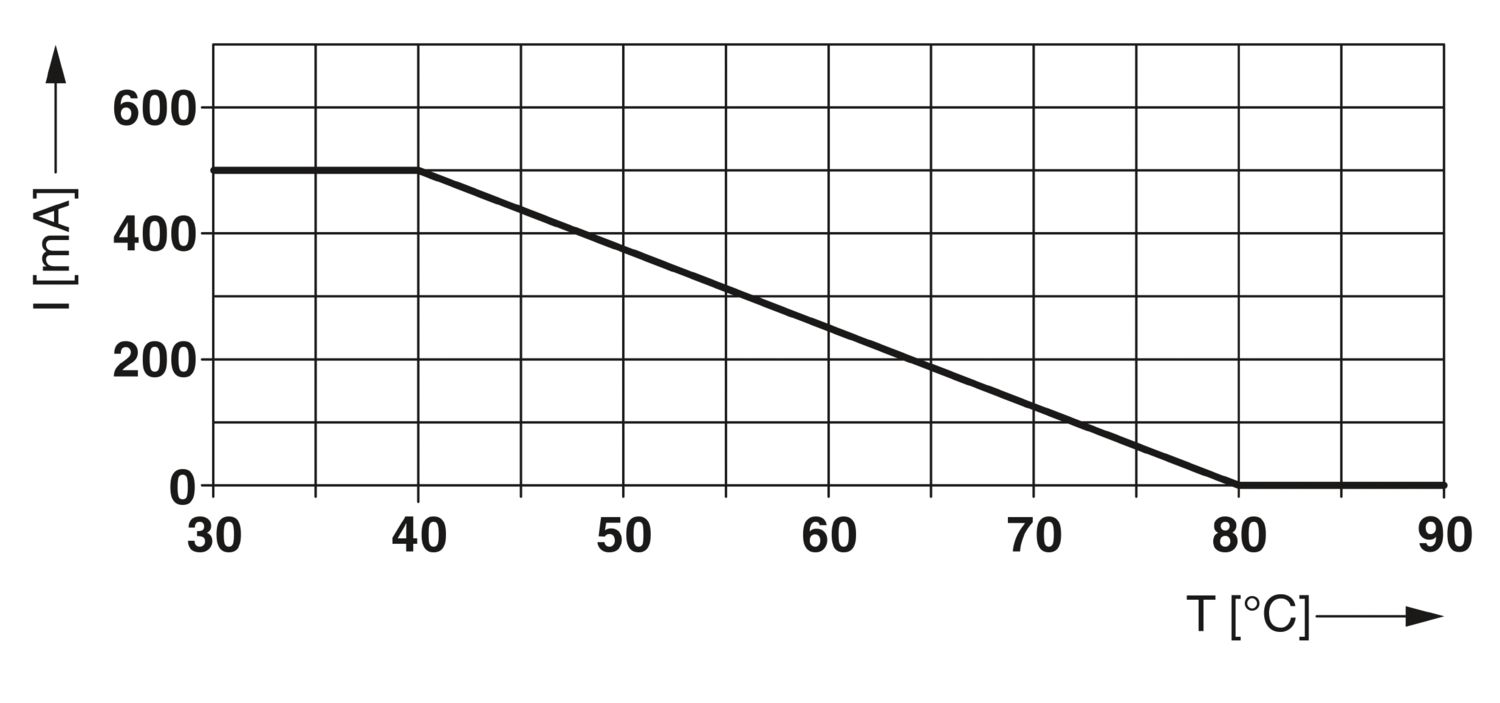

| Max. input current Ii | 500 mA (T4 / ≤ 80°C) |
| 500 mA (T5 / ≤ 50 °C) | |
| 500 mA (T6 / ≤ 40 °C) | |
| Max. input voltage Ui | 36 V DC |
| max. input power Pi | 550.00 mW |
| Maximum inner time factor (Ri/Li) | 10 µs |

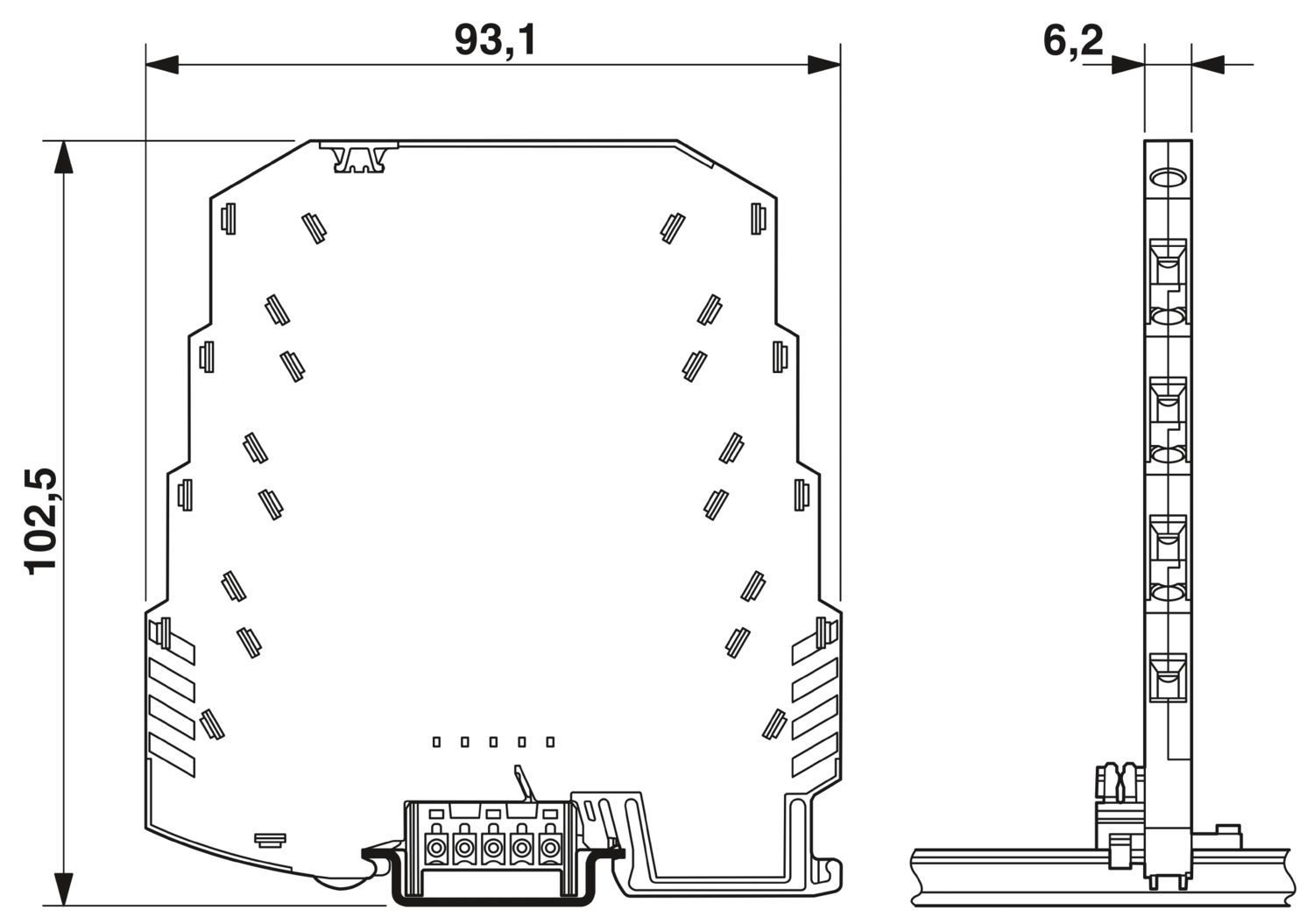

| Dimensional drawing |
|

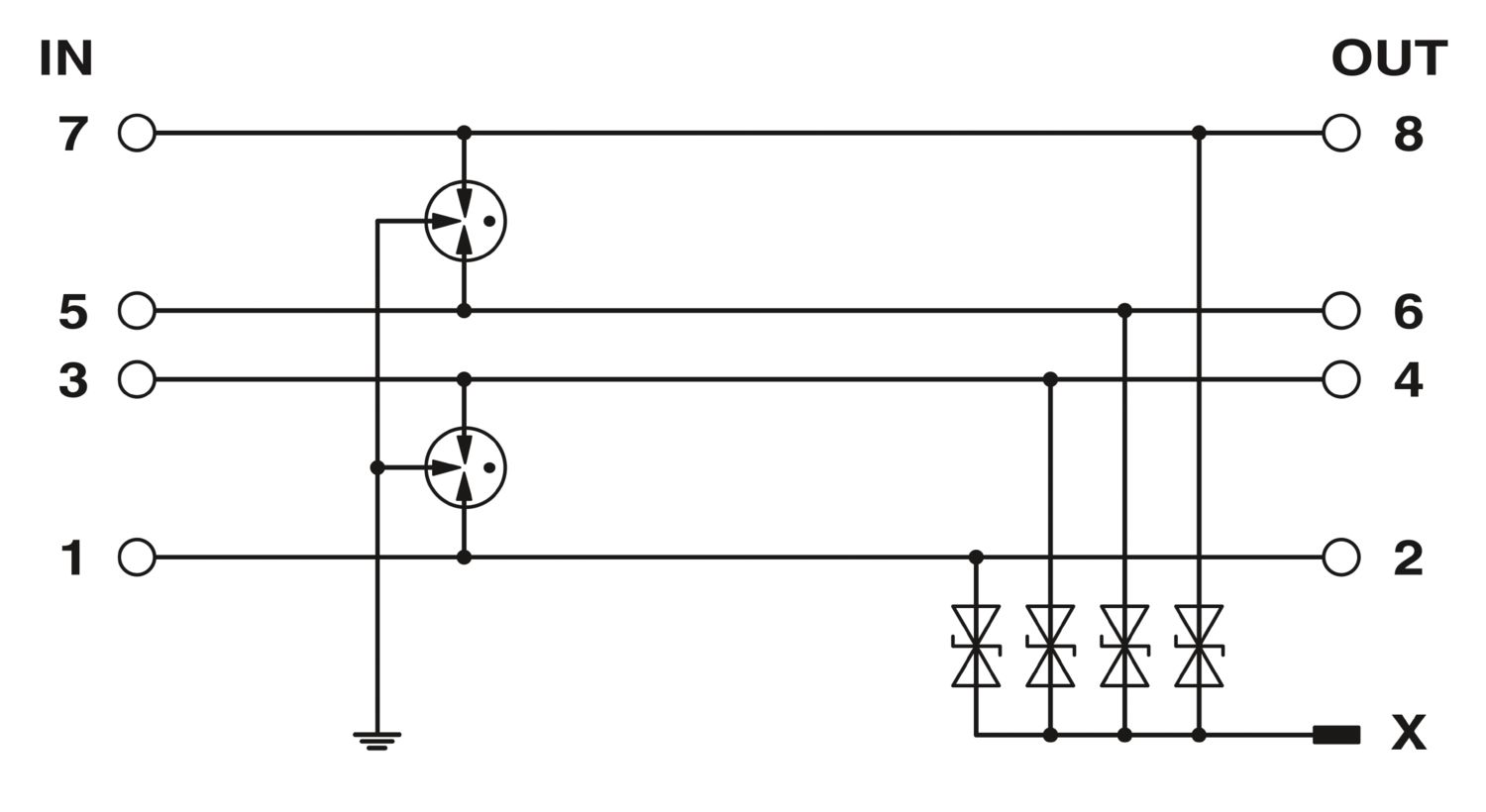

| Width | 6.2 mm |
| Height | 93.1 mm |
| Depth | 102.5 mm (incl. DIN rail 7.5 mm) |
| Color | anthracite grey (RAL 7016) |
| Flammability rating according to UL 94 | V-0 |
| Insulating material | PBT |
| Housing material | PBT |
| Mechanical data | |
| Open side panel | No |
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | 36 V DC |
| 25 V AC | |
| Rated current | 500 mA (40 °C) |
| Operating effective current IC at UC | ≤ 2 µA |
| Protective conductor current IPE | ≤ 4 µA |
| Nominal discharge current In (8/20) µs (line-line) | 250 A |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Pulse discharge current Iimp (10/350) µs (line-earth) | 500 A |
| 2 kA (in total) | |
| Total discharge current ITotal (8/20) µs | 20 kA |
| Max. discharge current Imax (8/20) µs maximum (line-line) | 250 A |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 10 kA |
| 20 kA (in total) | |
| Nominal pulse current Ian (10/1000) µs (line-line) | 50 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 50 A |
| 200 A (in total) | |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 60 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 650 V |
| Residual voltage at In (conductor-conductor) | ≤ 60 V |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 60 V |
| Voltage protection level Up (line-line) | ≤ 60 V (C1 - 500 V / 250 A) |
| ≤ 55 V (C3 - 10 A) | |
| ≤ 55 V (C3 - 50 A) | |
| Voltage protection level Up (line-earth) | ≤ 650 V (C1 - 500 V / 250 A) |
| ≤ 650 V (C2 - 10 kV / 5 kA) | |
| ≤ 650 V (C3 - 10 A) | |
| ≤ 700 V (C3 - 50 A) | |
| ≤ 700 V (D1 - 500 A) | |
| Response time tA (line-line) | ≤ 1 ns |
| Response time tA (line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 0.3 dB (2.4 MHz/50 Ω) |
| typ. 0.3 dB (700 kHz / 150 Ω) | |
| Cut-off frequency fg (3 dB), sym. in 50 Ω system | typ. 7.7 MHz |
| Cut-off frequency fg (3 dB), sym. in 150 Ω system | typ. 2.5 MHz |
| Capacity | ≤ 1.3 nF (per path) |
| Resistance per path | 0 Ω |
| Surge protection fault message | none |
| Max. required back-up fuse | 500 mA (T) |
| Impulse durability (line-line) | C1 - 500 V / 250 A |
| C3 - 50 A | |
| Impulse durability (line-earth) | C1 - 500 V / 250 A |
| C2 - 10 kV / 5 kA | |
| C3 - 50 A | |
| D1 - 500 A | |
| Alternating current carrying capacity (line-earth) | 5 A - 1 s |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) |
| Conformity/Approvals | |
| ATEX | II 1 G Ex ia IIC T4...T6 |
| II 1 D Ex iaD 20 T85 °C...135 °C | |
| IECEx | Ga Ex ia IIC T4...T6 |
| Ex iaD 20 T85 °C...T135 °C | |
| Standards/specifications | EN 61643-21 |
| Note | A2:2013 |
| Standards/specifications | EN 60079-0 |
| Note | 2018 |
| Standards/specifications | EN 60079-11 |
| Note | 2012 |
| Standards/specifications | IEC 60079-0 |
| Note | 2017 |
| Standards/specifications | IEC 60079-11 |
| Note | 2011 |
| Mounting type | DIN rail: 35 mm |
Your advantages
Space saving with a narrow overall width of just 6 mm

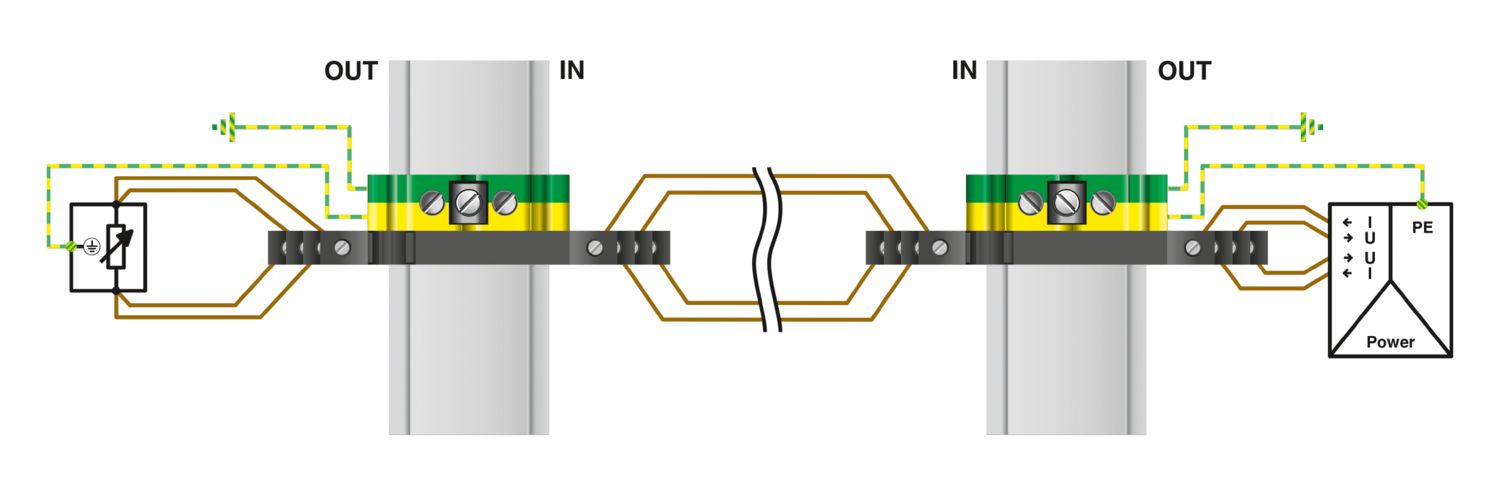

Install quickly and error-free with DIN rail connectors
No signal interference with reliable attenuation
