H5S:C5FF:GF3
-
Housing
1415761

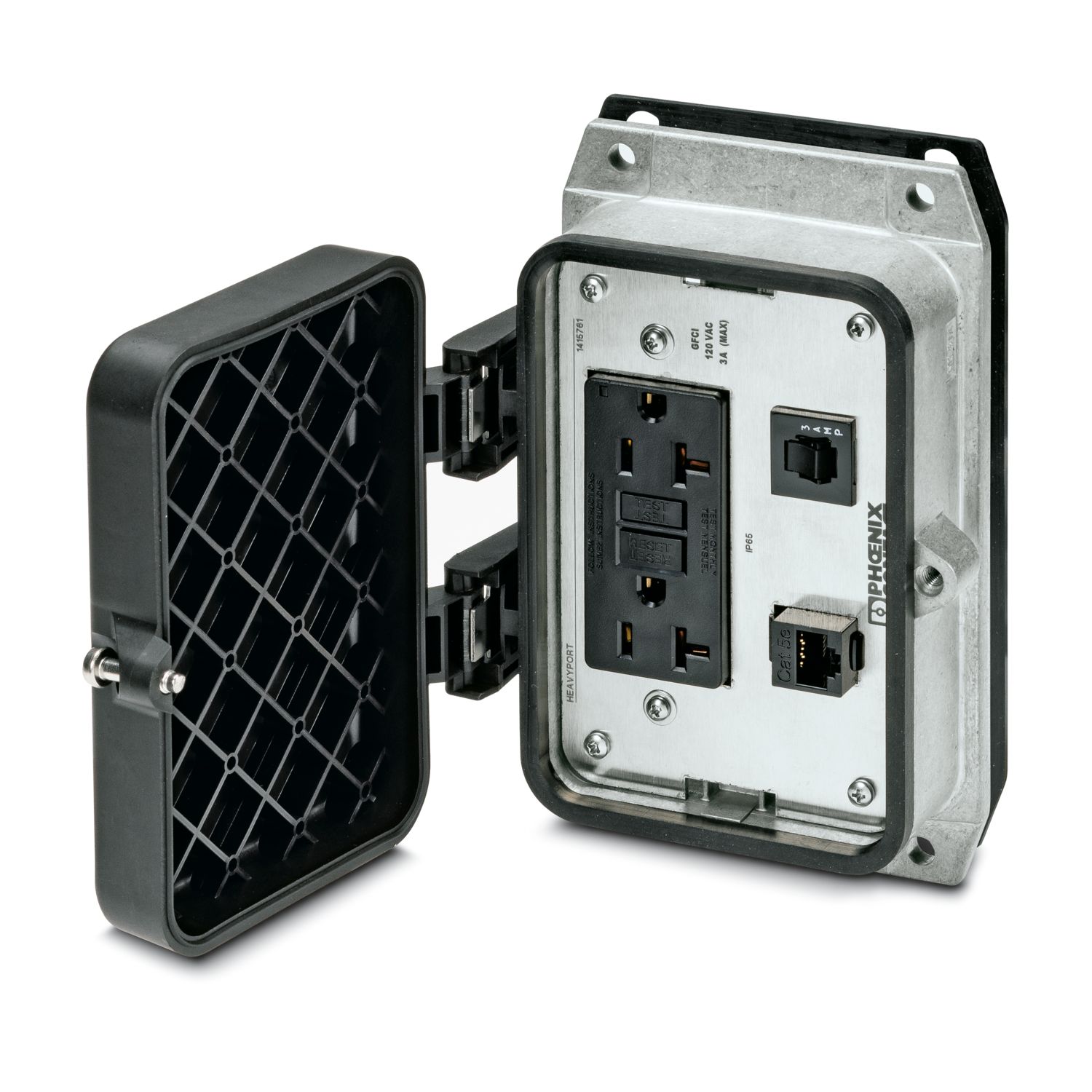

HEAVYPORT B48 panel mounting base with single screw lock, plastic protective cover, stainless steel front plate connections, 1x RJ45 CAT5e (female/female), 1x 120 V duplex outlet 5A - GFCI 20 A, and 1x 3 A circuit breaker
Product details
| Product type | Stackable housing set |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B48 |
| Protective cover | yes |
| Rated voltage (III/3) | max. 125 V AC (AC outlet, UL 498, UL 943, CSA C22.2 No. 42) |
| max. 32 V DC (Circuit breaker) | |
| max. 250 V AC (Circuit breaker) | |
| Rated current | max. 1.5 A DC (RJ45) |
| 20 A (AC outlet, UL 498, UL 943, CSA C22.2 No. 42) |
| Tightening torque | 1.5 ... 2 Nm |

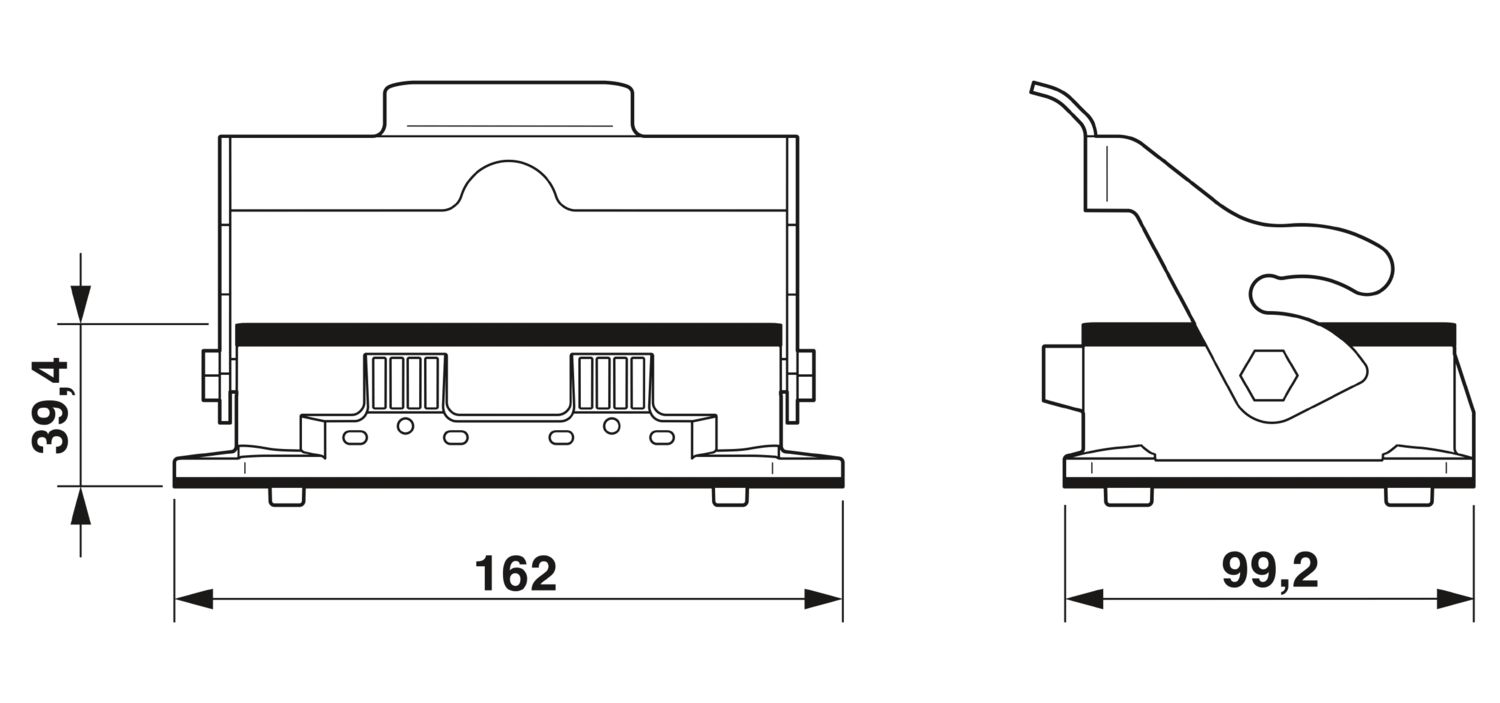

| Dimensional drawing |
|
| Width | 99.2 mm |
| Height | 39.4 mm |
| Length | 162 mm |
| Material | Stainless steele (Front plate) |
| Seal material | NBR, conductive |
| NBR, conductive | |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Material, protective cover | PA |
| Locking latch material | Stainless steel |
| Contact insert design | with 1x RJ45 Cat 5E Ethernet Socket/socket, snap-in slot locking |
| with 1x 120 V AC outlet 5 A GFCI 20 A | |
| with 1x 3 A circuit breaker Terminal 4.8 mm. Breaker requires slip-on sleeves: Item No. 3240541, 3240547, or 3240538 |
| Ambient conditions | |
| Degree of protection | IP65 |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C (Housing) |
Your advantages
Good shielding in the event of electromagnetic interference
