H5S:3C5FF:GF
-
Housing
1046947

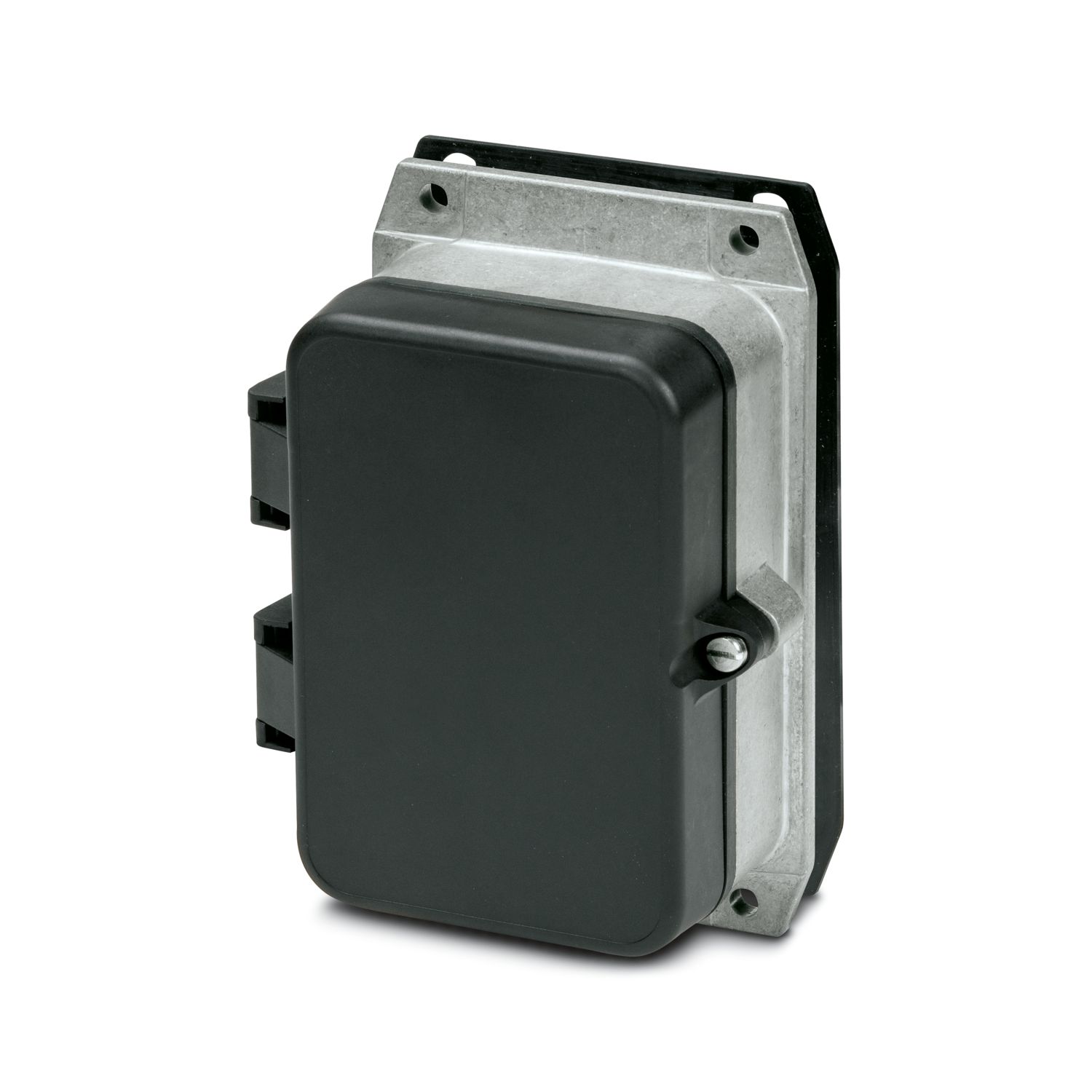

HEAVYPORT B48 panel mounting base, with single screw lock, with plastic protective cover, with stainless steel front plate connections 3x RJ45 CAT5e (female/female) 1x D-SUB 9 (female/female), 1x 120 V duplex outlet 5 A - GFCI 20 A
Product details
| Product type | Stackable housing set |
| Application | Standard |
| Type | B48 |
| Protective cover | yes |
| Rated voltage (III/3) | max. 125 V AC (AC outlet, UL 498, UL 943, CSA C22.2 No. 42) |
| Rated current | max. 1.5 A DC (RJ45) |
| 20 A (AC outlet, UL 498, UL 943, CSA C22.2 No. 42) |
| Tightening torque | 1.5 ... 2 Nm |
| Dimensional drawing |
|
| Width | 99.2 mm |
| Height | 39.4 mm |
| Length | 162 mm |
| Material | Stainless steele (Front plate) |
| Seal material | NBR, conductive |
| NBR, conductive | |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Material, protective cover | PA |
| Locking latch material | Stainless steel |
| Contact insert design | with 3x RJ45 Cat 5E Ethernet Socket/socket, snap-in slot locking |
| with 1x 120 V AC outlet 5 A GFCI 20 A |
| Ambient conditions | |
| Degree of protection | IP65 |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C (Housing) |
Your advantages
Good shielding in the event of electromagnetic interference
