DC-B 6-HTC-M25-M25-M
-
T box
1581052

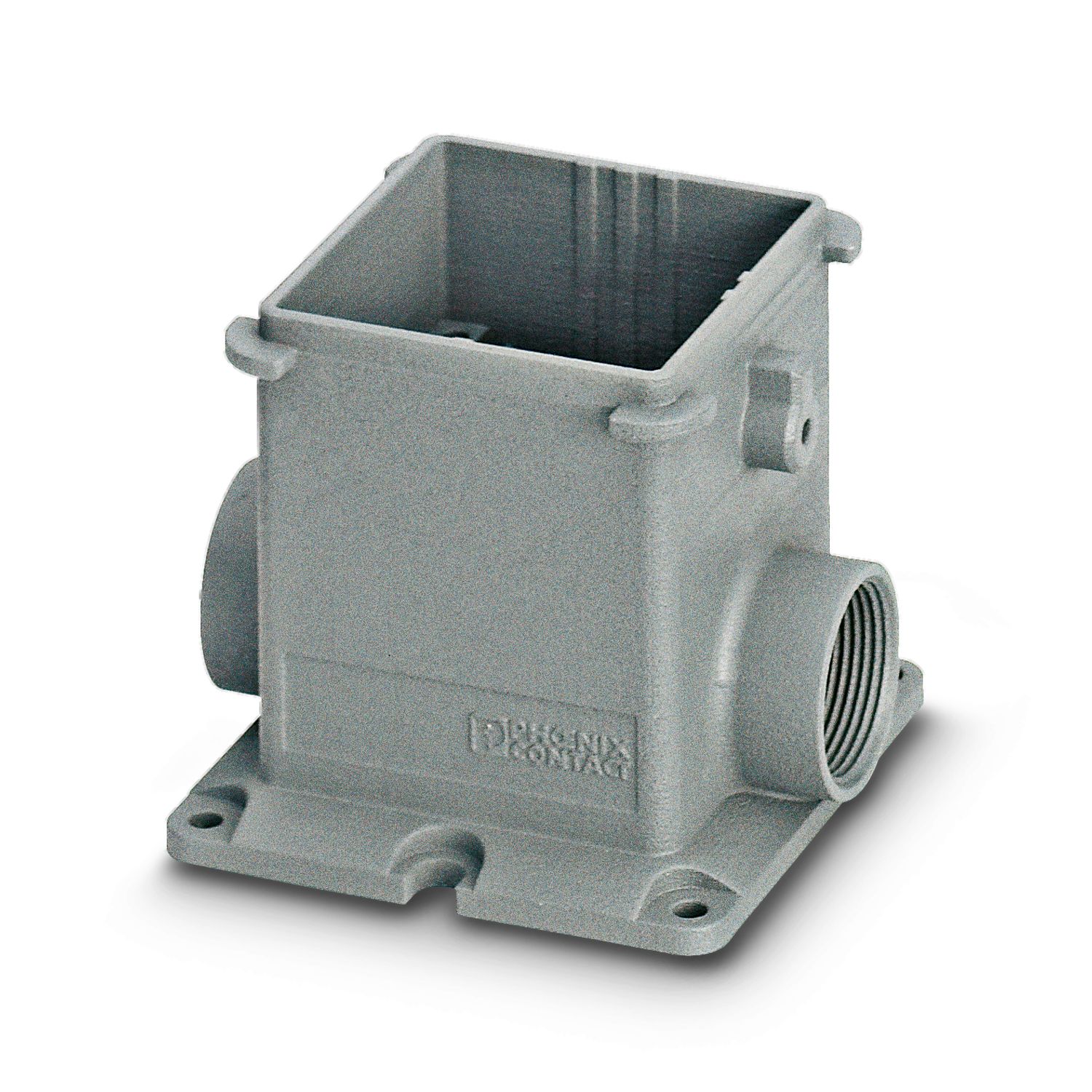

DUPLICON, aluminum T-box, type B6, IP67 protection, 2 x M25 cable screw connection thread (without cable screw connection)
Product details
| Housing type | Surface mounting housing |
| Type | DC-B6 |
| Number of positions | 0 |
| No. of cable outlets | 2 |
| Type of the screw connection | with M25 thread |
| Seal present | no |
| Protective cover | no |
| Cable outlet | lateral |
| Pg screw connection | none |
| Connection method | Screw connection |

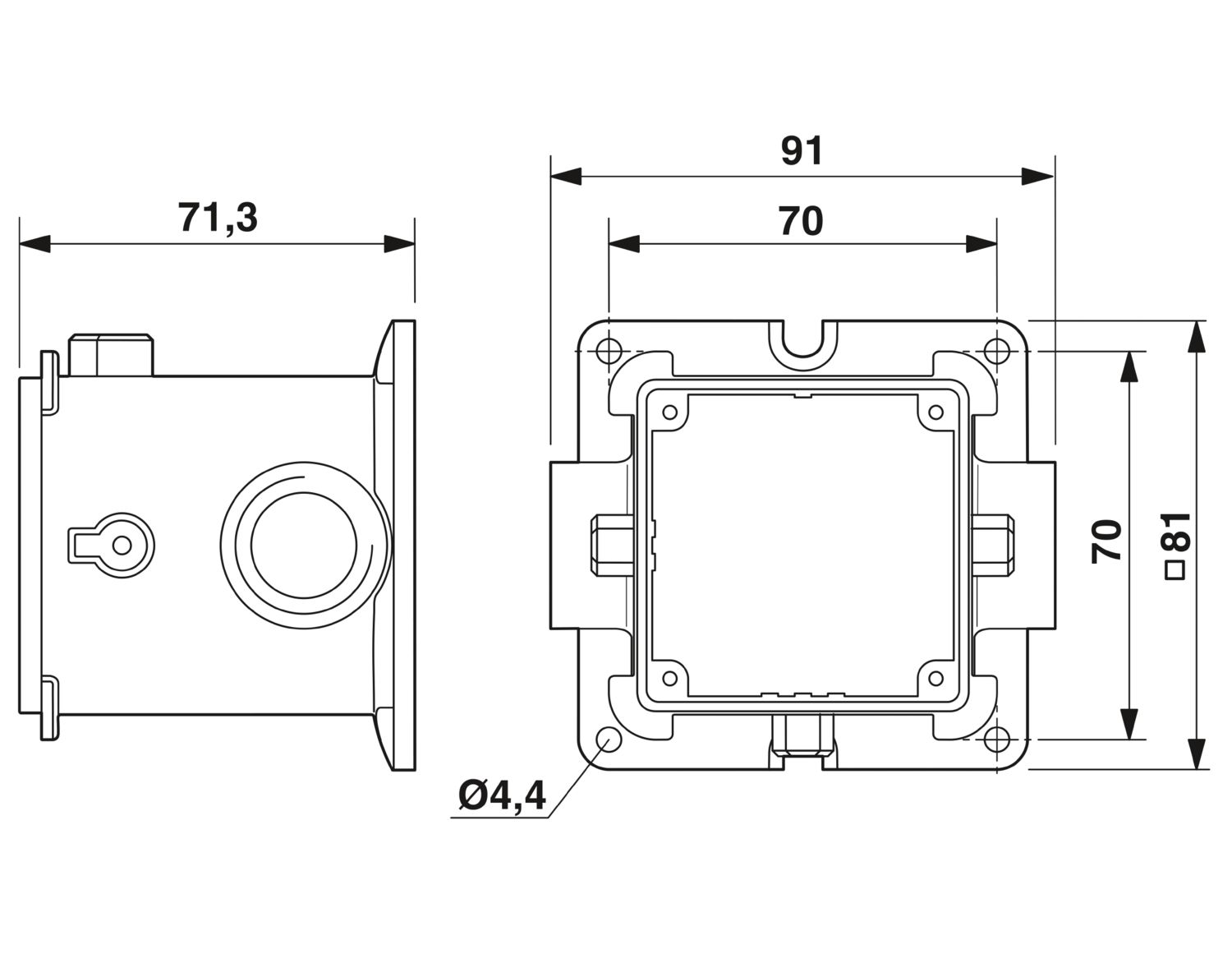

| Dimensional drawing |
|
| Width | 81 mm |
| Height | 72 mm |
| Length | 81 mm |
| Color | pearl gray |
| Material Housing | Die-cast aluminum |
| Housing material | Die-cast aluminum |
| Mechanical data | |
| Type of the screw connection | with M25 thread |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP66 | |
| IP67 | |
| IP65/IP66/IP67 | |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Ambient temperature (storage/transport) | -40 °C ... 125 °C |
| Mounting type | Screw mounting |
