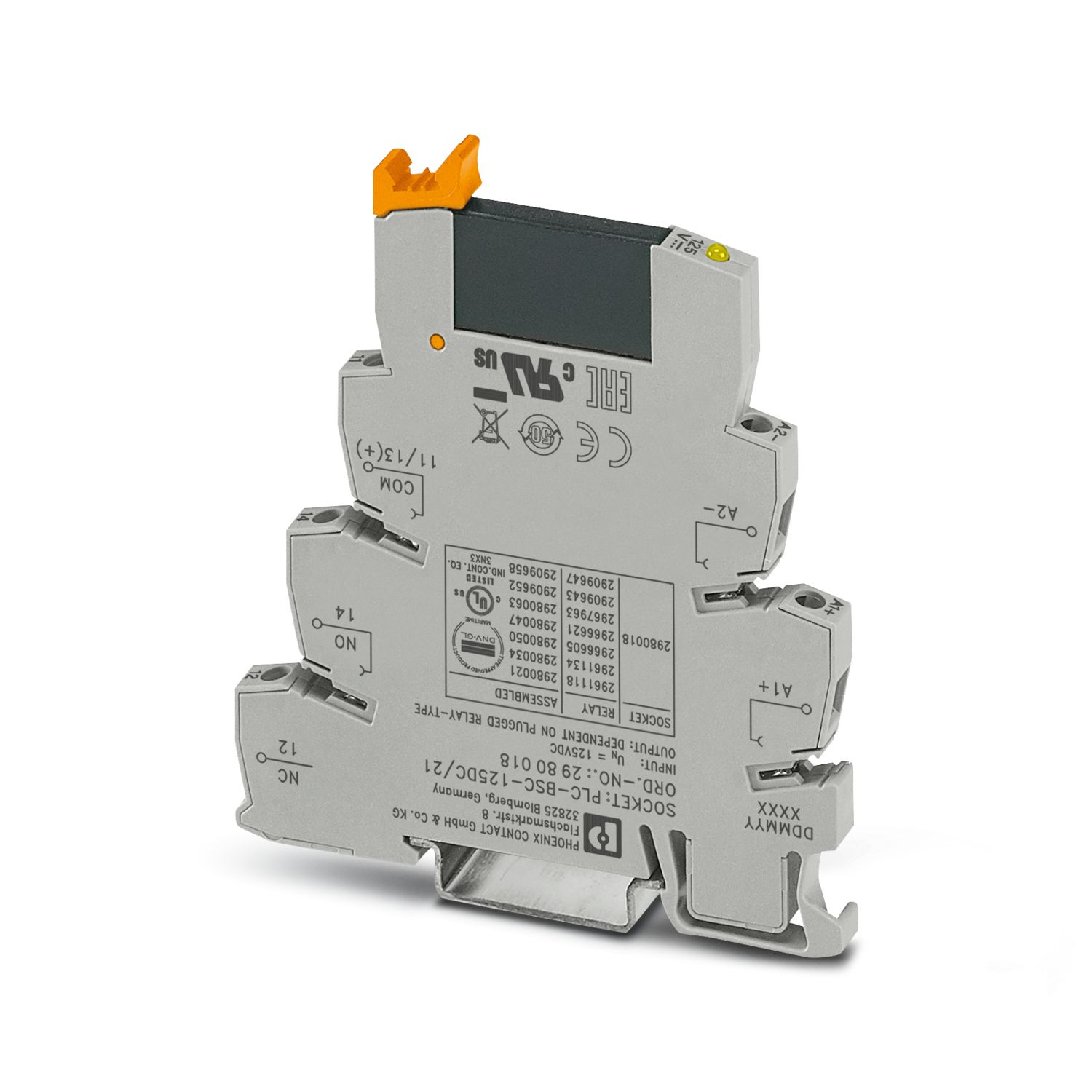

PLC-OSC-125DC/ 48DC/100 - Solid-state relay module
2980047

PLC-INTERFACE, consisting of PLC-BSC.../21 basic terminal block with screw connection and plug-in miniature solid-state relay, for mounting on NS 35/7,5, 1 N/O contact, input: 125 V DC, output: 3 - 48 V DC/100 mA

Product Details

Utilization restriction
EMC note EMC: class A product, see manufacturer's declaration in the download area
Product type Solid-state relay module
Product family PLC-INTERFACE
Application Universal
Operating mode 100% operating factor
Insulation characteristics
Insulation Basic insulation
Insulation characteristics: Standards/regulations
Insulation Basic insulation
Overvoltage category III
Pollution degree 2
Maximum power dissipation for nominal condition 0.38 W
Test voltage (Input/output) 2.5 kV (50 Hz, 1 min., input/output)
Nominal input voltage UN 125 V DC
Input voltage range in reference to UN 0.8 ... 1.1
Input voltage range 100 V DC ... 137.5 V DC
Switching threshold "0" signal in reference to UN ≤ 0.4
Switching threshold "1" signal in reference to UN ≥ 0.8
Typical input current at UN 3 mA
Typical response time 1 ms (at UN)
Typical turn-off time 3 ms (at UN)
Status display Yellow LED
Transmission frequency 50 Hz
Contact type 1 N/O contact
Design of digital output electronic
Output voltage range 3 V DC ... 48 V DC
Limiting continuous current 100 mA
Voltage drop at max. limiting continuous current ≤ 1 V
Output circuit 2-conductor, floating
Protective circuit Reverse polarity protection; Polarity protection diode
Surge protection
Connection method Screw connection
Stripping length 8 mm
Screw thread M3
Conductor cross section solid 0.14 mm² ... 2.5 mm²
Conductor cross section flexible 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross section AWG 26 ... 14
Tightening torque 0.6 Nm ... 0.8 Nm
Width 6.2 mm
Height 80 mm
Depth 94 mm
Flammability rating according to UL 94 V0 (Housing)
Ambient conditions
Ambient temperature (operation) -25 °C ... 60 °C
Ambient temperature (storage/transport) -25 °C ... 70 °C
Corrosive gas test
Identification ISA-S71.04. G3 Harsh Group
EN 60068-2-60
Standards/regulations
Standards/regulations IEC 60947-5-1
Mounting type DIN rail mounting
Assembly instructions in rows with zero spacing
Mounting position any
Item number 2980047
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key C05
Product Key CK6215
Catalog Page Page 372 (C-5-2019)
GTIN 4017918619060
Weight per Piece (including packing) 38.43 g
Weight per Piece (excluding packing) 32.2 g
Customs tariff number 85364900
Country of origin DE

ECLASS

ECLASS-9.0 27371604
ECLASS-10.0.1 27371604
ECLASS-11.0 27371604

ETIM

ETIM 8.0 EC001504

UNSPSC

UNSPSC 21.0 39122300

cUL Recognized

Approval ID: FILE E 238705

UL Recognized

Approval ID: FILE E 238705

EAC

Approval ID: TR_TS_D_00573_c

DNV GL

Approval ID: TAE0000196
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2

EAC

Approval ID: RU*C-DE.*08.B.00010

PRS

Approval ID: TE/2109/880590/16

UL Listed

Approval ID: FILE E 172140

cUL Listed

Approval ID: FILE E 172140

cULus Recognized

cULus Listed

REACh SVHC Lead 7439-92-1
Hexahydromethylphthalic anhydride
China RoHS Environmentally Friendly Use Period = 50 years
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”

Compatible Products

Your advantages

Slim design
Efficient connection to system cabling using V8 adapter
RT III sealed solid-state relay
Functional plug-in bridges
Integrated input circuit
High switching power
Zero voltage switch at AC output
