DEK-TR/INV - Switching amplifier

2964319

Inverter module. The inverter module inverts the signals of ground switching n-p-n transistor outputs into plus switching p-n-p outputs, and vice versa.

Product details

Note on application	Use of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place.

Product type	Solid-state relay module
Product family	DEK
Application	Inverter module
Insulation characteristics
Overvoltage category	II
Pollution degree	2

Maximum power dissipation for nominal condition	4.8 W
Supply
Supply voltage range	20 V DC ... 30 V DC

Typical input current at U_N	200 mA
Transmission frequency	15 kHz
NPN
Switching threshold "1" signal voltage	< 5 V (at U_V = 24 V; < (U_V - 19 V))
Switching threshold "0" signal, voltage	> 15 V (at U_V = 24 V; > (U_V - 9 V))
Min. voltage input signal	-2 V
Max. voltage input signal	26 V (at U_V = 24 V; U_V + 2 V)
PNP
Switching threshold "1" signal voltage	> 19 V
Switching threshold "0" signal, voltage	< 9 V
Min. voltage input signal	-2 V
Max. voltage input signal	26 V (at U_V = 24 V; U_V + 2 V)

Continuous load current	200 mA
Leakage current	< 1 mA
Residual voltage	< 1 V
Transmission frequency	15 kHz
Contact switching type	1 N/O contact
Output nominal voltage	max. ± 26 V

Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12

Width	6.2 mm
Height	80 mm
Depth	56 mm

Color	green (RAL 6021)
Housing material	Polyamide PA non-reinforced

Ambient conditions
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C

Standards/regulations	IEC 60947-5-1

Mounting type	DIN rail mounting
Assembly note	in rows with zero spacing
Mounting position	any

Commercial data

Item number	2964319
Packing unit	10 pc
Minimum order quantity	1 pc
Sales key	C460
Product key	DK61A3
Catalog page	Page 455 (C-5-2019)
GTIN	4017918176068
Weight per piece (including packing)	20.61 g
Weight per piece (excluding packing)	19.9 g
Customs tariff number	85365019
Country of origin	CN

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

Your advantages

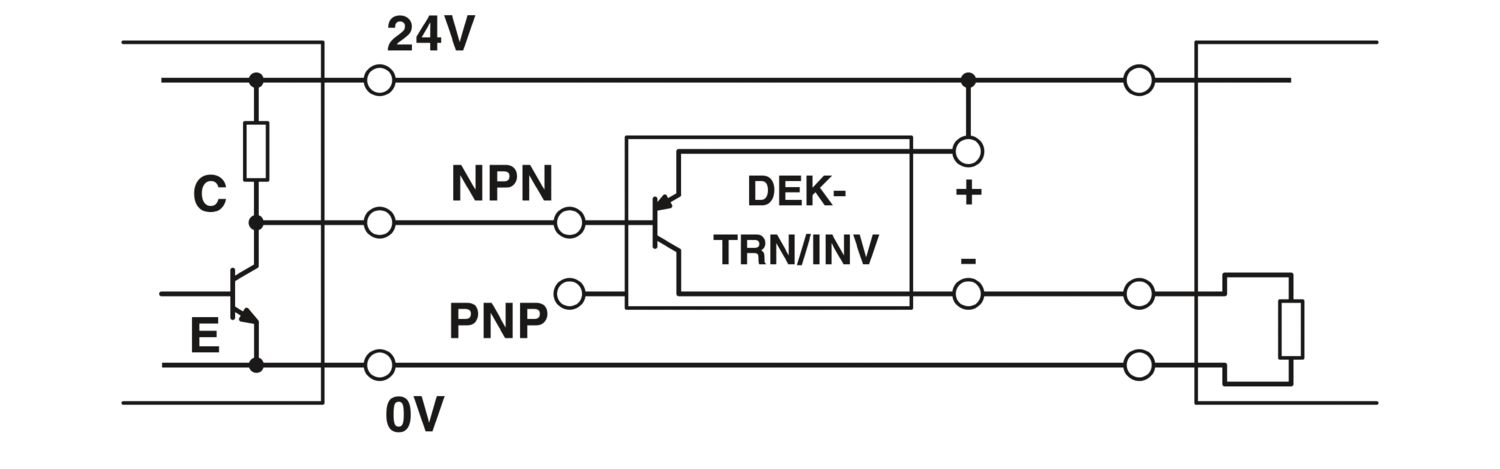

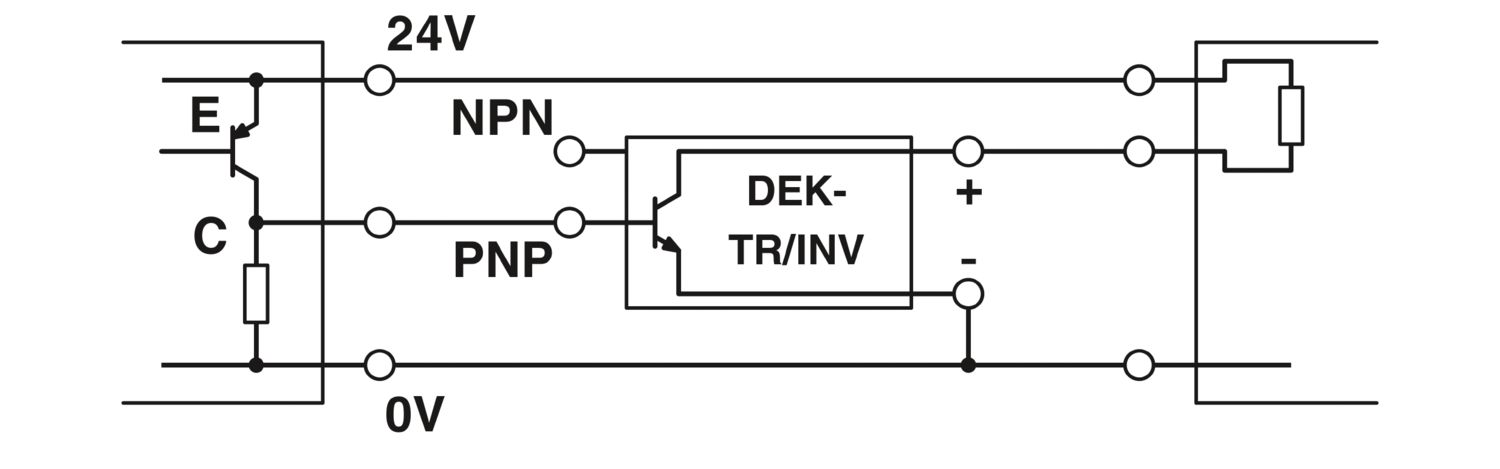

The DEK-TR/INV inverter module inverts the signals of ground switching NPN transistor outputs into positive switching PNP outputs and vice versa

ECLASS-12.0	27371604
ECLASS-13.0	27371604

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
