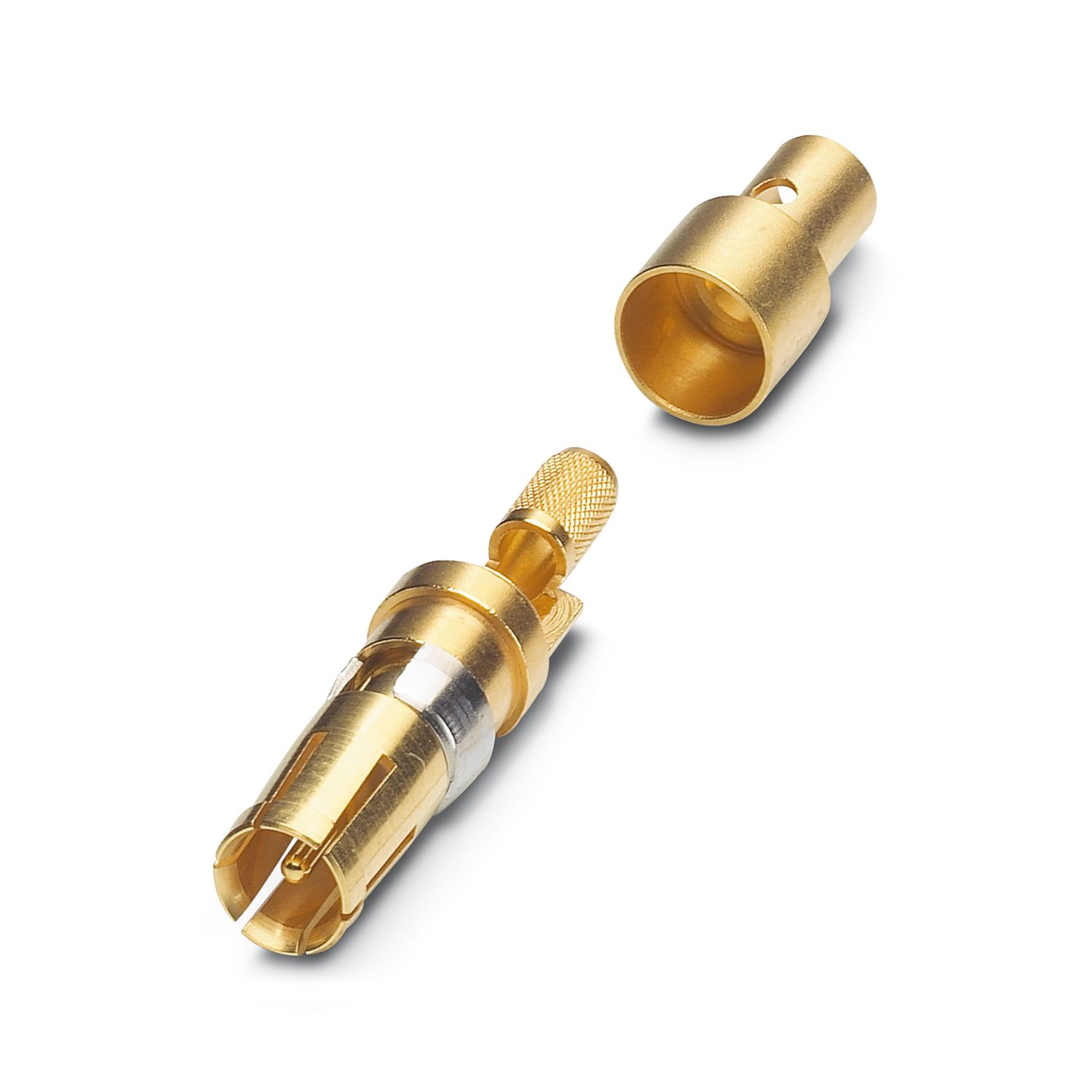

VS-BU-KX-75-RG179/187
-
D-SUB coaxial contact
1655616
Coaxial contact, for D-SUB combination inserts, solder cup, socket, straight, for cable RG 179/187, gold-plated
Product details
| Product type | Solder contact |
| Series | HC-M-04-KOAX |
| Type | Individual female contact |
| Contact material type | turned |
| Rated voltage (III/3) | 250 V |
| Rated current | 2 A |
| Insulation resistance | 10 TΩ |
| Wave impedance | 75 Ω |
| Connection method | Solder cup |

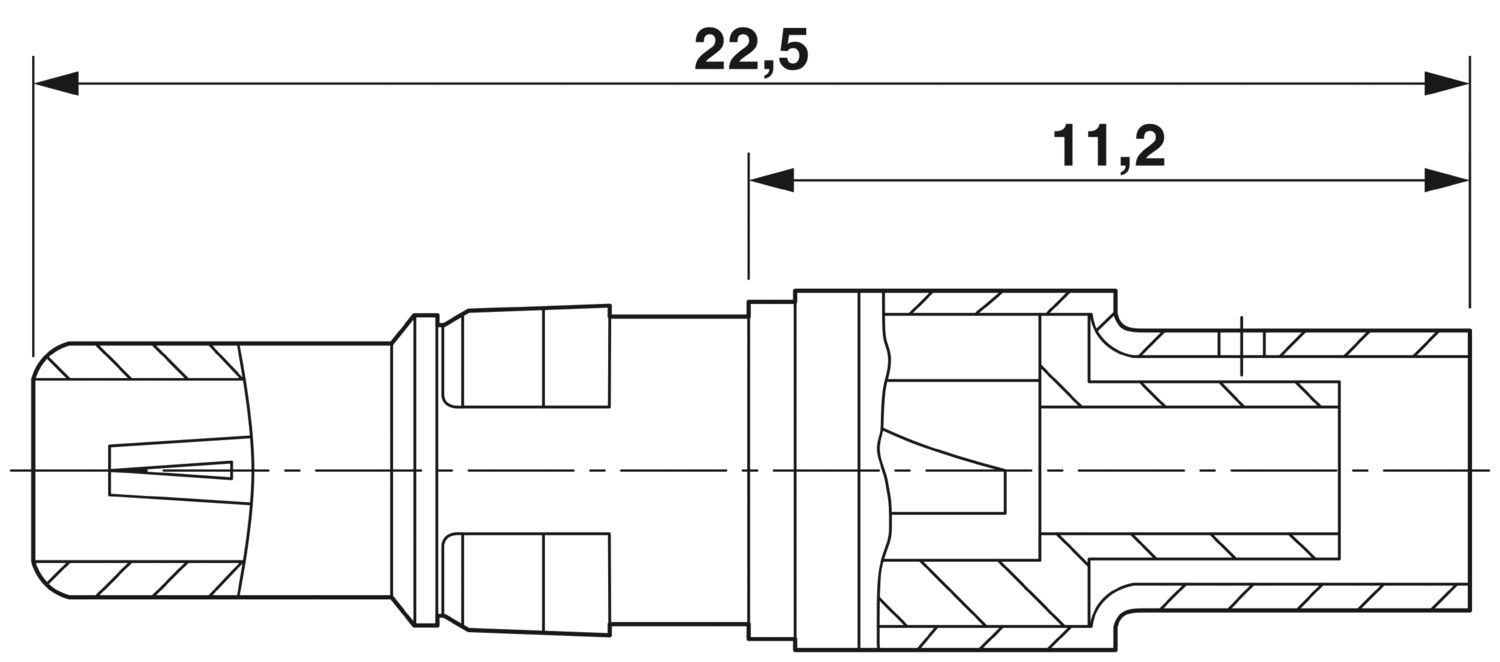

| Dimensional drawing |
|
| Length | 23 mm |
| Mechanical characteristics | |
| Contact diameter | 4.8 mm |
| Contact material | Copper alloy |
| Contact surface material | Hard gold-plated over nickel |
| External cable diameter | 3.2 mm |
| Wave impedance | 75 Ω |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Insertion force per signal contact | ≤ 7.00 N |
| Extraction force per signal contact | ≤ 7 N |
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 135 °C |
