REL-PR1- 48DC/1/MB - Single relay

2908613

Plug-in high-power relay with power contacts, specifically for switching high DC loads, 1 N/O contact, blowout magnet, coil voltage: 48 V DC

This product needs further products for operation. Mandatory accessories

Product details

Product type	Single relay
Operating mode	100% operating factor
Mechanical service life	approx. 2x 10⁷ cycles
Insulation characteristics
Overvoltage category	III
Pollution degree	3
Data management status
Date of last data management	17.01.2025

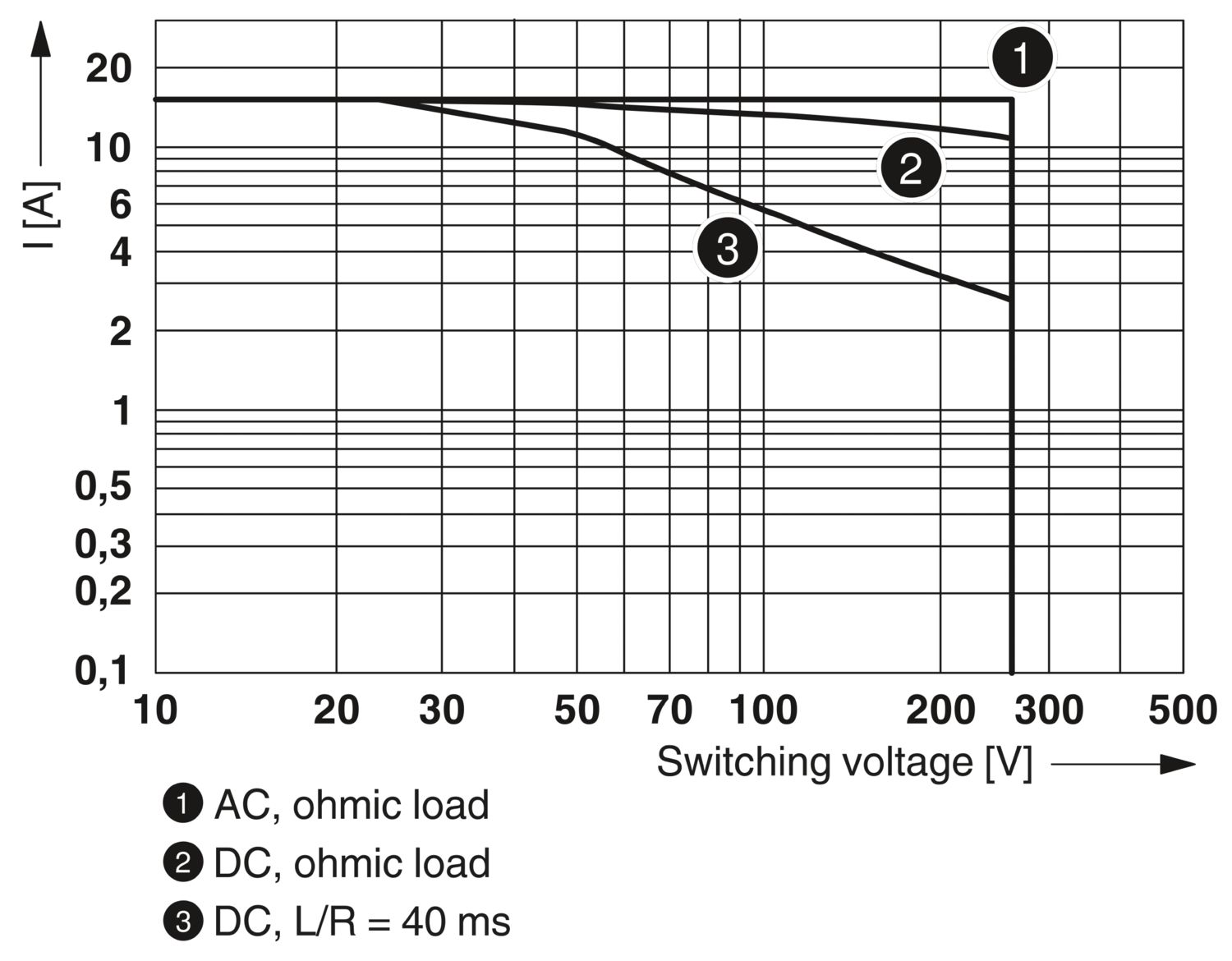

Service life electrical	see diagram
Maximum power dissipation for nominal condition	1.9 W
Test voltage (Winding/contact)	2.5 kV (50 Hz, 1 min., winding/contact)
Rated surge voltage	4 kV

Coil side
Nominal input voltage U_N	48 V DC
Drive and function	monostable
Drive (polarity)	non-polarized
Typical response time	20 ms
Typical release time	15 ms

Switching

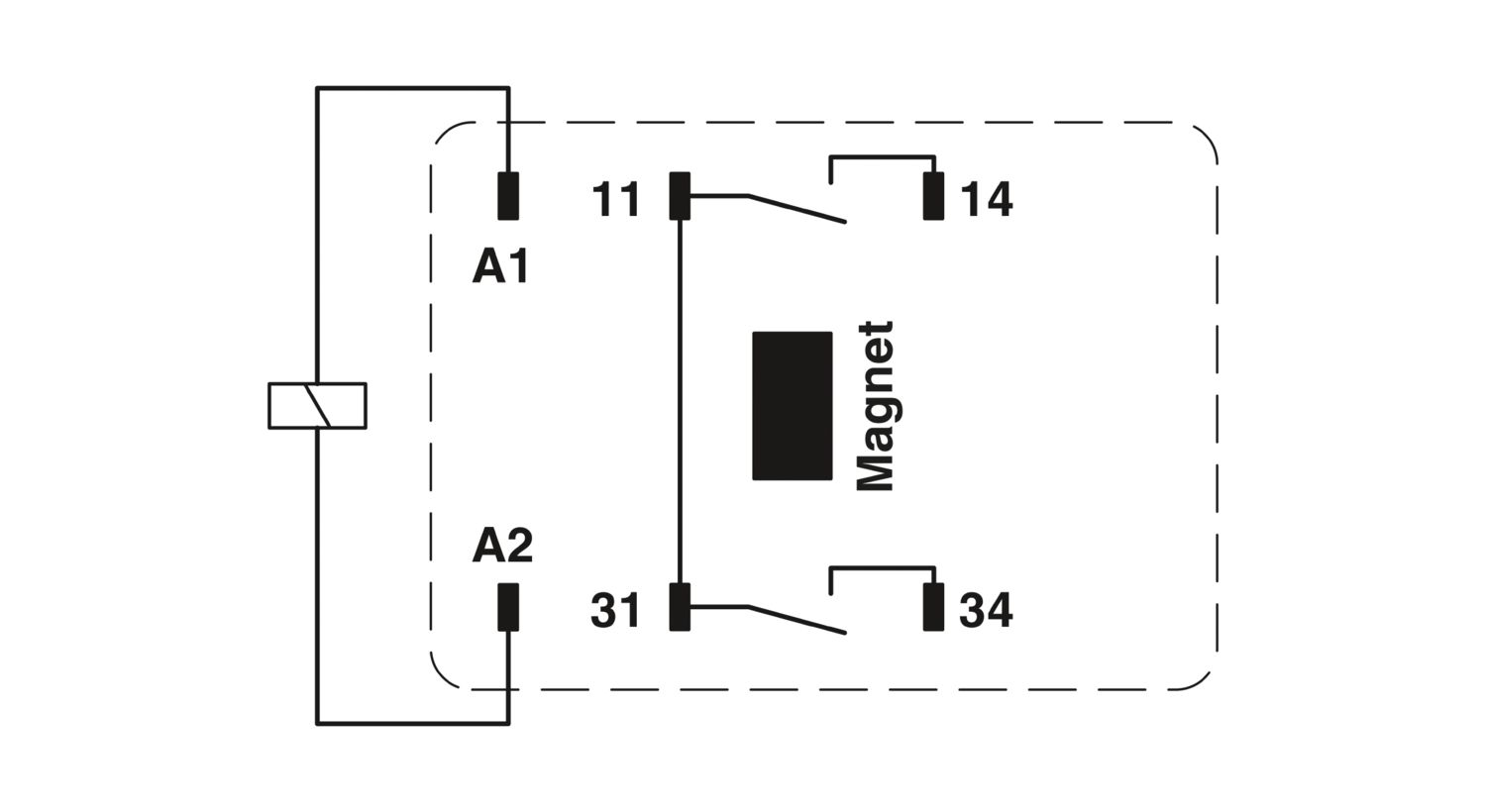

Contact switching type	1 N/O contact
Type of switch contact	Single contact
Contact material	AgNi
Maximum switching voltage	440 V AC
	350 V DC
Minimum switching voltage	5 V (At 24 mA)
Limiting continuous current	16 A
Maximum inrush current	50 A (20 ms)
	30 A (4 s)
Min. switching current	5 mA (at 24 V)
Interrupting rating (ohmic load) max.	384 W (at 24 V DC)
	768 W (at 48 V DC)
	930 W (at 60 V DC)
	1650 W (at 110 V DC)
	2640 W (at 220 V DC)
	4000 VA (for 250 V AC)
Switching capacity min.	120 mW
Switching capacity	1 A (at 220 V, DC13)
	1.5 A (at 240 V, AC15)

Connection method	Plug-in connection

Width	38.6 mm
Height	36.1 mm
Depth	45.5 mm

Ambient conditions
Degree of protection	RT I
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C

Corrosive gas test
Identification	ISA-S71.04. G3 Harsh Group
	EN 60068-2-60

Standards/regulations	IEC 60664
	IEC 61810

Mounting position	any

Commercial data

Item number	2908613
Packing unit	1 pc
Minimum order quantity	10 pc
Product key	DK6961
GTIN	4055626312781
Weight per piece (including packing)	87.5 g
Weight per piece (excluding packing)	87.5 g
Country of origin	PL

Classifications

Approvals

Environmental product compliance

Compatible products

Mandatory accessories

ECLASS-12.0	27371601
ECLASS-13.0	27371601

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
