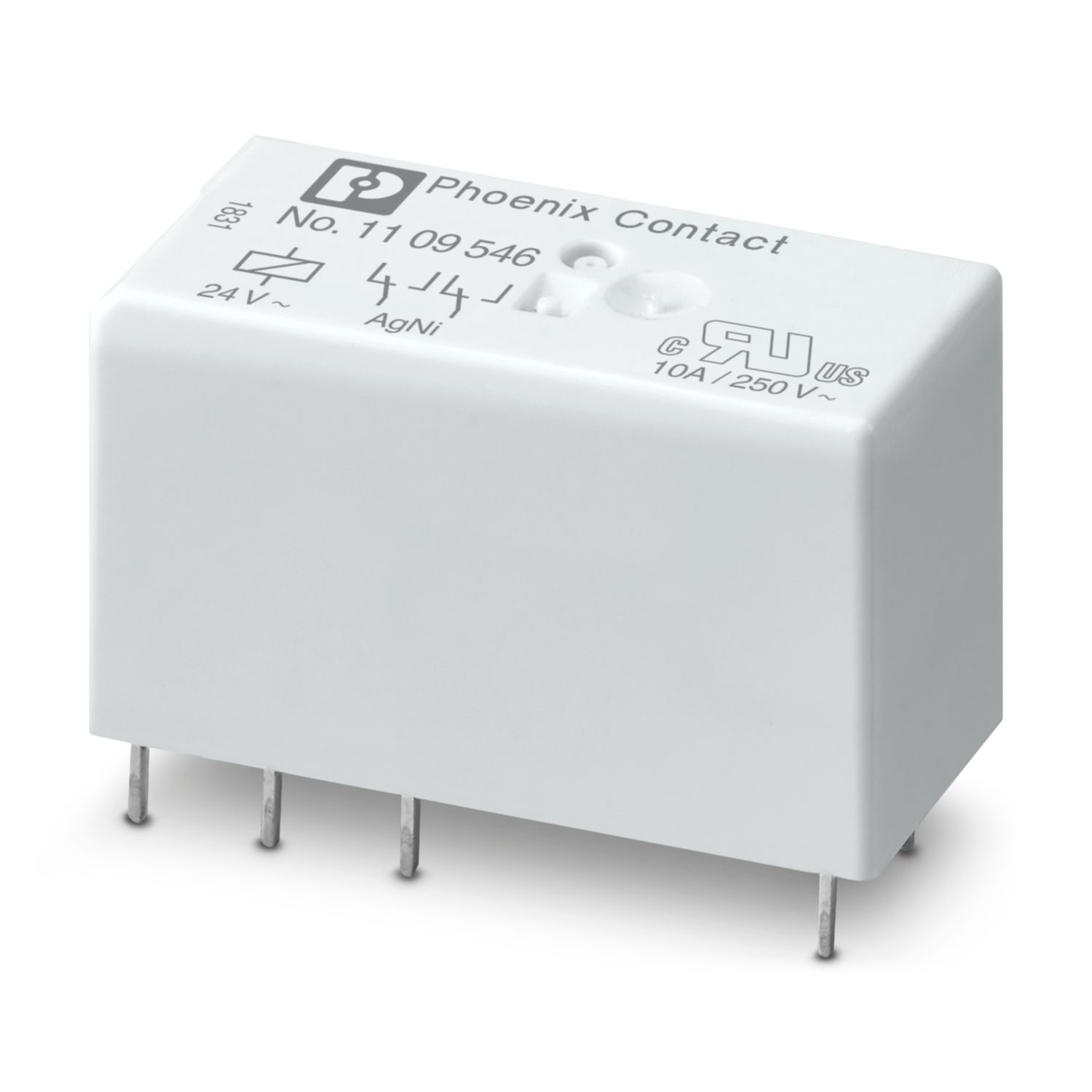

Single relay - REL-MR-BL- 24AC/21-21
1109546

Pluggable miniature power relay in basic design, with power contact, 2 changeover contacts, input voltage 24 V AC


Product Details




Product type Single relay
Operating mode 100% operating factor
Mechanical service life 5x 106 cycles
Insulation characteristics
Overvoltage category III
Pollution degree 3
Insulation Basic insulation

Service life electrical see diagram
Maximum power dissipation for nominal condition 0.4 W
Test voltage Winding/contact 5 kV AC (50 Hz, 1 min., winding/contact)
Rated insulation voltage 250 V AC
Rated surge voltage 4 kV

Coil side
Nominal input voltage UN 24 V AC
Input voltage range 19.2 V AC ... 34.8 V AC
Mains frequency 50/60 Hz
Typical input current at UN 31.6 mA
Typical response time 3 ms ... 12 ms (depending on phase relation)
Typical release time range 2 ms ... 9 ms (depending on phase relation)
Coil voltage 24 V AC
Coil resistance 350 Ω ±10 %

Switching
Contact type 2 changeover contacts
Type of switch contact Single contact
Drive and function monostable
Contact material AgNi
Maximum switching voltage 250 V AC/DC
Minimum switching voltage 5 V (at 10 mA)
Limiting continuous current 8 A
Maximum inrush current 12 A (20 ms)
Min. switching current 10 mA (At 5 V)
Interrupting rating (ohmic load) max. 190 W (at 24 V DC)
85 W (at 48 V DC)
60 W (at 60 V DC)
44 W (at 110 V DC)
60 W (at 220 V DC)
2000 VA (for 250 V AC)
Switching capacity 2 A (at 24 V, DC13)
1.5 A (at 230 V, AC15)

Connection method Solder connection

Dimensional drawing
Width 12.7 mm
Height 29 mm
Depth 15.7 mm

Ambient conditions
Degree of protection RT II
Ambient temperature (operation) -40 °C ... 70 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C

Standards/regulations IEC 60664
EN 61810-1

Mounting position any

Item number 1109546
Packing unit 1 pc
Minimum order quantity 20 pc
Sales Key C05
Product Key CK6195
GTIN 4063151020019
Weight per Piece (including packing) 14.495 g
Weight per Piece (excluding packing) 14 g
Customs tariff number 85364900
Country of origin AT


ECLASS

ECLASS-9.0 27371601
ECLASS-10.0.1 27371601
ECLASS-11.0 27371601

ETIM

ETIM 8.0 EC001437

UNSPSC

UNSPSC 21.0 39122300

cUL Recognized

Approval ID: FILE E 228652

UL Recognized

Approval ID: FILE E 228652

cULus Recognized


China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
