SAC-5P-MS/1,5-570/FS COIL
-
Sensor/actuator cable
1698984

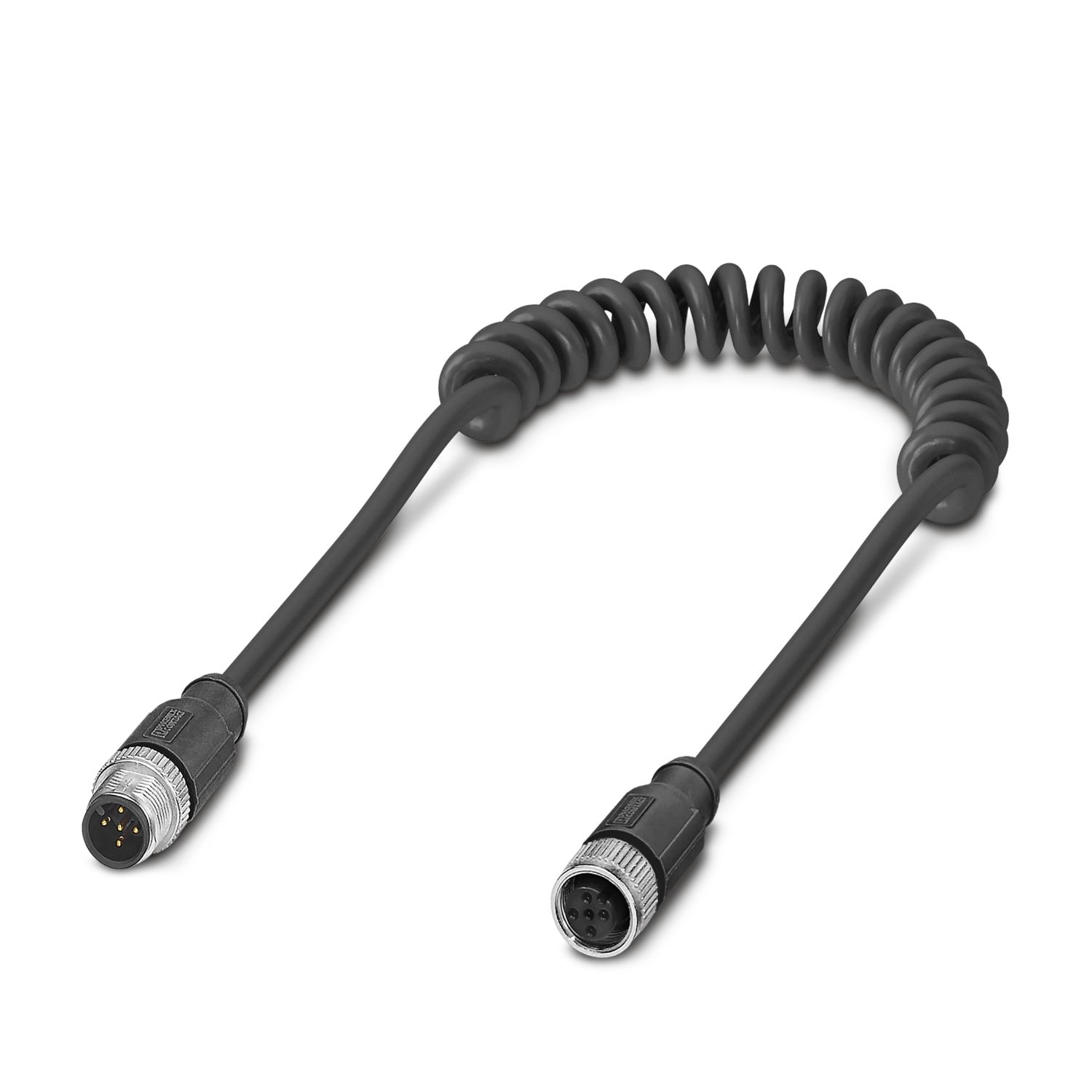

Sensor/actuator cable, 5-position, PUR, black, Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 1.5 m, spiraled
Product details
| Trade restriction | |
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
| Product type | Sensor/actuator cable |
| Application | Standard, U.S. cables |
| Number of positions | 5 |
| No. of cable outlets | 1 |
| Special properties | Coil cords are rated to 500,000 cycles when extended no greater than three times the retracted length and not subject to any adverse or abusive conditions. |
| Shielded | no |
| Coding | A |
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Outer sheath, material | PUR |
| Insulation resistance | ≥ 10 MΩ |
| Nominal voltage UN | 125 V AC |
| 125 V DC | |
| Nominal current IN | 1.2 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Status display | no |
| Status display present | no |
| Conductor connection | |
| Tightening torque | 0.4 Nm (M12 connector) |
| Connection 1 | |
| Type | Plug straight M12 |
| Number of positions | 5 |
| Coding type | A |
| Connection 2 | |
| Type | Socket straight M12 |
| Number of positions | 5 |
| Coding type | A |
| Cable length | 1.5 m |
| PUR black [570] | |

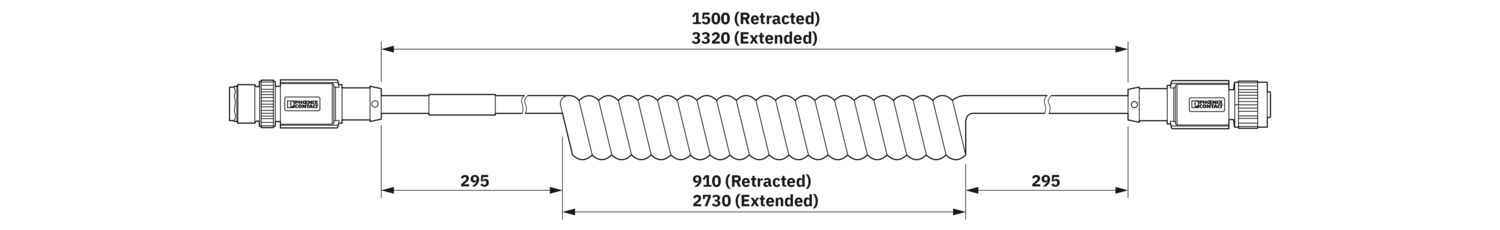

| Dimensional drawing |
|
| Cable weight | 40.1 kg/km |
| Number of positions | 5 |
| Shielded | no |
| Cable type | PUR black [570] |
| Conductor structure signal line | 44x 0.10 mm |
| AWG signal line | 22 |
| Wire diameter incl. insulation | 0.76 mm |
| External cable diameter | 5.10 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | black |
| Conductor material | Tin-plated Cu litz wires |
| Material, filler | Cotton |
| Material wire insulation | PVC |
| Single wire, color | brown, white, blue, black, gray |
| Overall twist | 5 wires, twisted |
| Max. conductor resistance | max. 66.6 Ω/km (20 °C) |
| Nominal voltage, cable | 300 V |

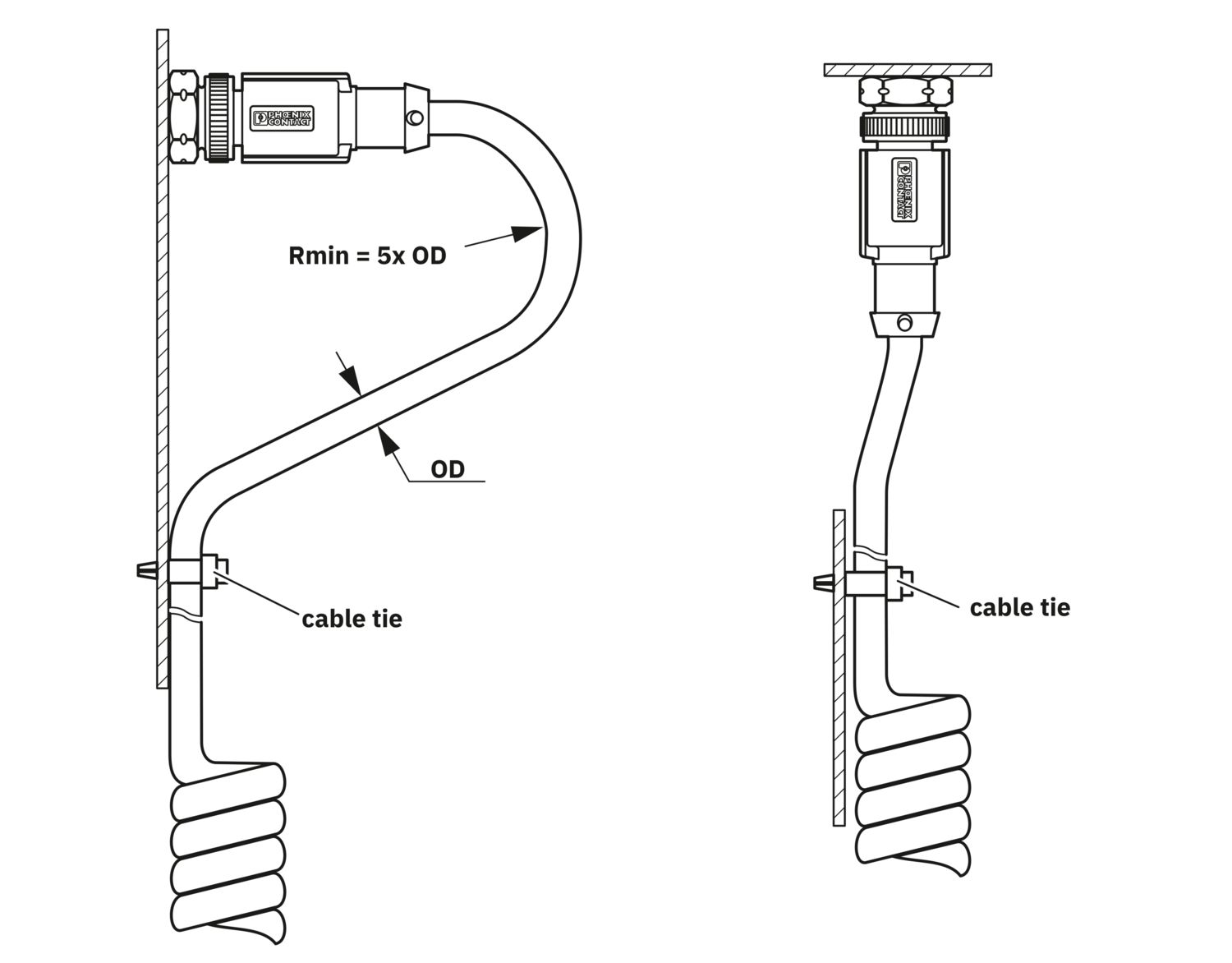

| Minimum bending radius, flexible installation | 6 x D |
| Smallest bending radius, movable installation | 31 mm |
| Ambient temperature (operation) | -15 °C ... 105 °C (cable, fixed installation) |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) (male connector/female connector) | -25 °C ... 90 °C (Plug / socket) |
| Ambient temperature (operation) (Cable, fixed installation) | -15 °C ... 105 °C (cable, fixed installation) |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
