KEL sealing sleeves, large
KEL 24/10
-

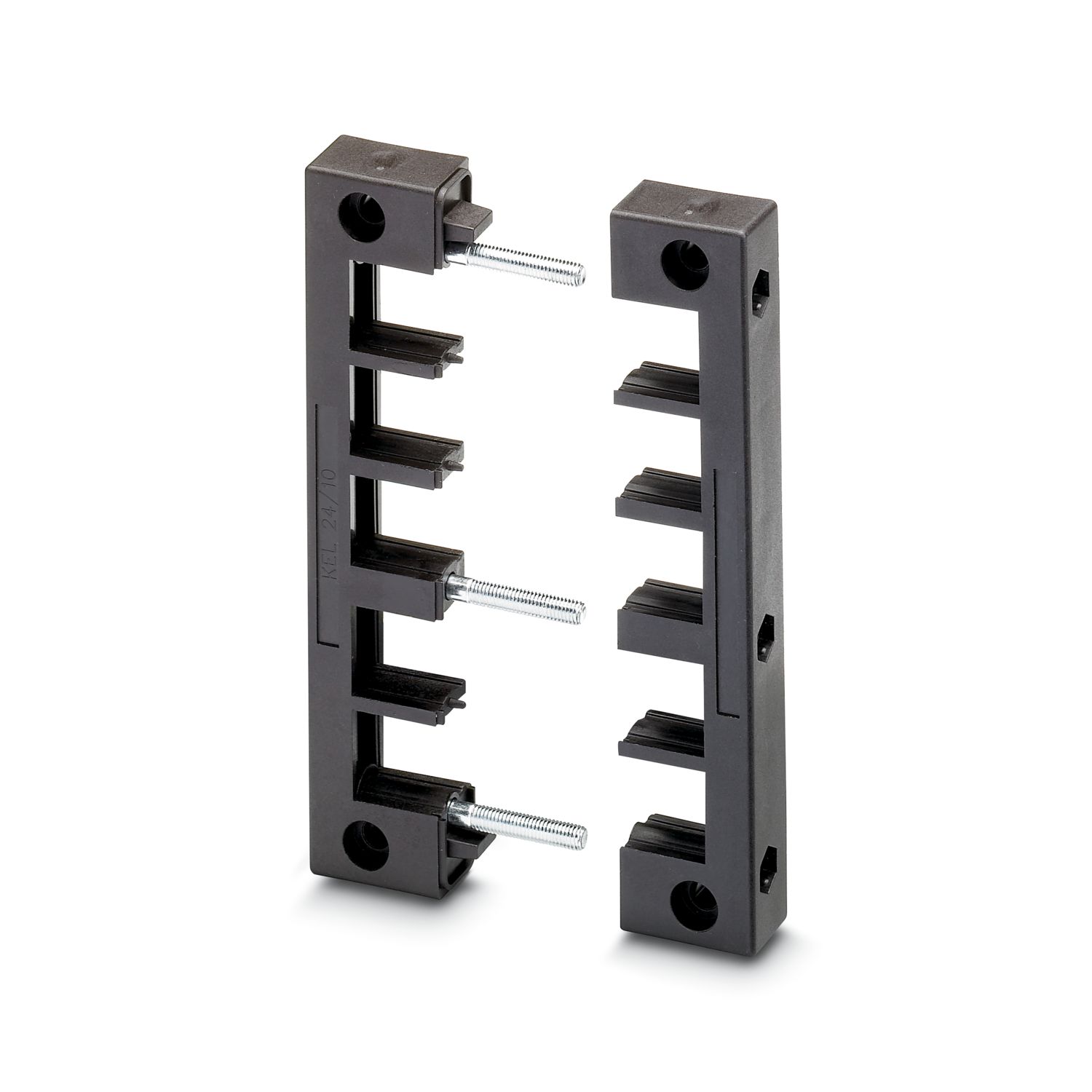

Sealing frame
3063086
Sealing frame, material: PA, color: black, length: 147 mm, width: 58 mm, height: 17 mm
Product details
| Product type | Frame for cable sleeves |
| Dimensional drawing |
|
| Width | 58 mm |
| Height | 17 mm |
| Length | 147 mm |
| Drill hole distance, horizontal | 32 mm |
| Drill hole distance, vertical | 130 mm |
| Hole diameter | 5.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 112 mm |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 80 °C |
