VS-PN-BU-RJ45-5-F/PK
-

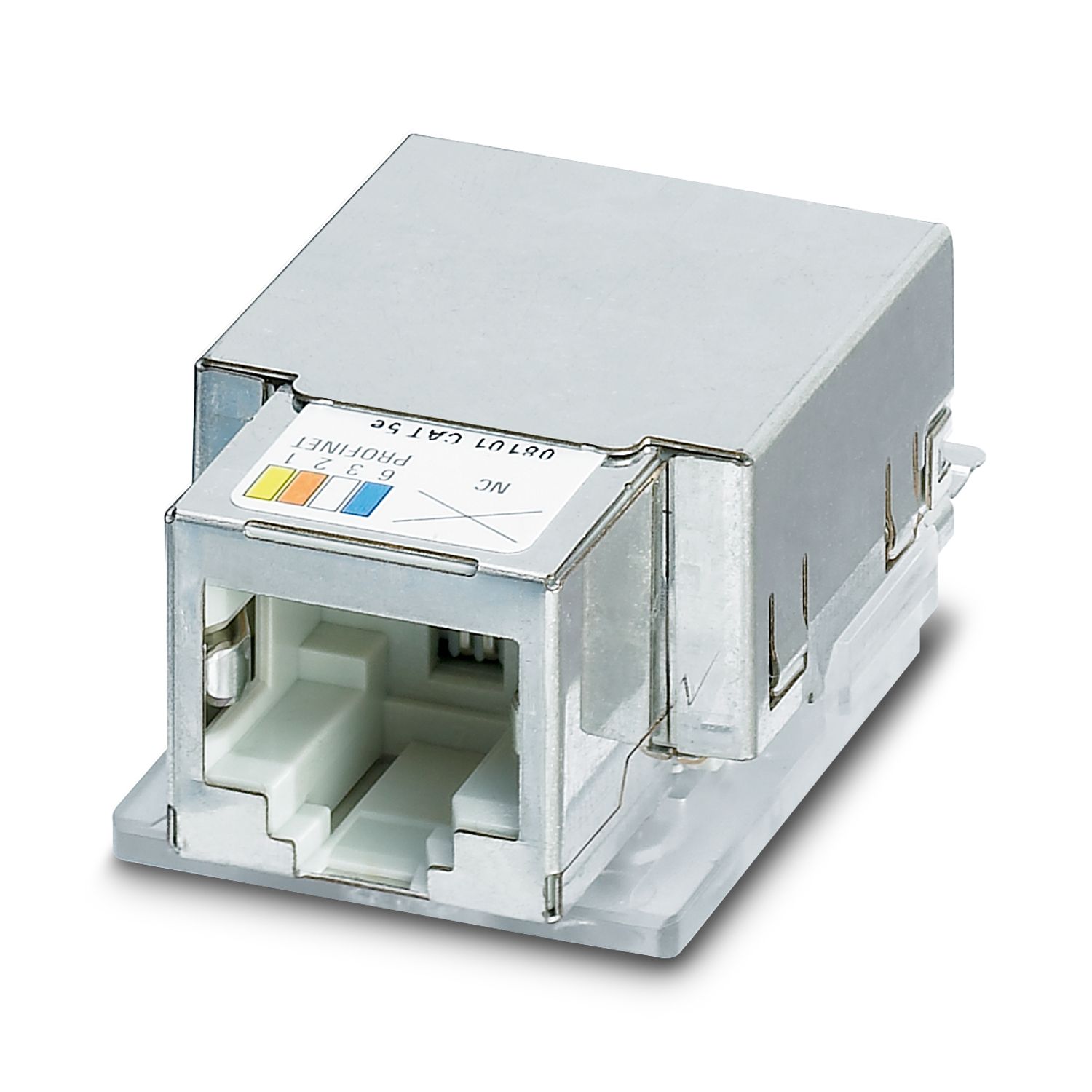

RJ45 jack insert
1404786
RJ45 socket insert, for the Freenet system, CAT5e, 4-pos., shielded, with cable connection (IDC fast connection), for solid wires AWG 24 ... 22
Product details
| Number of positions | 4 |
| Number of slots | 1 |
| Type | Socket |
| Insulation characteristics | |
| Overvoltage category | I |
| Degree of pollution | 1 |
| Rated voltage (III/3) | 50 V |
| Rated surge voltage | ≥ 1 kV |
| Rated current | 1 A |
| Insulation resistance | ≥ 500 MΩ |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Connection method | IDC |
| Dimensional drawing |
|
| Width | 22.8 mm |
| Height | 16.8 mm |
| Length | 41.6 mm |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
| Contact carrier material | PC |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 750 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | 0 °C ... 60 °C |
