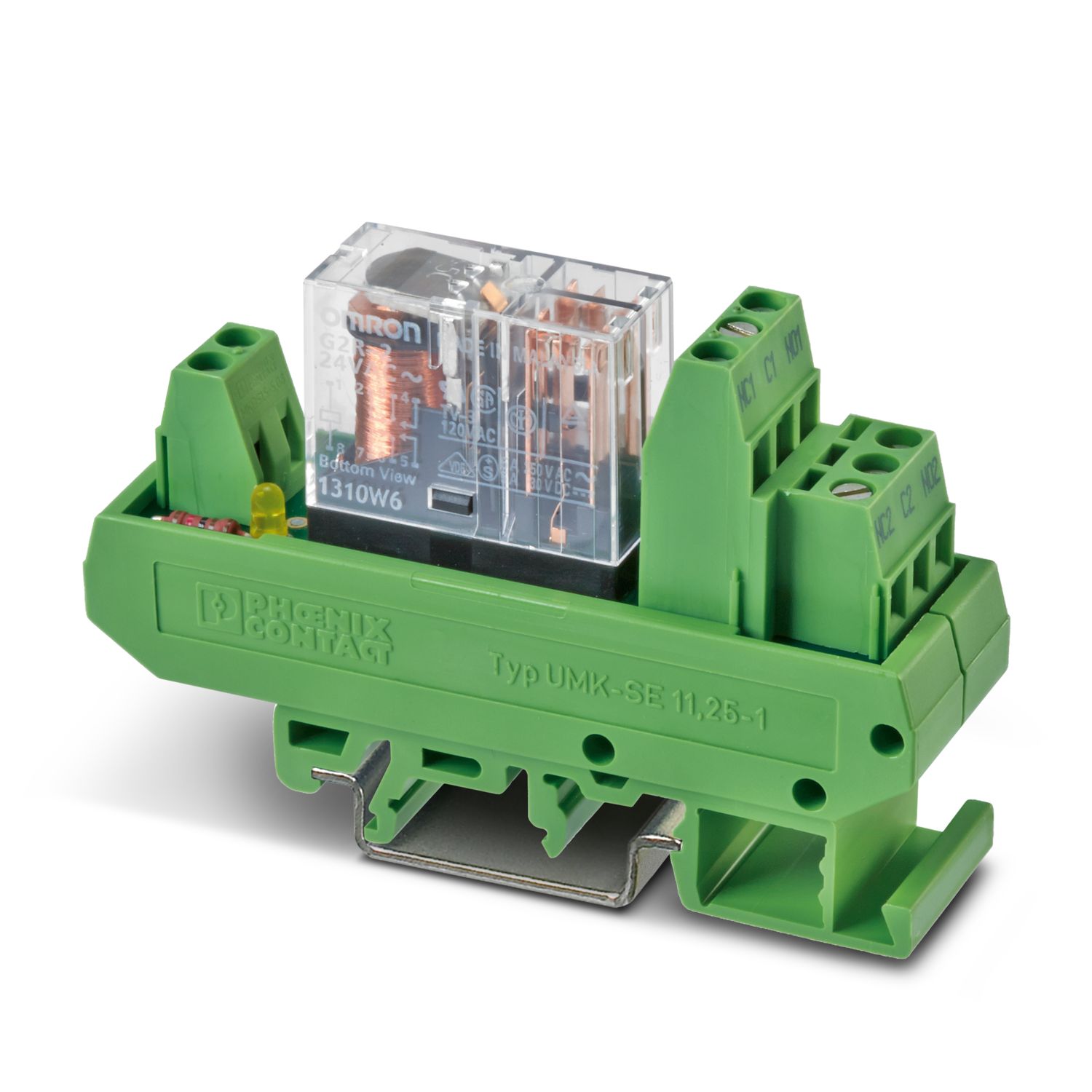

UMK 22 REL 24/21-21-ST
-
Active module
5520734
VARIOFACE relay module, pluggable, 2PDT
Product details
| Trade restriction | |
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
| Product type | Relay Module |
| Application | Universal |
| Operating mode | 100% operating factor |
| Mechanical service life | 1x 107 cycles |
| Data management status | |
| Date of last data management | 21.05.2024 |
| Test voltage (Winding/contact) | 5 kV (50/60 Hz, 1 min., winding/contact) |
| Coil side | |
| Nominal input voltage UN | 24 V DC |
| Typical input current at UN | 32 mA |
| Typical response time | 15 ms |
| Typical release time | 5 ms |
| Protective circuit | Freewheeling diode |
| Operating voltage display | LED |
| Switching | |
| Contact switching type | 2 changeover contacts |
| Contact material | AgCdO |
| Maximum switching voltage | 250 V AC (30 V DC) |
| Limiting continuous current | 5 A |
| Coil side | |
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 30 ... 14 |
| Contact side | |
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 30 ... 14 |
| Width | 22.5 mm |
| Height | 77 mm |
| Depth | 50 mm |
| Color | green (RAL 6021) |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Assembly note | in rows with zero spacing |
| Mounting position | any |
| Item number | 5520734 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Note | Made to order (non-returnable) |
| Sales key | C460 |
| Product key | DK61Y2 |
| GTIN | 4046356685726 |
| Weight per piece (including packing) | 61.4 g |
| Weight per piece (excluding packing) | 59.8 g |
| Customs tariff number | 85364190 |
| Country of origin | US |
ECLASS
| ECLASS-13.0 | 27371601 |
ETIM
| ETIM 9.0 | EC001437 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Not applicable (Not qualified for the European market) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
Your advantages
Safe isolation between coil and contact side
