Relay Module - PLC-RSC- 24DC/21-21
2967060

PLC-INTERFACE, consisting of basic terminal block PLC-BSC.../21 with screw connection and plug-in miniature relay with power contact, for assembly on DIN rail NS 35/7,5, 2 changeover contacts, input voltage 24 V DC


Product Details





Utilization restriction
EMC note EMC: class A product, see manufacturer's declaration in the download area

Product type Relay Module
Application Universal
Operating mode 100% operating factor
Mechanical service life 3x 107 cycles
Insulation characteristics
Overvoltage category III
Pollution degree 3
Insulation Safe isolation: Control side / contact side

Maximum power dissipation for nominal condition 0.43 W
Test voltage 4 kV AC (50 Hz, 1 min., winding/contact)
Test voltage Changeover contact/changeover contact 2.5 kV AC (50 Hz, 1 min., changeover contact/changeover contact)
Rated surge voltage 6 kV

Coil side
Nominal input voltage UN 24 V DC

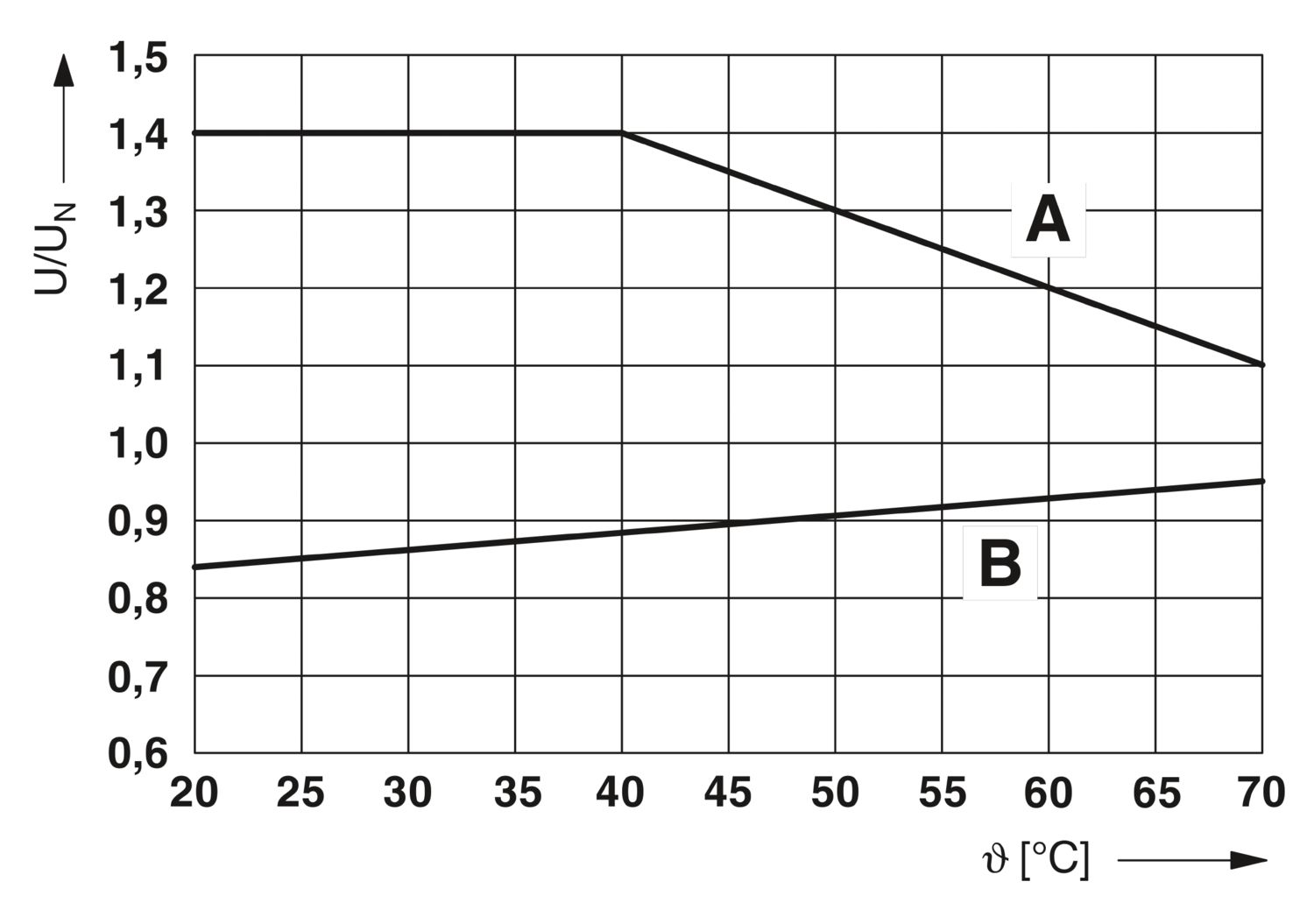

Input voltage range 20.2 V DC ... 33.6 V DC (20 °C)
Typical input current at UN 18 mA
Typical response time 8 ms
Typical release time 10 ms
Protective circuit Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode
Operating voltage display Yellow LED

Switching
Contact type 2 changeover contacts
Type of switch contact Single contact
Drive and function monostable
Drive (polarity) bipolar
Contact material AgNi
Maximum switching voltage 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage 5 V AC/DC (10 mA)

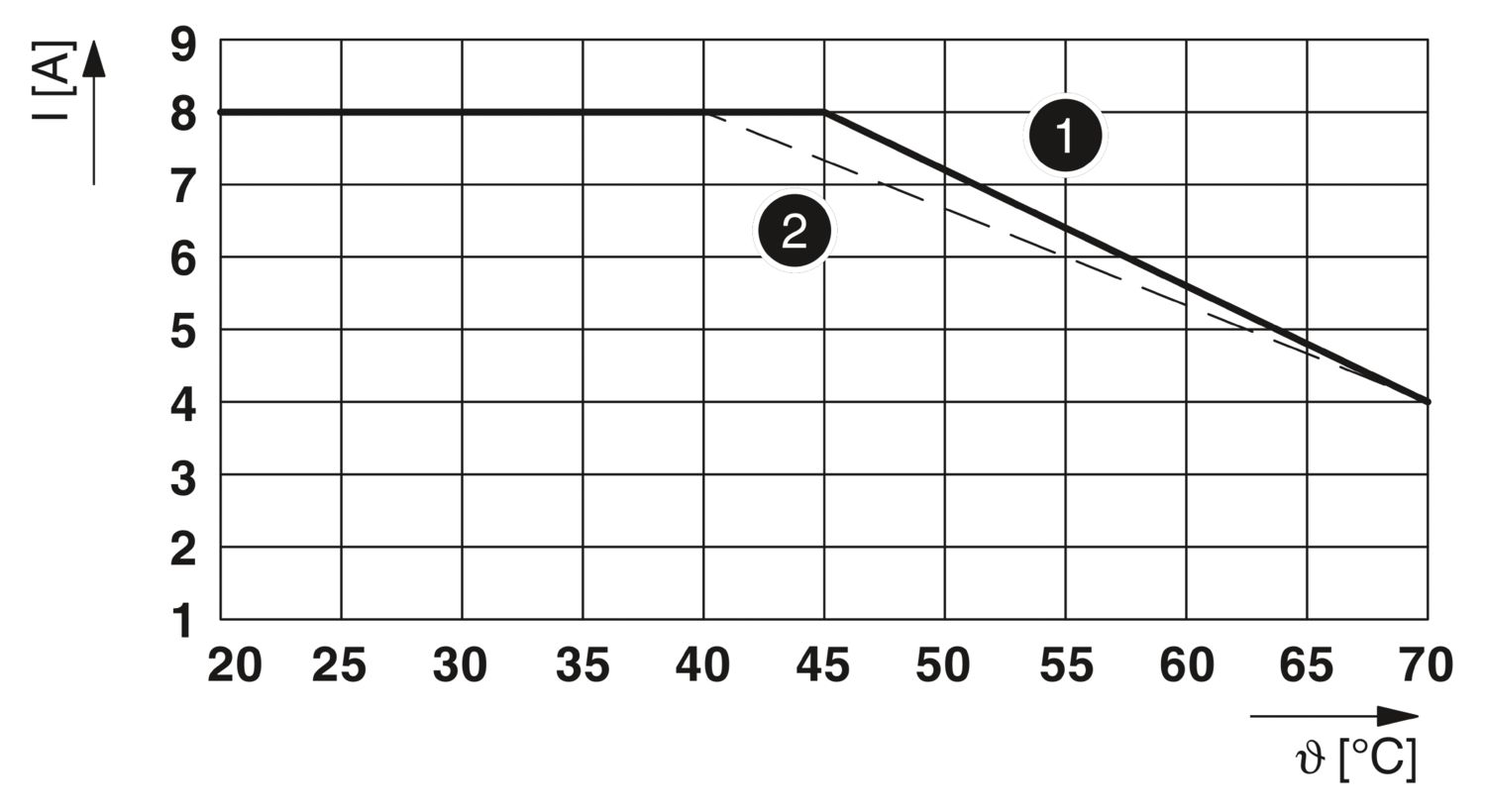

Limiting continuous current 6 A
Maximum inrush current 15 A (300 ms)
Min. switching current 10 mA (5 V)
Interrupting rating (ohmic load) max. 140 W (at 24 V DC)
85 W (at 48 V DC)
60 W (at 60 V DC)
44 W (at 110 V DC)
60 W (at 220 V DC)
1500 VA (for 250 V AC)
Switching capacity 2 A (at 24 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
0.2 A (at 250 V, DC13)
3 A (at 250 V, AC15)

Connection method Screw connection
Stripping length 8 mm
Screw thread M3
Conductor cross section solid 0.14 mm² ... 2.5 mm²
Conductor cross section flexible 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross section AWG 26 ... 14
Torque 0.6 Nm ... 0.8 Nm

Width 14 mm
Height 80 mm
Depth 94 mm

Flammability rating according to UL 94 V0 (Housing)

Ambient conditions
Degree of protection RT III (Relay)
IP20 (Relay base)
Ambient temperature (operation) -40 °C ... 60 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C

Corrosive gas test
Identification ISA-S71.04. G3 Harsh Group
EN 60068-2-60

Standards/regulations
Standards/regulations IEC 60664
EN 50178

Mounting type DIN rail mounting
Assembly instructions in rows with zero spacing
Mounting position any

Item number 2967060
Packing unit 1 pc
Minimum order quantity 10 pc
Sales Key C31
Product Key CK621C
Catalog Page Page 366 (C-5-2019)
GTIN 4017918156374
Weight per Piece (including packing) 76.27 g
Weight per Piece (excluding packing) 72.4 g
Customs tariff number 85364190
Country of origin DE


ECLASS

ECLASS-9.0 27371601
ECLASS-10.0.1 27371601
ECLASS-11.0 27371601

ETIM

ETIM 8.0 EC001437

UNSPSC

UNSPSC 21.0 39122300

cUL Recognized

Approval ID: FILE E 238705

UL Recognized

Approval ID: FILE E 238705

EAC

Approval ID: TR_TS_D_00573_c

DNV GL

Approval ID: TAE0000196
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2

EAC

Approval ID: RU*C-DE.*08.B.00010

PRS

Approval ID: TE/2109/880590/16

UL Listed

Approval ID: FILE E 172140

cUL Listed

Approval ID: FILE E 172140

RC FRT

Approval ID: B.00094

cULus Recognized

cULus Listed


REACh SVHC Lead 7439-92-1
Hexahydromethylphthalic anhydride
China RoHS Environmentally Friendly Use Period = 50 years
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”

Compatible Products



Your advantages

Slim design
Efficient connection to system cabling using V8 adapter
RT III sealed relay
Safe isolation according to DIN EN 50178 between coil and contact
Integrated input circuit and interference suppression circuit
Functional plug-in bridges
