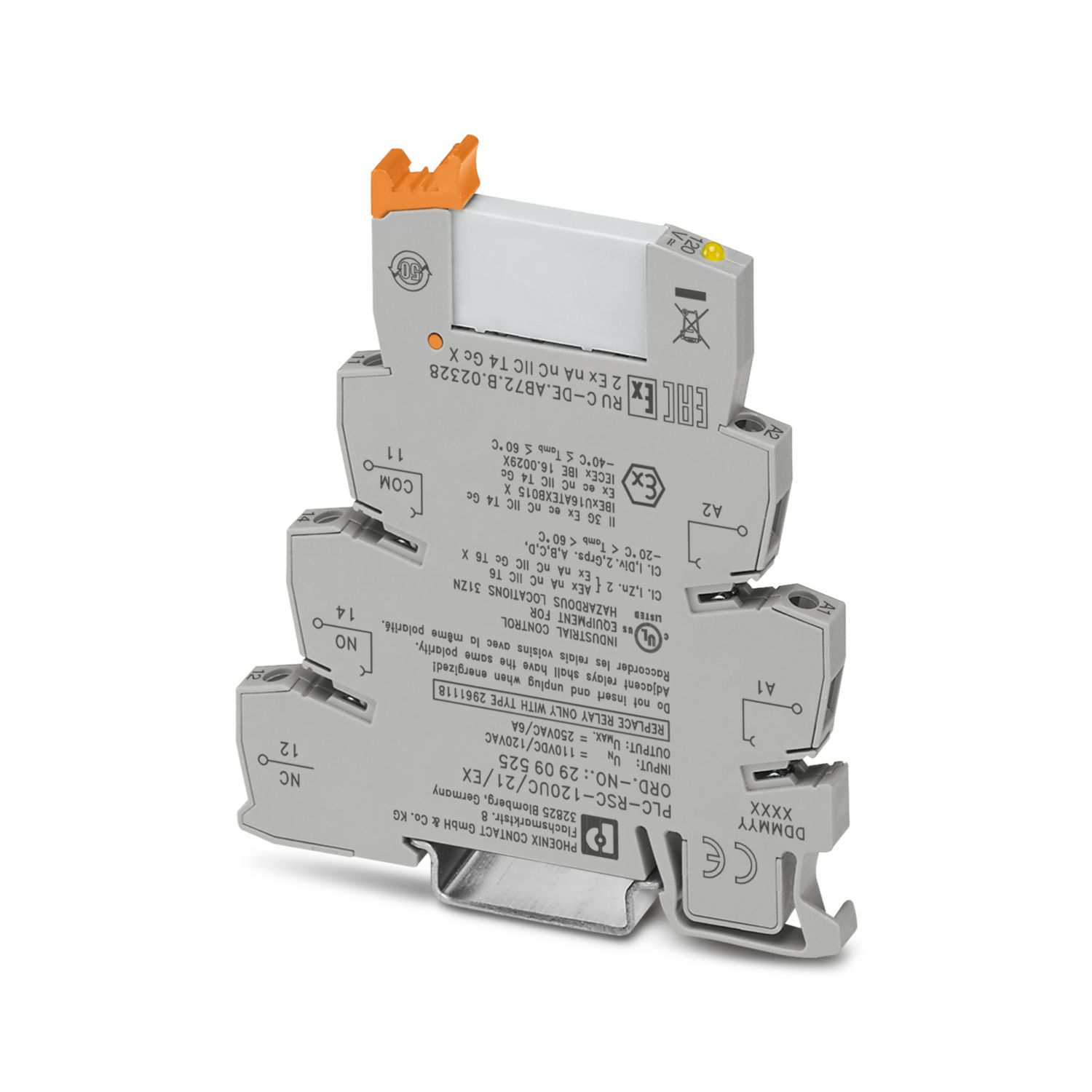

PLC-RSC-120UC/21/EX - Relay Module

2909525

PLC-INTERFACE, consisting of DIN-rail-mountable basic terminal block in 6.2 mm with screw connection and plug-in miniature relay with 6 A power contact, 1 changeover contact, 120 V AC/110 V DC input voltage. Approved according to ATEX/IECEx (Zone 2) and Ex Zone Class I, Div. 2.

Item number	2909525
Packing unit	1 pc
Minimum order quantity	10 pc
Sales Key	C462
Product Key	CK621A
Catalog Page	Page 386 (C-5-2019)
GTIN	4055626363622
Weight per Piece (including packing)	42.71 g
Weight per Piece (excluding packing)	36.8 g
Customs tariff number	85364900
Country of origin	DE



DNV GL

Approval ID: TAE0000196



CCC

Approval ID: 2021122304114118



EAC Ex

Approval ID: RU C-DE.AB72.B.02328



IECEx

Approval ID: IECEx IBE 16.0029X



cUL Listed

Approval ID: FILE E 199827



UL Listed

Approval ID: FILE E 199827



ATEX

Approval ID: IBExU 16 ATEX B015 X

Product type	Relay Module
Product family	PLC-INTERFACE
Application	Class I, Division 2
Application		potentially explosive areas
Operating mode	100% operating factor
Mechanical service life	2x 10⁷ cycles
Insulation characteristics: Standards/regulations
Overvoltage category	III
Pollution degree	3

Maximum power dissipation for nominal condition	0.42 W
Test voltage (Winding/contact)	4 kV AC (50 Hz, 1 min., winding/contact)

Coil side
Nominal input voltage U_N	120 V AC
Nominal input voltage U_N		110 V DC
Input voltage range	93.6 V AC ... 168 V AC (20 °C)
Input voltage range		85.8 V DC ... 154 V DC (20 °C)
Typical input current at U_N	3.5 mA (U_N = 120 V AC)
Typical input current at U_N		3 mA (U_N = 110 V DC)
Typical response time	6 ms
Typical release time	15 ms
Protective circuit	Bridge rectifier; Bridge rectifier
Operating voltage display	Yellow LED

Switching
Contact type	1 changeover contact
Type of switch contact	Single contact
Drive and function	monostable
Drive (polarity)	polarized
Type of contact	Power contact
Contact material	AgSnO
Maximum switching voltage	250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage	5 V AC/DC (100 mA)
Limiting continuous current	6 A
Maximum inrush current	10 A (4 s)
Min. switching current	10 mA (12 V)
Interrupting rating (ohmic load) max.	140 W (at 24 V DC)
		20 W (at 48 V DC)
		18 W (at 60 V DC)
		23 W (at 110 V DC)
		40 W (at 220 V DC)
		1500 VA (for 250 V AC)
Switching capacity	2 A (at 24 V, DC13)
		0.2 A (at 110 V, DC13)
		0.1 A (at 220 V, DC13)
		3 A (at 24 V, AC15)
		3 A (at 120 V, AC15)
		3 A (at 230 V, AC15)

Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
		0.2 mm² ... 2.5 mm² (Single ferrule)
		2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross section AWG	26 ... 14
Tightening torque	0.6 Nm ... 0.8 Nm

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PLC-RSC-120UC/21/EX - Relay Module

2909525

Product Details

ECLASS

ETIM

UNSPSC

DNV GL

CCC

EAC Ex

IECEx

cUL Listed

UL Listed

ATEX

Compatible Products

Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Ambient conditions
Degree of protection (Relay)	RT III (Relay)
Degree of protection (Relay base)	IP20 (Relay base)
Ambient temperature (operation)	-20 °C ... 60 °C (UL)
Ambient temperature (operation)		-40 °C ... 60 °C (ATEX / IECEx)
Ambient temperature (storage/transport)	-40 °C ... 85 °C

CE
Certificate	CE-compliant
ATEX
Identification	 II 3G Ex ec nC IIC T4 Gc
Certificate	IBExU16ATEXB015 X
IECEx
Identification	Ex ec nC IIC T4 Gc
Certificate	IECEx IBE 16.0029X
UKCA Ex (UKEX)
Identification	 II 3 G Ex ec nC IIC T4 Gc
Certificate	PxCIF21UKEX2909514X
UL, USA
Identification	Class I, Zone 2, AEx nA nC IIC T6
UL, USA/Canada
Identification	Class I, Div. 2, Groups A, B, C, D
UL, Canada
Identification	Class I, Zone 2, Ex nA nC IIC Gc T6 X
Corrosive gas test
Identification	ISA-S71.04. G3 Harsh Group
Identification		EN 60068-2-60

Standards/regulations
Standards/regulations	IEC 60947-5-1
		EN 60079-0
		EN 60079-7
		EN 60079-15

Mounting type	DIN rail mounting
Assembly instructions	in rows with zero spacing
Mounting position	any


REACh SVHC	Lead 7439-92-1
		Hexahydromethylphthalic anhydride

China RoHS	Environmentally Friendly Use Period = 50 years
		For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”

Width	6.2 mm
Height	80 mm
Depth	94 mm

ECLASS-11.0	27371601
ECLASS-12.0	27371601
ECLASS-13.0	27371601
