the following values are applicable if a gold layer is destroyed
Maximum switching voltage
125 V AC
Limiting continuous current
2 A
Maximum inrush current
2 A
Interrupting rating (ohmic load) max.
29 W (at 24 V DC)
29 W (at 48 V DC)
29 W (at 60 V DC)
Coil side
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Contact side
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Width
10.6 mm
Height
75 mm
Depth
53.5 mm
Color
green (RAL 6021)
Ambient conditions
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 40 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
IEC 60664
EN 50178
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any

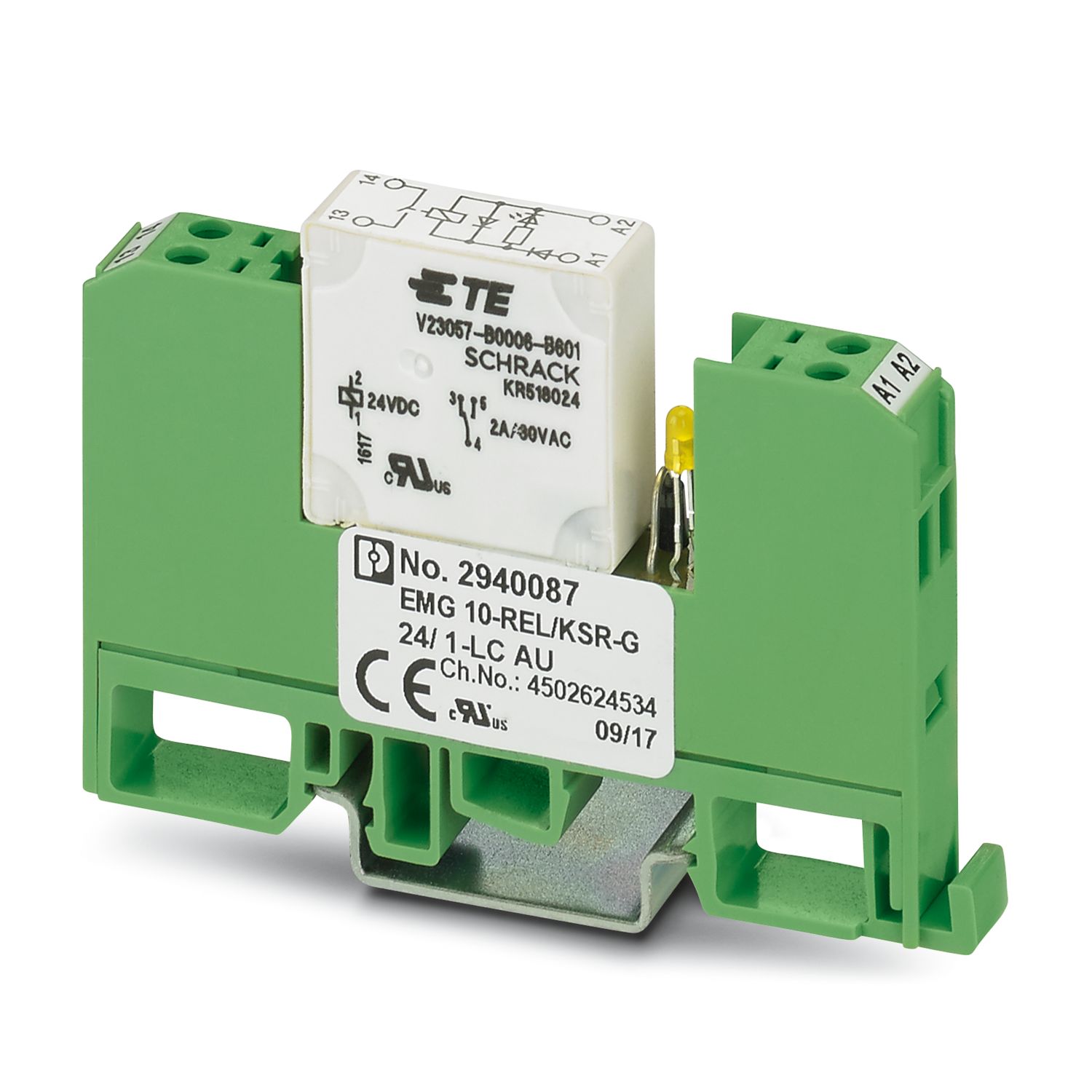

Item number
2940087
Packing unit
10 pc
Minimum order quantity
1 pc
Sales key
C460
Product key
DK61C2
Catalog page
Page 133 (IF-2011)
GTIN
4017918079857
Weight per piece (including packing)
35.72 g
Weight per piece (excluding packing)
35.72 g
Customs tariff number
85364190
Country of origin
DE
ECLASS
ECLASS-13.0
27371601
ETIM
ETIM 9.0
EC001437
UNSPSC
UNSPSC 21.0
39122300
cUL Recognized
Approval ID: E238705
UL Recognized
Approval ID: E238705
EAC
Approval ID: RU*C-DE.*08.B.00010
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c), 7(a)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
