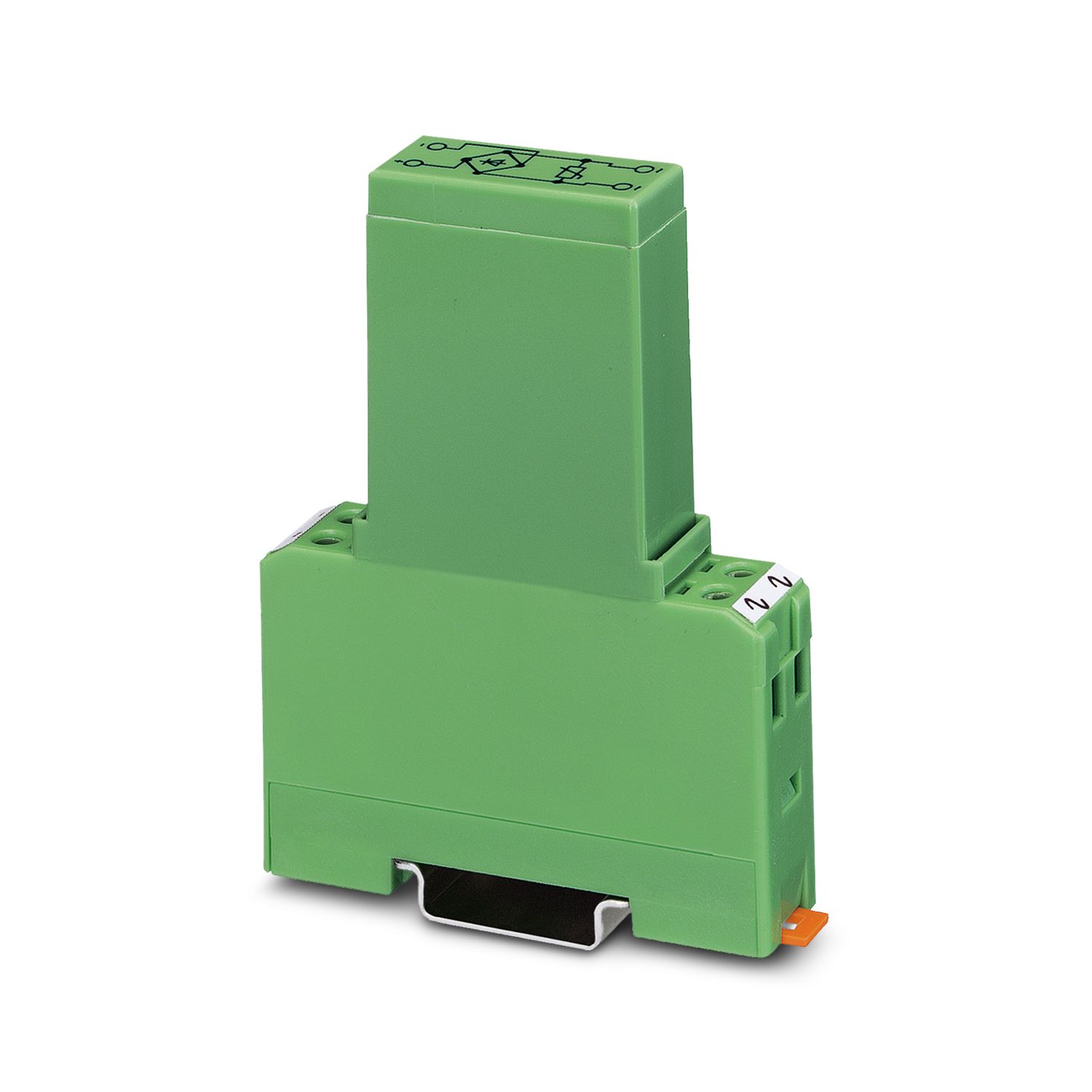

EMG 17-GR/230/1 - Rectifier module

EMG 17-GR/230/1 - Rectifier module

2949428

Rectifier module, with varistor protective circuit, operating voltage 230 V AC

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Diode module
Insulation characteristics
Pollution degree	2

Electrical properties

Rated insulation voltage	300 V

Connection data

Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12

Dimensions

Width	17.5 mm
Height	75 mm
Depth	102 mm

Material specifications

Color	green (RAL 6021)

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-20 °C ... 55 °C

Approvals

CE
Certificate	CE-compliant
Note	and EN 61326

EMC data

Low Voltage Directive	Conformance with Low Voltage Directive

Mounting

Assembly note	in rows with zero spacing
Mounting position	any

Commercial data

Item number	2949428
Packing unit	1 pc
Note	Made to order (non-returnable)
Sales key	C440
Product key	DK66ZZ
GTIN	4017918083809
Weight per piece (including packing)	90.4 g
Weight per piece (excluding packing)	87.94 g
Customs tariff number	85044094
Country of origin	DE

Environmental product compliance

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
