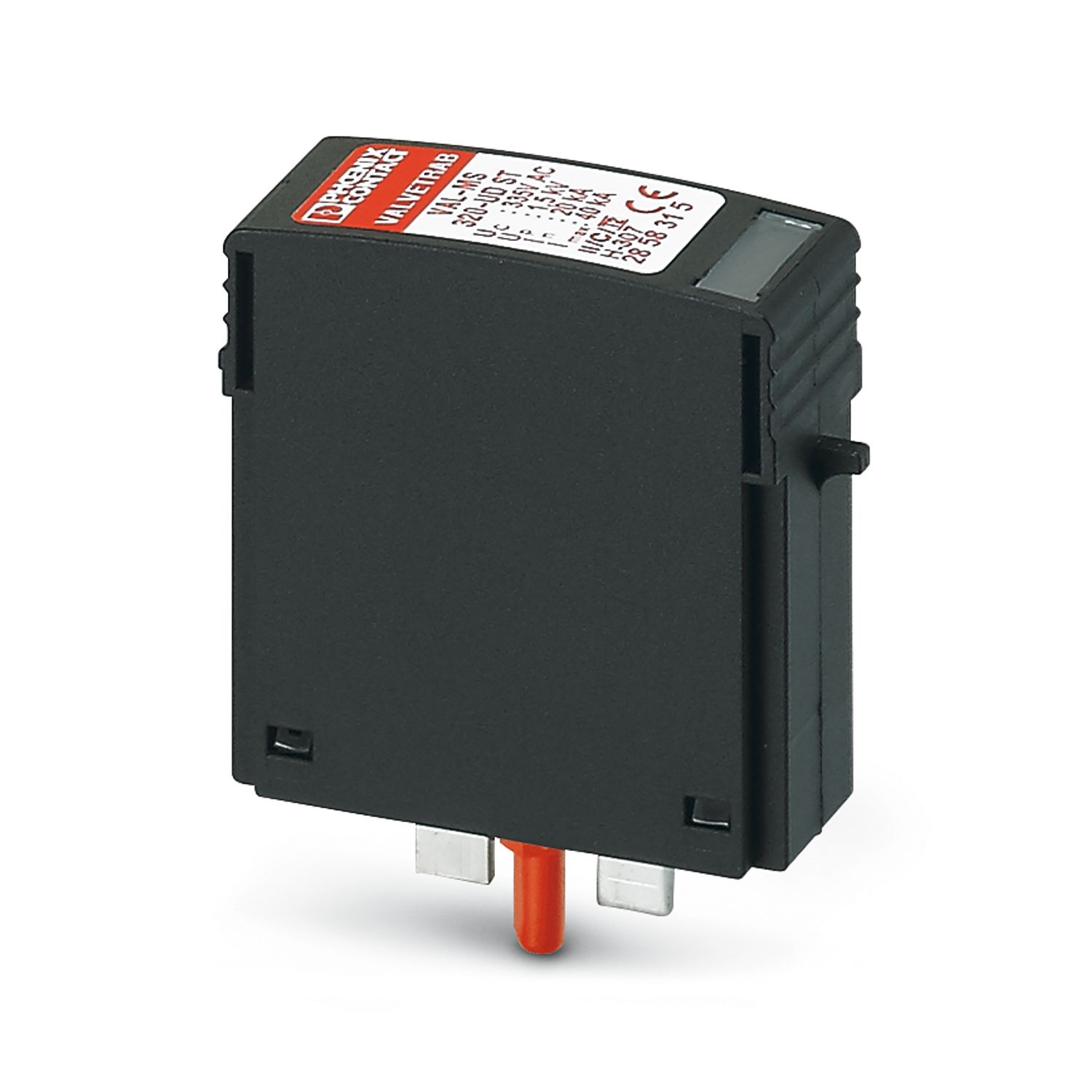

PV-SET 230AC/16A-RCBO - Surge protection device set - 2800756

Product properties

IEC test classification	II
EN type	T2
Type	Installation housing
Surge protection fault message	optical
Insulation characteristics
Protection class	II
Overvoltage category	III
Pollution degree	2

Electrical properties

Connection data

Tightening torque	1.5 Nm ... 1.8 Nm

Dimensions

Material specifications

Flammability rating according to UL 94	V2 (Gehäuse / Deckel)
Cover material	Polycarbonate, transparent
Housing material	Polycarbonate fiber reinforced

Protective circuit

Nominal frequency f_N	50 Hz (60 Hz)
Maximum continuous operating voltage U_C(L-N)	335 V AC
Maximum continuous operating voltage U_C (N-PE)	260 V AC
Protective conductor current I_PE	≤ 1 µA
Standby power consumption P_C	≤ 120 mVA
Nominal discharge current I_n (8/20) µs (L-N)	20 kA
Nominal discharge current I_n (8/20) µs (N-PE)	20 kA
Maximum discharge current I_max (8/20) µs (L-N)	40 kA
Maximum discharge current I_max (8/20) µs (N-PE)	40 kA
Follow current interrupt rating I_fi (N-PE)	100 A (rms)
Voltage protection level U_p (L-N)	≤ 1.5 kV
Voltage protection level U_p (N-PE)	1.5 kV
Response time t_A (L-N)	≤ 25 ns
Response time t_A (N-PE)	100 ns
PV protective circuit AC side
Rated operating voltage U_e	230 V AC
Rated frequency f_n	50 Hz (60 Hz)
Rated voltage U_n	230 V AC
Rated surge voltage resistance U_imp	6 kV
Rated current I_N	16 A AC
Protective circuit DC voltage side (DC)
Protective conductor current I_PE	≤ 1 µA
Standby power consumption P_C	≤ 120 mVA

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP65
Impact strength	IK08
Ambient conditions	A, B
Ambient temperature (operation)	-20 °C ... 40 °C

Standards and regulations

Mounting

Nominal frequency f_N	50 Hz (60 Hz)
Nominal voltage U_N	230 V AC (TT network)
RCD switch
Rated residual operating current I_Δn	30 mA
Rated making and breaking capacity I_m	10.00 kA

Item number	2800756
Packing unit	5 pc
Minimum order quantity	5 pc
Product key	CL132E
GTIN	4046356647960
Weight per piece (including packing)	1,285 g
Weight per piece (excluding packing)	1,285 g
Country of origin	DE

PV-SET 230AC/16A-RCBO - Surge protection device set

2800756

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
