HC-STA-D25-BCSFS-PLR-BK
-
Protective cover
1424401

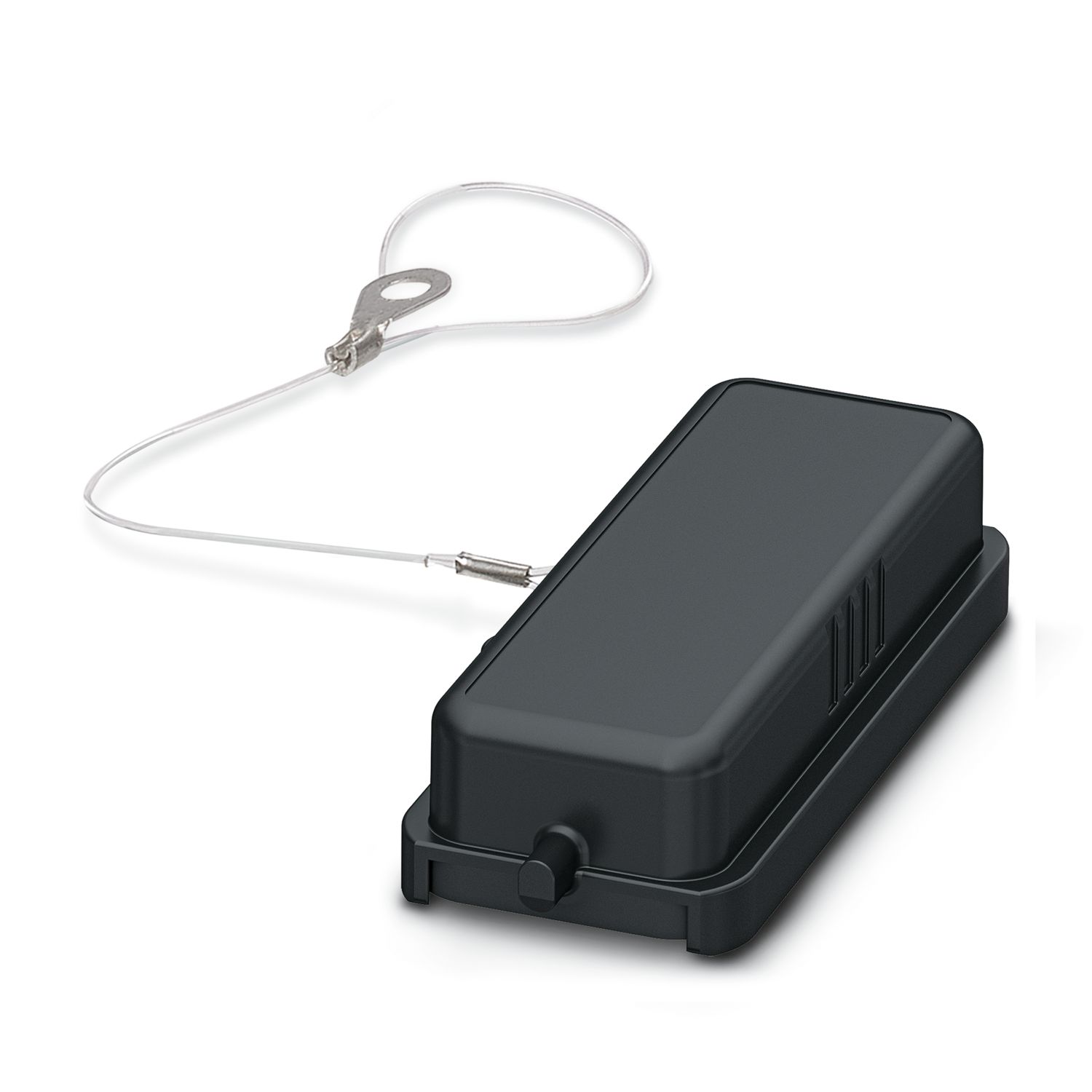

Protective cover D25, for single locking latch, protective cover material: PA, height: 19 mm
Product details
| Product type | Protective cover |
| Housing type | Protective cover |
| Type | D25 |

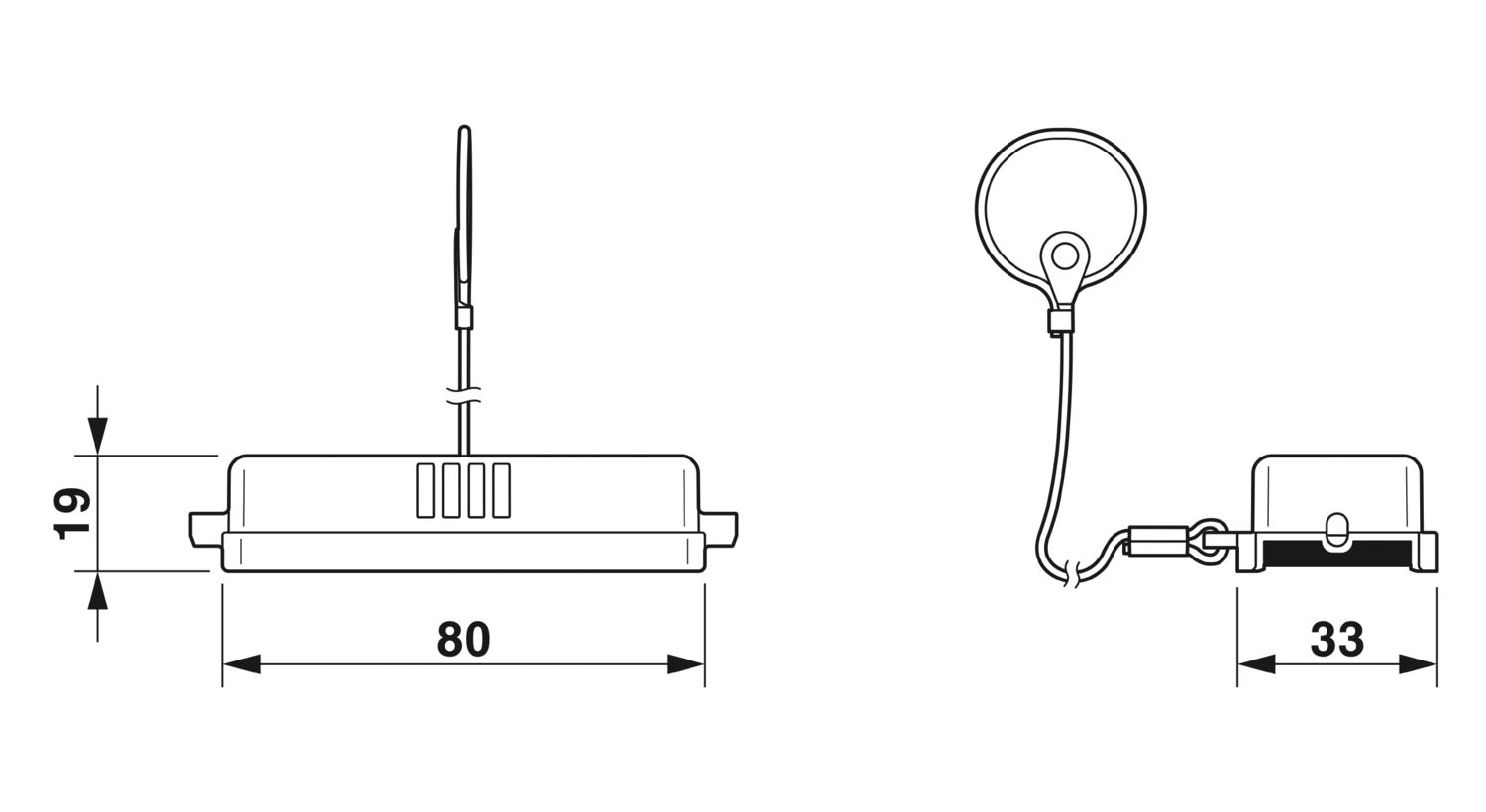

| Dimensional drawing |
|
| Width | 33 mm |
| Height | 19 mm |
| Length | 80 mm |
| Material Protective cover | PA |
| Flammability rating according to UL 94 | V0 |
| Material, protective cover | PA |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -20 °C ... 100 °C |
| Assembly note | Double eyelet for mounting on a cable / below screw head |
| Plastic protective cover for short-term protection |
