HC-HPR-B24-BCLWH-E-BK
-
Protective cover
1418446
Protective cover B24, with screw locking, protective cover material: Al, height: 32 mm, seal: no, for increased environmental and EMC requirements
Product details
| General | Protective cover for supporting base elements |
| Product type | Protective cover |
| Housing type | Protective cover |
| Series | HPR-B24 |
| Application | for increased environmental and EMC requirements |
| Type | B24 |
| Retaining cord present | yes |
| Seal present | no |

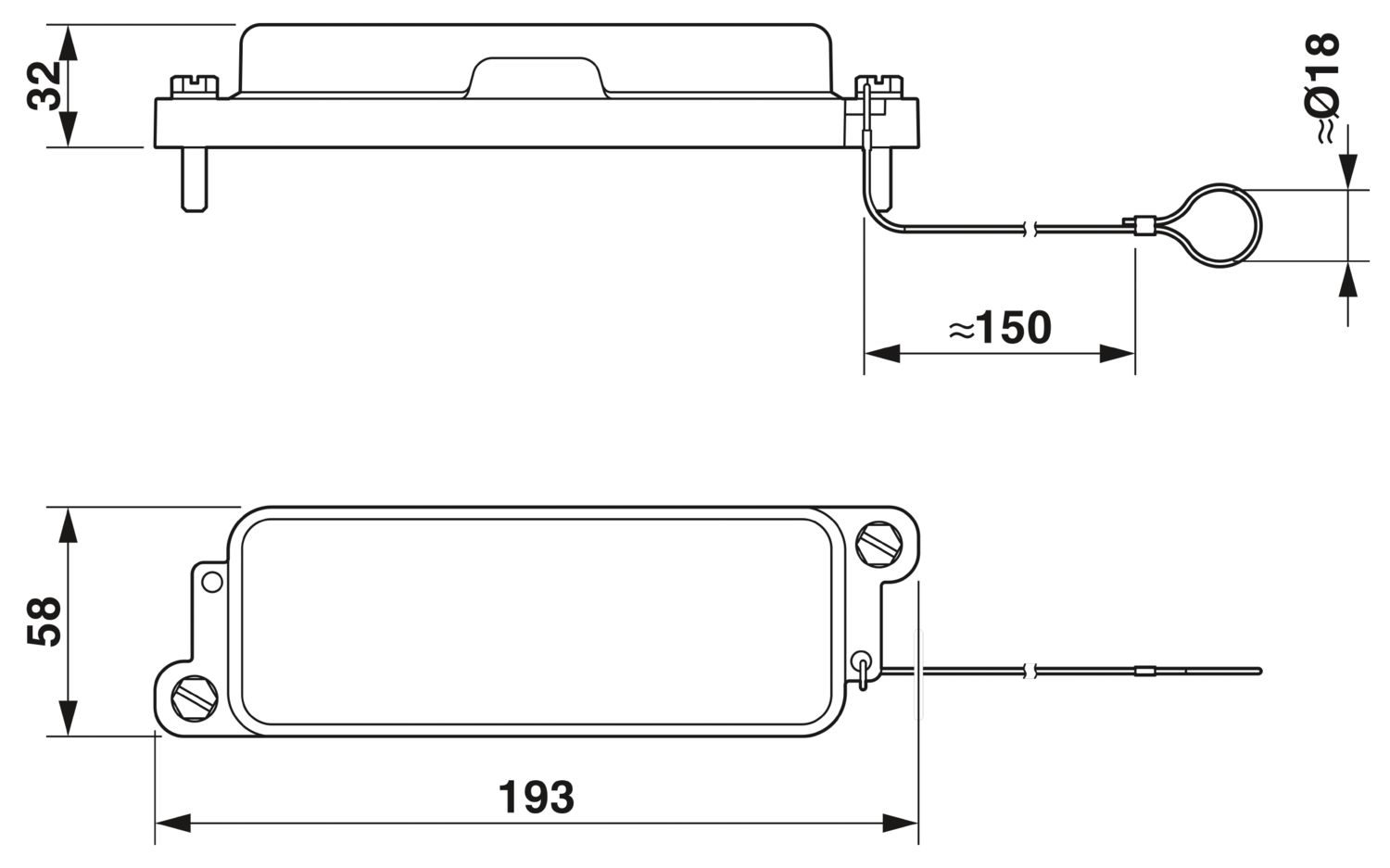

| Dimensional drawing |
|
| Width | 58 mm |
| Height | 32 mm |
| Length | 193 mm |
| Color | black (RAL 9005) |
| Material Protective cover | Die-cast aluminum (powder-coated) |
| Material, protective cover | Al |
| Locking latch material | Stainless steel |
| Mechanical data | |
| Locking type | Screw |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 | |
| IP69 (ISO 20653:2013-02) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Vibration and shock: IEC 61373/EN 50155, category 1, class 1B
