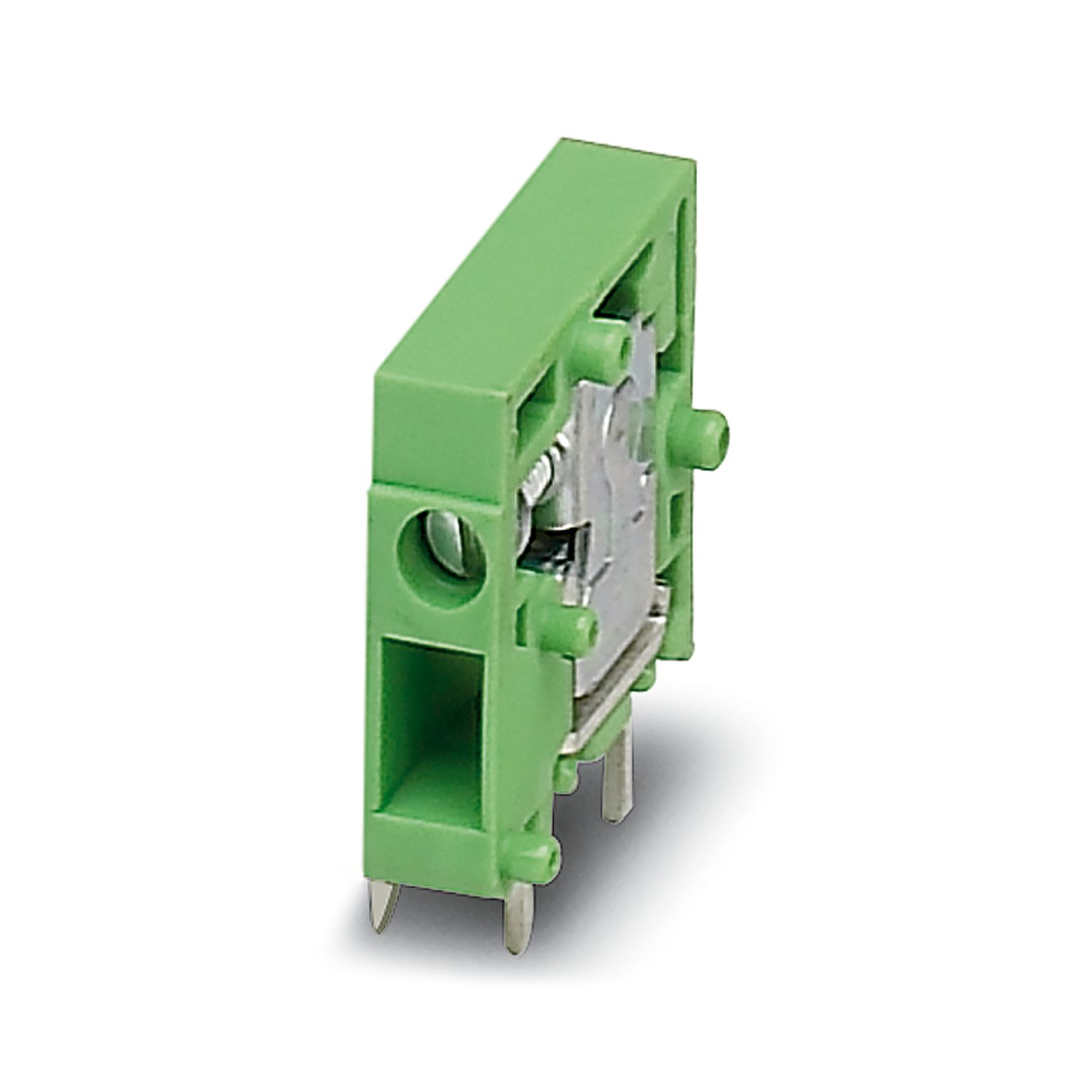

FRONT 2,5-H/SA10-EX - PCB terminal block

1700325

Printed circuit board terminal, nominal current: 21 A, nominal cross section: 2.5 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: FRONT 2,5-H-EX, pitch: 5 mm, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!

This product needs further products for operation. Mandatory accessories

Product details

Product type	Printed circuit board terminal
Product family	FRONT 2,5-H-EX
Product line	COMBICON Terminals M
Type	PC terminal block can be aligned
Number of positions	1
Pitch	5 mm
Number of connections	1
Number of rows	1
Number of potentials	1
Pin layout	Linear pinning
Solder pins per potential	2

Properties

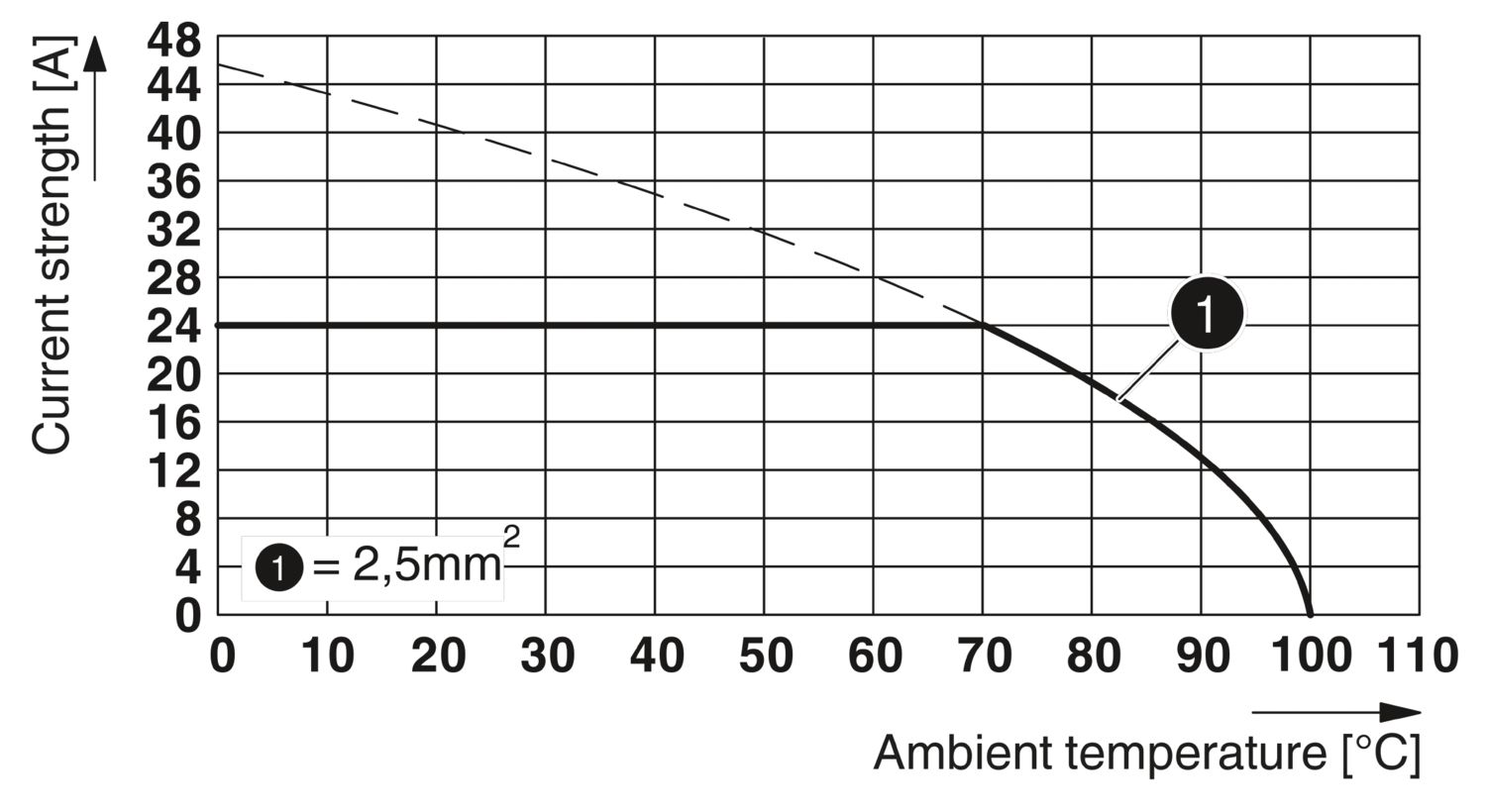

Nominal current I_N	21 A
Nominal voltage U_N	176 V
Rated current / conductor cross section	21 A/2.5 mm²

Ex approval
Identification	0344 II 2GD / Ex eb IIC Gb
EU-type examination certificate	KEMA 00ATEX2053 U
IECEx certificate	IECEx KEM 07.0023 U

Connection technology
Type	PC terminal block can be aligned
Nominal cross section	2.5 mm²
Conductor connection
Connection method	Front screw connection
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 14
2 conductors with same cross section, solid	0.2 mm² ... 0.75 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 0.75 mm²
Stripping length	9 mm
Tightening torque	0.4 Nm ... 0.5 Nm

Mounting type	Wave soldering
Pin layout	Linear pinning

Material data - contact
Note	WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material	Cu alloy
Surface characteristics	hot-dip tin-plated
Metal surface terminal point (top layer)	Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)	Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)	green (6021)
Insulating material	PA
Insulating material group	I
CTI according to IEC 60112	600
Flammability rating according to UL 94	V0
Glow wire flammability index GWFI according to EN 60695-2-12	850
Glow wire ignition temperature GWIT according to EN 60695-2-13	775
Temperature for the ball pressure test according to EN 60695-10-2	125 °C

Dimensional drawing
Pitch	5 mm
Width [w]	7.5 mm
Height [h]	23.5 mm
Length [l]	19.5 mm
Installed height	18.5 mm
Solder pin length [P]	5 mm
Pin dimensions	0.8 x 0.8 mm

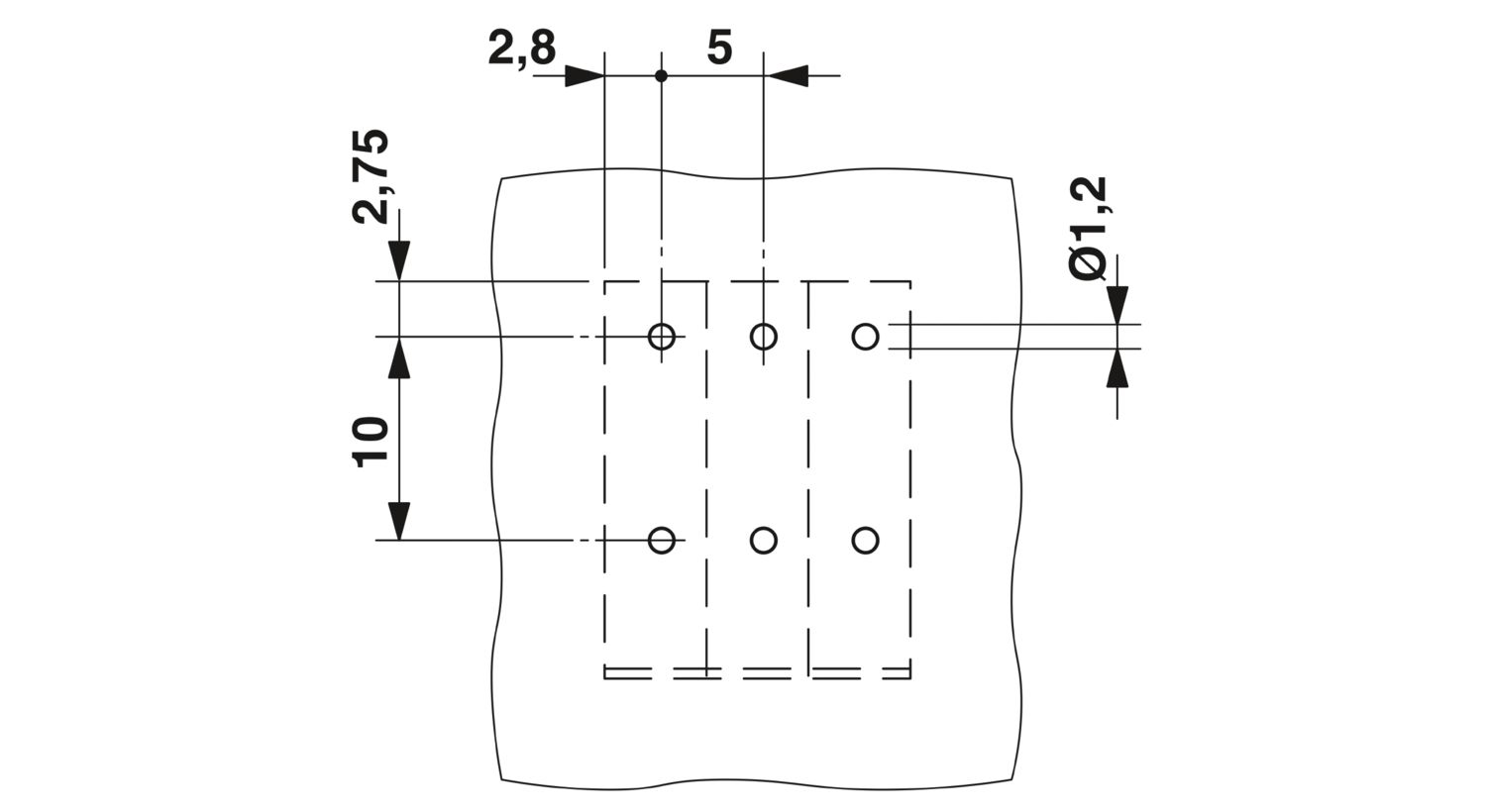

PCB design
Pin spacing	10 mm
Hole diameter	1.2 mm

Test for conductor damage and slackening
Specification	IEC 60999-1:1999-11
Result	Test passed
Pull-out test
Specification	IEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value	0.2 mm² / solid / > 10 N
	0.2 mm² / flexible / > 10 N
	2.5 mm² / flexible / > 50 N
	2.5 mm² / solid / > 50 N

Temperature-rise test
Specification	IEC 60947-7-4:2013-08
Requirement temperature-rise test	The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature.
Short-time withstand current
Specification	IEC 60947-7-4:2013-08
Insulation resistance
Specification	IEC 60512-3-1:2002-02
Insulation resistance, neighboring positions	> 5 MΩ
Air clearances and creepage distances \|
Insulating material group	I

Vibration test
Specification	IEC 60068-2-6:2007-12
Frequency	10 - 150 - 10 Hz
Sweep speed	1 octave/min
Amplitude	0.35 mm (10 Hz ... 60.1 Hz)
Acceleration	5g (60.1 Hz ... 150 Hz)
Test duration per axis	2.5 h
Test directions	X-, Y- and Z-axis
Glow-wire test
Specification	IEC 60695-2-10:2013-04
Temperature	850 °C
Time of exposure	5 s
Aging
Specification	IEC 60947-7-4:2013-08
Ambient conditions
Ambient temperature (operation)	-50 °C ... 110 °C
Ambient temperature (storage/transport)	-40 °C ... 70 °C
Relative humidity (storage/transport)	30 % ... 70 %
Ambient temperature (assembly)	-5 °C ... 100 °C

Type of packaging	packed in cardboard

Commercial data

Item number	1700325
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	AA13
Product key	AAMFDA
Catalog page	Page 159 (C-1-2013)
GTIN	4017918022815
Weight per piece (including packing)	3.561 g
Weight per piece (excluding packing)	3.344 g
Customs tariff number	85369010
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
with pitch spacer	275 V	20 A	30 - 12
Standard	176 V	10 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section mm²
	176 V	21 A	- 2.5
with pitch spacer	275 V	21 A	- 2.5
with 2 pitch spacers	440 V	21 A	- 2.5

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section mm²
	176 V	21 A	- 2.5
with pitch spacer	275 V	21 A	- 2.5
with 2 pitch spacers	440 V	21 A	- 2.5

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

Your advantages

Well-known connection principle allows worldwide use

Low temperature rise, thanks to maximum contact force

Satisfies the more stringent safety requirements of “Ex e” protection according to IEC 60079-7 for potentially explosive areas

Operation and conductor connection from one direction enable integration into front of device

Two solder pins reduce the mechanical strain on the soldering spots

The latching on the side enables various numbers of positions to be combined

Allows connection of two conductors

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
EF3.0 Climate Change
CO2e kg	0.034 kg CO2e

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

FRONT 2,5-H/SA10-EX - PCB terminal block

1700325

Product details

ECLASS

ETIM

UNSPSC

cULus Recognized

ATEX

IECEx

CCC

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

FRONT 2,5-H/SA10-EX - PCB terminal block 1700325

Product details

ECLASS

ETIM

UNSPSC

Compatible products

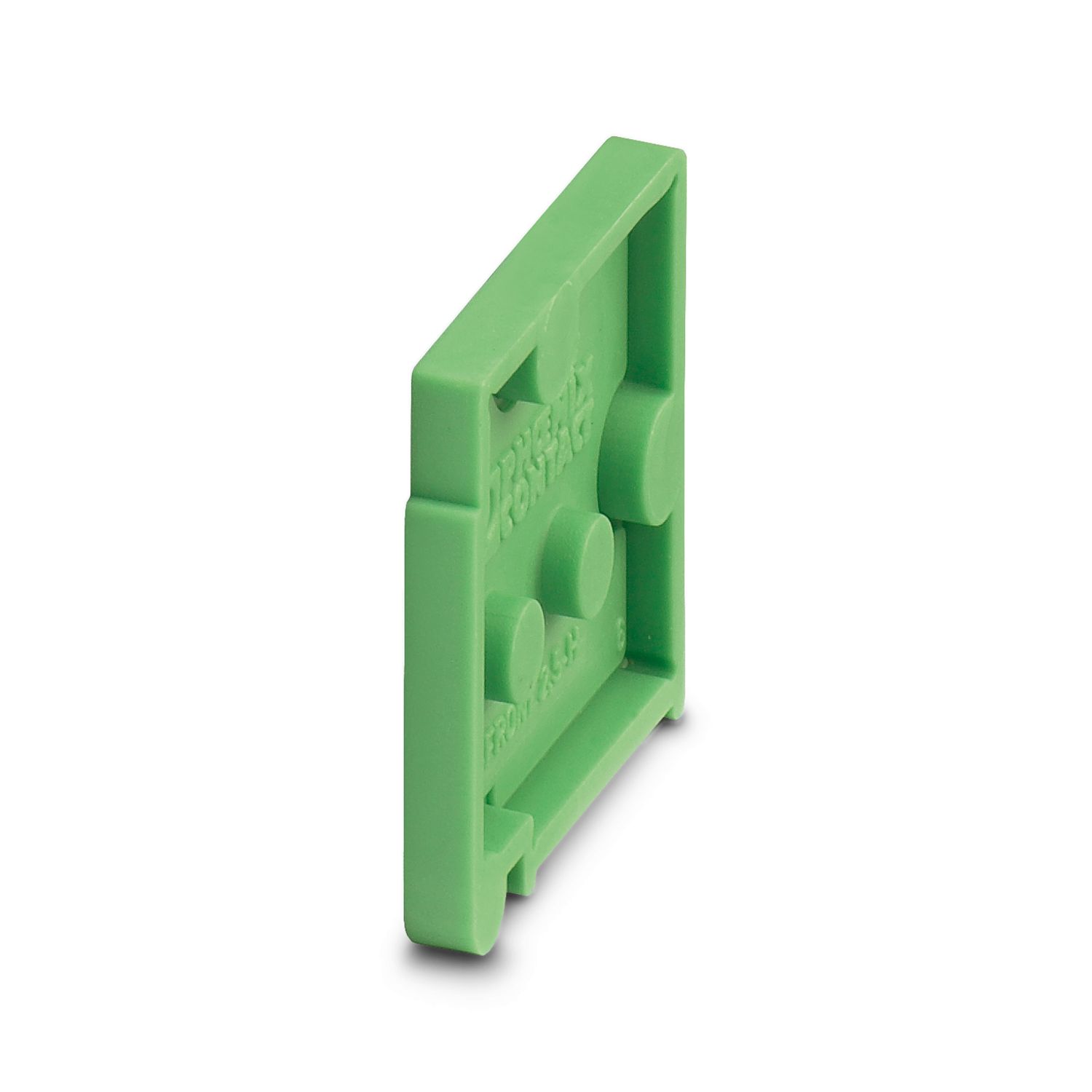

D-FRONT 2,5-H-O.Z. - End cover 1700024
