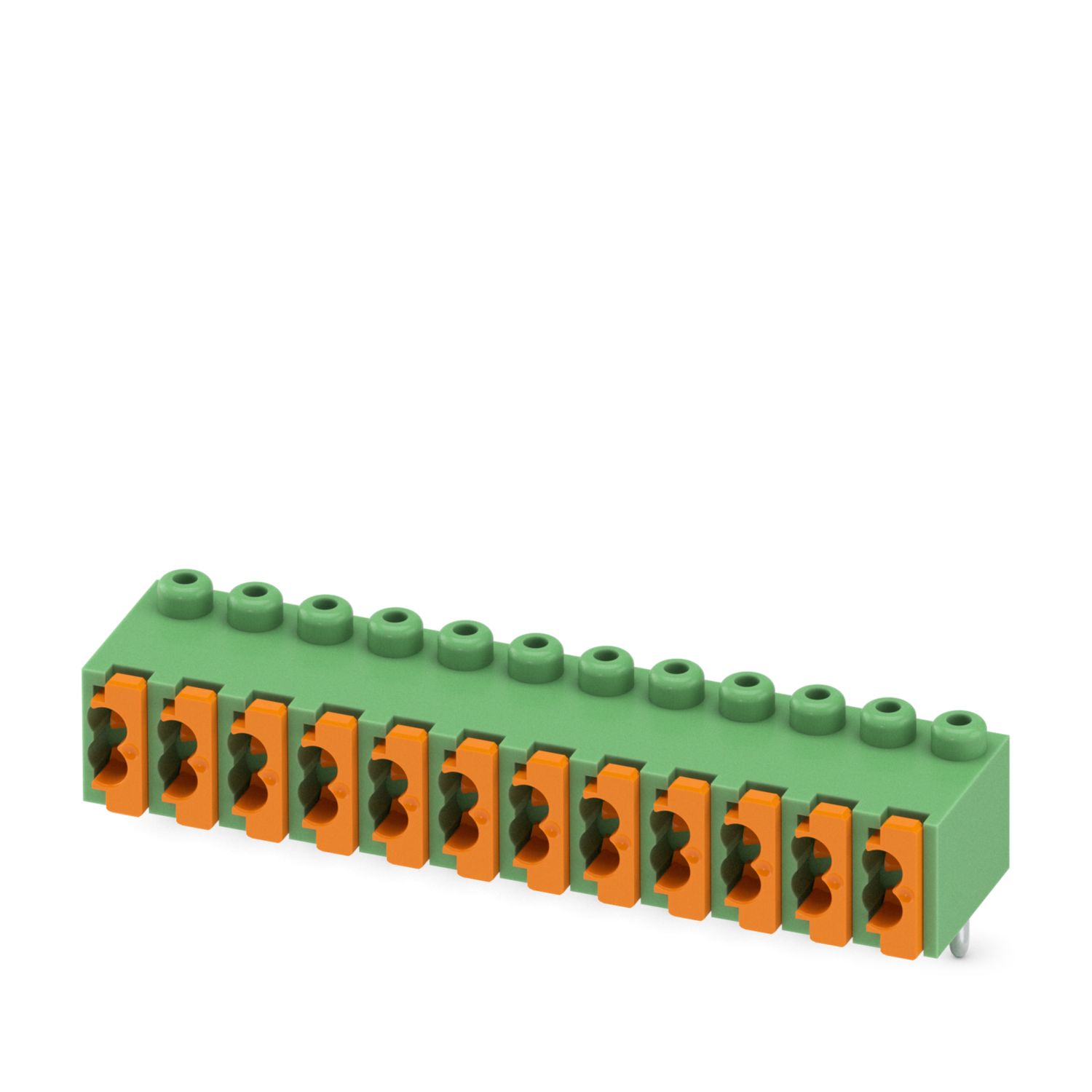

PCB terminal block - FK-MPT 0,5/12-3,5-H

PCB terminal block, nominal current: 4 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm2, number of potentials: 12, number of rows: 1, number of positions per row: 12, product range: FK-MPT 0,5/..-H, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 4 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard

Product Details

Type PC termination block
Product line COMBICON Terminals XS
Product type Printed circuit board terminal
Number of positions 12
Pitch 3.5 mm
Number of connections 24
Number of rows 1
Number of potentials 12
Pin layout Linear pinning

Nominal current IN 4 A
Nominal voltage UN 250 V
Pollution degree 3
Rated voltage (III/3) 160 V
Rated surge voltage (III/3) 2.5 kV
Rated voltage (III/2) 250 V
Rated surge voltage (III/2) 2.5 kV

Conductor connection
Connection method Push-in spring connection
Conductor cross section solid 0.12 mm² ... 0.5 mm²
Conductor cross section AWG 26 ... 20
Stripping length 6.5 mm

Mounting type Wave soldering

Material data - contact
Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material Steel/copper
Surface characteristics Tin-plated
Metal surface terminal point (top layer) Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer) Copper (2 - 3 µm Cu)
Metal surface soldering area (top layer) Tin (5 - 7 µm Sn)
Metal surface soldering area (middle layer) Copper (2 - 3 µm Cu)
Material data - housing
Housing color green (6021)
Insulating material PBT
Insulating material group IIIa
CTI according to IEC 60112 225
Flammability rating according to UL 94 V0

Dimensional drawing
Pitch 3.5 mm
Width [w] 42.5 mm
Height [h] 12.5 mm
Length [l] 9.5 mm
Installed height 8.5 mm
Solder pin length [P] 4 mm
PCB design
Pin spacing 3.5 mm

Air clearances and creepage distances |
Insulating material group IIIa
Rated insulation voltage (III/3) 160 V
Rated surge voltage (III/3) 2.5 kV
Rated insulation voltage (III/2) 250 V
Rated surge voltage (III/2) 2.5 kV
Rated insulation voltage (II/2) 250 V
Rated surge voltage (II/2) 2.5 kV

Ambient conditions
Ambient temperature (operation) -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport) -40 °C ... 70 °C
Relative humidity (storage/transport) 30 % ... 70 %
Ambient temperature (assembly) -5 °C ... 100 °C

Type of packaging packed in cardboard

Item number 1928864
Packing unit 1 pc
Minimum order quantity 50 pc
Sales Key A03
Product Key AAKBCA
Catalog Page Page 403 (C-1-2013)
GTIN 4017918591311
Weight per Piece (including packing) 5.66 g
Weight per Piece (excluding packing) 5.16 g
Customs tariff number 85369010
Country of origin IN


ECLASS-9.0 27440401
ECLASS-10.0.1 27440401
ECLASS-11.0 27460101


ETIM 8.0 EC002643


UNSPSC 21.0 39121400


Approval ID: B.01687

cULus Recognized

Approval ID: E60425-19991118
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2
Use group B
300 V 4 A 28 - 20
Use group D
300 V 4 A 28 - 20

China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Compatible Products

Your advantages

Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Potentials can be easily looped through – ideal for BUS applications
Small component size for applications where space is at a premium
