A-INB-M12-69KN-P-BK
-

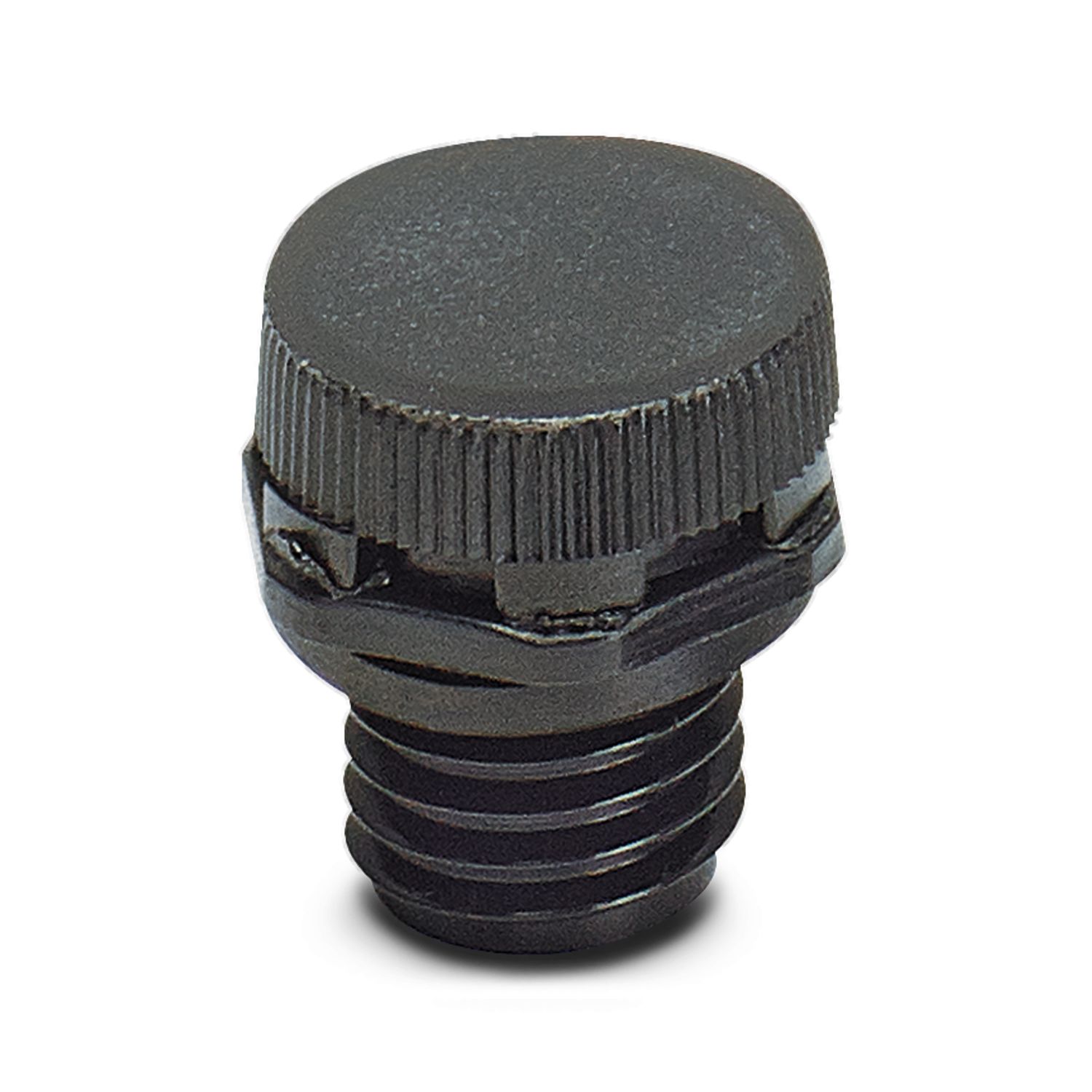

Pressure compensation element
1415223
Pressure compensation element, material for screw connection: PA, connecting thread: M12 x 1.5, color: jet black, with O-ring
Product details
| Product type | Pressure compensation element |
| Air flow rate | 16 l/h (at Δ min. 70 mbar) |
| Tightening torque | 0.5 Nm ... 1 Nm (Flange) |

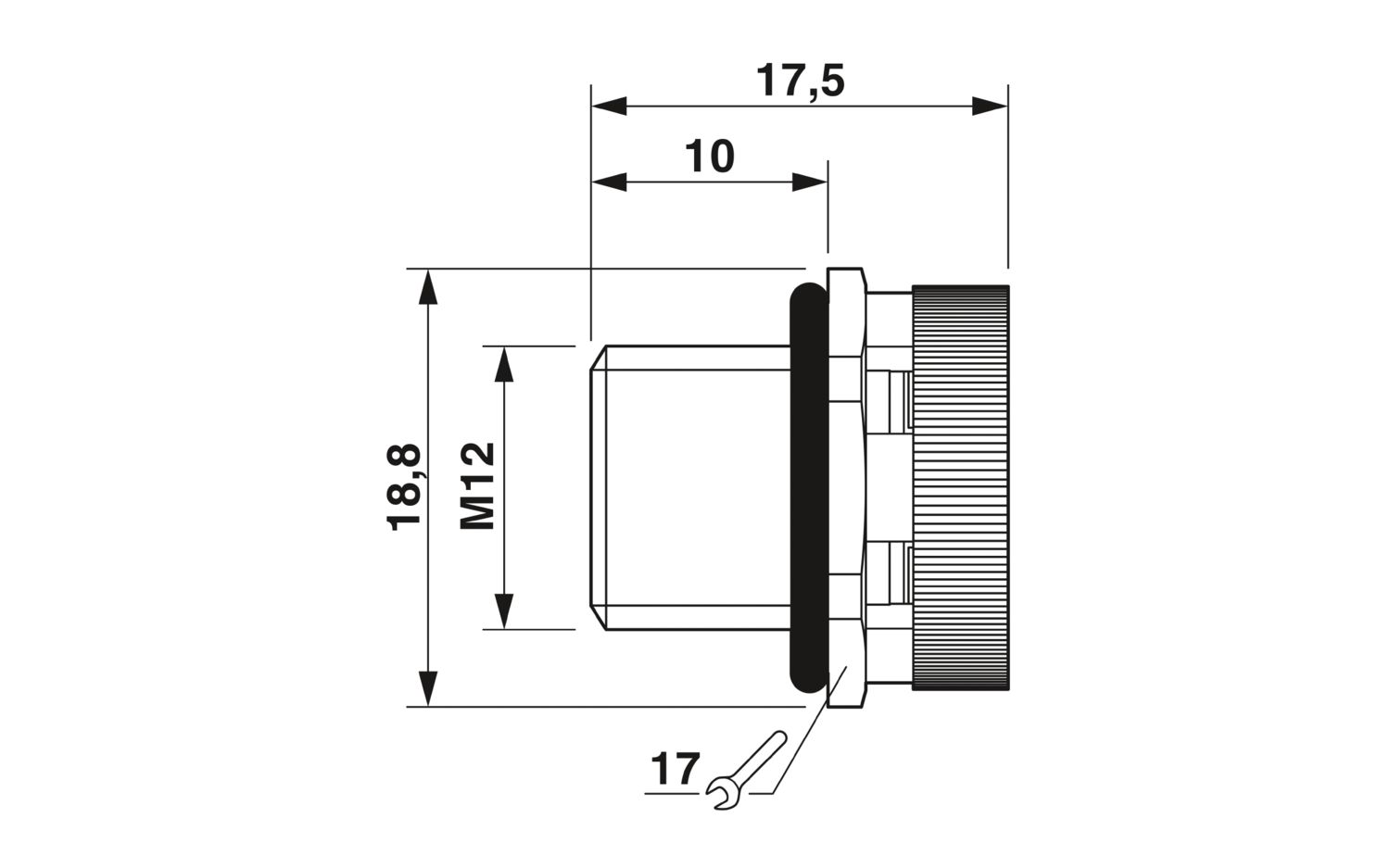

| Dimensional drawing |
|
| Length | 17.5 mm |
| Length of the connecting thread | 10 mm |
| Length without connecting thread | 7.5 mm |
| Diameter | 12 mm |
| Connecting thread diameter | 12 mm |
| Wrench size, union nut | 17 mm |
| Hexagon angular dimension | 18.5 mm |
| Thread type connection side | M12 x 1.5 |
| Thread pitch | 1.5 mm |
| Color | black (RAL 9005) |
| Material | Acrylic copolymer (Venting filter) |
| Polyamide (Housing) | |
| Seal material | Perbunan |
| Material for screw connection | PA |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| IP69 | |
| Ambient temperature (operation) | -40 °C ... 105 °C |
Your advantages
Reduces the formation of condensation
