HC-SMP 150-D15
-
Plug mounting panel
1661192

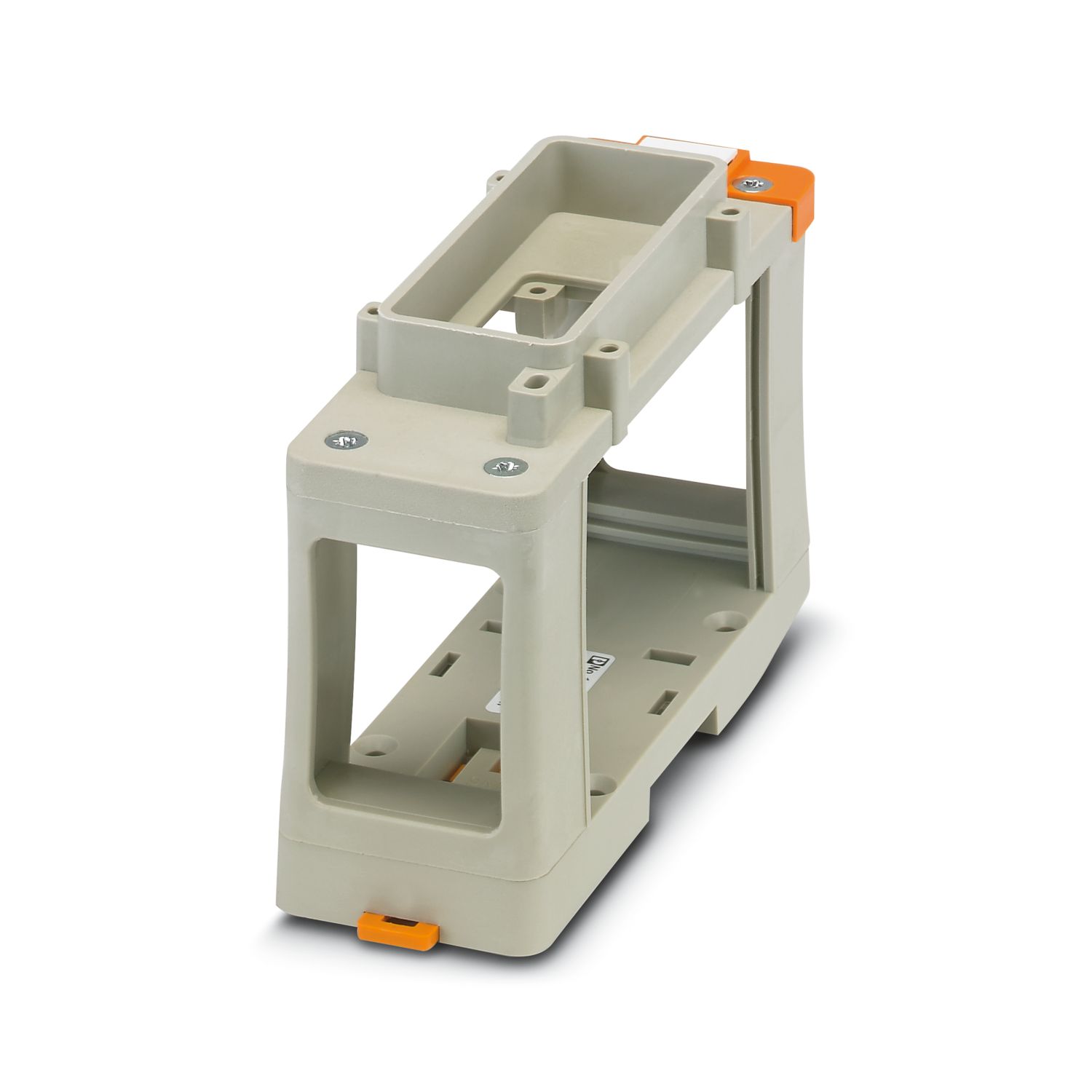

Plug assembly board, 150 mm, with base element, snaps onto NS 35/7.5 and NS 35/15, for contact inserts HC-D 15
Product details
| Product type | DIN rail mounting frame |
| Type | D15 |

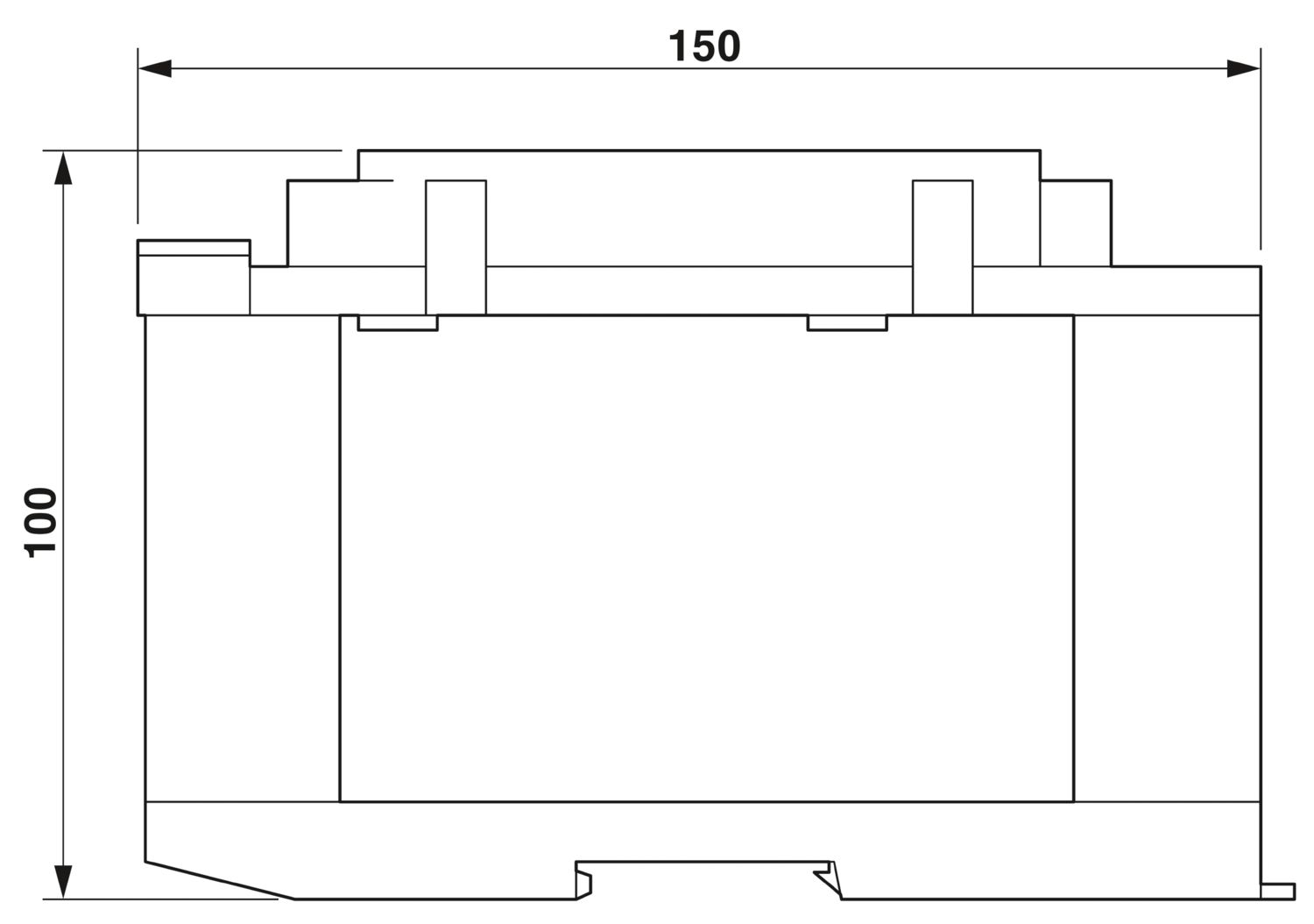

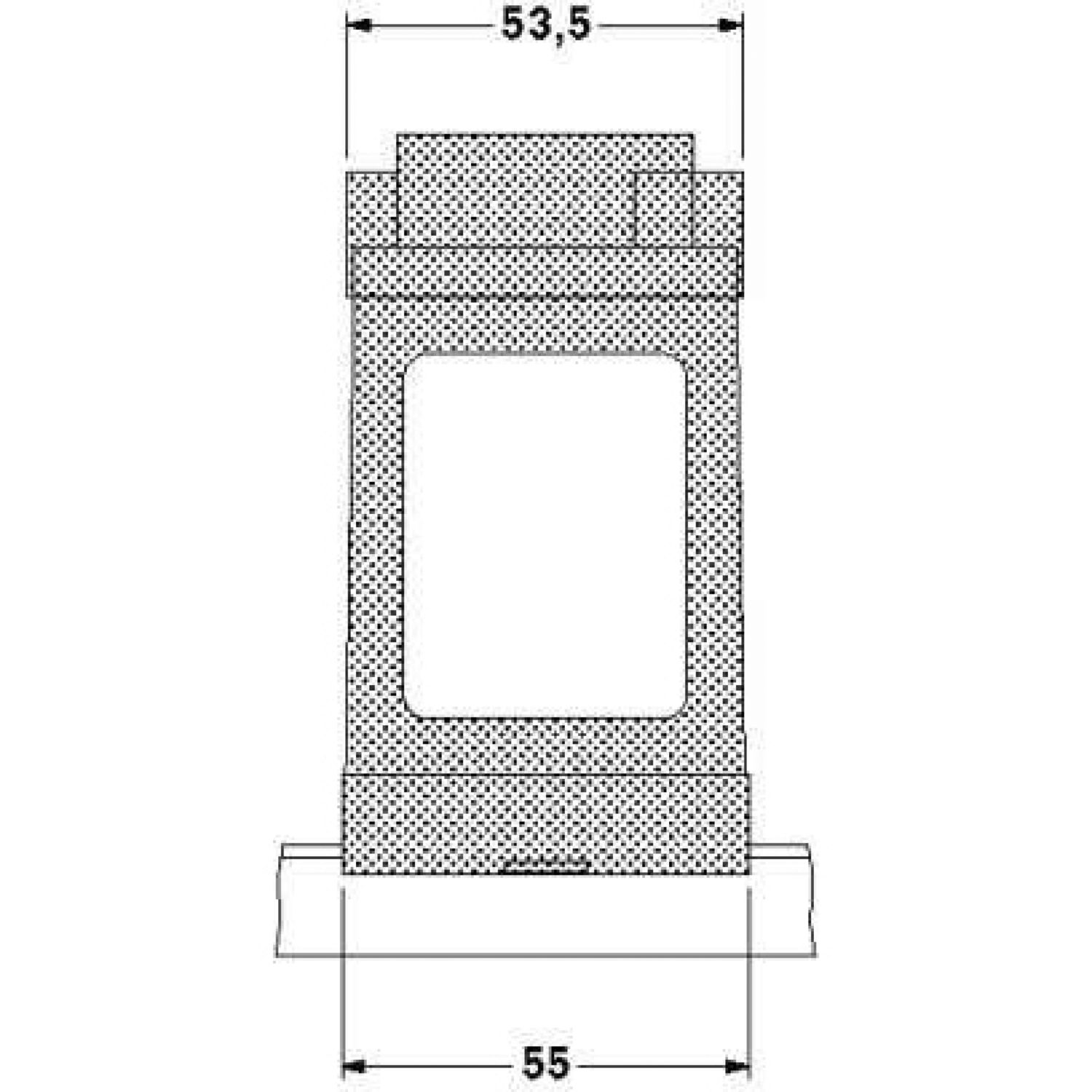

| Dimensional drawing |
|
| Width | 54 mm |
| Height | 100 mm |
| Length | 150 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
| Assembly note | Can only be used in conjunction with HC-SAZ 150-D 15 (Order No. 1661257). |
| For a complete plug-in connection, an HC-SMP 150... connector mounting panel and HC-SAZ... plug receptacle are required. |
