A-EXSH-M32-68L-N-S
-
Screw plug
1411109

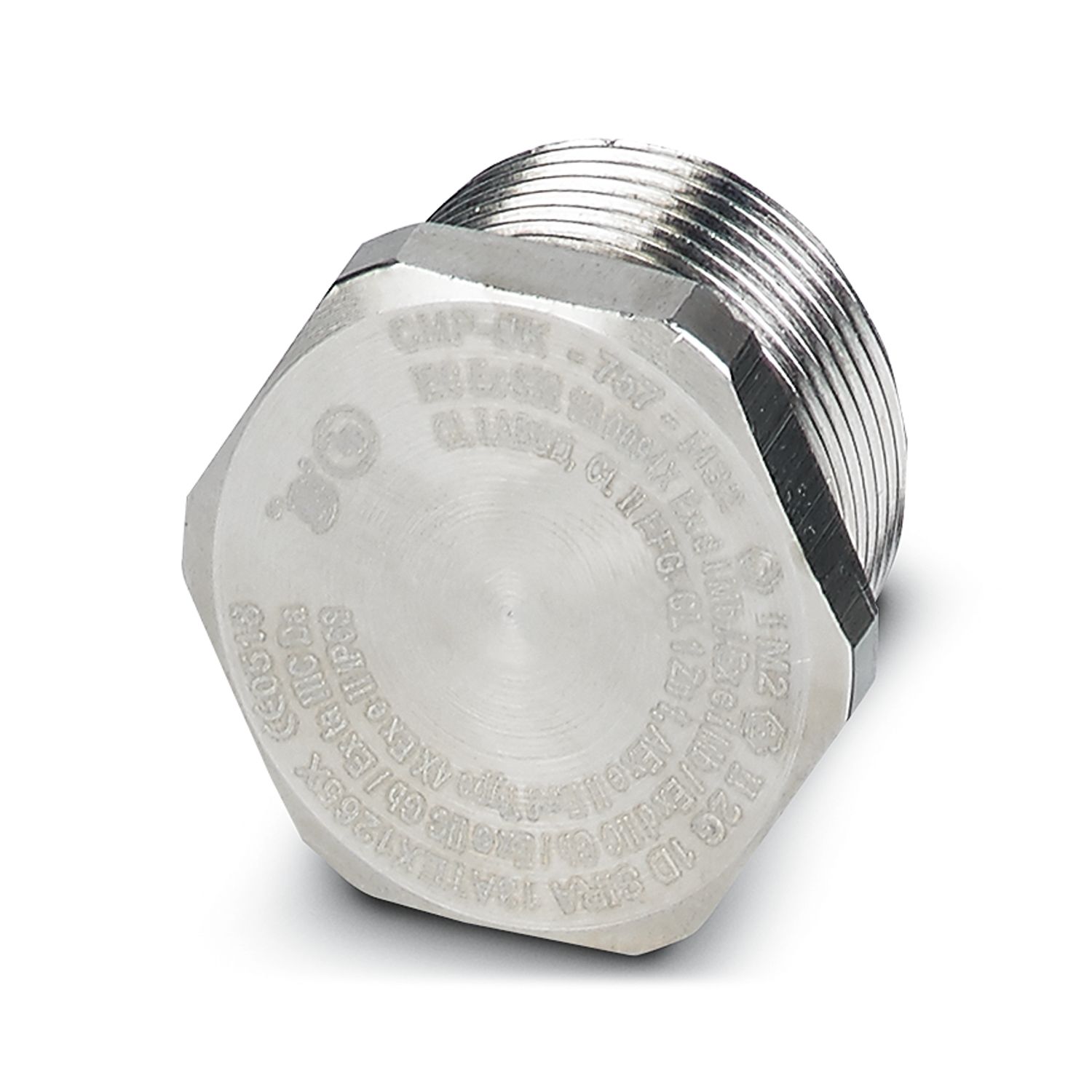

Screw plug, material for screw connection: Brass, nickel-plated, application: Ex, connecting thread: M32 x 1.5, color: silver-colored
Product details
| Note on Ex protection | This item must only be used with counter nut 1411244 A-INL-M32-N-S for the Ex e type of protection. |
| Product type | Plug for cable screw gland |
| Application | Ex |
| Manufacturer | CMP |
| Manufacturer Designation | 757 M32 Exd/Exe N.PLTD HEX HD STOP PLUG |
| Manufacturer product number | 757DM45 |
| Suited for EX-applications | yes |

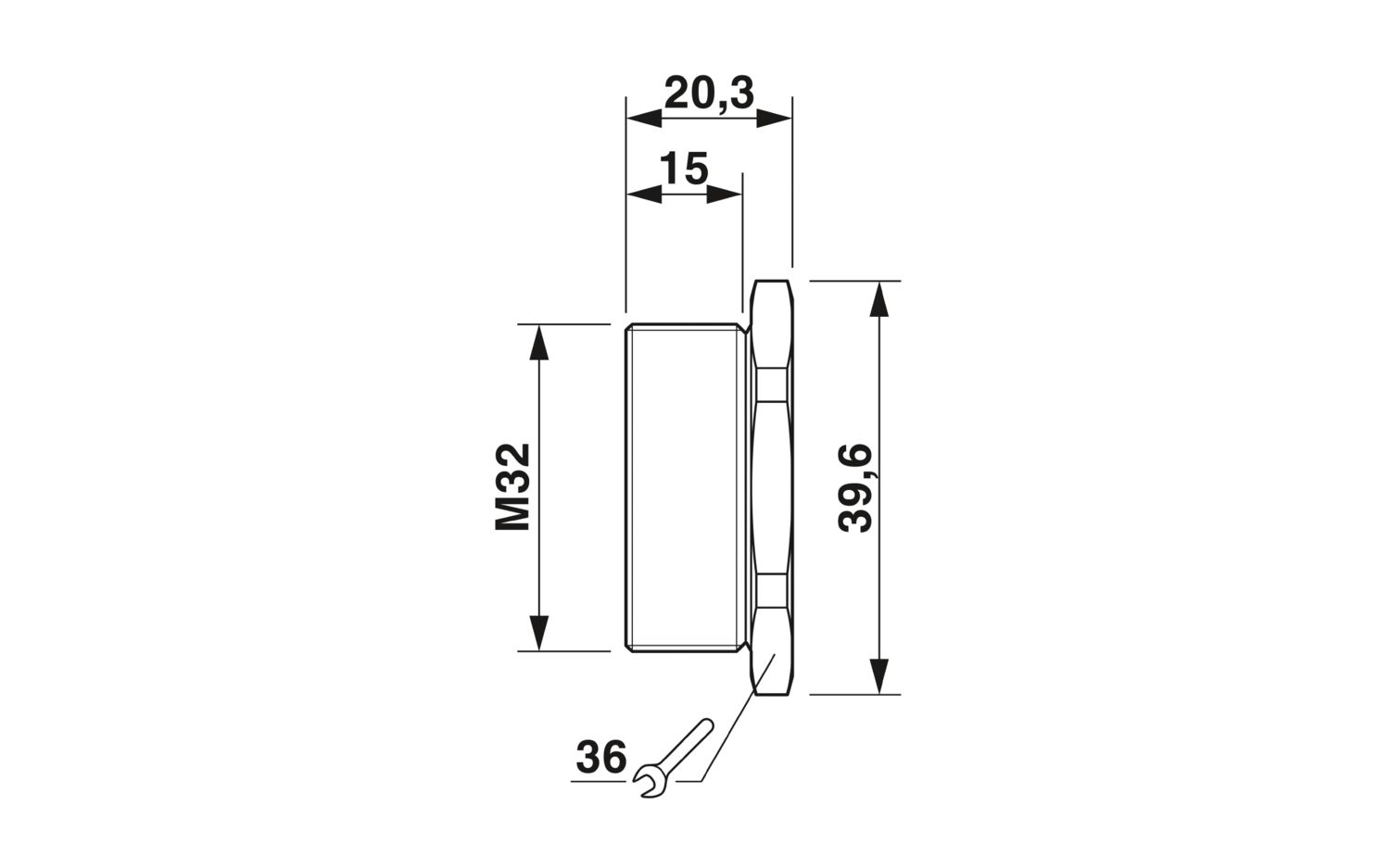

| Dimensional drawing |
|
| Length | 24 mm |
| Length of the connecting thread | 15 mm |
| Length without connecting thread | 9 mm |
| Diameter | 32 mm |
| Connecting thread diameter | 32 mm |
| Wrench size, union nut | 36 mm |
| Hexagon angular dimension | 39.6 mm |
| Thread type connection side | M32 x 1.5 |
| Thread pitch | 1.5 mm |
| Housing surface material | Ni |
| Material for screw connection | Brass, nickel-plated |
| Ambient conditions | |
| Degree of protection | IP66 (using the corresponding A-SEW-...P-W flat gasket) |
| IP68 (using the corresponding A-SEW-...P-W flat gasket) | |
| Ambient temperature (operation) | -60 °C ... 130 °C |
| ATEX | Sira 01ATEX1284U |
| Sira 02ATEX1003X | |
| Ex II 2 GD Ex d IIC & Ex e II, Ex IM2 Ex d I, Ex e I | |
| IECEx | IECEx SIR 07.0056X |
| Ex d I / Ex e I / Ex d IIC / Ex e II, Ex tD A21 IP6X |
| EN Ex | |
| Standards/specifications | EN 60079-0, -1, -7 |
| IEC Ex | |
| Standards/specifications | IEC 60079-0, -1, -7 |
| EN Ex | |
| Standards/specifications | EN 61241-0, -1 |
| IEC Ex | |
| Standards/specifications | IEC 61241-0, -1 |
| Assembly note | Sealed to IP66/IP68 thanks to the use of the A-SEW-32-P-W flat gasket (item 1411285) |
