ME-PLC 40/36 BUS DEV-PCB - PCB

2202546

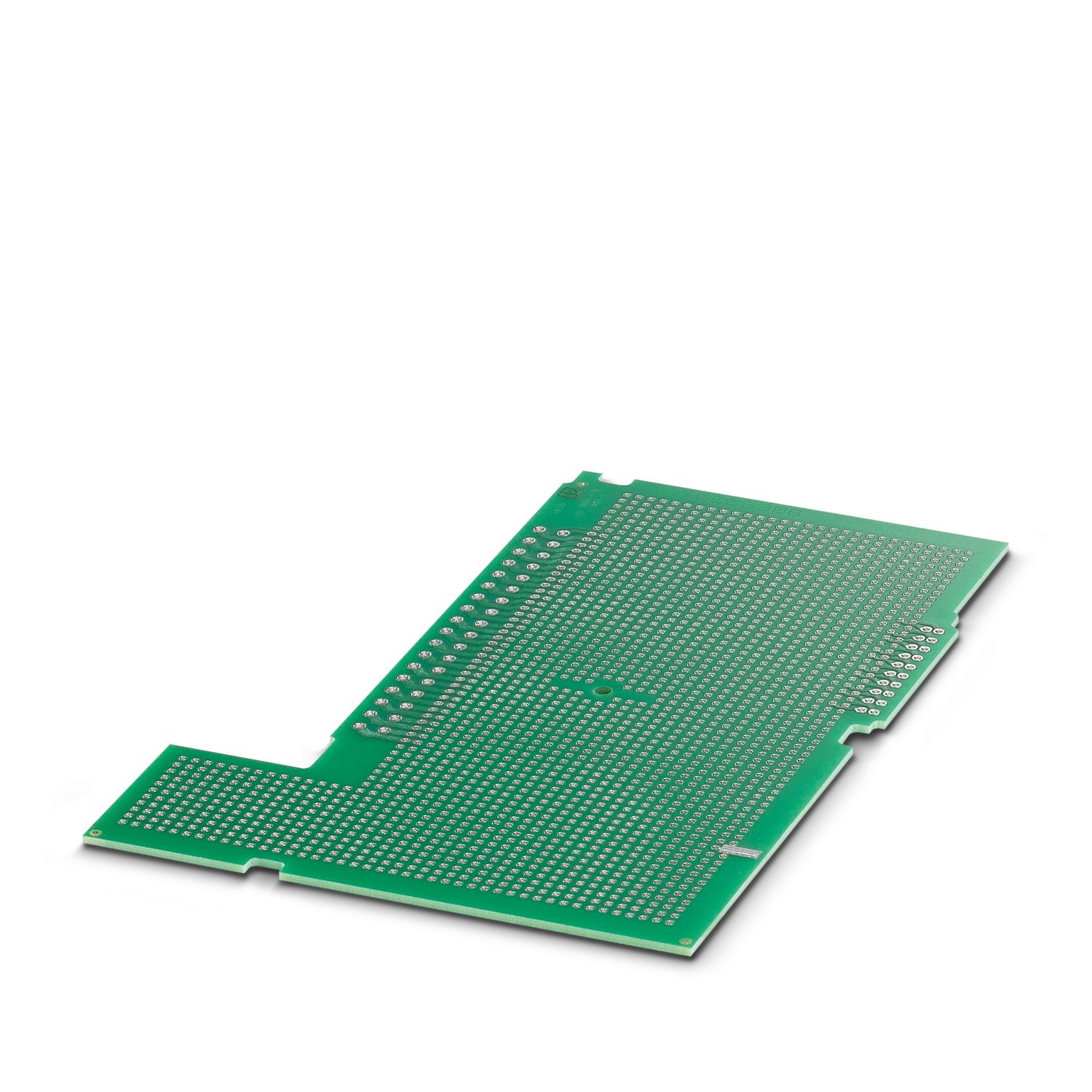

Perfboard for the ME-PLC 40 DEV-KIT; for 36-pos. CCDN 2,5 header; suitable for manual soldering

Product details

Technical data

Product properties

Dimensions

Material specifications

Color	green
Housing material	FR 4-21

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	110 °C (depending on power dissipation)

Commercial data

Item number	2202546
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	ACHEAE
GTIN	4055626142531
Weight per piece (including packing)	57.96 g
Weight per piece (excluding packing)	57.96 g
Country of origin	DE

Classifications

Environmental product compliance

Hole matrix PCB for self-assembly

Hole matrix dimension: 2.54 mm

Easy installation

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
