DP PS-4
-
Spacer plate
3036712

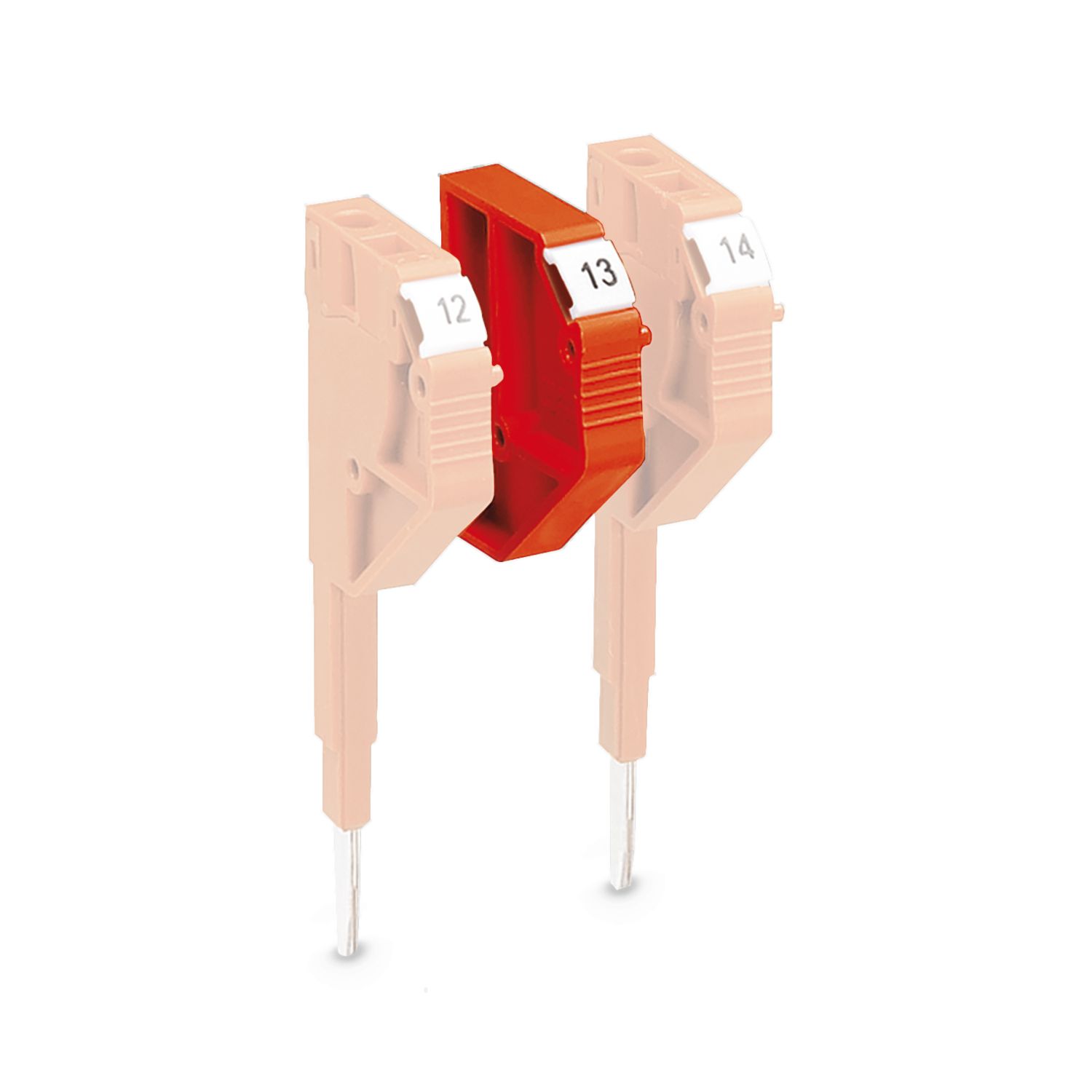

Spacer plate, depth: 29 mm, width: 4.2 mm, height: 22.4 mm, number of positions: 1, color: red
Product details
| Product type | Partition plate |
| Number of positions | 1 |
| Color | red (RAL 3001) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |

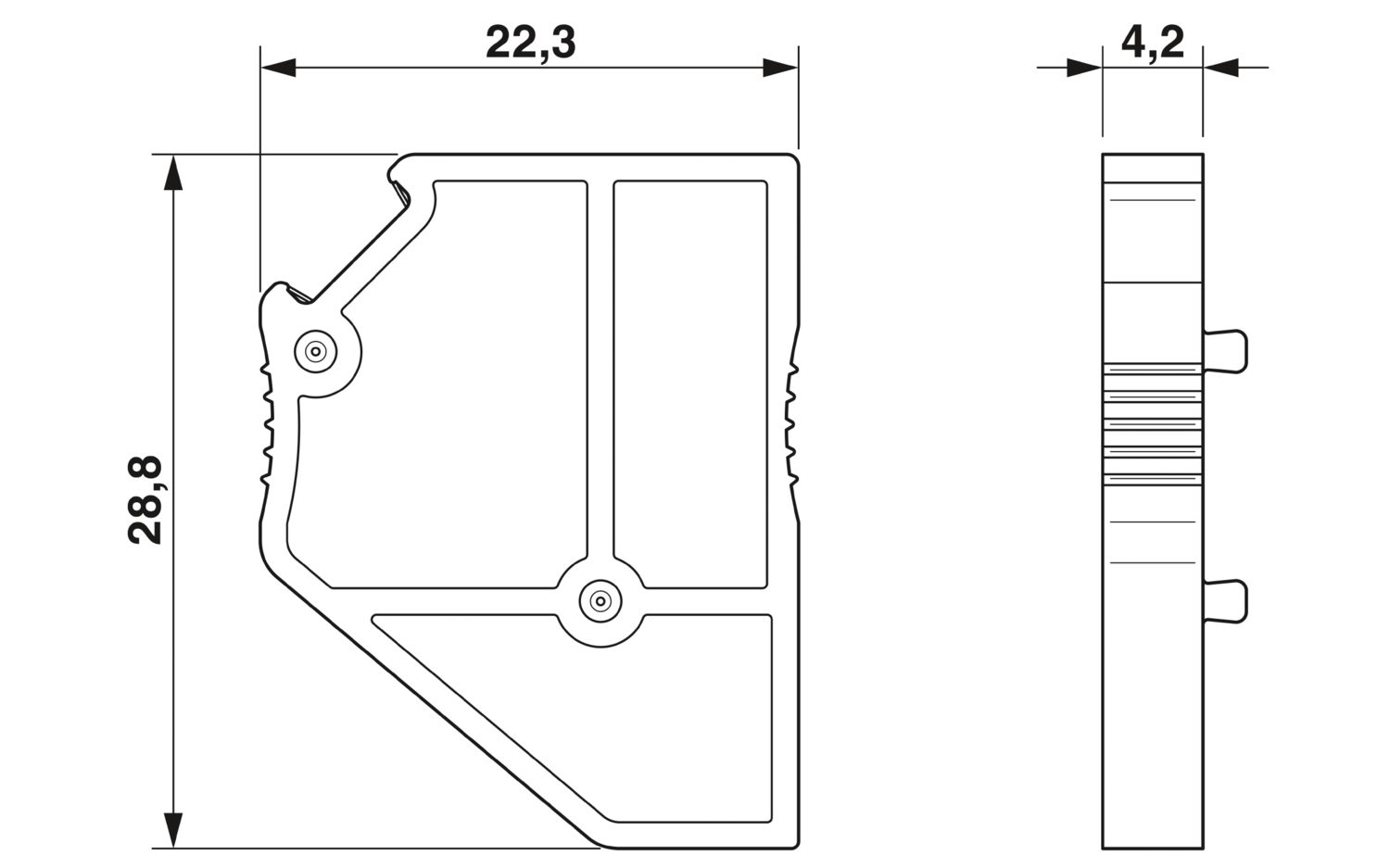

| Dimensional drawing |
|
| Width | 4.2 mm |
| Height | 22.4 mm |
| Depth | 29 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
