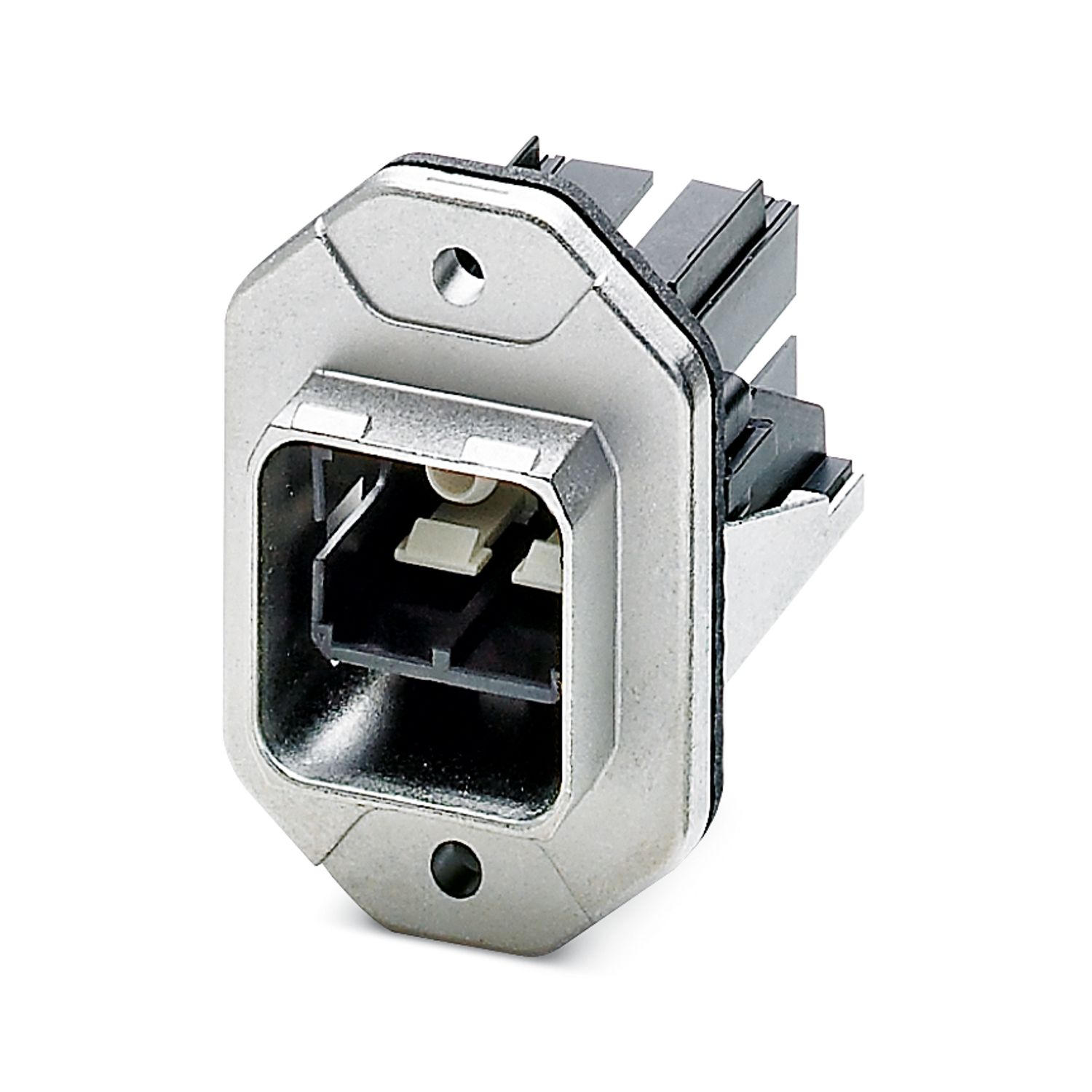

Panel mounting frames - VS-PPC-F1-SCRJ-MNNA-1RF
1405374

SC-RJ panel mounting frame, IP67, for push-pull interlocking, metal, with Freenet system, for rectangular mounting cutout, with seal and SC-RJ coupling (for POF, PCF, and GOF), without mounting screws


Product Details




Type SCRJ, IP65/67, version 14
Product type Panel mounting frame
Number of positions 2
Application Freenet
Locking type Push Pull
Cable outlet straight
Insulation characteristics
Degree of pollution 2

Connection technology
Connection method Push-Pull

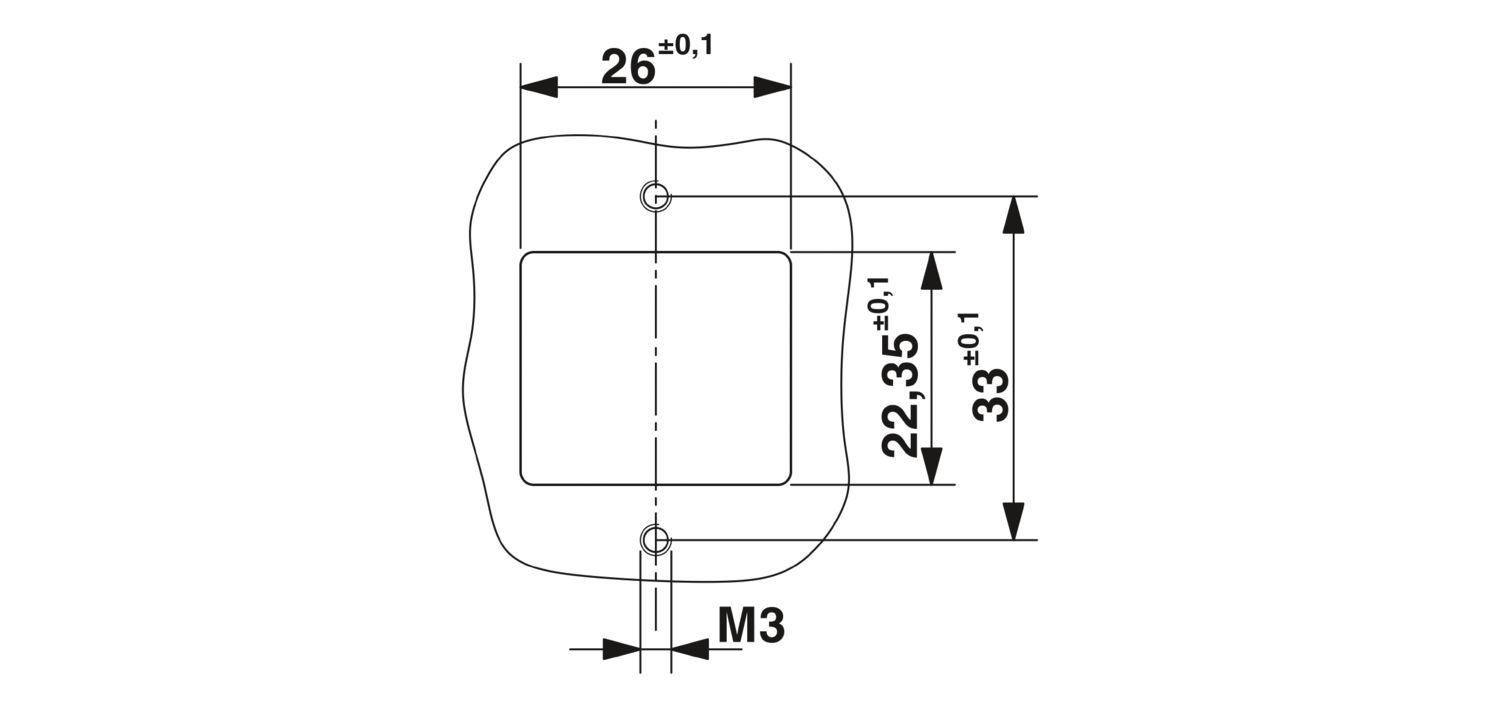

Dimensional drawing
Width 22.2 mm
Height 42 mm
Mechanical characteristics
Ferrule diameter 2.50 mm

Color silver
Material Metal
Flammability rating according to UL 94 V0
Housing surface material Nickel-plated
Housing material Zinc die-cast

Insertion/withdrawal cycles ≥ 500

Ambient conditions
Resistance to oil yes
Flame resistance yes
FO cable
Number of fibers 2
Fiber POF, PCF, GOF
Fiber type GOF, PCF, POF
Transmission medium FO

Ambient conditions
Degree of protection IP67 (IP65/67)
Degree of protection IP65/IP67
Ambient temperature (operation) -40 °C ... 70 °C
Ambient temperature (storage/transport) -40 °C ... 70 °C
Ambient temperature (assembly) 0 °C ... 50 °C
Resistance to oil yes

Flame resistance yes
Resistance to oil yes

Mounting type Wall mounting

Item number 1405374
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key A08
Product Key ABNECE
Catalog Page Page 356 (C-4-2015)
GTIN 4046356419925
Weight per Piece (including packing) 35.6 g
Weight per Piece (excluding packing) 35.6 g
Customs tariff number 85389099
Country of origin DE


ECLASS

ECLASS-9.0 27440210
ECLASS-10.0.1 27440210
ECLASS-11.0 27440210

ETIM

ETIM 8.0 EC002310

UNSPSC

UNSPSC 21.0

EAC

Approval ID: B.01687
