VS-PPC-F1-RJ45-MNNA-1C-F
-
Panel-mount frame
1405222
RJ45 panel mounting frame, IP67, for push-pull interlocking, metal, with Freenet system, for round mounting cutout, with seal
Product details
| General | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
| Product type | Panel-mount frame |
| Application | Freenet system |
| Type | Version 14 |
| Connection profile | unassembled |
| Type | RJ45 |
| Insulation characteristics | |
| Degree of pollution | 2 |
| Connection technology | |
| Connection method | Spring-cage connection |

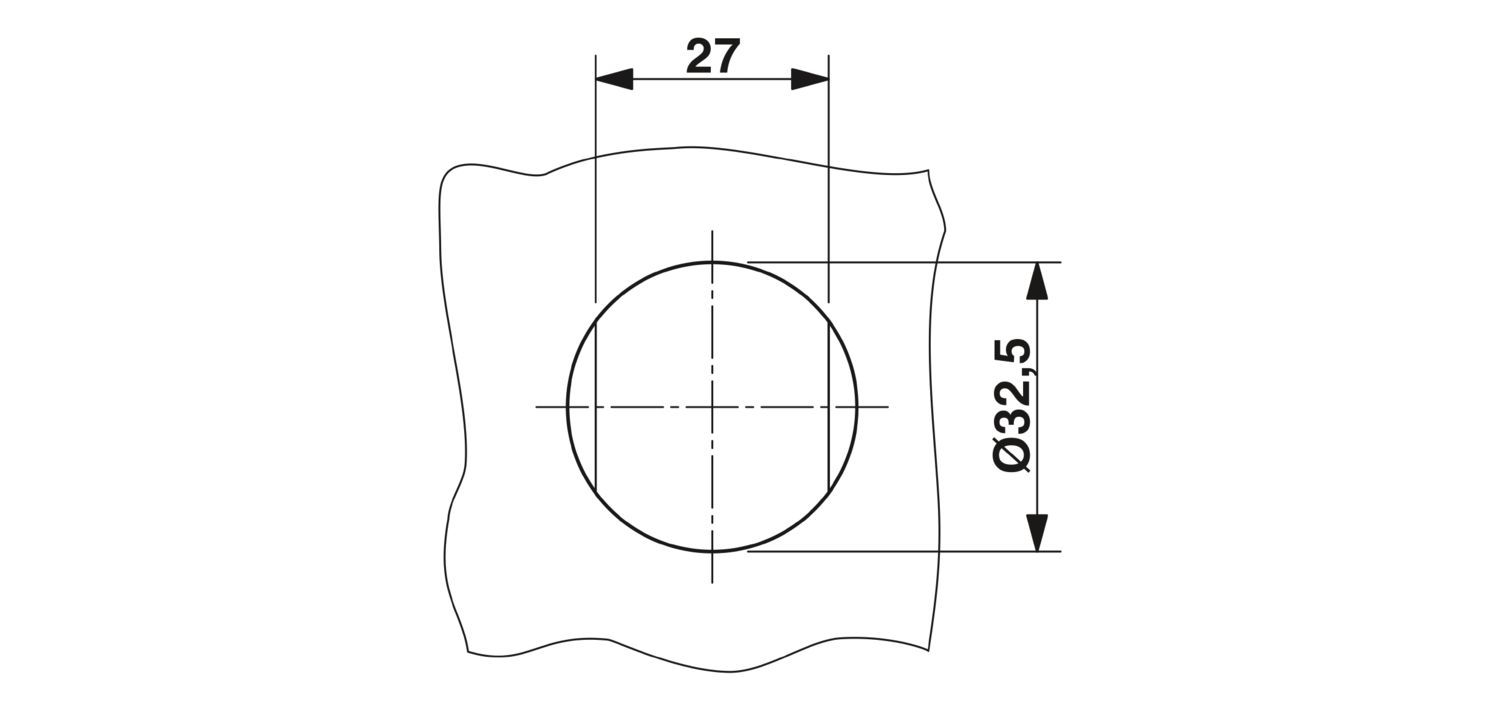

| Dimensional drawing |
|
| Width | 38 mm |
| Height | 42 mm |
| Length | 37 mm |
| Color | silver |
| Material | Metal |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Seal material, flat gasket | NBR |
| Housing material | Metal |
| Housing surface material | nickel-plated |
| Mechanical data | |
| Insertion/withdrawal cycles | >= 100 |
| Ambient conditions | |
| Degree of protection | IP65/IP67 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Mounting type | Panel mounting |
