CUC-V14-F1ZNI-EM/R4O
-
Panel-mount frame
1413963
RJ45 panel mounting frame, IP67, for push-pull interlocking, metal, for PCB connection, for square panel cutout, with grommet and mounting screws
Product details
| General | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
| Product type | Panel-mount frame |
| Type | RJ45 |
| Number of positions | 8 |
| Connection profile | RJ45 |
| Type | RJ45 |
| Data management status | |
| Article revision | 03 |
| Insulation characteristics | |
| Degree of pollution | 2 |
| Transmission medium | Copper |

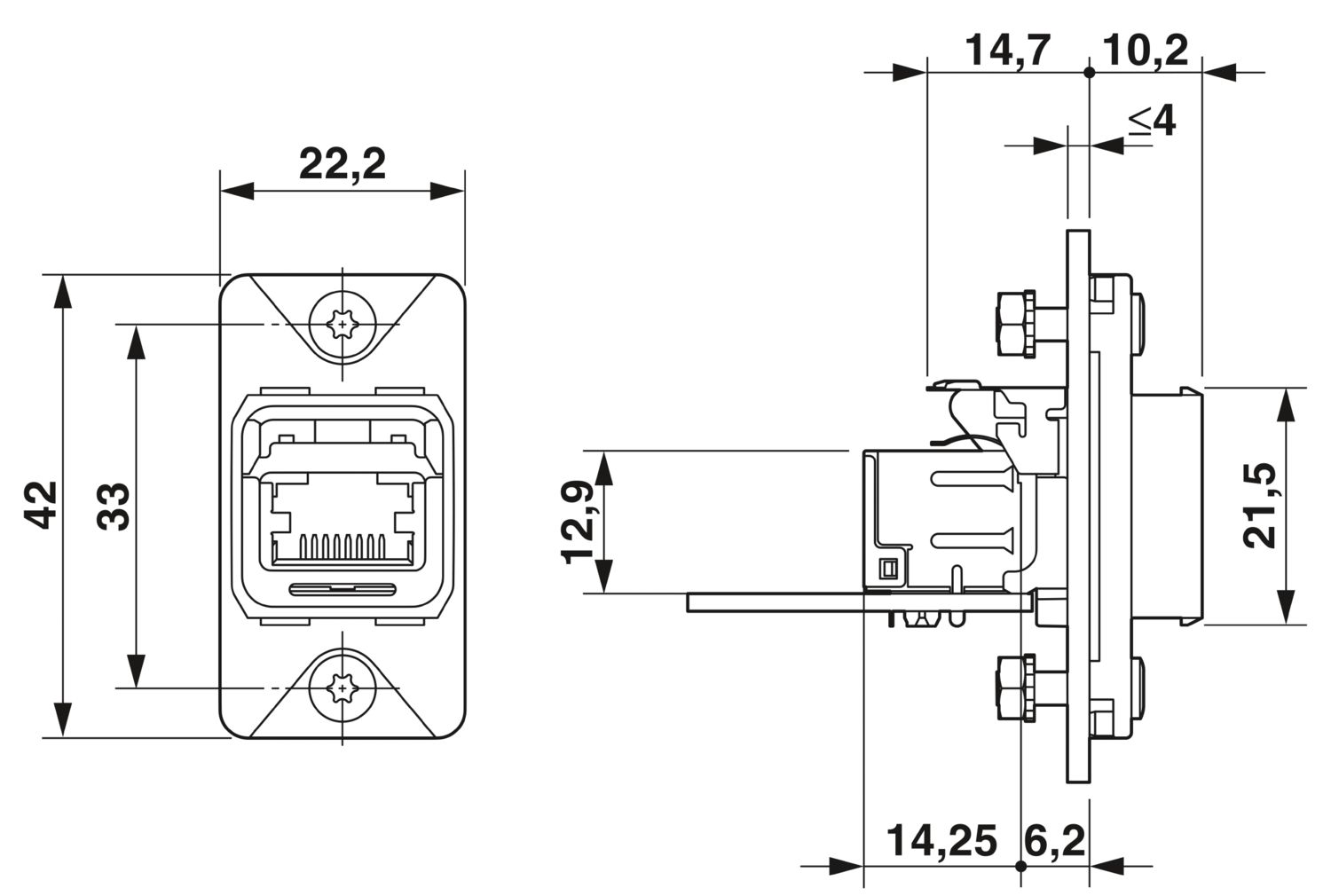

| Dimensional drawing |
|
| Width | 22.2 mm |
| Height | 42 mm |
| Length | 25 mm |
| Material | Metal |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| NBR | |
| Housing material | Metal |
| Housing surface material | nickel-plated |
| Ambient conditions | |
| Degree of protection | IP65/IP67 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 55 °C |
