UM 45-SE
-
Lateral element
2906131
Press-drawn section housings, Lateral element, without snap-on foot, depth: 45 mm, Note: when using this lateral element, profile length = PCB length.
Product details
| Product type | Panel mounting base side part |
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM SE |
| Type | Lateral element |
| Ventilation openings present | no |

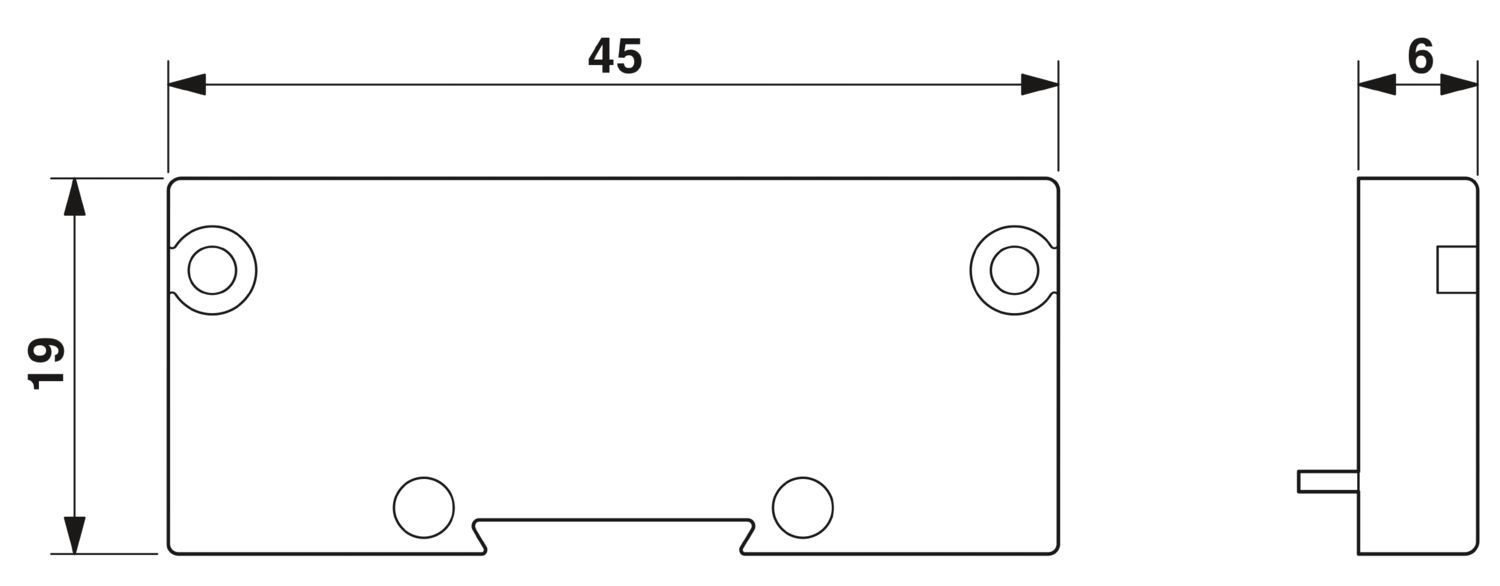

| Dimensional drawing |
|
| Depth | 45 mm |
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA |
| Surface characteristics | untreated |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
Your advantages
Flexible size and shape
Fast mounting
Inexpensive as a result of reducing the number of separate housing parts
