Panel feed-through with QUICKON fast connection technology, for accommodating one or two AS-i flat conductors, on the rear side with manual solder/slip-on connection 4.8 x 0.8 mm
| Product type | Panel feed-through |
| Number of positions | 4 |
| Number of connections | 4 |
| Number of connections per position | 1 |
| Coding | no |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |
| Connection method On the device side | Manual solder/slip on connection (4.8 mm x 0.8 mm) |
| Frequency of connections between conductors of the same cross section | max. 10 (For the same conductor cross section) |
| Conductor connection | |
| Conductor cross section flexibel | 0.75 mm² ... 1.5 mm² |
| Conductor cross section solid | 0.75 mm² ... 1.5 mm² |
| Connection cross section AWG | 18 ... 16 |
| Tightening torque Union nut | 3 Nm |
| Tightening torque Contact carrier | 4.5 Nm |
| Tightening torque Locking nut | 4.5 Nm |
| Wrench size Union nut | 19 mm |
| Wrench size Contact carrier | 24 mm |

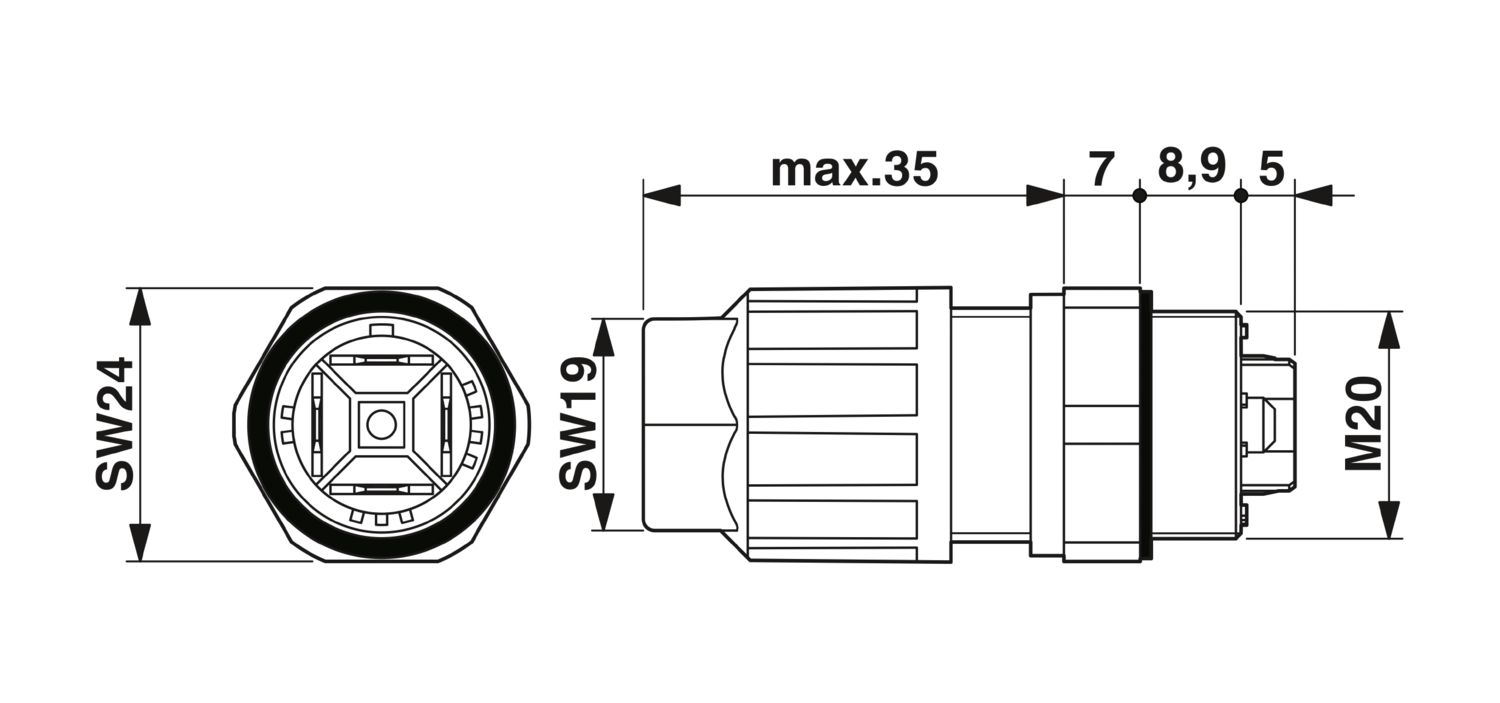

| Dimensional drawing |
|
| Width | 24 mm |
| Height | 24 mm |
| Length | 55.9 mm |
| Diameter | 24 mm |
| Rated surge voltage (II/2) | 6 kV |
| Rated surge voltage (III/2) | 6 kV |
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 15 A |
| rated voltage (II/2) | 1000 V |
| rated voltage (III/2) | 1000 V |
| Rated voltage (III/3) | 500 V (with insulating sleeve PT/FS 4,8. Without insulating sleeve 250 V AC.) |
| Nominal voltage UN | 500 V AC |
| 500 V DC | |
| Nominal current IN | 15 A |
| Color | black (RAL 9005) |
| Material Housing | PA |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC/PE/TPE/rubber |
| Contact material | Copper alloy |
| Contact surface material | Pre-nickel plated and tin-plated |
| Contact carrier material | PA |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| Wire diameter including insulation | 1.8 mm ... 3 mm |
| Material wire insulation | PVC/PE/TPE/rubber |
| Mounting type | Front mounting M20 |
| Assembly note | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Impact strength | IK06 |
| Ambient temperature (operation) (male connector/female connector) | -25 °C ... 80 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 250 V | 11 A |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 250 V | 15 A |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 500 V | 0.75 - 1.5 |
