cULus Listed
Approval ID: E468743| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Only rigid conductors | 600 V | 20 A | - 14 | |
| multi-stranded with ferrule | 600 V | 20 A | - 14 |

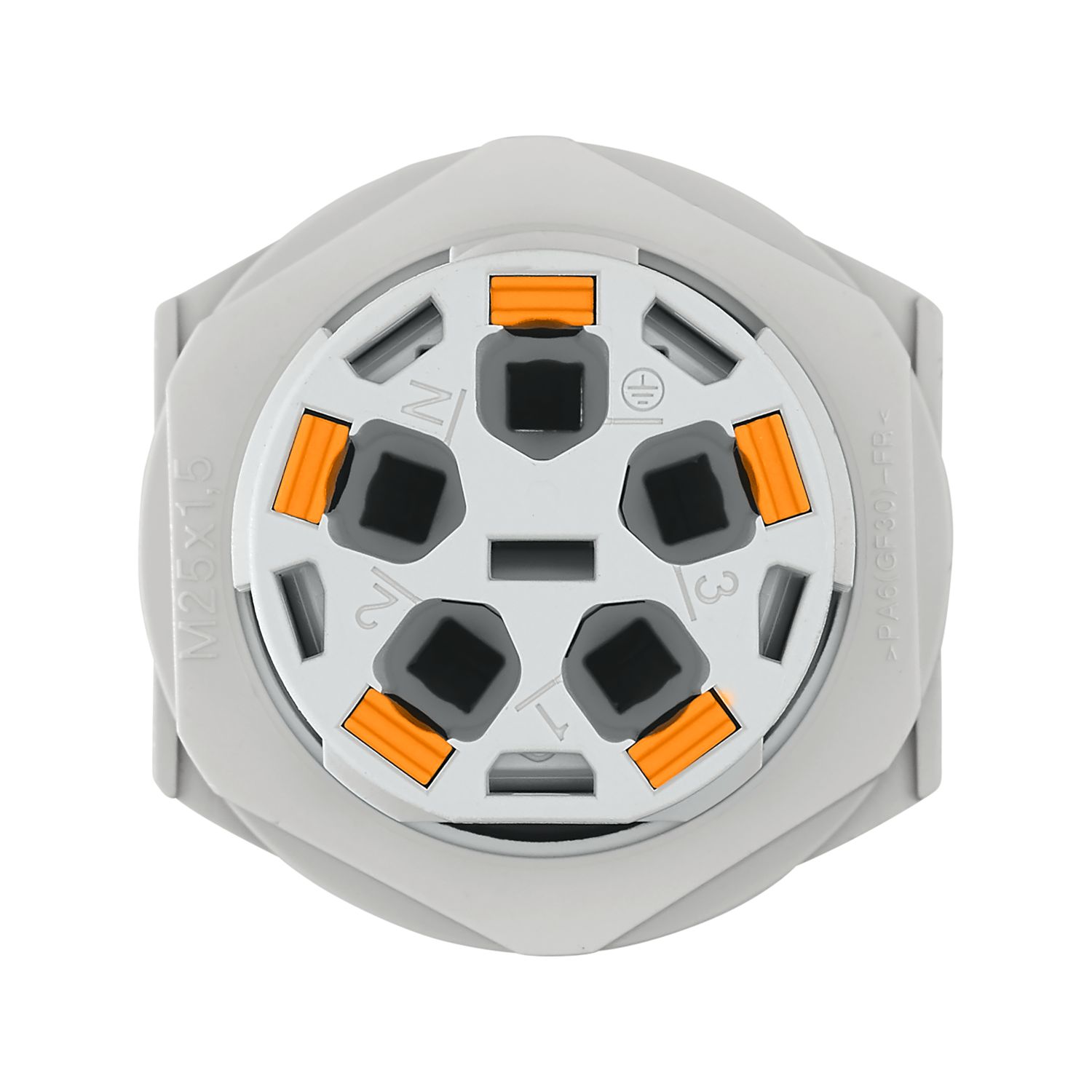

IPD W 5P2,5 F M25 GY
-
Panel feed-through
1088692
Panel feed-through, for connectors, product family: IPD, connection method: Push-in connection, number of positions: 4+PE, M25, Socket, 0.5 mm2 ... 2.5 mm2, 600 V, 17.5 A, PA, gray, coding: P
This product needs further products for operation.
Mandatory accessories
Product details
| General | NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Product type | Panel feed-through |
| Product family | IPD |
| Number of positions | 5 |
| Connection profile | 4+PE |
| Position marking | 1, 2, 3, N, PE |
| Number of connections per position | 1 |
| Type | for connectors |
| Coding | P |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |
| Connection method On the device side | Push-in connection |
| Conductor connection | |
| Conductor cross section flexibel | 0.5 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.5 mm² ... 2.5 mm² |
| Conductor cross section with ferrule | 0.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 20 ... 14 |
| Dimensional drawing |
|
| Width | 33 mm |
| Height | 33 mm |
| Length | 43.4 mm |
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 17.5 A |
| Rated voltage (III/3) | 600 V |
| Nominal voltage UN | 600 V AC |
| 600 V DC | |
| Nominal current IN | 17.5 A |
| Mechanical data | |
| Insertion/withdrawal cycles | 50 (IP66/IP68/IP69K) |
| 100 (IP66) | |
| Color | light gray (RAL 7035) |
| Material | PA |
| Material Seal | EPDM |
| Flammability rating according to UL 94 | V0 |
| Contact material | Cu |
| Contact surface material | Ni/Ag/Sn |
| Position marking | 1, 2, 3, N, PE |
| Mounting type | Front mounting M25 |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (2 m / 24 h) | |
| IP69K | |
| Touch-proof when not plugged in (IP2X) | |
| Impact strength | IK07 |
| Ambient temperature (operation) | -30 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -30 °C ... 100 °C |
| Resistance to UV radiation | yes |
Your advantages
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
