RS20-US-S0203-0202-014H-001
-

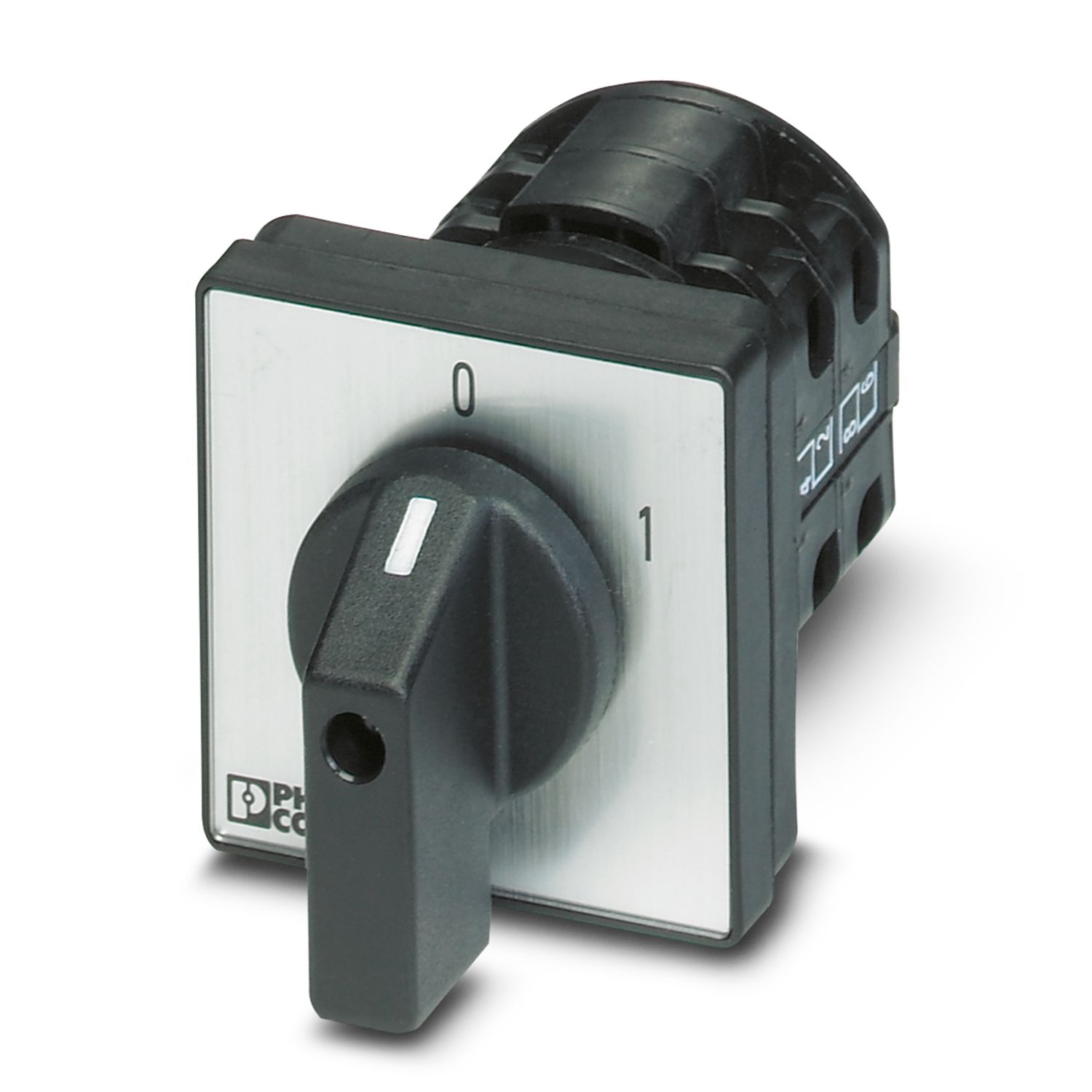

Off switch
3069709
Off switch, connection method: Screw connection, number of positions: 4, function: 0 ‑ 1, switching zones: 2, switching program number: S0203, rated continuous current: 20 A, voltage: 690 V
Product details
| Number of positions | 4 |
| Number of connections | 8 |
| Type | Built-in switch |
| Rotary switch function | 0 ‑ 1 |

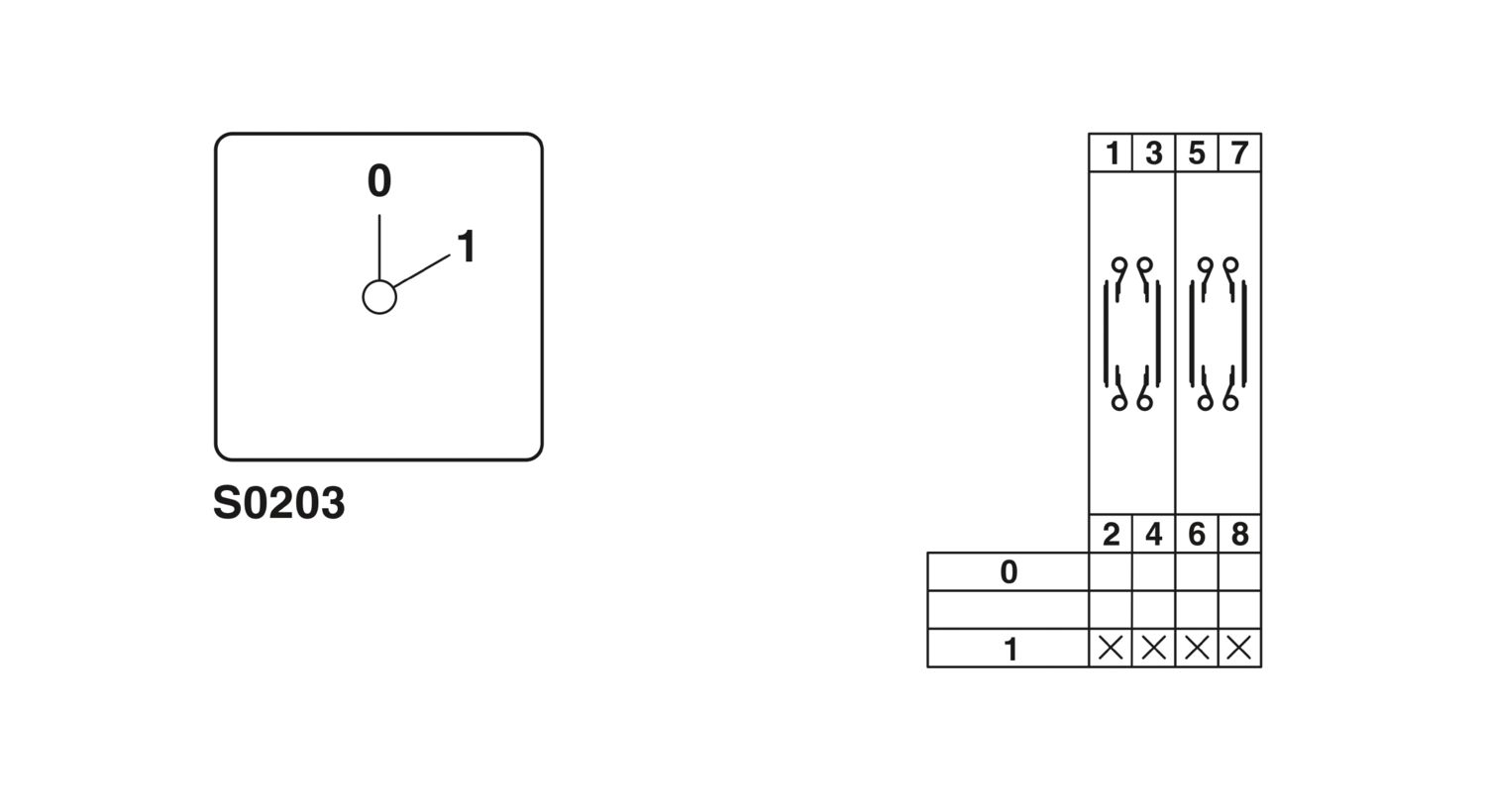

| Switching program number | S0203 |
| Maximum load current | 20 A |
| Rated insulation voltage | 690 V (Valid for networks with grounded neutral point, overvoltage category III, degree of pollution 3) |
| Rated surge voltage | 6 kV |
| Nominal current IN | 20 A |
| Maximum load current | 20 A |
| Tightening torque | 0.7 ... 0.8 Nm |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
| Cross section AWG | 20 ... 14 (converted acc. to IEC) |
| Conductor cross section flexible | 0.75 mm² ... 2.5 mm² |
| Conductor cross section, flexible [AWG] | 18 ... 14 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 2.5 mm² ... 2.5 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 1.5 mm² |
| 2 conductors with same cross section, solid | 0.5 mm² ... 2.5 mm² |
| 2 conductors with the same cross-section AWG rigid | 20 ... 14 (converted acc. to IEC) |
| 2 conductors with same cross section, flexible | 0.75 mm² ... 2.5 mm² |
| 2 conductors with the same cross-section AWG flexible | 18 ... 14 (converted acc. to IEC) |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 2.5 mm² ... 2.5 mm² |
| 2 conductors with the same cross section, flexible, with ferrule with plastic sleeve | 1.5 mm² ... 1.5 mm² |
| Nominal voltage | 690 V |

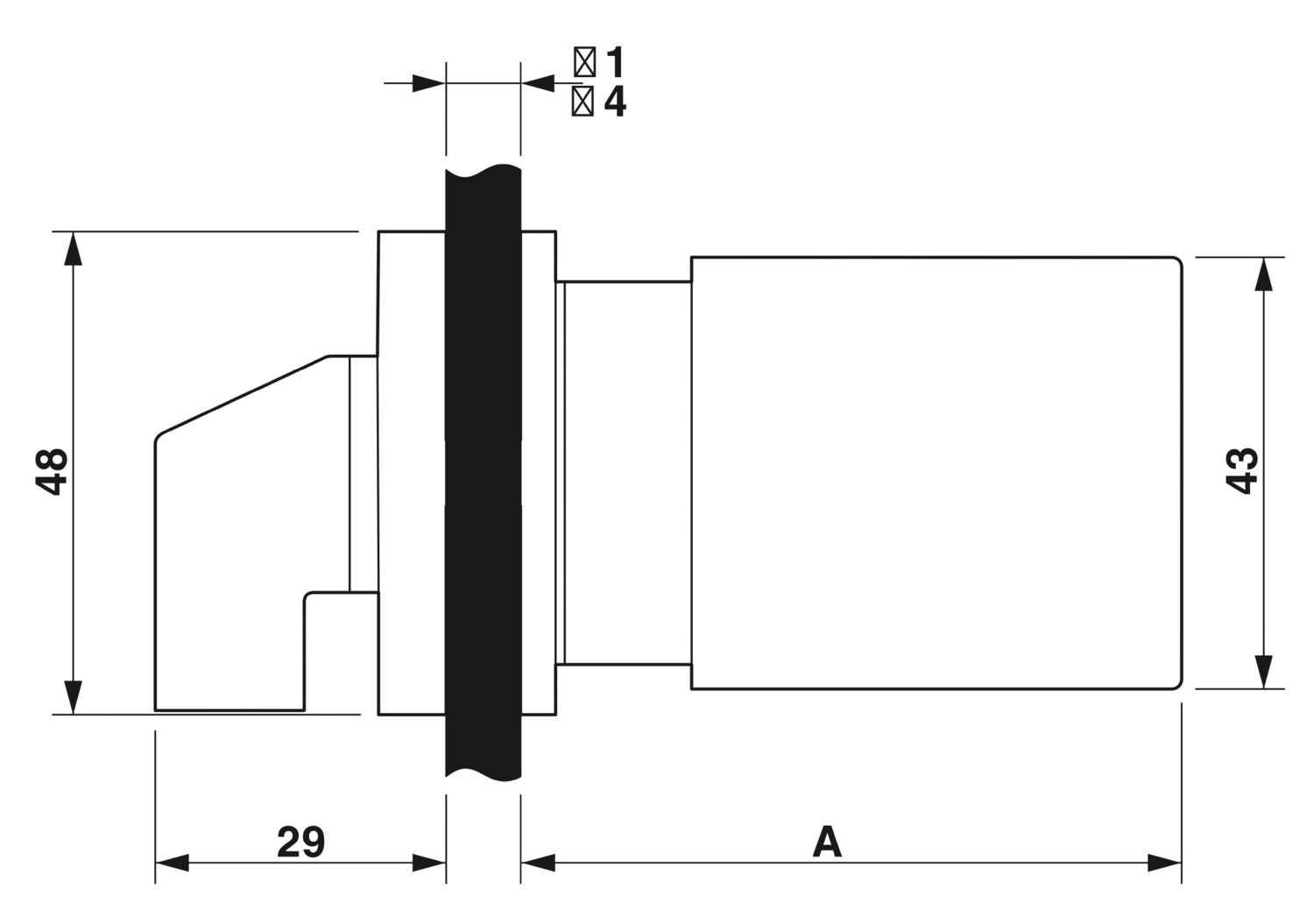

| Dimensional drawing |
|
| Width | 48 mm |
| Height | 48 mm |
| Length | 72 mm |
| Hole diameter | 7 mm |
| Installation dimensions | |
| Installation depth | 43 mm |
| Color | silver/black |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Components | Free from halogen and cadmium |
| Degree of protection (IP code) | |
| Degree of protection | IP65 |
| Ambient conditions | |
| Ambient temperature (operation) | -35 °C ... 55 °C (Open, at 100% load, with peaks up to 60°C) |
| -35 °C ... 35 °C (Encapsulated, at 100% load, with peaks up to 60°C) | |
| Mounting type | direct screw connection |
Your advantages
The compact rotary switch is designed for use in energy technology applications with the available switching programs
The use of high-quality materials results in a long mechanical and electrical service life
Comprehensive approvals ensure international use
High level of safety thanks to non-conductive plastic parts
The terminal points are designed in such a way that shock protection according to BGV A2 is ensured
The rotary switch is free from cadmium and compliant with the RoHS directive
