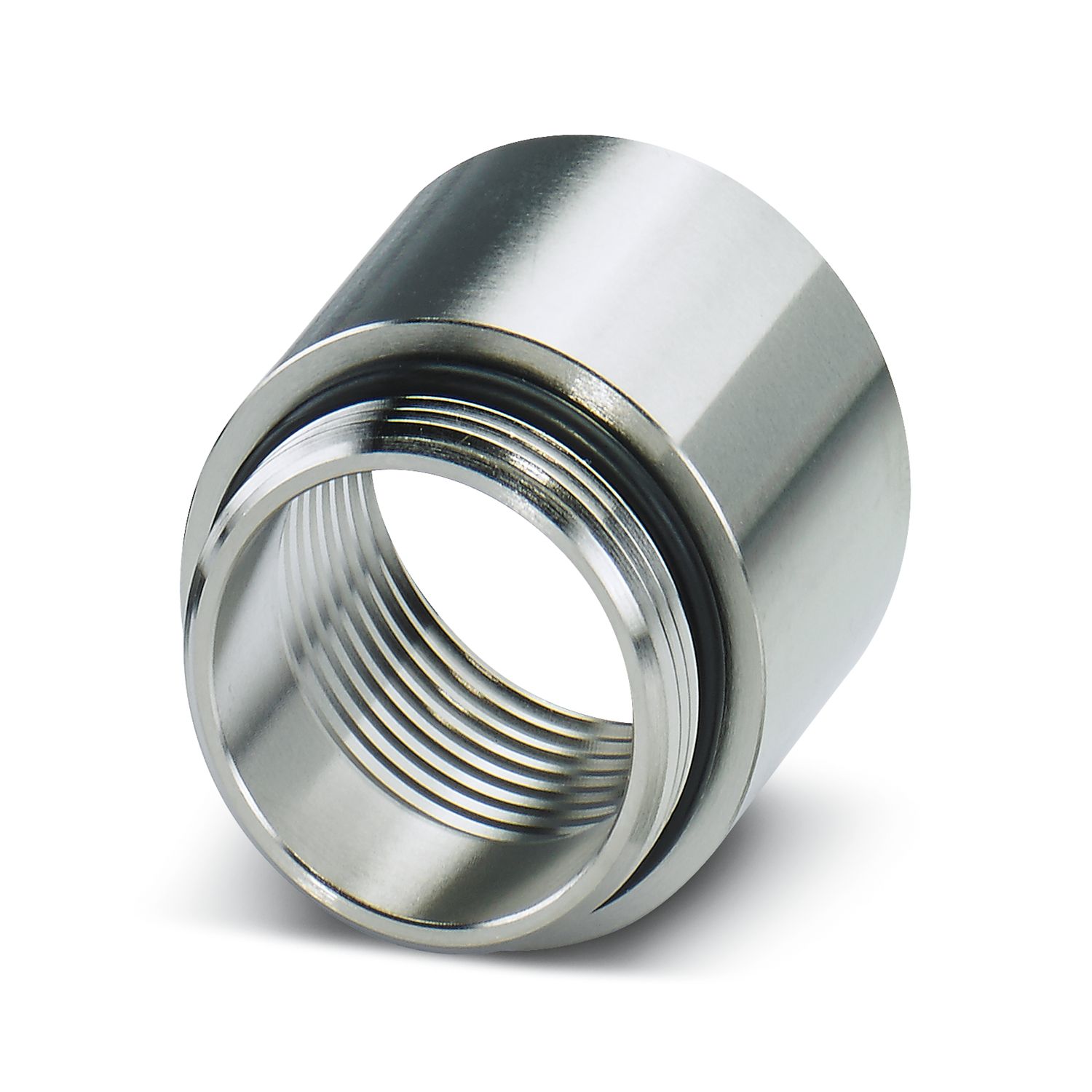

HC-NPT-1/1-M32
-
Adapter
1686863
NPT adapter, IP68, up to 5 bar, incl. O-ring seal, M32 to 1"
Product details
| Product type | NPT adapter |

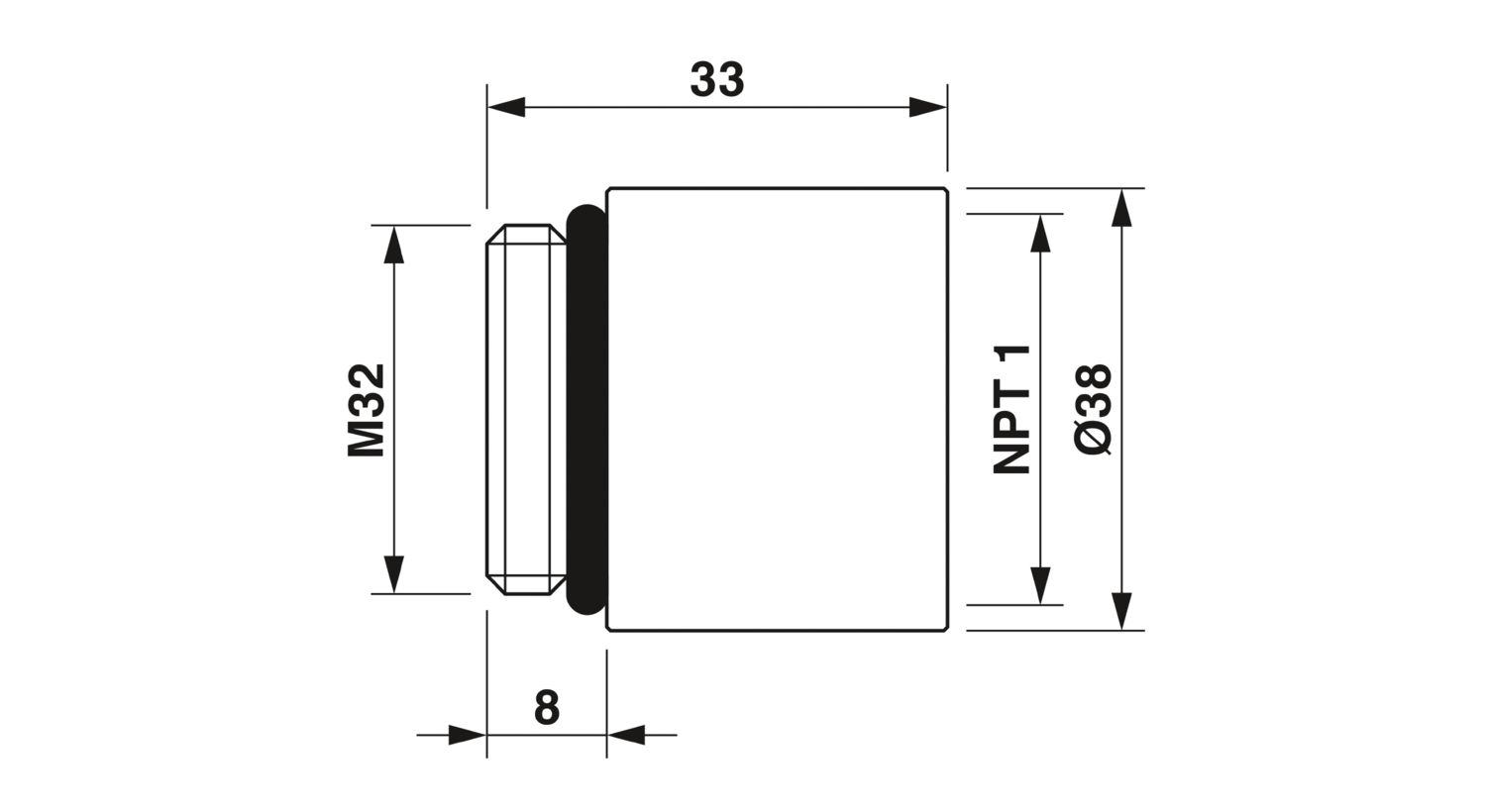

| Dimensional drawing |
|
| Length | 33 mm |
| Length of the connecting thread | 8 mm |
| Length without connecting thread | 25 mm |
| Diameter | 32 mm |
| Connecting thread diameter | 32 mm |
| Thread type connection side | M32 |
| Thread type on seal side | 1"-NPT |
| Color | brass color |
| Material | Brass, nickel-plated |
| Seal material O-ring | NBR |
| Ambient conditions | |
| Degree of protection | IP68 (Depends on the screw connection used) |
| Ambient temperature (operation) | -20 °C ... 80 °C |
