FL SWT - Network management software

2831044

Factory Manager, multilingual, configuration and diagnostics software for Ethernet networks in automation

Free download available. Downloads

Product details

Technical data

Product properties

Product type	Network management software

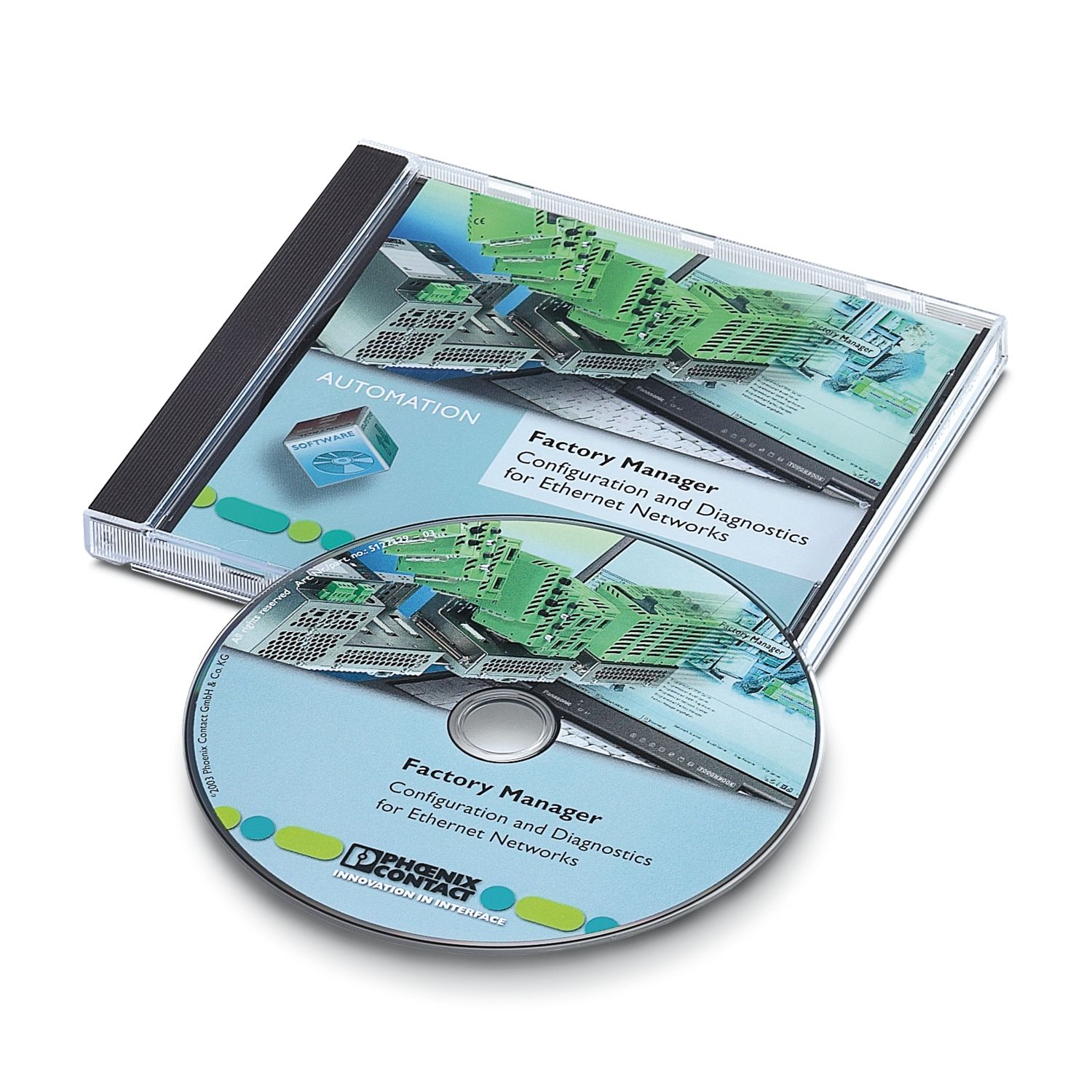

Scope of supply	CD-ROM with multilingual product version, online documentation -Internet Explorer, Service Pack and Acrobat Reader (D/E) -Winsock 2 -Java Runtime Environment

System properties

Intended use for the software	Configuration
Intended use for the software		Diagnostics
Functionality
Basic functions	The Factory Manager is a software tool designed for the requirements of the industrial user, for startup, operation and maintenance of Ethernet networks in the automation environment.
Configuration	Allocation of IP addresses (via integrated BootP server), support for SNMPv1 (network management), detecting devices in the network (autodiscovery), exporting network configurations as doc, xls or txt file, firmware update via integrated TFTP server
Diagnostics	Status monitoring of devices, detailed representation of information on the devices (e.g. IP address, MAC address, network status), alarm and event logging (e.g. SNMP traps, BootP messages, network scanner, messages can be exported as doc, .xls, .txt files
Web-based management	Access via integrated browser
Associated hardware	Ethernet infrastructure components
System requirements
Operating equipment	Keyboard, mouse recommended
Operating system	Windows 2000, Windows NT, Windows XP, TCP/IP Stack, SNMP Agent
Processor	PC Pentium > 266 MHz
Hard disk memory	min. 20 Mbyte (For Factory Manager)
RAM	min. 32 Mbyte
Network card	Correctly configured ETHERNET network card with TCP/IP protocol stack
Supported browsers	Internet Explorer 4.01 or higher
Languages supported	German, English
Optical drive	CD-ROM
Software requirements	Internet Explorer 4.x or higher
		TCP/IP stack, SNMP services
		Only with Windows 95: Winsock 2 update
		Windows 9x, Window NT, Windows 2000, Windows XP (Sp1 required)
Screen resolution	640 x 480

Commercial data

Item number	2831044
Packing unit	1 pc
Note	Made to order (non-returnable)
Sales key	NULL
Product key	DNN155
Catalog page	Page 120 (AX-2009)
GTIN	4017918599331
Weight per piece (including packing)	236 g
Weight per piece (excluding packing)	236 g
Customs tariff number	85234945
Country of origin	DE

Environmental product compliance

Your advantages

Integrated trap receiver

Integrated TFTP and BootP server

EU RoHS
Fulfills EU RoHS substance requirements	Not applicable (No electrical and electronic equipment (EEE), cannot be used in EEE)
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
